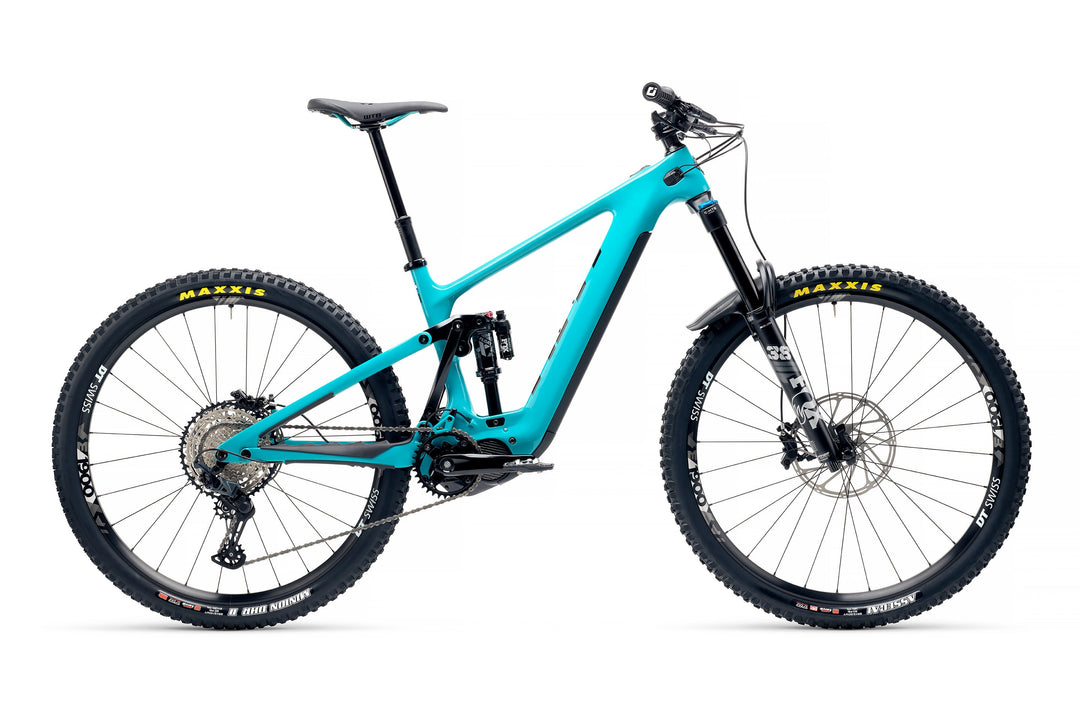

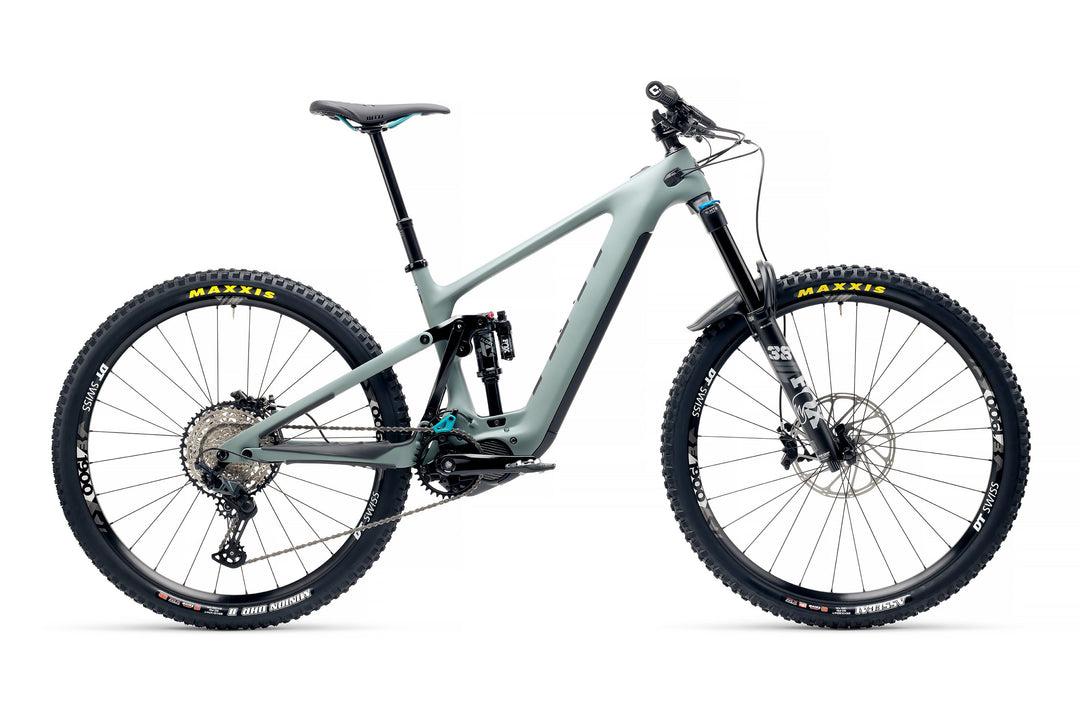

160E C1 Performance Float X 2022
160E C1 Performance Float X 2022

160E C1 Performance Float X 2022

Regular price $18,989.90 //
/

Why did it take us so long to make the 160E? Because we thought its only wise that we heed the laws of physics. So we took the time to explore and build the 160E on an all new suspension platform, we call Sixfinity™. Also allows us to address the added power, weight and unique demands of an E-bike. Sure it took us some time. From what we've learned along the way, it'll save even more. The first E-bike built for racing, the 160E breaks new grounds.

FEATURES

  • Boost spacing and SRAM UDH hanger.
  • 446mm chain stay.
  • Uninterrupted 31.6 seat tube offers great dropper post compatibility.
  • Rated to Yeti DH standards.
  • Floating collet axles and pinch bolts on the linkage extend bearing life and ensure optimal, consistent alignment.
  • Custom OneUp chain guide mount.
  • MD thru XL Mainframes accommodate a standard water bottle while our "hot lap" bottle will fit in a SM frame.
  • Custom cable ports, captured hoses and housing and ribbed chainstay guards provide a silent ride.
  • The frame ports are also configurable for clean setup whether you run cabled, wireless or a combination for your dropper and derailleur.
  • "Moto" brake compatible routing (Left Rear Brake/Right Front Brake).
  • Tube in tube routing in swingarm for rear brake, speed sensor and derailleur.
  • Rear mud fender protects motor and linkage.
  • Shock drain hole to keep water and mud out.
FORK FOX PERFORMANCE 38/170MM E-TUNE
SHOCK FOX PERFORMANCE FLOAT X
WHEELSET DT SWISS E1900 30MM
REAR DERAILLEUR SHIMANO SLX
SHIFT SHIMANO SLX
CRANK SHIMANO EM600 34T 160MM
CASSETTE SHIMANO SLX 10-51
CHAIN SHIMANO SLX
BRAKES SRAM CODE R
ROTOR F/R SRAM CENTERLINE 220/SRAM CENTERLINE 200
POST ONEUP DROPPER POST 31.6MM
TYRE (F) MAXXIS ASSEGAI 2.5 EXO+
TYRE (R) MAXXIS MINION DHR II 2.4 DD
HEADSET CANE CREEK 40 INTEGRATED
BAR YETI CARBON 35X800MM EBIKE
STEM BURGTEC ENDURO MK3 35X50MM
GRIPS ODI ELITE PRO
SADDLE SILVERADO CUSTOM
BATTERY SHIMANO 630WH INTERNAL BATTERY
DRIVE UNIT SHIMANO EP8

Yeti SB160E Geometry NZ

SM MD LG XL
A SEAT TUBE LENGTH 380 410 450 495
B TOP TUBE LENGTH [EFFECTIVE] 561 592 613 642
C HEAD TUBE ANGLE 64.5° 64.5° 64.5° 64.5°
D SEAT TUBE ANGLE [EFFECTIVE] 78° 78° 78° 78°
E CHAINSTAY LENGTH 446 446 446 446
F WHEELBASE 1209 1240 1262 1292
G BB HEIGHT [ESTIMATED] 350 350 350 350
H STANDOVER 754 754 754 754
I HEAD TUBE LENGTH 95 98 104 115
J FORK [AXLE-TO-CROWN] 584 584 584 584
K FORK [OFFSET] 44 44 44 44
L STACK 617 620 625 635
M REACH 430 460 480 505
N FRONT CENTER 762 794 816 846

Yeti 160E Size Guide NZ
