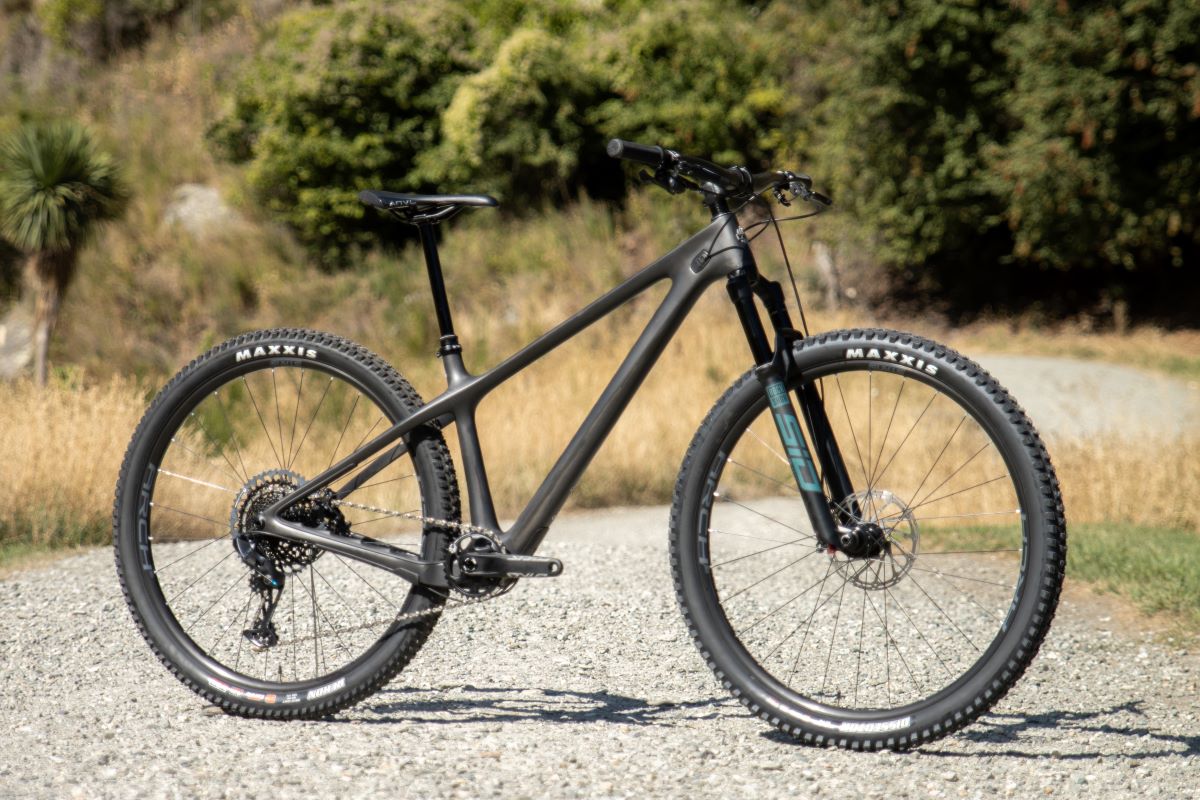

The ARC is back. Conjuring up all the nostalgia, hoots and hollars from yesteryear. It’s your instant-feedback steed for any trail. Show it your singletrack, pump track and your bikepack route too. It’s got history to live up to and new history to make. And it’s already impatient.
Size Medium
-
FRAME

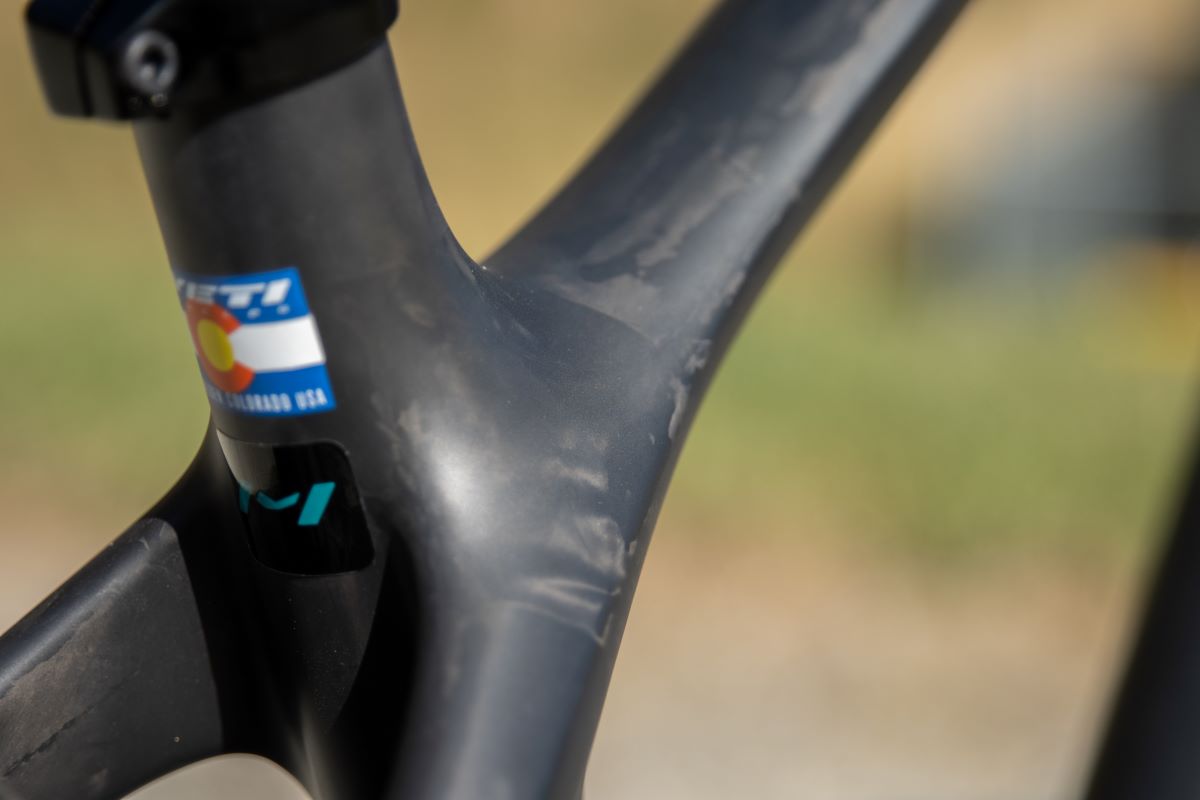

Turq Series carbon fiber frame
FORK
RockShox SID Select+
120mm, 44mm Offset
HEADSET
FSA No.57E
STEM
RaceFace Aeffect R (50mm)
HANDLEBAR
ANVL Mandrel Alloy (800mm x 20mm)
GRIPS
ODI Elite Flow
SADDLE
ANVL Forge Cromo
SEATPOST
OneUp Dropper Post
BRAKES
SRAM G2 RS
ROTORS
SRAM Centerline (180/160mm)
SHIFTER
SRAM GX Eagle
DERAILLEUR

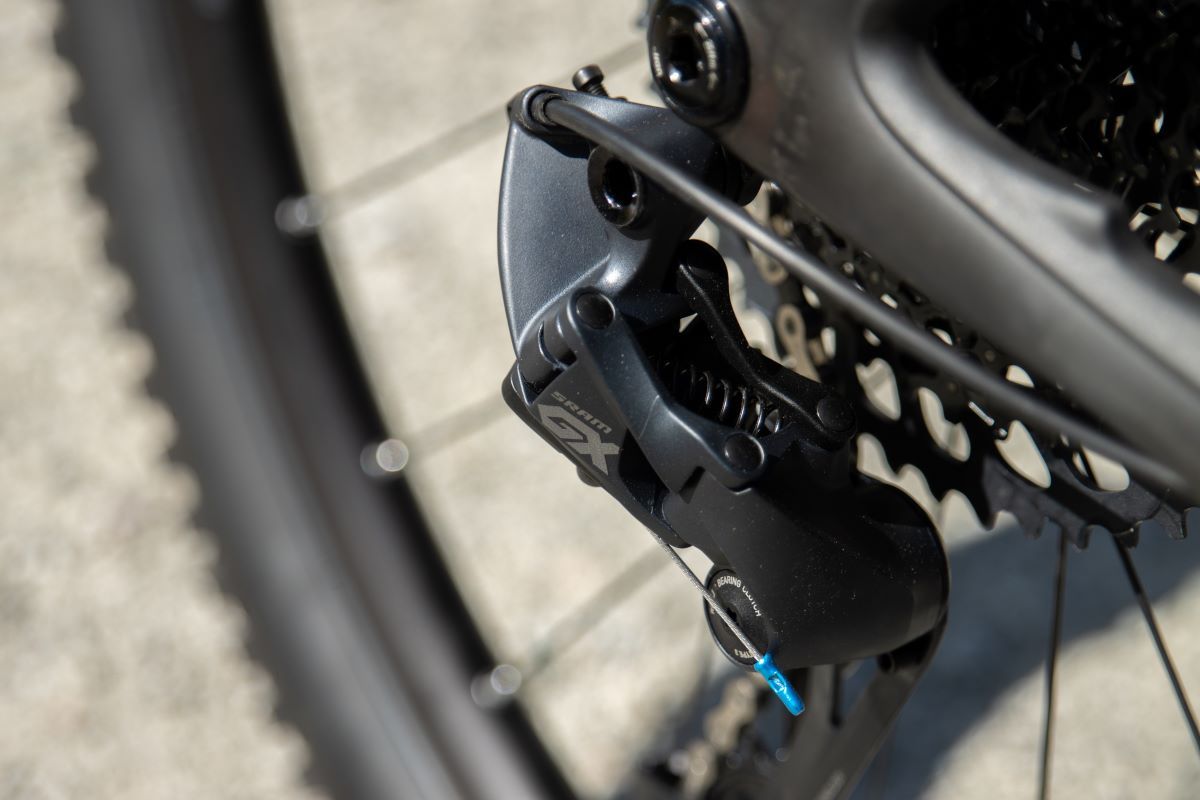

SRAM GX Eagle
CASSETTE
SRAM XG 1275 (10-52t)
CHAIN
SRAM GX Eagle
CRANK
SRAM Stylo 7K DUB
(32t/175mm) Small 170mm
RIMS
Stans Arch S1 Team
HUBS
Stans Neo Durasync
SPOKES
Sapim Race Double Butted
TIRE/FRONT
Maxxis Dissector 3C EXO (29x2.4)
TIRE/REAR
Maxxis Rekon 3C EXO (29x2.4)
INCLUDED
Tubeless Valves & Sealant
| SM | MD | LG | XL | ||
| A | WHEEL SIZE | 29 | 29 | 29 | 29 |
| B | REACH | 16.5 | 17.5 | 18.3 | 19.3 |
| C | EFFECTIVE TOP TUBE LENGTH | 22.7 | 23.8 | 24.6 | 25.7 |
| D | STACK | 24.9 | 25.2 | 25.4 | 25.8 |
| E | HEADTUBE LENGTH | 3.7 | 4.1 | 4.3 | 4.7 |
| F | SEAT TUBE LENGTH | 15 | 16.1 | 17.7 | 19.5 |
| G | EFF. SEAT TUBE ANGLE | 76 | 76 | 76 | 76 |
| H | HEADTUBE ANGLE | 67 | 67 | 67 | 67 |
| I | ESTIMATED BB HEIGHT | 12.2 | 12.2 | 12.2 | 12.2 |
| J | CHAINSTAY LENGTH | 17.0 | 17.0 | 17.0 | 17.0 |
| K | FRONT CENTER | 28.0 | 29.1 | 30.0 | 31.1 |
| L | WHEELBASE | 45 | 46.1 | 47.0 | 48.2 |
| M | STANDOVER | 28.5 | 28.4 | 28.3 | 28.3 |
| N | AXLE TO CROWN | 21.4 | 21.4 | 21.4 | 21.4 |
| O | OFFSET | 1.7 | 1.7 | 1.7 | 1.7 |
| P | VERTICAL FORK TRAVEL | 4.7 | 4.7 | 4.7 | 4.7 |
