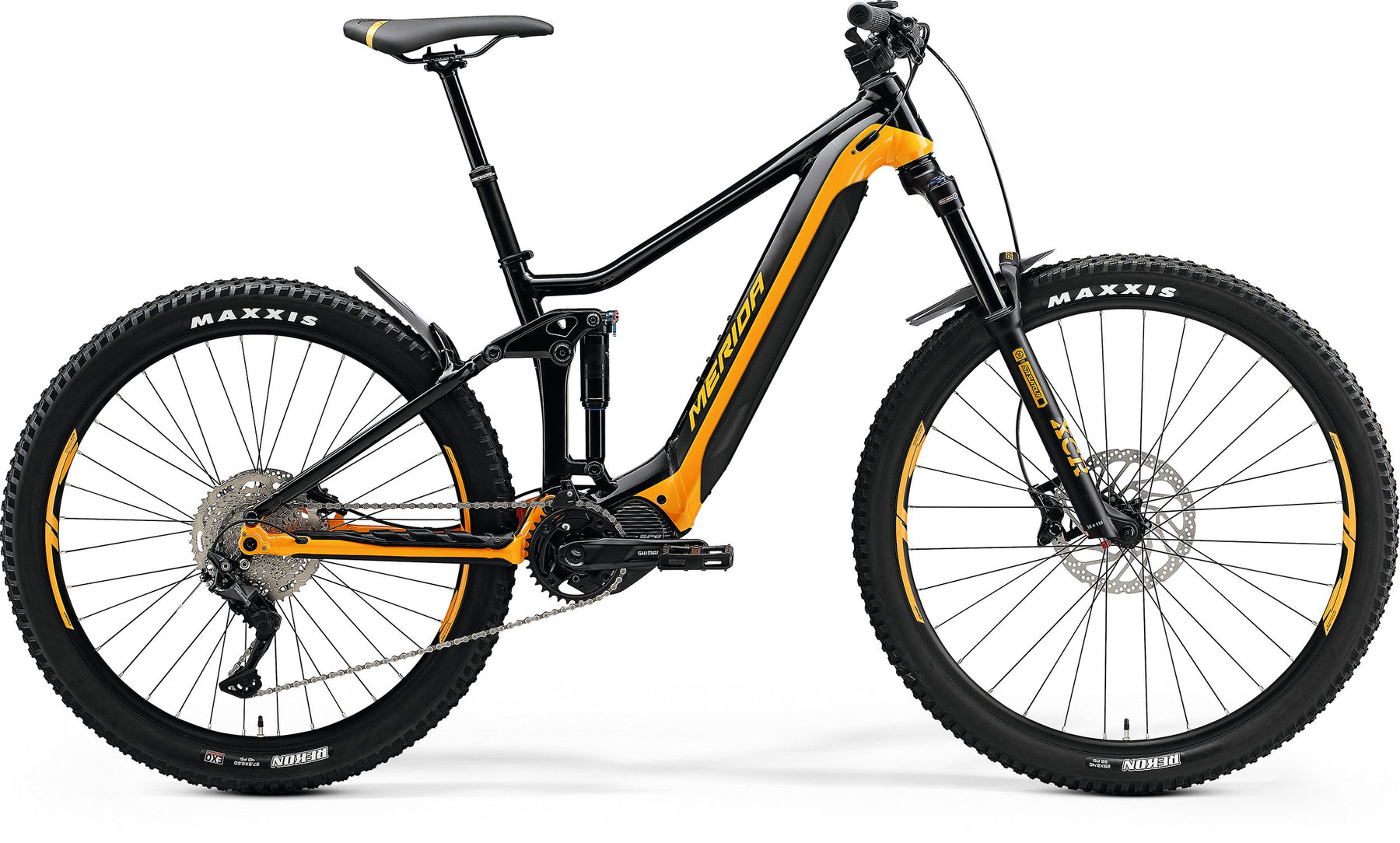

Our eONE-FORTY 400 proves you don't need to spend a fortune to get a rugged trail eMTB that can power your adventures, with the refined Shimano EP8 drive unit and a tough aluminium frame and sleekly integrated 630 Wh battery. SR Suntour suspension and our mixed wheel size setup means real off-road ability paired with grin-inducing agility. Quality components such as the wide range Shimano drivetrain and powerful hydraulic brakes mean you'll always be in control.
The eONE-FORTY might be the little sibling to our multiple award and test winning eONE-SIXTY, but when it comes to providing agile trail handling with superb flow and fun, it plays second fiddle to no-one. Equipped with Shimano’s powerful yet refined EP8 drive unit and with the 630 Wh or 750 Wh battery (model specific) integrated seamlessly into the frame, it’s the perfect partner for all kinds of adventures. The trail-specific, balanced geometry is paired to a mixed 29er/27.5” wheel size setup that delivers flow and fun for riders of all abilities, while a steeper seat angle boosts climbing capability, something ideal for an all-day e-bike mission. The low bottom bracket and lower standover height mean extra confidence while the 140 mm of front wheel and 133 mm of rear wheel travel offer up control, comfort and real rough terrain capability. The eONE-FORTY’s versatility is boosted even further by the EQ model that comes fully equipped with mudguards, rack, lights and kickstand so it can tackle the mean streets as well as muddy trails.
| FRAME SIZE | S | M | L | XL | XXL |
| TYRE SIZES | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" |
| ST SEAT TUBE [MM] | 405 | 415 | 430 | 450 | 470 |
| TT TOP TUBE [MM] | 561 | 581 | 603 | 624 | 645 |
| CS CHAIN STAY LENGTH [MM] | 439.5 | 439.5 | 439.5 | 439.5 | 439.5 |
| HTA HEAD TUBE ANGLE [°] | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
| STA SEAT TUBE ANGLE [°] | 76.5 | 76.5 | 76.5 | 76.5 | 76.5 |
| BD BOTTOM BRACKED DROP [MM] | 25 | 25 | 25 | 25 | 25 |
| HT HEAD TUBE [MM] | 110 | 115 | 120 | 125 | 130 |
| FL FORK LENGTH [MM] | 551 | 551 | 551 | 551 | 551 |
| R REACH [MM] | 410 | 430 | 450 | 469 | 489 |
| S STACK [MM] | 622 | 627 | 631 | 635 | 640 |
| WB WHEEL BASE [MM] | 1160 | 1182 | 1204 | 1226 | 1248 |
| SH STAND OVER HEIGHT [MM] | 729 | 730 | 727 | 733 | 747 |
