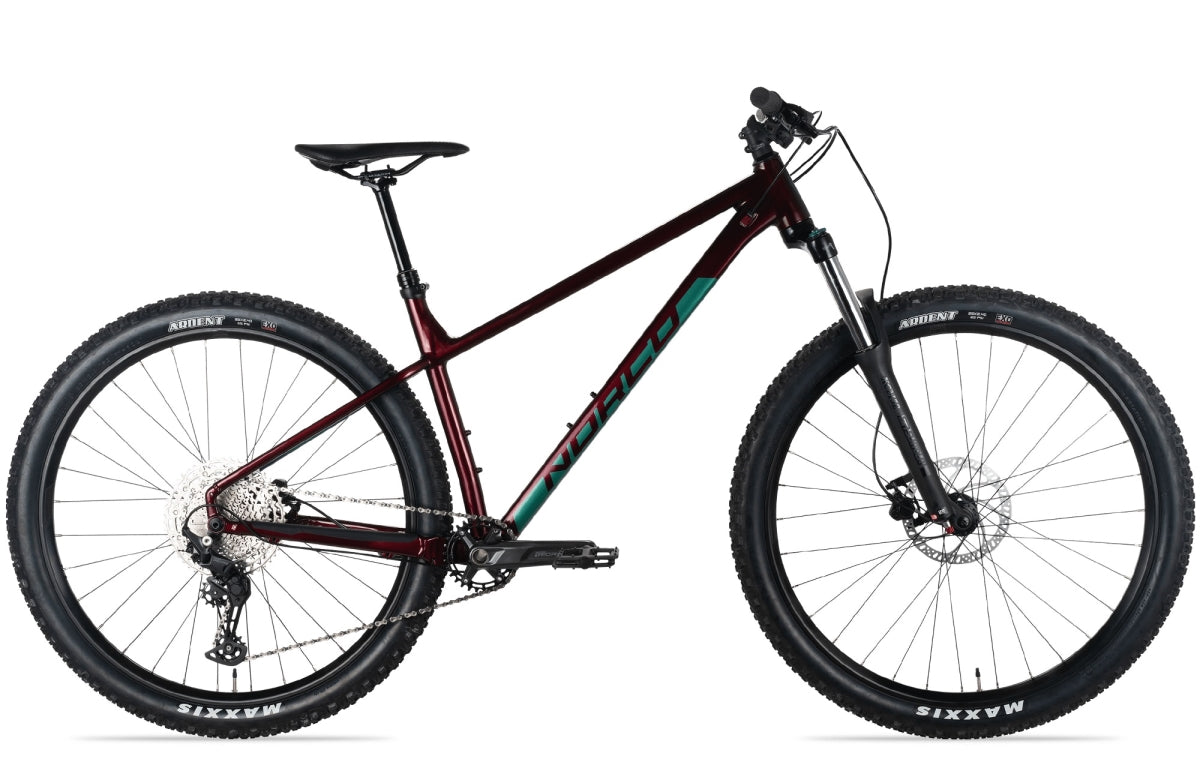

The Fluid HT 2 is the ultimate singletrack adventure hardtail.
The double-butted aluminum hardtail’s progressive design and size-scaled tubing provides a premium, next-level trail ride for every rider across all frame sizes.
REASONS IT'S RAD
| FRAME | 6061 Alloy, Butted TT, DT, Internal Routing, 27.5" and 29" Options |
| FORK | SR Suntour XCM32 LOR DS, 120mm Travel |
| REAR SHIFTER | Shimano Deore SL-M5100 |
| REAR DERAILLEUR | Shimano Deore RD-M5100 |
| CRANKSET | Shimano Deore FC-M5100-1, 30T, 170mm (XS, S,), 175mm (M, L, XL) |
| BOTTOM BRACKET | Shimano Sealed Bearing BSA Threaded |
| CASSETTE | Shimano Deore CS-M5100, 11-51T, 11 Speed |
| CHAIN | KMC X11 |
| PEDALS | VP Nylon Flat |
| FRONT BRAKE | Tektro HD-M275 Hydraulic, Resin Pads |
| FRONT BRAKE ROTOR | Tektro 180mm |
| REAR BRAKE | Tektro HD-M275 Hydraulic, Resin Pads |
| REAR BRAKE ROTOR | Tektro 160mm |
| BRAKE LEVERS | Tektro HD-M275 |
| HANDLEBAR | X6 Alloy 750mm, 15mm Rise |
| STEM | Alloy 50mm Length, 31.8mm Clamp |
| SEATPOST | TranzX YSP18 Dropper, 31.6mm, 130mm |
| HEADSET | Sealed Bearing, Tapered |
| SADDLE | Norco XC |
| GRIPS | VP Lock-On |
| SEATPOST CLAMP | Norco Alloy Nutted Clamp |
| FRONT HUB | Alloy 15x110mm Boost, 6 Bolt |
| REAR HUB | Alloy 12x148mm, HG, 6 Bolt |
| RIMS | Alex DP30 TRS |
| TIRES | Maxxis Ardent 2.4" EXO 60TPI |
| SPOKES/NIPPLES | Stainless Black |
Geometry
| Travel (mm front) | 27.5" | XS120 | S120 | M120 |
| 29" | M120 | L120 | XL120 | |
| Reach | 27.5" | XS380 | S410 | M440 |
| 29" | M440 | L470 | XL500 | |
| Stack | 27.5" | XS585 | S594 | M603 |
| 29" | M619 | L628 | XL637 | |
| Head Tube Angle | 27.5" | XS66.0 | S66.0 | M66.0 |
| 29" | M66.5 | L66.5 | XL66.5 | |
| Fork Offset | 27.5" | XS42 | S42 | M42 |
| 29" | M51 | L51 | XL51 | |
| Seat Tube Length | 27.5" | XS370 | S390 | M420 |
| 29" | M420 | L450 | XL490 | |
| Effective Seat Tube Angle | 27.5" | XS74.5 | S74.5 | M74.5 |
| 29" | M74.5 | L74.5 | XL74.5 | |
| Rear Centre Length | 27.5" | XS430 | S430 | M430 |
| 29" | M430 | L430 | XL430 | |
| Bottom Bracket Drop | 27.5" | XS40 | S40 | M40 |
| 29" | M58 | L58 | XL58 | |
| Bottom Bracket Height | 27.5" | XS320 | S320 | M320 |
| 29" | M320 | L320 | XL320 | |
| Horizontal Top Tube | 27.5" | XS542 | S575 | M607 |
| 29" | M612 | L644 | XL677 | |
| Wheelbase | 27.5" | XS1097 | S1131 | M1165 |
| 29" | M1166 | L1200 | XL1234 | |
| Standover | 27.5" | XS598 | S617 | M647 |
| 29" | M661 | L677 | XL701 | |
| Head Tube Length | 27.5" | XS100 | S110 | M120 |
| 29" | M100 | L110 | XL120 | |
| Trail | 27.5" | XS114 | S114 | M114 |
| 29" | M109 | L109 | XL109 | |
| Recommended Seatpost Drop | 27.5" | XS100 | S100 | M130 |
| 29" | M130 | L130 | XL130 | |
| Maximum Post Insertion | 27.5" | XS250 | S250 | M250 |
| 29" | M250 | L245 | XL250 | |
| Stem Length | 27.5" | XS50 | S50 | M50 |
| 29" | M50 | L50 | XL50 | |
| Crank Length | 27.5" | XS170 | S170 | M175 |
| 29" | M175 | L175 | XL175 | |
| Tire Size | 27.5" | XS2.35" - 2.6" | S2.35" - 2.6" | M2.35" - 2.6" |
| 29" | M2.35" - 2.6" | L2.35" - 2.6" | XL2.35" - 2.6" | |
| Water Bottle Compatible | 27.5" | XS1 x 750 mL | S1 x 750 mL | M1 x 750 mL |
| 29" | M1 x 750 mL | L1 x 750 mL | XL1 x 750 mL |
