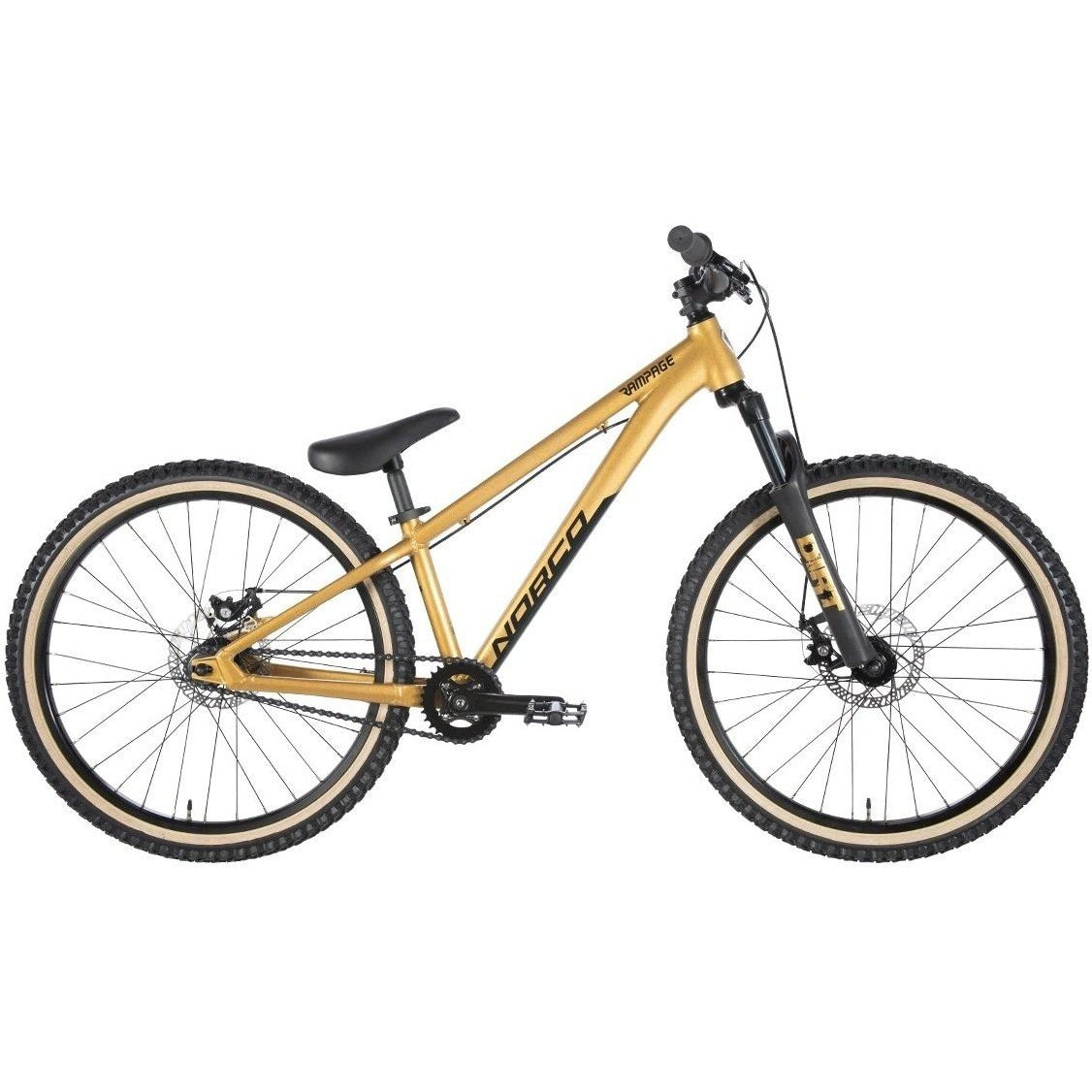

The Rampage 2 24” is the ultimate evolution in Dirt Jumpers with a light frame that gets young riders up to speed fast with the perfect mix of agility and stability.
Reasons it's Rad
- Built to shred and look good doin' it.
- Lightweight aluminum frame built to last.
- Hand picked jump-specific components.
- Two wheel sizes and two models.
- Evolved frame features push the potential.
| 01. FRAME | Aluminum DJ 24" |
| 02. FORK | RST Dirt 80mm Travel |
| 03. CRANKSET | JY 140mm 3 piece direct mount narrow/wide 30T ring |
| 04. BOTTOM BRACKET | Square taper threaded |
| 05. CHAIN | KMC Z1 black 1/2 x 3/32" |
| 06. PEDALS | VP Jr Flat with steel pins |
| 07. FRONT BRAKE | Tektro MD-280 Mechanical disc, 160mm |
| 08. REAR BRAKE | Tektro MD-280 Mechanical disc, 160mm |
| 09. HANDLEBAR | Norco 6061 DB alloy 640mm, 25mm rise |
| 10. STEM | Alloy 35mm |
| 11. SEATPOST | Integrated w/saddle 27.2mm |
| 12. HEADSET | FSA No 42 ACB |
| 13. SADDLE | Norco One Piece |
| 14. GRIPS | Norco Jr.115mm, lock on |
| 15. SEATPOST CLAMP | Norco Alloy QR |
| 16. FRONT HUB | Norco alloy disc, flange nuts |
| 17. REAR HUB | Norco Joytech Alloy Disc, freewheel |
| 18. RIMS | Alex MUS 30, 24" |
| 19. FRONT TIRE | Kenda K-Rad, 24x2.3" Skinwall |
| 20. REAR TIRE | Kenda K-Rad, 24x2.3" Skinwall |
| 21. SPOKES/NIPPLES | Stainless, Black |
| Travel (mm front) | 24" | 80 |
| Reach | 24" | 355 |
| Stack | 24" | 559 |
| Head Tube Angle | 24" | 69.0 |
| Fork Offset | 24" | 40 |
| Seat Tube Length | 24" | 290 |
| Effective Seat Tube Angle | 24" | 73.0 |
| Rear Centre Length | 24" | 370 |
| Bottom Bracket Rise/Drop | 24" | -50 |
| Bottom Bracket Height | 24" | 263 |
| Horizontal Top Tube | 24" | 526 |
| Wheelbase | 24" | 960 |
| Standover | 24" | 422 |
| Head Tube Length | 24" | 100 |
| Trail | 24" | 77 |
| Stem Length | 24" | 35 |
| Crank Length | 24" | 140 |
| Tire Size | 24" | 2.1" - 2.3" |
