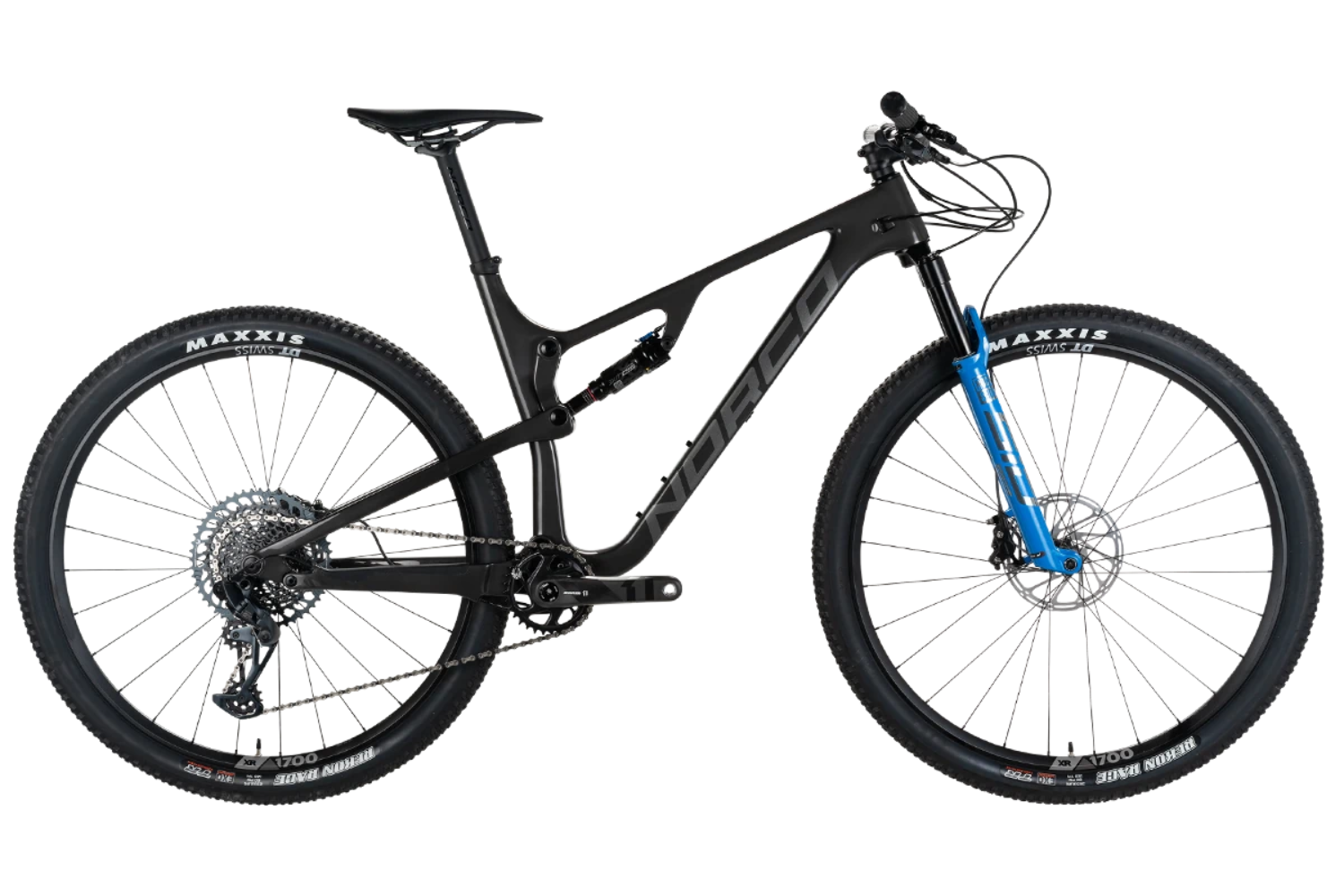

Performance XC as redefined by the Norco Factory XC Team. Revolver FS 1 100.
Make the most of every pedal stroke and every last precision-tuned millimeter of suspension travel on every part of today's technically demanding XC courses.
REASONS IT'S RAD
| FRAME | Hi-Mod Carbon, 100mm |
| FORK | RockShox SID SL Ultimate, 100mm, 44mm Offset |
| REAR SHOCK | RockShox SIDLuxe Select+ RLR, Remote, 190x37.5mm |
| REAR SHIFTER | SRAM GX Eagle |
| REAR DERAILLEUR | SRAM GX Eagle |
| CRANKSET | SRAM X1 Eagle DUB Carbon, 32T, 170mm (S), 175mm (M, L, XL) |
| BOTTOM BRACKET | SRAM BB DUB PF92 |
| CASSETTE | SRAM XG1275 Eagle, 10-52T |
| CHAIN | SRAM GX Eagle |
| FRONT BRAKE | SRAM Level TLM, Organic Pads |
| FRONT BRAKE ROTOR | SRAM Centerline, 180mm |
| REAR BRAKE | SRAM Level TLM, Organic Pads |
| REAR BRAKE ROTOR | SRAM Centerline, 160mm |
| BRAKE LEVERS | SRAM Level TLM |
| HANDLEBAR | Butted Alloy Lite, 760mm, 15mm Rise |
| STEM | Norco SL Alloy Stem, 60mm Length, 31.8mm Clamp |
| SEATPOST | Norco SL Alloy, 31.6mm |
| HEADSET | FSA Internal Cartridge Bearing |
| SADDLE | Norco SL Race, Chromo Rails, Black |
| GRIPS | SRAM |
| FRONT HUB | DT Swiss XR 1700 Spline, 15x110mm Boost, 6 Bolt |
| REAR HUB | DT Swiss XR 1700 Spline, 12x148mm Boost, XD, 6 Bolt |
| RIMS | DT Swiss XR 1700 Spline 29" Wheelset |
| TIRES | Maxxis Rekon Race 2.25" 3C/TR/EXO |
| SPOKES/NIPPLES | DT Swiss Competition Straight Pull |
| VALVES | Stan's Universal 35mm Presta Valve Stem |
| SEALANT | Stan's Tire Sealant - 200ml |
| RIM TAPE | Comes with wheelset |
| Travel (mm front/mm rear) | 29" | S100/100 | M100/100 | L100/100 | XL100/100 |
| Reach | 29" | S430 | M460 | L490 | XL520 |
| Stack | 29" | S579 | M579 | L588 | XL597 |
| Head Tube Angle | 29" | S68.5 | M68.5 | L68.5 | XL68.5 |
| Fork Offset | 29" | S51 | M51 | L51 | XL51 |
| Seat Tube Length | 29" | S425 | M440 | L485 | XL510 |
| Effective Seat Tube Angle | 29" | S76 | M76 | L76 | XL76 |
| Rear Centre Length | 29" | S420 | M423.3 | L426.7 | XL430 |
| Bottom Bracket Drop | 29" | S40 | M40 | L40 | XL40 |
| Bottom Bracket Height | 29" | S333 | M333 | L333 | XL333 |
| Horizontal Top Tube | 29" | S574 | M604 | L637 | XL669 |
| Wheelbase | 29" | S1115 | M1148 | L1185 | XL1222 |
| Standover | 29" | S700 | M708 | L708 | XL717 |
| Head Tube Length | 29" | S90 | M90 | L100 | XL110 |
| Trail | 29" | S92 | M92 | L92 | XL92 |
| Recommended Seatpost Drop | 29" | S125 | M150 | L170 | XL170 |
| Maximum Post Insertion | 29" | S180 | M200 | L250 | XL250 |
| Stem Length | 29" | S60 | M60 | L60 | XL60 |
| Crank Length | 29" | S170 | M175 | L175 | XL175 |
| Tire Size | 29" | S2.0" - 2.35" | M2.0" - 2.35" | L2.0" - 2.35" | XL2.0" - 2.35" |
| Water Bottle Compatible | 29" | S1 x 750ml | M1 x 750ml | L1 x 750ml | XL1 x 750ml |
