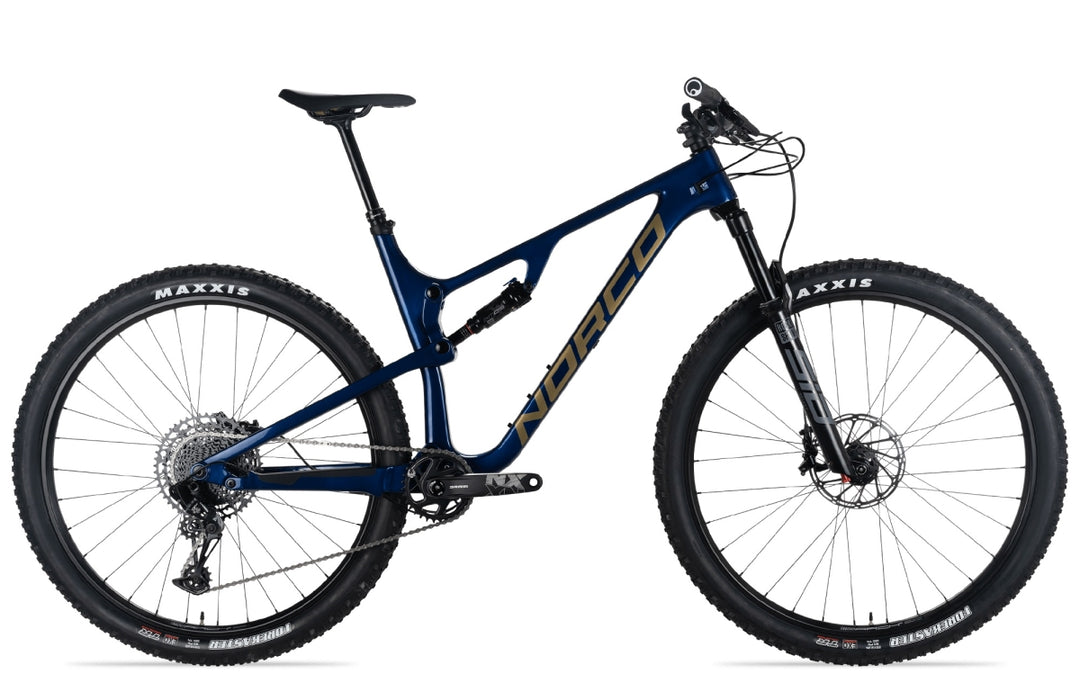

The Revolver FS 2 120 is the ultimate high-speed machine that makes the most of every pedal stroke on today's technical, physically demanding trails and race courses.
All-day performance and breakneck speed on every trail.
The Revolver FS 2 120 is the ultimate endurance race machine for ultimate lightweight, durability and handling on every high-speed adventure.
Reasons It's Rad
- You're in complete control of where you go and how fast you get there
- Optimal weight distribution helps navigate every part of a race course
- Dialed carbon frame optimizes pedaling efficiency
- Charge descents and leave the competition behind
- Throw-down on all types of terrain
| FRAME | Hi-Mod Carbon, 120mm |
| FORK | RockShox SID Select RL, 120mm, 44mm Offset |
| REAR SHOCK | RockShox SIDLuxe Select+, 190x45mm |
| REAR SHIFTER | SRAM NX Eagle MMX |
| REAR DERAILLEUR | SRAM NX Eagle |
| CRANKSET | SRAM NX Eagle DUB, 32T, 170mm (S), 175mm (M, L, XL) |
| BOTTOM BRACKET | SRAM BB DUB PF92 |
| CASSETTE | SRAM NX Eagle MMX |
| CHAIN | SRAM NX |
| FRONT BRAKE | SRAM G2 R, Organic Pads |
| FRONT BRAKE ROTOR | SRAM Centerline, 180mm |
| REAR BRAKE | SRAM G2 R, Organic Pads |
| REAR BRAKE ROTOR | SRAM Centerline, 160mm |
| BRAKE LEVERS | SRAM G2 R |
| HANDLEBAR | Butted 6061 Alloy, 780mm, 20mm Rise |
| STEM | 6061 Alloy 60mm Length, 35mm Clamp |
| SEATPOST | X-Fusion Manic Dropper, 31.6mm, 125mm (S), 150mm (M, L, XL) |
| DROPPER LEVER | Norco Dropper Lever |
| HEADSET | FSA Internal Cartridge Bearing |
| SADDLE | Fizik Alpaca Terra, Wingflex |
| GRIPS | Ergon GA20 Lock-On |
| FRONT HUB | Bear Pawls, 15x110mm Boost, 6 Bolt |
| REAR HUB | Bear Pawls, 12x148mm Boost, HG, 6 Bolt |
| RIMS | Stans Arch D 29" 32H |
| TIRES | Maxxis Forekaster 2.35" TR/EXO |
| SPOKES/NIPPLES | Sapim Sprint DB |
| VALVES | Stan's Universal 35mm Presta Valve Stem |
| SEALANT | Stan's Tire Sealant - 200ml |
| RIM TAPE | Stan's Rim Tape 55m x 27mm (Fits Arch rims) |
| S | M | L | XL |
|---|---|---|---|
| 29" | 29" | 29" | 29" |
| Travel (mm front/mm rear) | |||
|
120/120
|
|||
| Reach | |||
| 418 | 448 | 478 | 509 |
| Stack | |||
| 587 | 587 | 597 | 607 |
| HTA Head Tube Angle | |||
|
67.4
|
|||
| OS Fork Offset | |||
|
44
|
|||
| ST Seat Tube Length | |||
| 425 | 440 | 485 | 510 |
| STA Effective Seat Tube Angle | |||
|
74.9
|
|||
| RC Rear Centre Length | |||
| 420 | 423.3 | 426.7 | 430 |
| BB Bottom Bracket Drop | |||
|
32
|
|||
| BBH Bottom Bracket Height | |||
|
341
|
|||
| HTT Horizontal Top Tube | |||
| 577 | 607 | 640 | 672 |
| WB Wheelbase | |||
| 1117 | 1150 | 1188 | 1225 |
| SOH Standover | |||
| 709 | 716 | 717 | 726 |
| HT Head Tube Length | |||
| 90 | 90 | 100 | 110 |
| Trail | |||
|
100
|
|||
| Recommended Seatpost Drop | |||
| 125 | 150 | 170 | 170 |
| Maximum Post Insertion | |||
| 180 | 200 | 250 | 250 |
| Stem Length | |||
|
60
|
|||
| Crank Length | |||
|
175
|
|||
| Tire Size | |||
|
2.0" - 2.35"
|
|||
| Water Bottle Compatible | |||
|
1 x 750ml
|
|||
