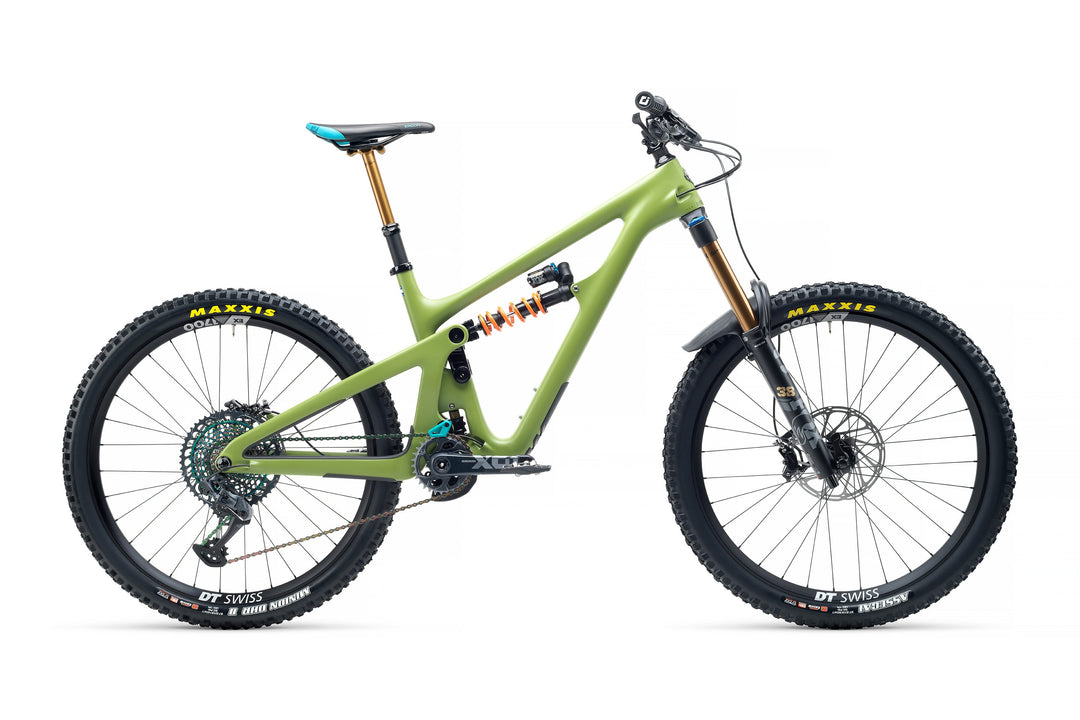

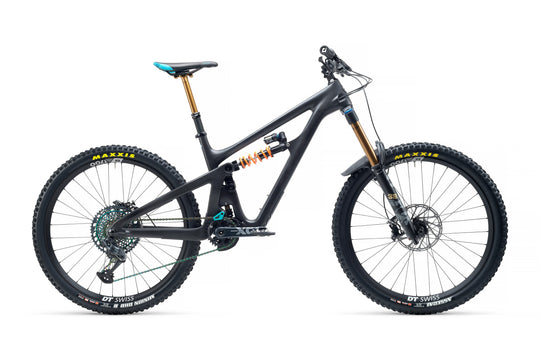

SB165 T-Series T3 DHX2 2022
SB165 T-Series T3 DHX2 2022

SB165 T-Series T3 DHX2 2022

Regular price $17,840.00 //
/

Master of the gnarniverse. Bold claim. The SB165 was created to get after whatever you're getting after. The slackest sled in our lineup, with kinematics tuned for a coil-shock, the SB165 is at home outside the tape and trusted on the lines where mistakes can't happen. The SB165 already has you covered.



Frame  - C/Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, fully enclosed internal cable routing, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle

Travel - 165mm (6.5")

Material - Turq Series

Fork - Fox Factory Grip 2 38/180mm

Shock - Fox Factory Dhx2 2 Pos Lever 230 X 65mm

Spring - Sls Spring Included  (Sm 350 / Md 400 / Lg 450)

Wheelset - Dt Ex511 Rims / Dial Hubs

Rear - Der Sram Xx1 Eagle

Shift - Sram Xx1 Eagle

Crank - Sram X01 Eagle 30t 170mm

Bb - Sram Dub Bb92

Cassette - Sram Xx1 Eagle 1299 10-52

Chain - Sram Xx1 Eagle

Brakes - Sram Code Rsc

Rotor - F/R Sram Centerline 200/Sram Centerline 200

Post - Fox Transfer Factory 31.6mm / Sm: 125mm, Md: 150mm, Lg-Xl: 175mm

Tire (F) - Maxxis Assegai 2.5 Exo+

Tire (R) - Maxxis Minion Dhr Ii 2.4 Exo+

Headset - Cane Creek 110 Integrated

Bar - Yeti Carbon 35x800mm

Stem - Race Face Turbine R 35x50mm

Grips - Odi Elite Pro

Seat - Ergon

Bash Guard -Oneup Bash Guide



Yeti SB165 Geometry NZ

SM MD LG XL
A SEAT TUBE LENGTH 380 410 450 495
B TOP TUBE LENGTH [EFFECTIVE] 567 598.5 621.5 649.4
C HEAD TUBE ANGLE 63.5° 63.5° 63.5° 63.5°
D SEAT TUBE ANGLE [EFFECTIVE] 77° 77° 77° 76.9°
E CHAINSTAY LENGTH 433 433 433 433
F WHEELBASE 1197.7 1230.2 1255.2 1285.2
G BB HEIGHT [ESTIMATED] 344.9 344.9 344.9 344.9
H STANDOVER 710.4 716.3 723.4 746.7
I HEAD TUBE LENGTH 104.8 110.4 121.6 132.8
J FORK [AXLE-TO-CROWN] 569.1 569.1 569.1 569.1
K FORK [OFFSET] 37.5 37.5 37.5 37.5
L STACK 594.9 599.9 609.9 619.9
M REACH 430.1 460.1 480.1 505.1
N FRONT CENTER 764.7 797.2 822.2 852.2

Yeti SB165 Size Chart NZ
