Regular price $11,499.90 //
/

The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.

It starts with our Turbo Full Power 2.2 motor and Turbo Connect Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

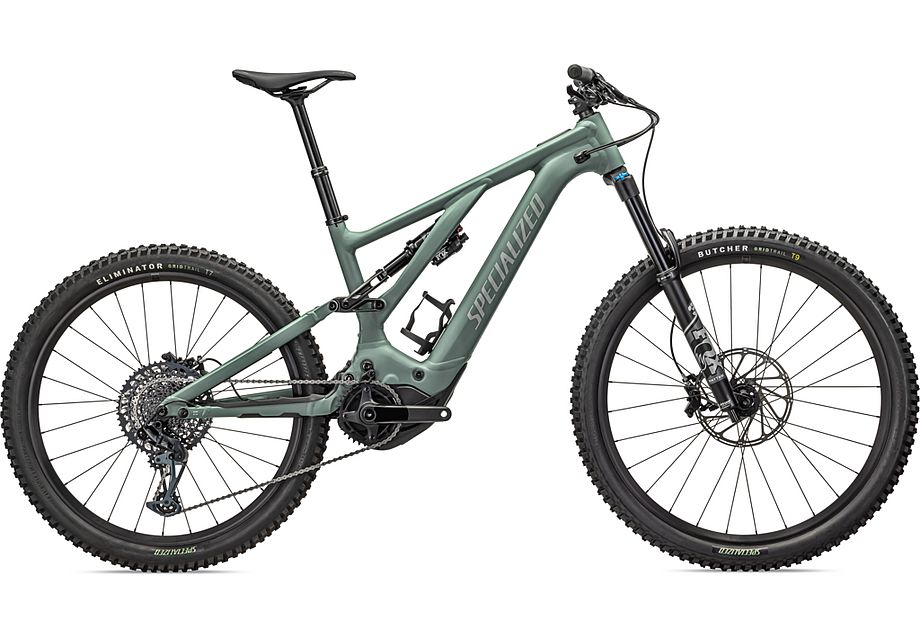

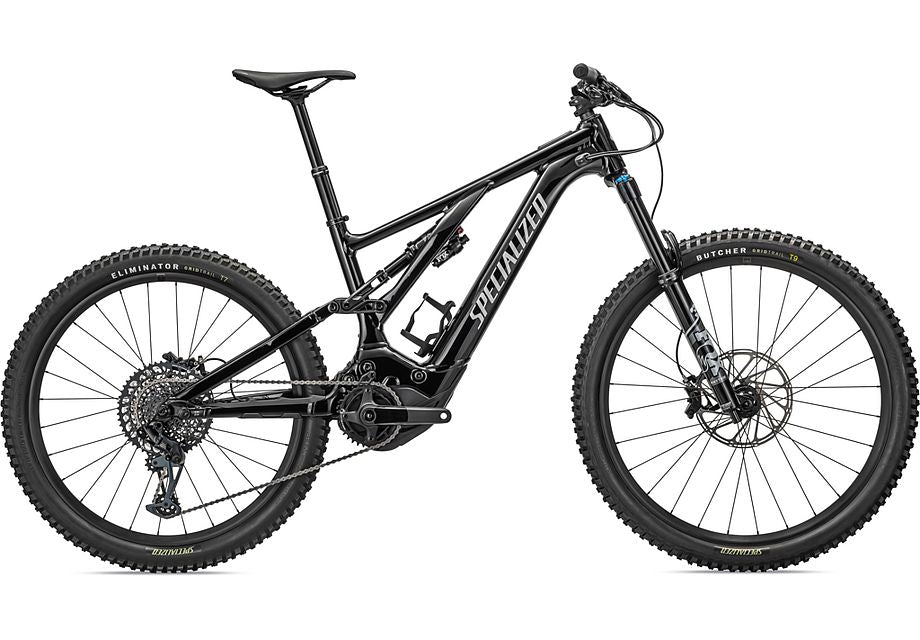

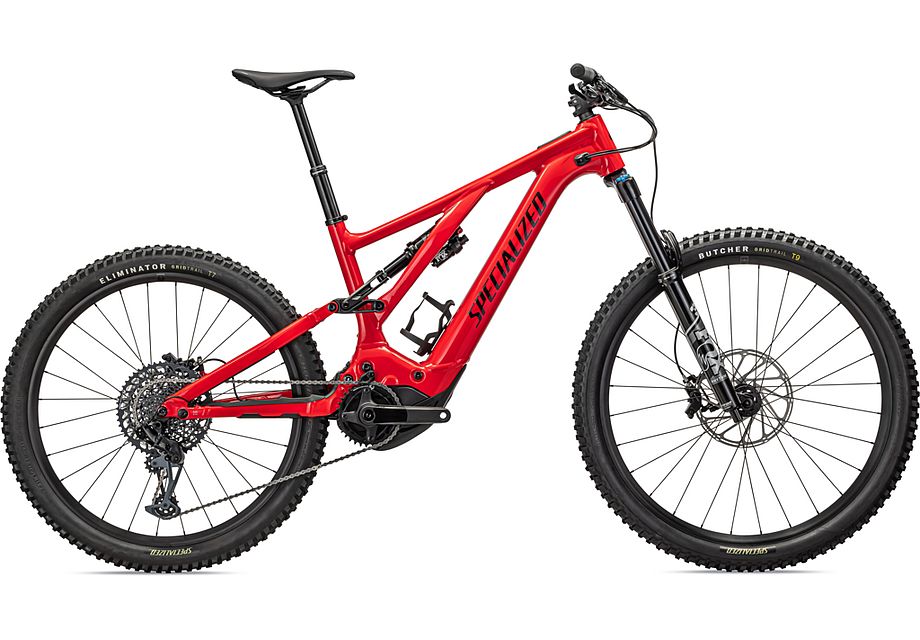

Take your trail riding to a whole new level with the Turbo Levo Comp. Featuring our all-new M5 alloy chassis, SRAM’s expansive GX Eagle 12-speed drivetrain, and buttery FOX Performance suspension, it’ll have you riding circles around everyone else.



  • Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and Turbo Connect Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.
  • The Levo’s Turbo Connect Unit (or “TCU”) is more than an “On-Off” button—it’s the brains of the bike. The TCU shows your battery level and power-assist mode. It also communicates, via ANT+/Bluetooth®, with our optional handlebar display to display even more information about your day’s ride.
  • A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
  • Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style and any terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.
  • Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
  • The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.
    Frame
    Specialized M5 premium alloy, headset adjust, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing
    Rear Shock
    S1: FOX DPS Performance Series, 3-position lever, rebound adjust, 52.5x210mm, S2-S6: FOX FLOAT X Performance, LSR, 2-position lever, 55x210mm
    Fork
    Fox Rhythm 36, S1: 150mm travel, S2-S6: 160mm travel
    Stem
    Alloy Trail Stem, 35mm bar bore
    Tape
    Specialized Trail Grips
    Handlebars
    Alloy, 35mm diameter, 780mm width, 8-degree backsweep, 6-degree upsweep
    Saddle
    Bridge Comp, Hollow Cr-mo rails, 155/143mm
    Front Brake
    SRAM Code R, 4-piston caliper, hydraulic disc, S1-S3: 200mm, S4-S6: 220mm
    Rear Brake
    SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
    Rear Derailleur
    SRAM GX Eagle, 12-speed
    Shift Levers
    SRAM GX Eagle, 12-speed
    Cassette
    SRAM XG-1275, 12-speed, 10-52t
    Chain
    SRAM NX Eagle, 12-speed
    Crankset
    Praxis forged M30, custom offset, 160mm
    Chainrings
    SRAM X-Sync Eagle, 104 BCD, 32T, steel
    Rims
    Specialized 29, hookless alloy, 30mm inner width, tubeless ready
    Front Hub
    Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
    Rear Hub
    Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
    Spokes
    DT Swiss Industry
    Front Tire
    Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
    Rear Tire
    Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
    Inner Tubes
    Standard, Presta Valve
    SeatPost
    X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm
    Seat Binder
    Alloy, 38.6mm
    Motor
    Specialized Turbo Full Power System 2.2 Motor
    UI/Remote
    Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
    Battery
    Specialized M3-700, Integrated battery, 700Wh
    Charger
    Custom charger, 42V4A w/ Rosenberger plug
    Wiring Harness
    Custom Specialized wiring harness
    S1 S2 S3 S4 S5 S6
    BB Drop 25 27 27 27 27 27
    BB Height 352 350 350 350 350 350
    Bike Standover Height 752 776 783 787 788 790
    Chainstay Length 442 442 442 442 442 442
    Crank Length 160mm 160mm 160mm 160mm 160mm 160mm
    Fork Length (full) 557 567 567 567 567 567
    Fork Rake/Offset 44 44 44 44 44 44
    Front Center 738 760 784 814 843 878
    Handlebar Width 780mm 780mm 780mm 780mm 780mm 780mm
    Headtube Angle 64.5 64.5 64.5 64.5 64.5 64.5
    Headtube Length 105 105 115 125 135 145
    Max Seatpost Insertion 210 220 240 255 275 295
    Min Seatpost Insertion 80 80 80 80 80 80
    Reach 412 432 452 477 502 532
    Saddle Width 155mm 155mm 143mm 143mm 143mm 143mm
    Seat Tube Angle 78 77.2 76.7 76.2 76.2 76.2
    Seat Tube Length 380 390 405 425 445 465
    Seatpost Length 100mm 125mm 150mm 170mm 170mm 190mm
    Stack 605 617 626 635 644 653
    Stem Length 40mm 40mm 50mm 50mm 50mm 50mm
    Trail 130 130 130 130 130 130
    Wheelbase 1179 1200 1225 1255 1284 1318
