With dual 29 inch wheels, 130mm rear and 140mm front travel, the Smuggler may just be the most versatile bike in Transitions lineup. A highly progressive leverage curve and comfortable, confidence-inspiring geo make it eager to keep going mile after mile while remaining surefooted in even the most technical terrain. Sitting squarely between the Spur and Sentinel in travel, geometry, and capability, it shares qualities of both. Inspiring and rewarding to hammer on your favorite singletrack, while never holding you back when the trail gets steep, the Smuggler will make sure you enjoy it all.
Progression In All The Right Places
The kinematics are similar to the Spur with a little over 27% progression. This provides a bottomless feel in a mid-travel package. Paired with the Fox Float X shock, the Smuggler can be set up to suit any rider's preference. Looking to increase rear travel? Simply remove the travel reducer in the shock to bump the travel up to 140mm. Looking for a bit more progression? Just add a larger volume spacer. All of this equates to a super lively, active, and forgiving rear suspension feel in any terrain.
Frame Design Evolution

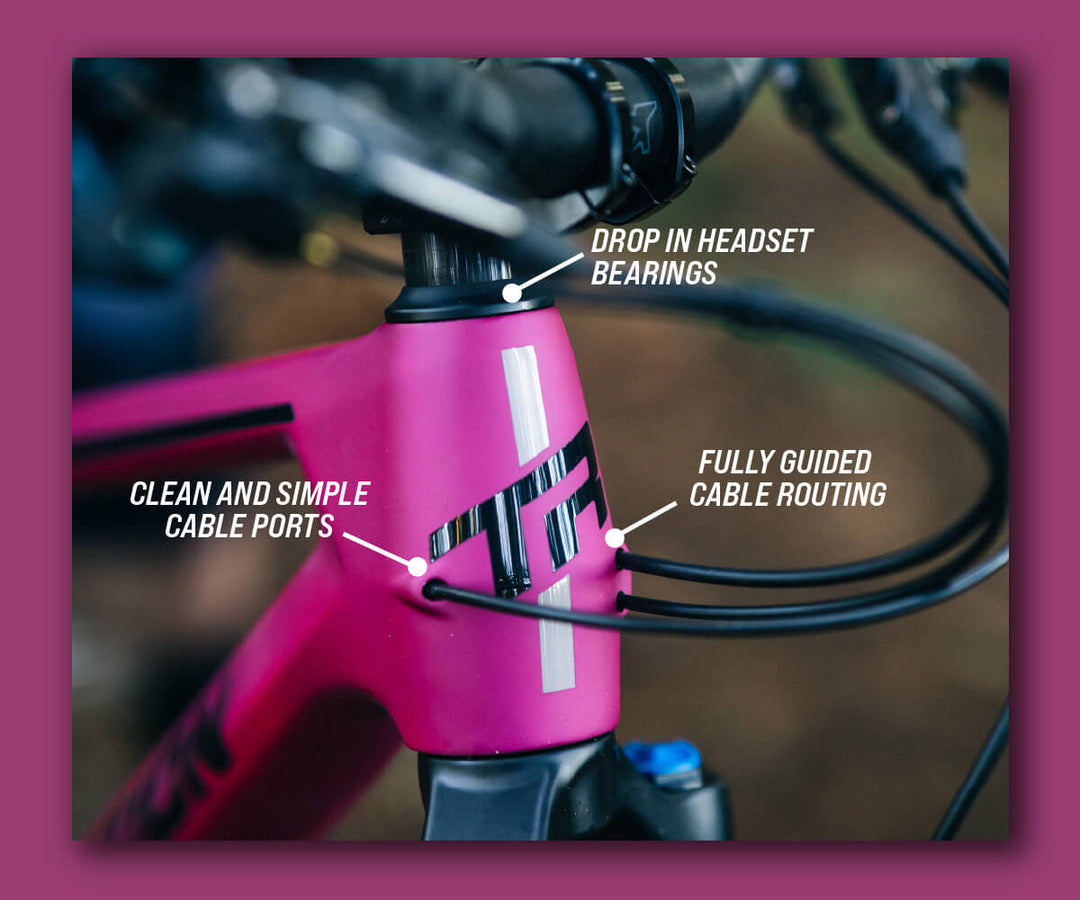

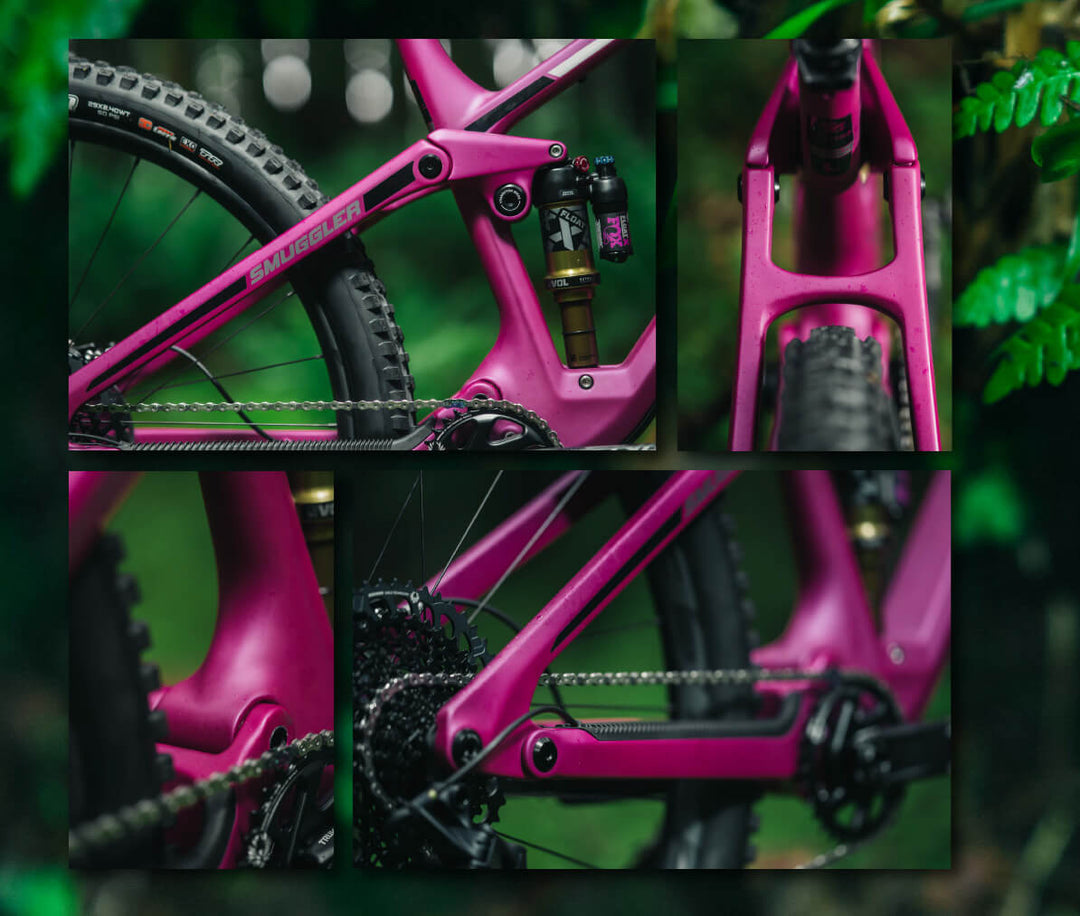

The Smuggler exhibits a few frame design features that further Transitions push to have clean aesthetics while remaining easy to service. The most notable is the headtube area that provides better functionality and serviceability. The new headtube has integrated bearing cups and no longer needs headset cups pressed into the frame. This allows the frame to have super clean cable ports at the front of the headtube with fully guided internal cable routing from the headtube to the port above the bottom bracket shell. From there, cables cleanly enter the rear triangle hidden from view
Giddy Up Suspension

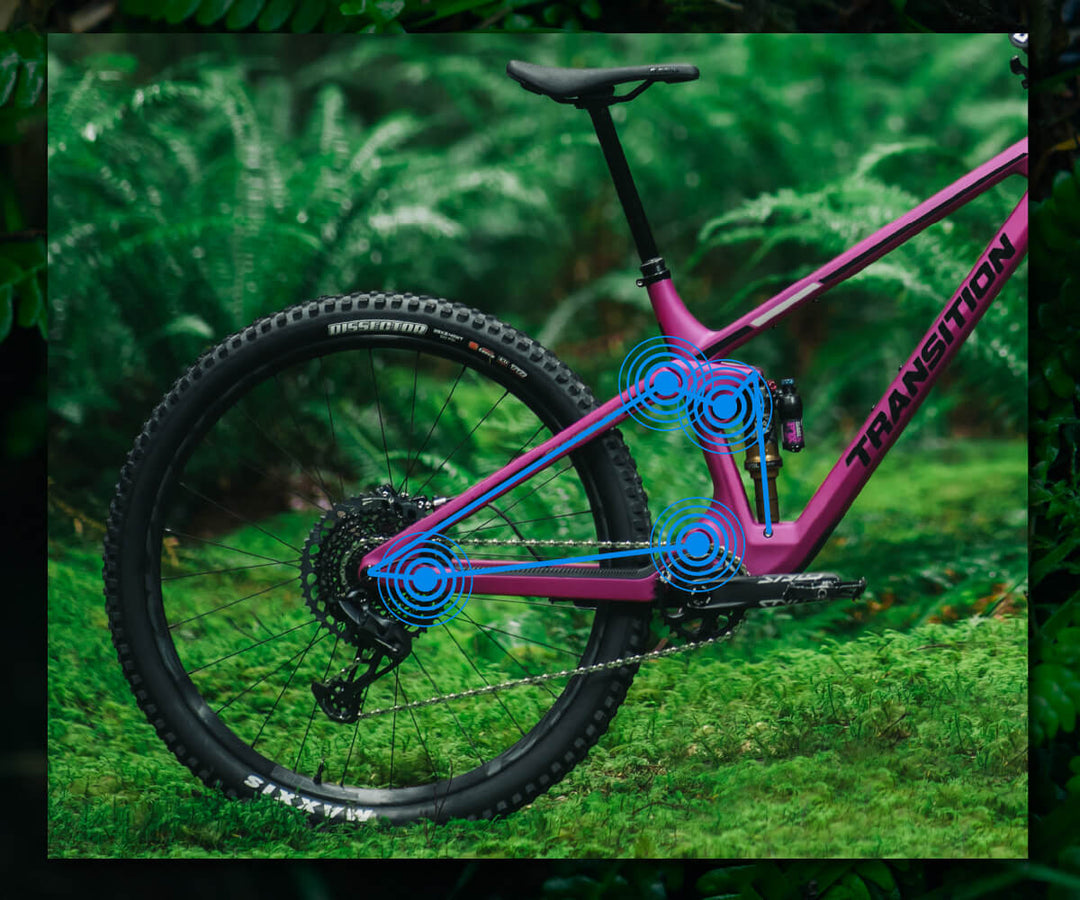

With 27% of progression and a consistent linear rate of change, the Smuggler has an excellent balance of support and small bump sensitivity. Anti-squat is tuned to enhance pedaling performance and acceleration but doesn't get in the way of the suspension working when it's needed.
A wide usable sag range of 25 - 35% allows the rider to tune the feel of the bike; from firm and snappy, to more supple and active. Wherever you end up, you can focus on the trail without remotes, levers or knobs. Just grab your bike and GiddyUp.
