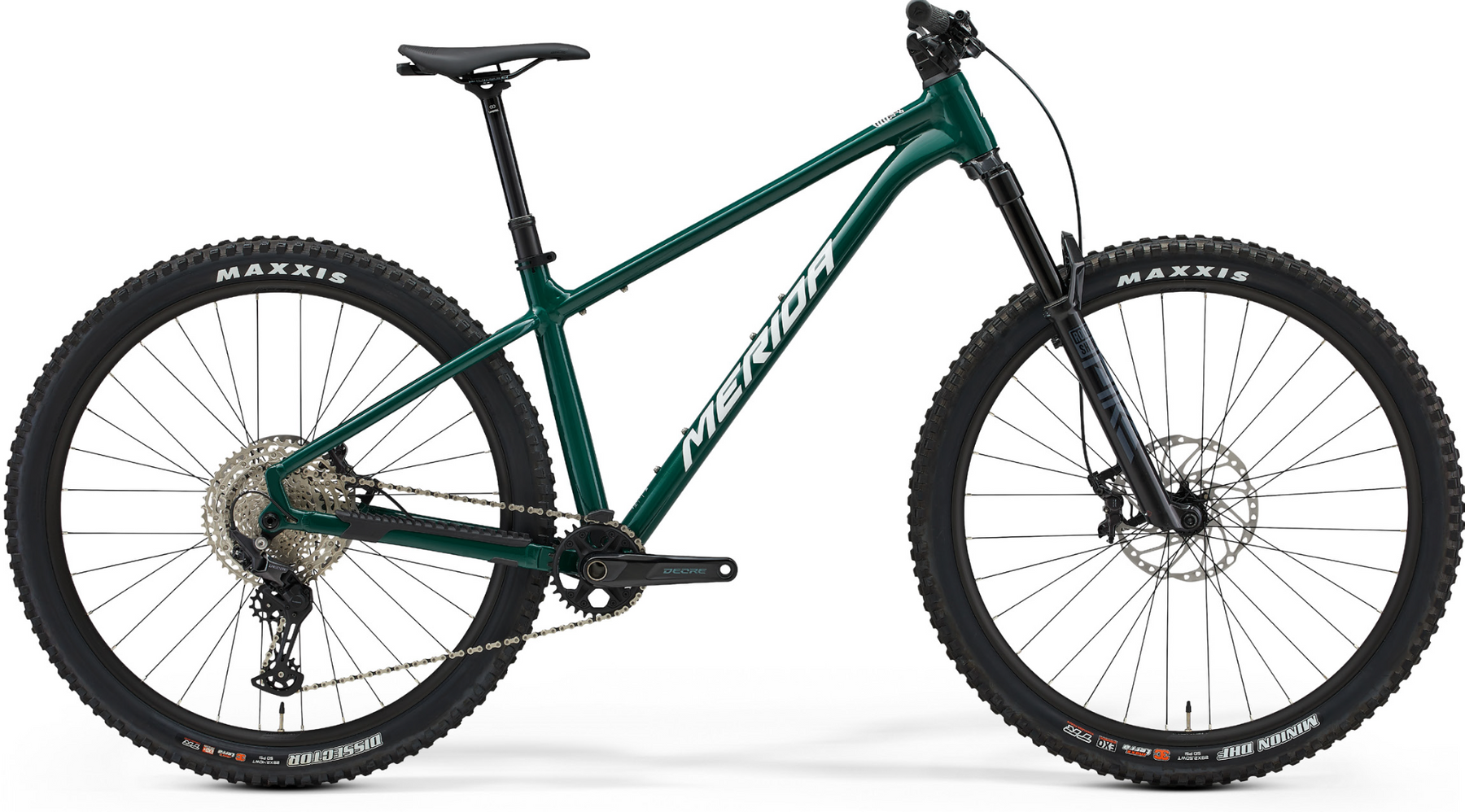

Big Trail 600 2026
Big Trail 600 2026

Big Trail 600 2026

Regular price$3,199.00
/
Tax included.

The BIG.TRAIL 600 is the top dog of our progressive trail hardtail lineup. The third generation of our trail hardtail builds on an award-winning heritage - and it turns things up a notch. It's more capable and fun than ever, thanks to new geometry that boosts the descending ability to scary-fast levels and the climbing ability up to 'mountain goat'. We've also made sure the show is as good as the go, with sleeker and more refined looks, plus extra frame protection to keep it that way.

The BIG.TRAIL is back and better than ever! Hailed by the international mountain bike press as one of the best trail hardtails around, we've tweaked it so it goes up, down and along even faster - which obviously means more fun. With updated, progressive geometry, the new BIG.TRAIL builds on an incredibly successful heritage, with a slack head angle and extended reach helping tame the gnarliest trails and a steeper seat angle that makes climbing up to do it again a breeze. We've also given it a slicker and tricker look and improved the frame protection too, so it'll stay looking good for longer. Join the BIG.TRAIL family and enjoy hassle-free trail fun in spades. Available from XSmall to XLarge, perfect for finding your preferred size and reach options.



FRAME BIG.TRAIL TFS II, MAT aluminium, 29x2.4" max. WHS, 148x12 AST, BSA BBR,
SHOCK 0,
FORK Rock Shox Pike, Air, 140 STR, tapered, platform, 44mm fork offset, 29x2.6 max. WHS,
BRAKE FRONT Shimano Deore M6120, 4 piston
BRAKE REAR Shimano Deore M6120, 4 piston
ROTOR FRONT Shimano RT64, 203mm
ROTOR REAR Shimano RT64, 203mm
CHAIN KMC X12,
CRANKSET Shimano Deore M6120, 32t
CRANK LENGTH 165mm XSHORT, SHORT, MID and LONG, 170mm XLONG,
BB SET Shimano MT501, 24mm
DERAILLEUR FRONT 0,
DERAILLEUR REAR Shimano Deore M6100, SGS
CASSETTE Shimano Deore M6100, 10-51t, 12sp
PEDAL 0,
GRIP MERIDA COMP TR,
HANDLEBAR MERIDA EXPERT TR II, MAT aluminium, 780 WHB, 30 RHB
STEM MERIDA EXPERT eTRII, MAT aluminium, 35 DSH, 0 ASD
STEM SIZE 40 mm,
HEADSET Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing
HUB FRONT Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock
HUB REAR Shimano TC500-MS-B, 148x12 WHR, 32 SPH, Centerlock
RIM Reynolds 309 Enduro Comp, 30 IWR, MAT aluminium, Tubeless ready (tubeless tape installed), 29",
SADDLE MERIDA COMP SL, 25% recycled material, V-mount, incl. MERIDA minitool
SEAT CLAMP MERIDA EXPERT,
SEAT POST MERIDA EXPERT TR II, 34.9 DSP, 0 SSB, XSHORT: 150mm travel - SHORT/MID : 170mm travel - LONG: 200mm travel - XLONG: 230mm travel
SHIFTER FRONT Shimano SL-MT500-IL,
SHIFTER REAR Shimano Deore M6100,
TYRE FRONT Maxxis Minion DHF, 29x2.5", fold, TR EXO 3C MaxxTerra,
TYRE REAR Maxxis Dissector, 29x2.4", fold, TR EXO+ 3C MaxxTerra,

Frame Size XShort Short Mid Long XLong
Tyre Sizes 29" 29" 29" 29" 29"
ST seat tube [mm] 385 400 420 445 475
TT top tube [mm] 559 581 603 630 657
CS chain stay length [mm] 435 435 435 435 435
HTA head tube angle [°] 64 64 64 64 64
STA seat tube angle [°] 76.5 76.5 76.5 76.5 76.5
BD bottom bracket drop [mm] 70 70 70 70 70
HT head tube [mm] 90 100 110 120 130
FL fork length [mm] 551 551 551 551 551
R reach [mm] 415 435 455 480 505
S stack [mm] 627 636 645 654 663
WB wheel base [mm] 1165 1189 1214 1243 1272
SH stand over height [mm] 715 721 724 726 729
Str Stack To Reach Ratio Pc 1.51 1.46 1.42 1.36 1.31
Seat Post Mounting Depth Max Mm 300 315 335 360 390



FRAME SIZE BODY HEIGHT
XS < 163 cm
S 157 - 173 cm
M 167 - 183 cm
L 177 - 190 cm
XL 187 - 196 cm
XXL > 192 cm
