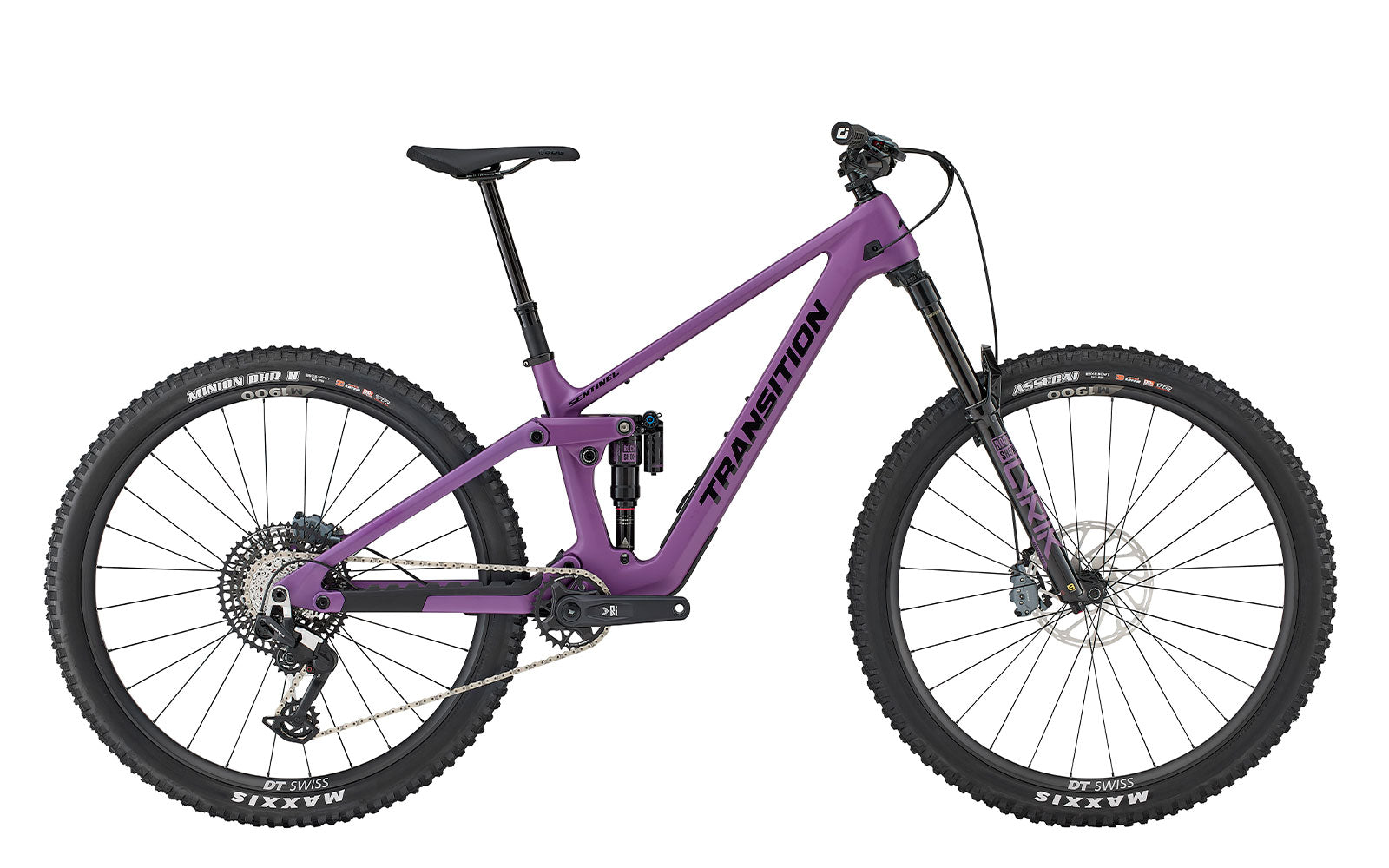

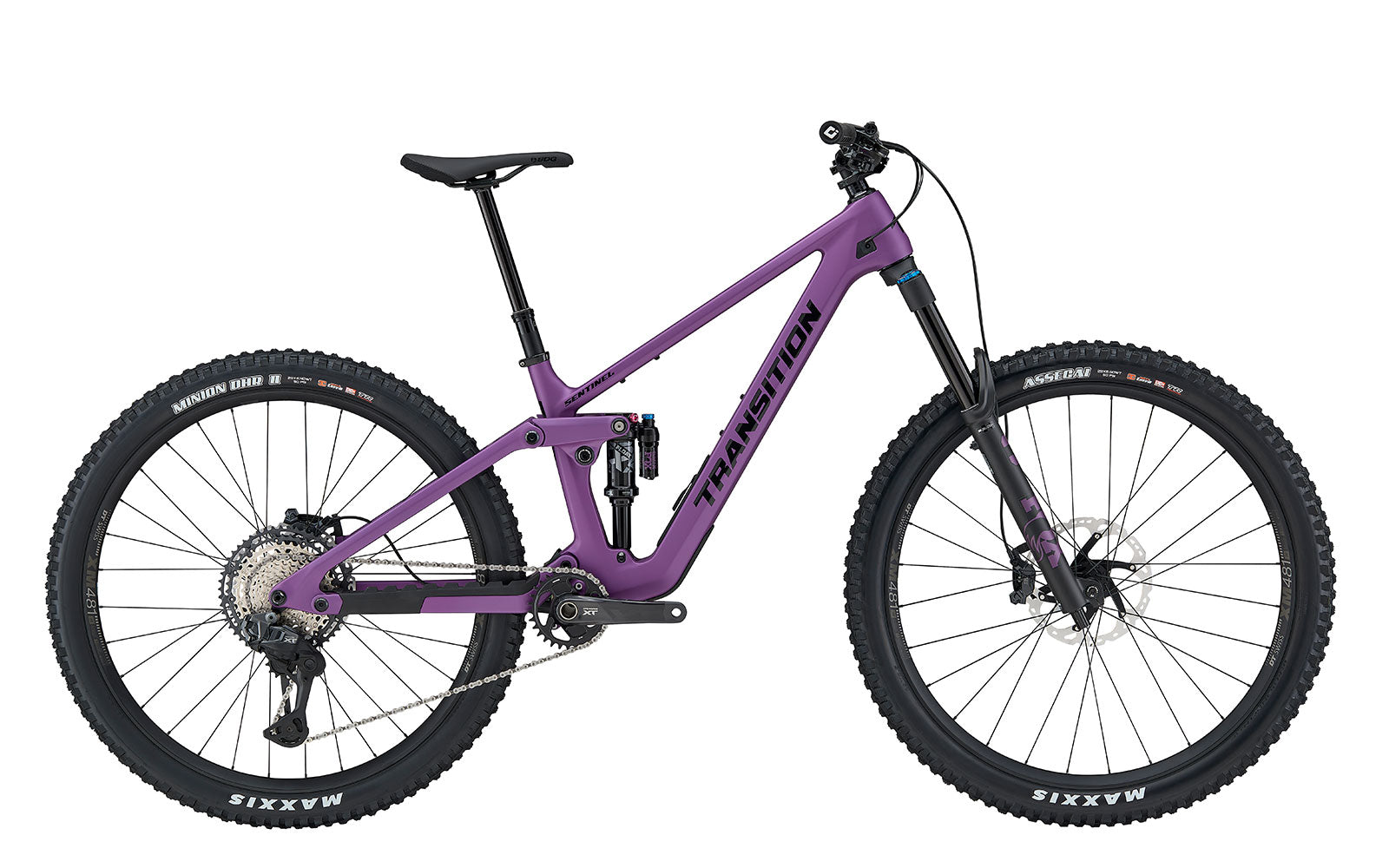

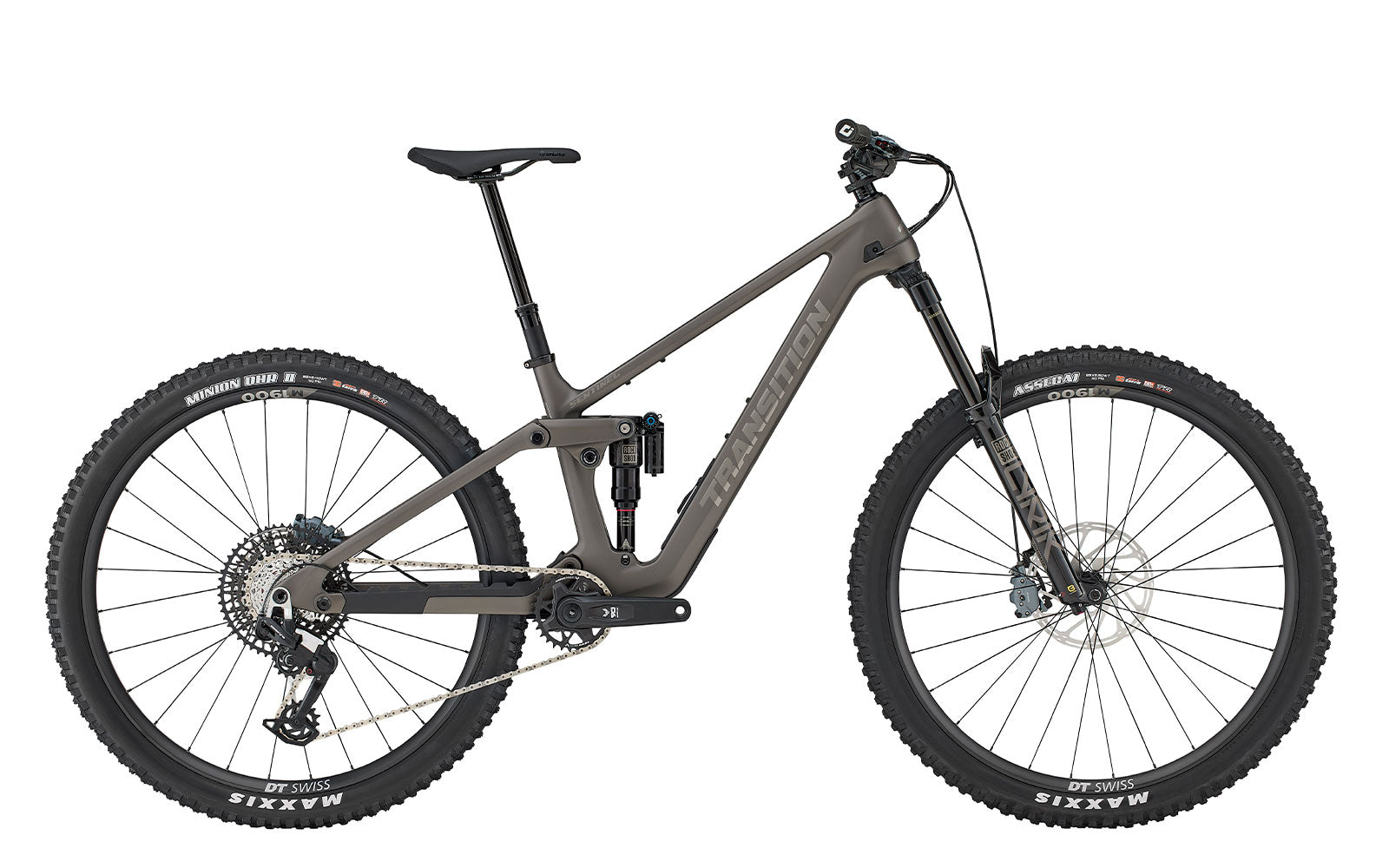

SEND-IT-ALL ON THE ALL NEW SENTINEL
A bike that says yes to every trail, every ride and begs for more.
The Sentinel rides the lines between planted bottomless sender and playful, poppy trail pony. This leaves it right in the sweet spot, as we like to call it. It's versatile attitude helps riders excel and push their limits, making it the one bike most will need. Its intuitive nature is easy to get acquainted with; you'll find yourself sending lines, jumps, and maneuvers you always felt were beyond your ability. Where before you went around, now you go over. Where you pushed up, now you pedal. Where you rolled, now you boost. It's time to Send-It-All
| FRAME | Sentinel Carbon 150mm |
| WHEEL SIZE | 29" (X-Small 27.5") |
| REAR SHOCK | RockShox Super Deluxe Ultimate (205x60mm) |
| FORK | RockShox Lyrik Ultimate (160mm) |
| HEADSET | FSA No.57E |
| STEM | ANVL Swage (40mm) |
| HANDLEBAR | ANVL Mandrel Alloy 35 XS/SM (800x20mm) MD/LG/XL (800x30mm) XXL (800x40mm) |
| GRIPS | ODI Elite Flow Lock-On |
| SADDLE | SDG Bel Air 3 |
| SEATPOST | OneUp Dropper Post XS (120mm) SM (150mm) MD (190mm) LG (210mm) XL/XXL (240mm) |
| BRAKES | SRAM Maven Bronze |
| ROTORS | SRAM Centerline (200mm) |
| SHIFTER | SRAM Eagle 90 MMX |
| DERAILLEUR | SRAM Eagle 90 |
| CASSETTE | SRAM XS 1275 T-Type (10-52t) |
| CHAIN | SRAM GX Eagle Transmission |
| CRANK | SRAM Eagle 90 DUB (30t/165mm) |
| RIMS | DT Swiss M 1900 Spline 30 |
| SPOKES | DT Swiss Champion |
| HUBS | DT Swiss 370 Ratchet LN |
| TIRE/FRONT | Maxxis Assegai 3C EXO+ (2.5) |
| TIRE/REAR | Maxxis Minion DHRII 3C EXO+ (2.4) |
| INCLUDED | Fidlock Twist Bike Base Tubeless Valves & Sealant |
| XS | SM | MD | LG | XL | 2XL | |
| A.REACH | 415 | 430 | 426 | 455 | 451 | 480 | 476 | 505 | 501 | 530 | 526 |
| B.STACK | 592 | 615 | 618 | 621 | 624 | 633 | 636 | 642 | 646 | 651 | 655 |
| C.CARBON EFFECTIVE TOPTUBE LENGTH | 527 | 549 | 577 | 605 | 632 | 660 |
| ALLOY EFFECTIVE TOPTUBE LENGTH | 534 | 557 | 586 | 614 | 642 | 670 |
| D.SEATTUBE LENGTH | 360 | 360 | 390 | 430 | 460 | 490 |
| E.CARBON EFFECTIVE SEATTUBE ANGLE | 79.8° | 79.3° | 78.9° | 78.7° | 78.3° | 78.3° | 77.9° | 77.9° | 77.5° | 77.6° | 77.2° |
| ALLOY EFFECTIVE SEATTUBE ANGLE | 79.2° | 78.7° | 78.2° | 77.9° | 77.5° | 77.3° | 76.9° | 76.8° | 76.4° | 76.5° | 76.2° |
| SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE | 560 | 600 | 660 | 720 | 780 | 820 |
| CARBON SEATTUBE OFFSET AT BOTTOM BRACKET | 69 | 69 | 69 | 69 | 69 | 69 |
| ALLOY SEATTUBE OFFSET AT BOTTOM BRACKET | 87 | 87 | 87 | 87 | 87 | 87 |
| F.HEADTUBE LENGTH | 100 | 100 | 110 | 120 | 130 | 140 |
| G.HEADTUBE ANGLE | 64° | 64° | 63.6° | 64° | 63.6° | 64° | 63.6° | 64° | 63.6° | 64° | 63.6° |
| H.CARBON CHAINSTAY LENGTH | 436 | 442 | 440 | 442 | 440 | 448 | 446 | 448 | 446 | 448 | 446 |
| ALLOY CHAINSTAY LENGTH | 434 | 442 | 440 | 442 | 440 | 446 | 444 | 446 | 444 | 446 | 444 |
| I.CARBON WHEELBASE | 1173 | 1208 | 1237 | 1273 | 1302 | 1332 |
| ALLOY WHEELBASE | 1171 | 1208 | 1237 | 1271 | 1300 | 1330 |
| J.BOTTOM BRACKET DROP | 15 | 25 | 11 | 25 | 11 | 25 | 11 | 25 | 11 | 25 | 11 |
| K.ESTIMATED BOTTOM BRACKET HEIGHT | 340 | 350 | 344 | 350 | 344 | 350 | 344 | 350 | 344 | 350 | 344 |
