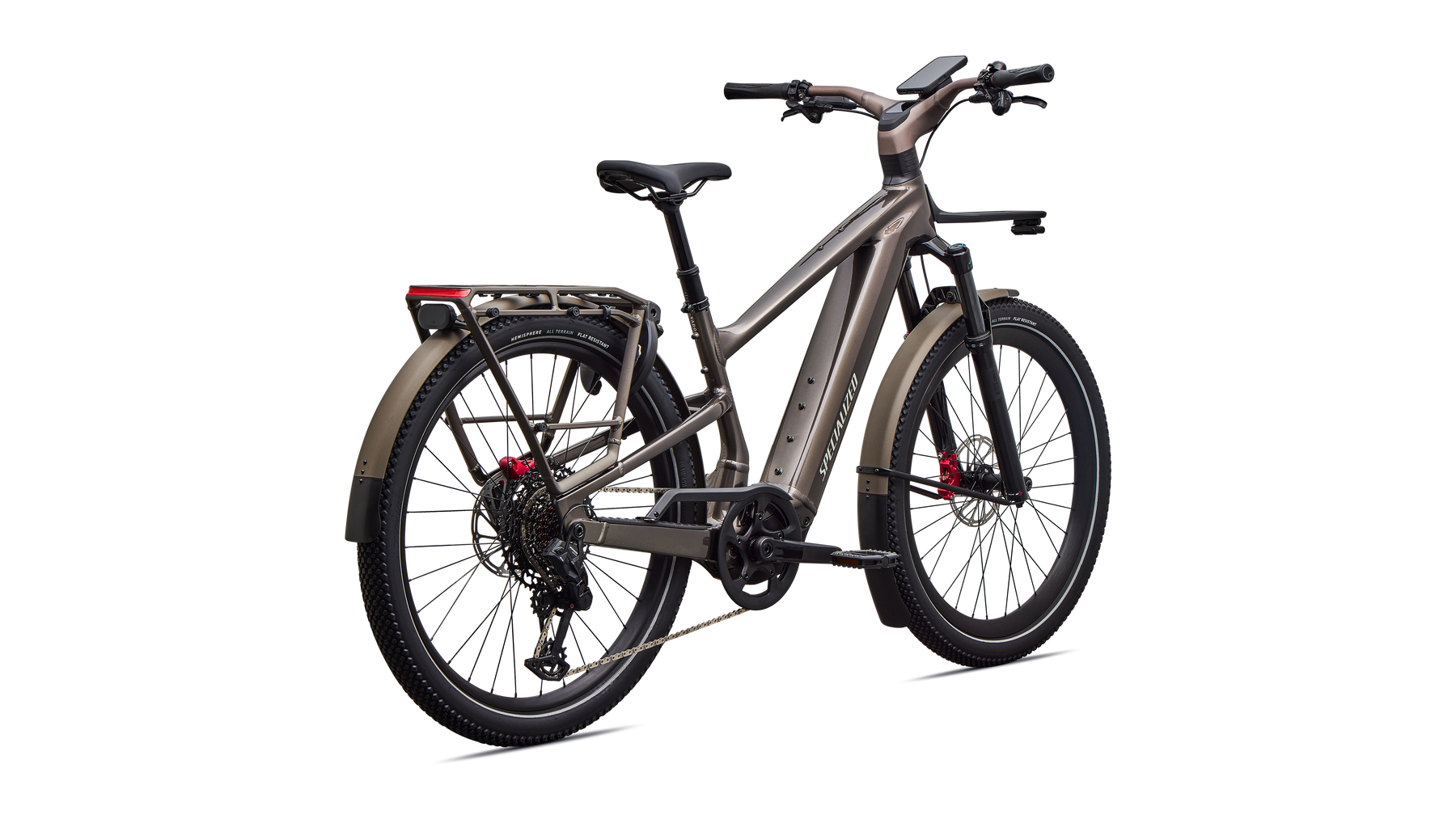

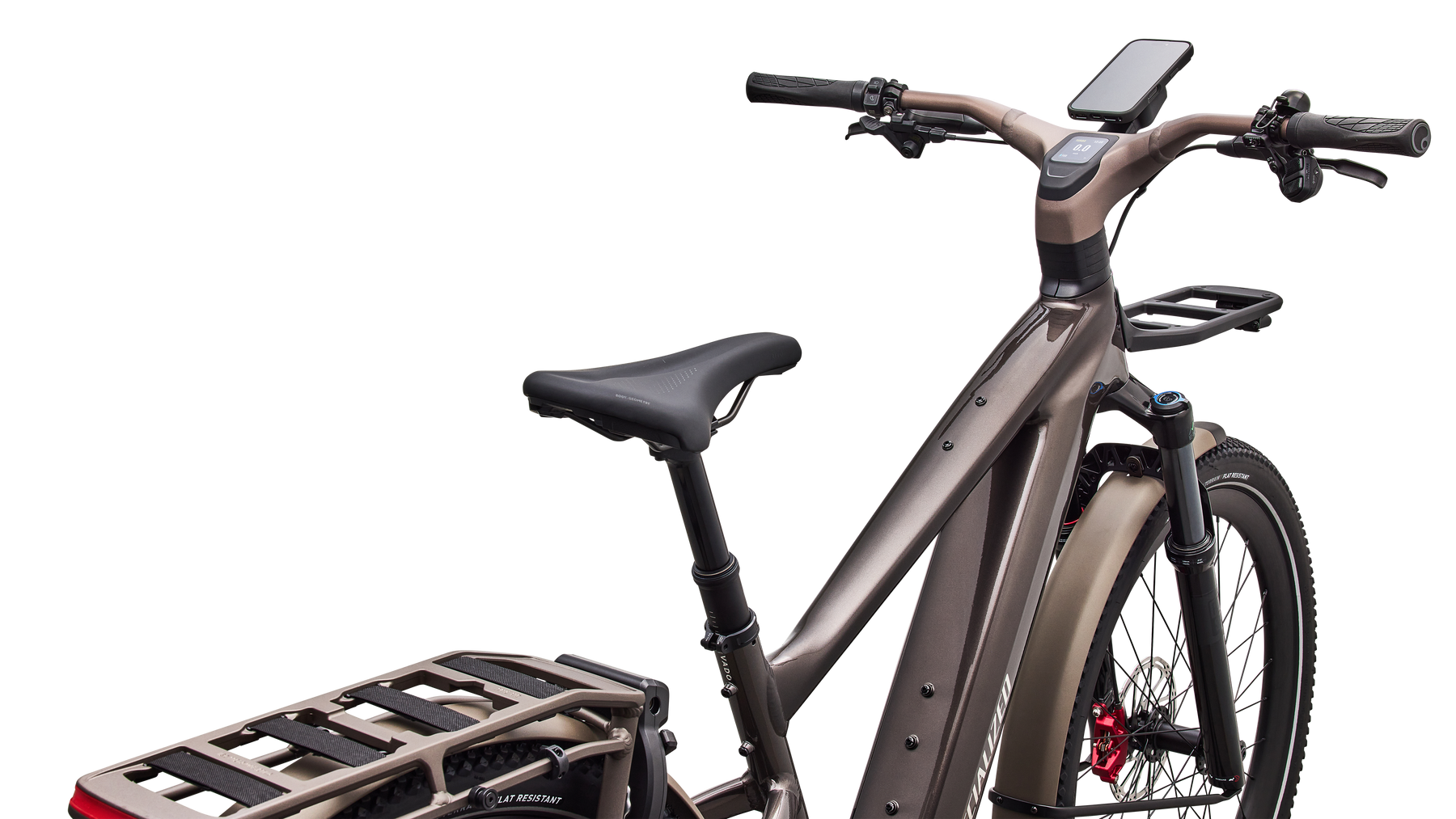

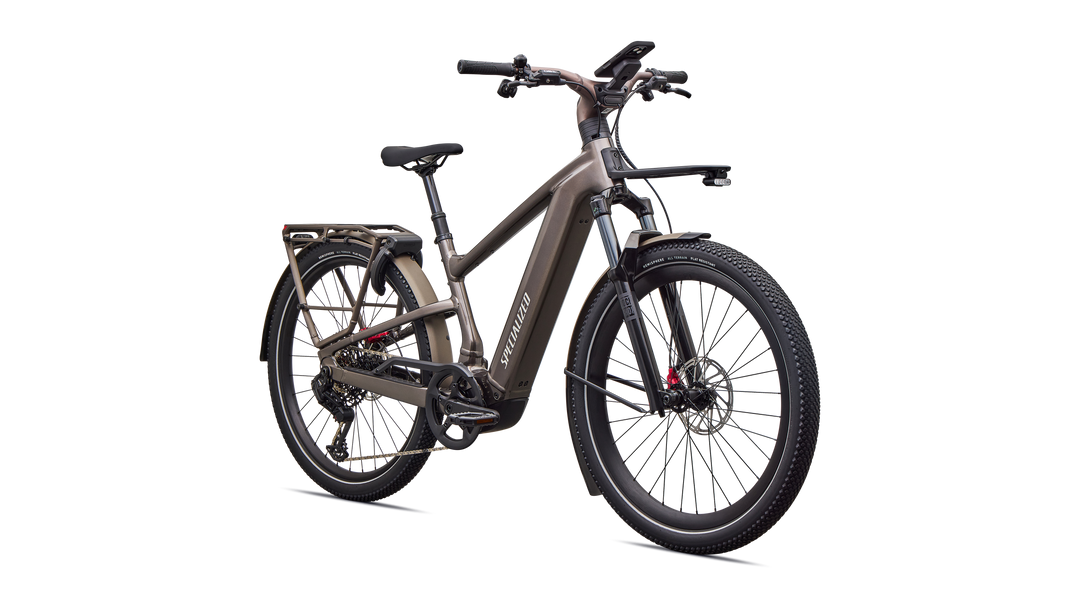

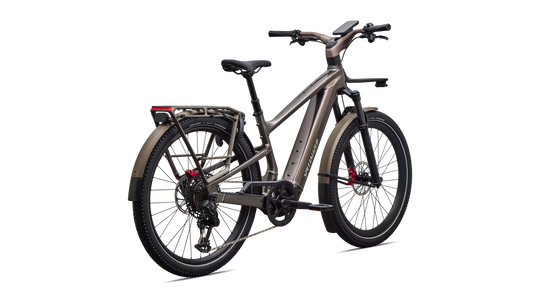

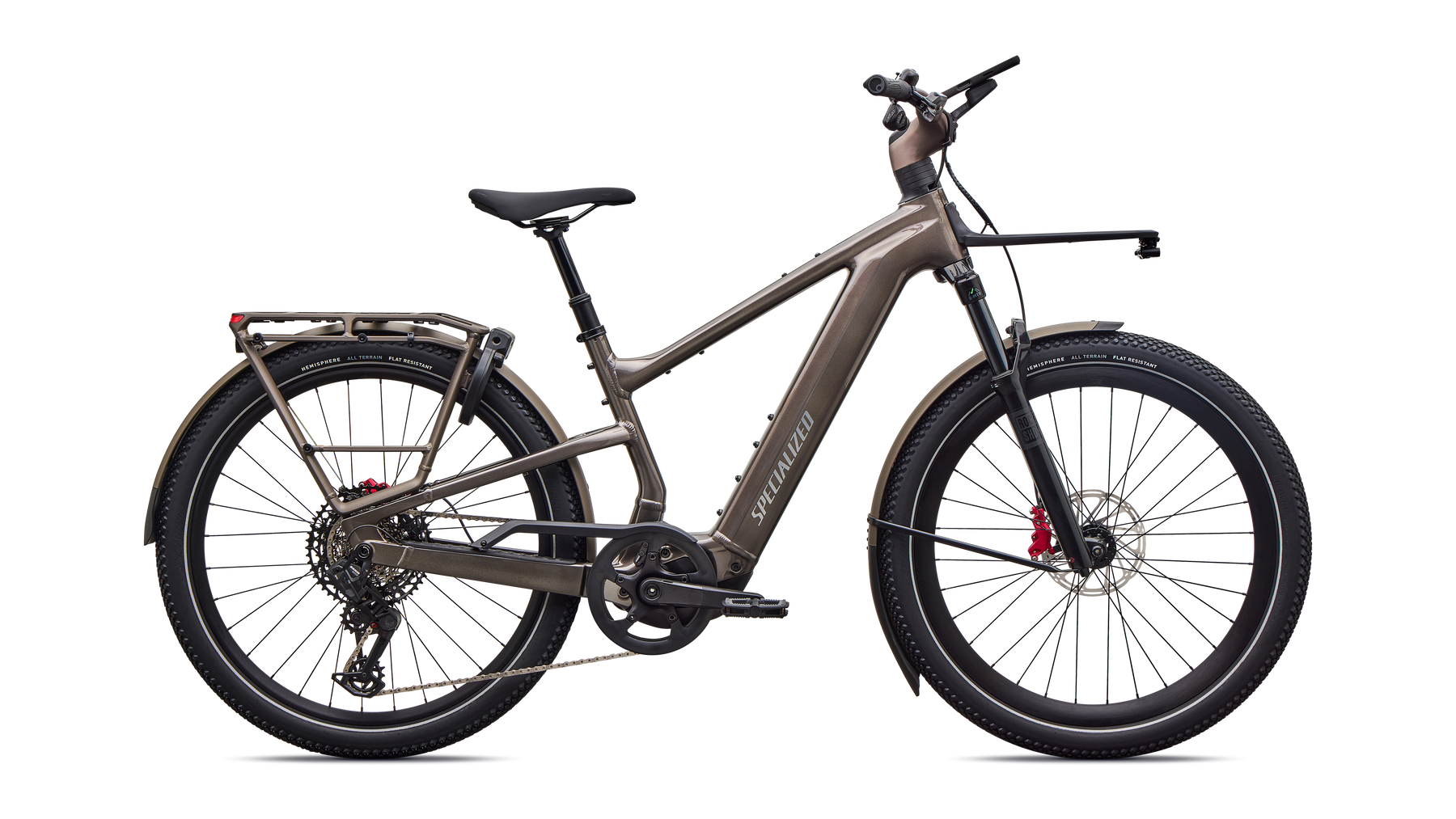

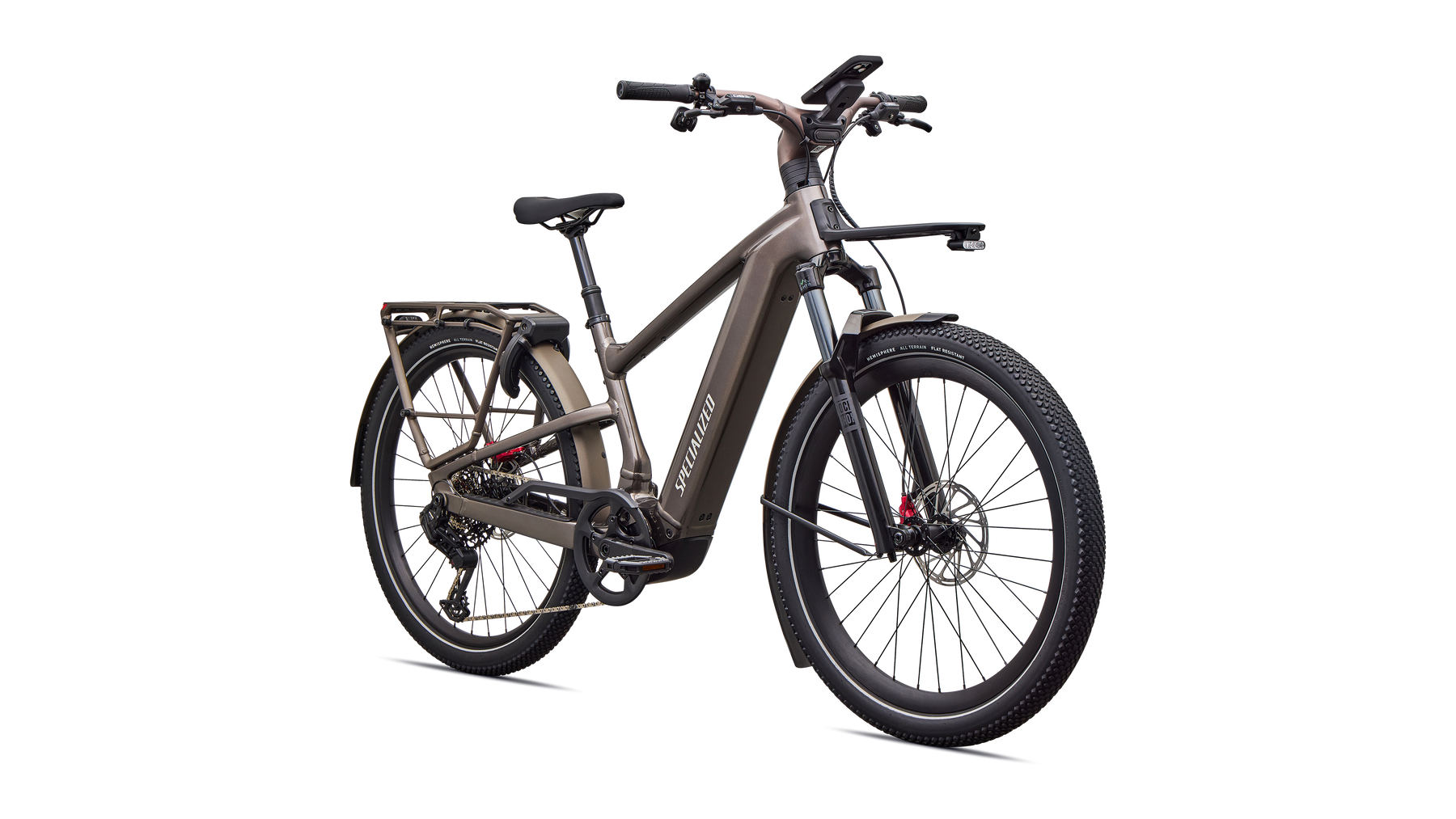

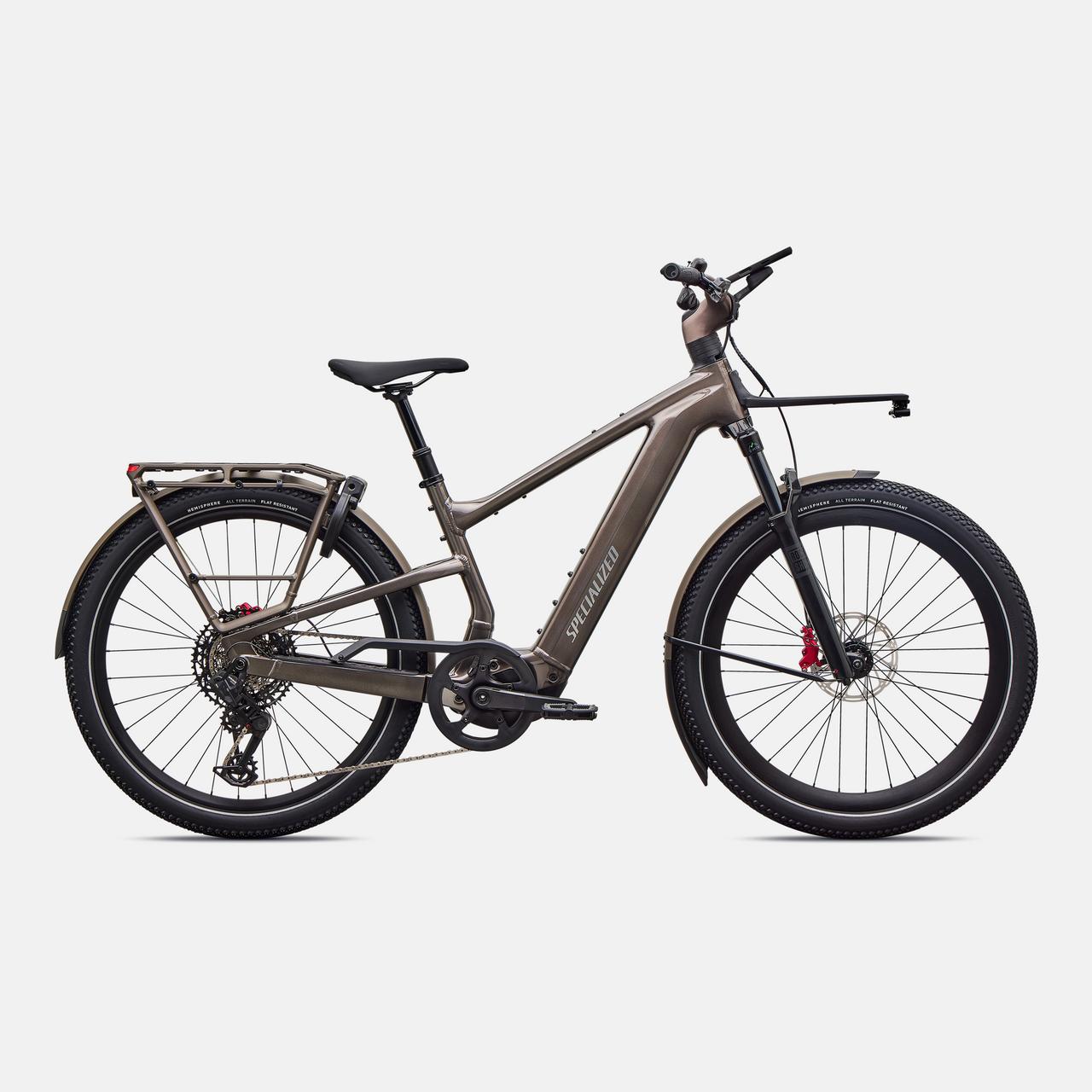

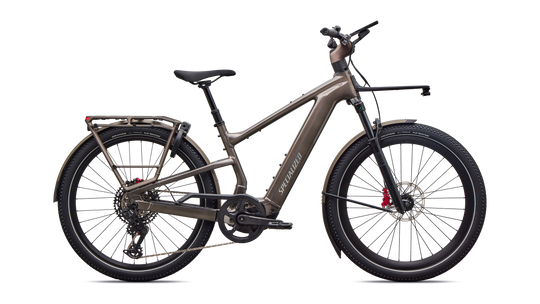

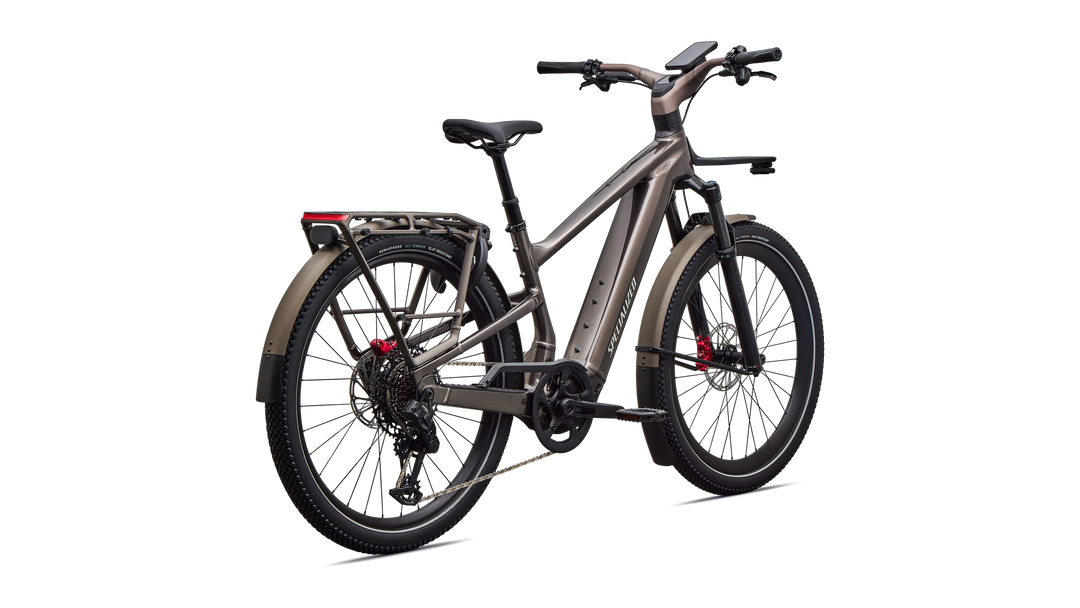

Turbo Vado 3 EVO 6.0
You’re Going to Need a Bigger Map
For riders who go farther and roam wider, the Vado 3 EVO elevates everyday riding with more capability, more confidence, and more comfort. From fast city routes to rougher roads and spontaneous detours, it delivers effortless power that moves as naturally as you do—thanks to Levo 4´s SuperNatural DNA with instinctive response and incredible ride-anywhere range. With its class-leading innovation like our digital keyless lock and built-in Apple Find My, Vado 3 EVO keeps every ride calm, composed, and in control, whatever your day brings. The art of arrival - perfected.
E-bike
- Battery
- 840Wh battery
- Motor

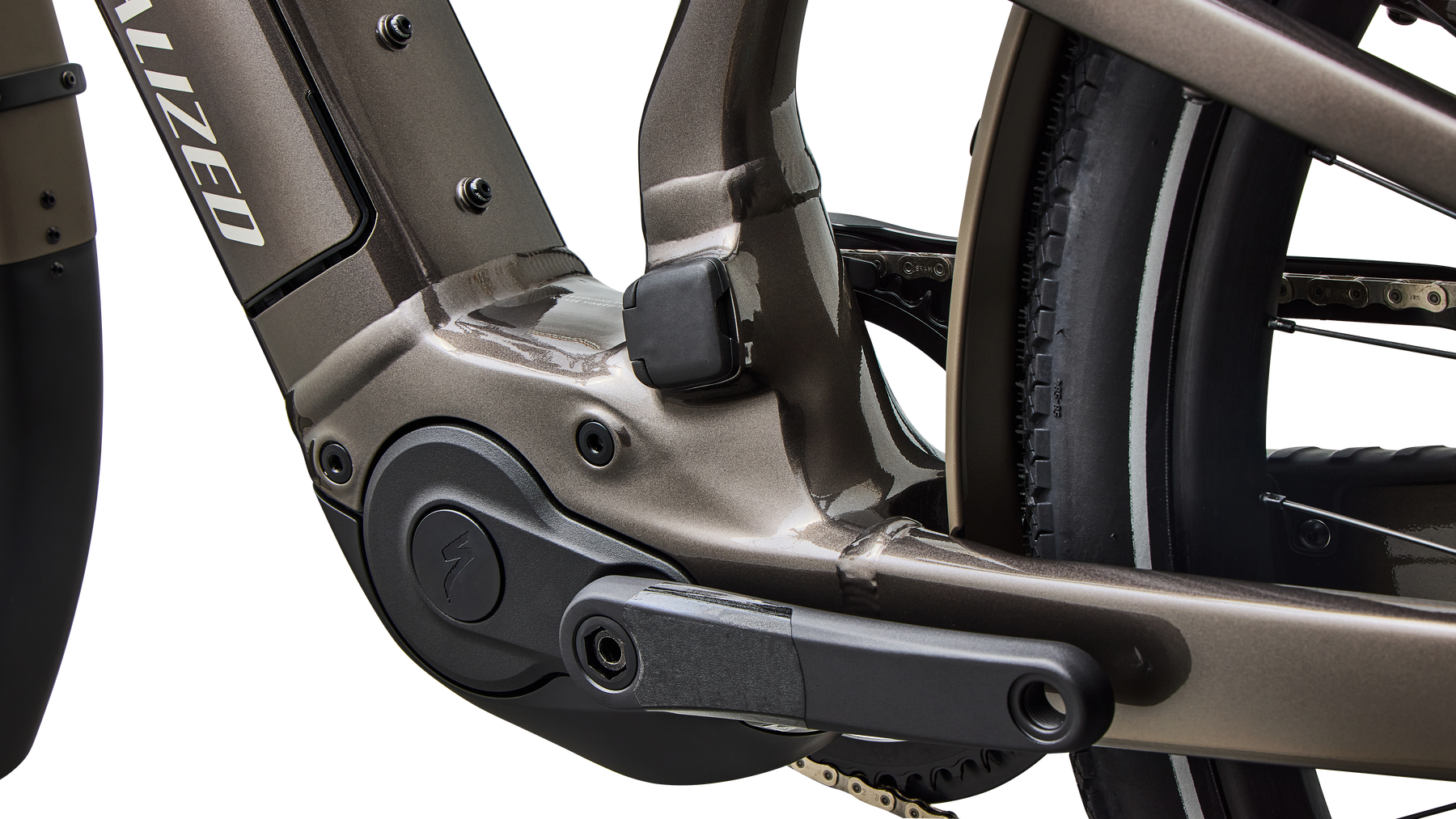

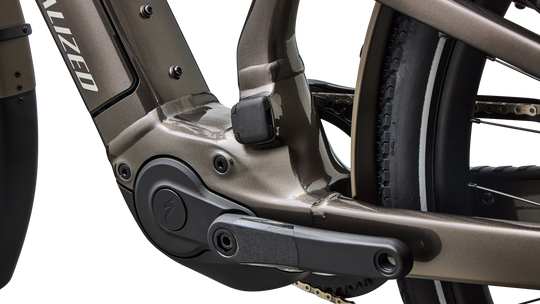

- Specialized 3.1 Motor, 105Nm torque, 810W power
- Charger
- Specialized 4amp charger
- UI/Remote
- Turbo Ergonomic Remote
Frameset
- Seat Binder
- Alloy, 38.6mm
- Frame
- Vado 3 frame, comfort optimized geometry, side entry battery
Suspension
- Fork
- Rock Shox Psylo suspension fork, extra comfort and sensitivity, 120MM of travel (100MM size S, 15MM Thru axle, 27.5'' wheel, lock out
Brakes
- Front Brake
- SRAM DB DB6 Custom Red Metallic
- Rear Brake
- SRAM DB DB6 Custom Red Metallic
Drivetrain
- Crankset
- 170mm, CL 55mm, w/BCD 110mm, 48T, w/ Chain Guard
- Chaincase
- Vado 3 Custom Chaincase
- Cassette
- SRAM 12-speed,10-52t
- Chainrings
- SRAM CR T-TYPE 110BCD 48T
- Chain
- SRAM Eagle
- Shift Levers
- SRAM Electric 12S
- Rear Derailleur
- SRAM S1000 Eagle AXS
Wheels & tires
- Rims
- 27.5 Specialized rim with high profile, balck brush finish
- Spokes
- DT Swiss Elemental
- Inner Tubes
- Reinforced anti flat 27.5X2.5/2.7, Schrader valve 60MM
- Rear Hub
- Sealed cartridge bearings, 32H, 12mm steel axle,148mm spacing
- Front Hub
- Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28H
- Front Tire
- Specialized Hemishpere Flat Resistant ALLTERRAIN Reflect 27.5X2.6
- Rear Tire
- Specialized Hemishpere Flat Resistant ALLTERRAIN Reflect 27.5X2.6
Cockpit
- Saddle
- Body Geometry, Rivo 2 Gel,168MM

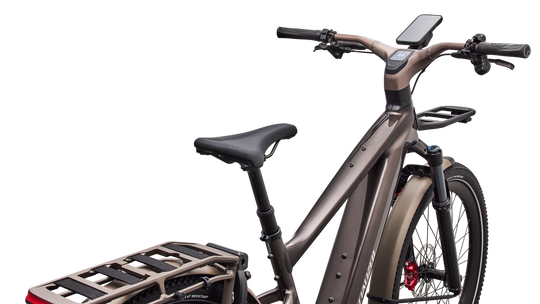

- Stem

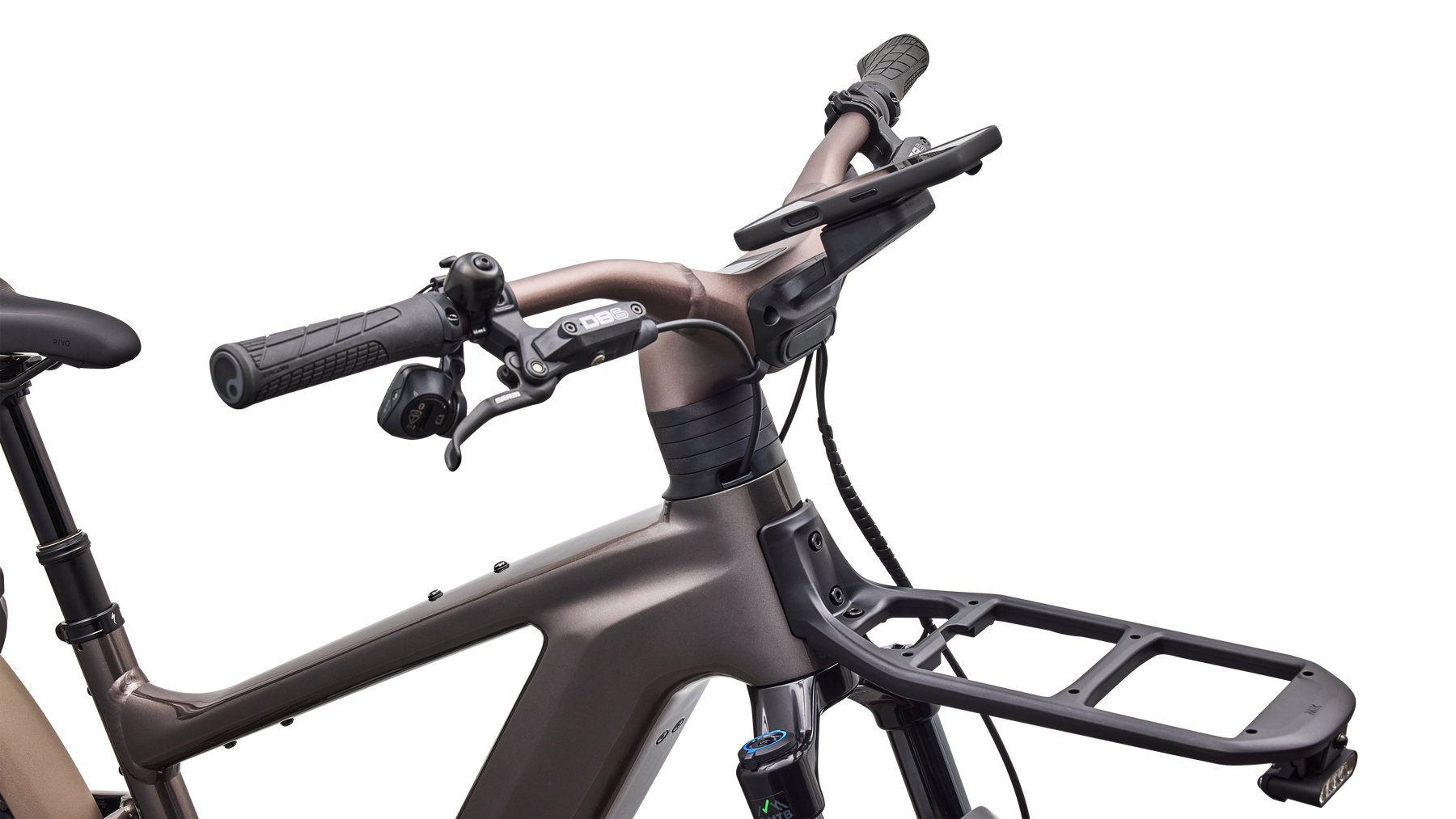

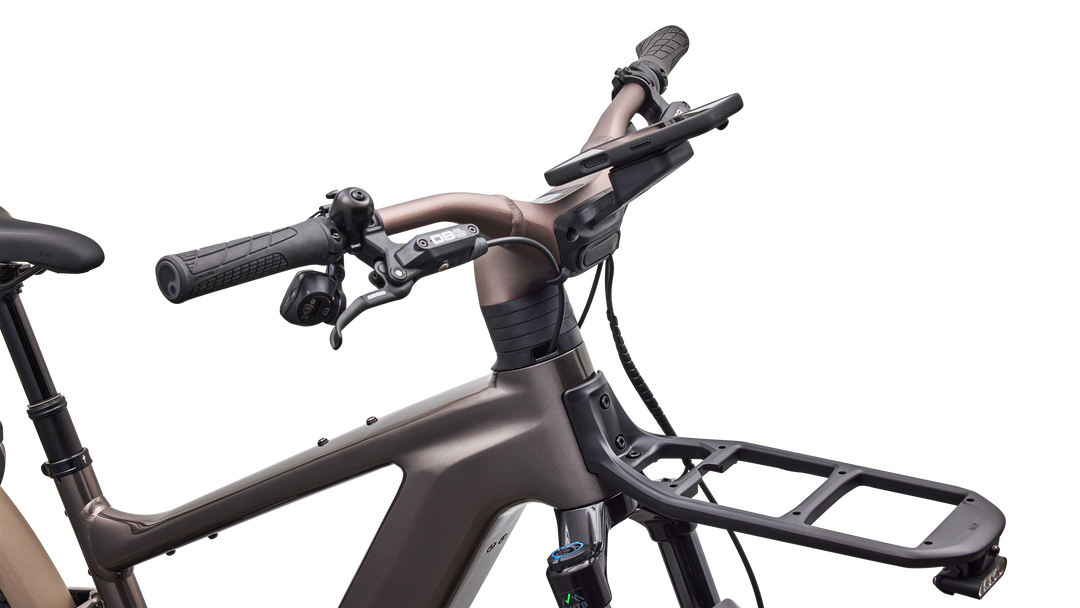

- Cockpit with Integrated Colored Touch Screen Display, Wireless Quadlock Phone Charger
- Grips
- ERGON, GA30-S Custom, 134.8mm Length
- Handlebars
- Integrated Cockpit
- SeatPost
- Lower Suspension Post, 100-125MM Travel, 40MM Suspension, 34.9 MM, Offset 0MM
Accessories
- Bell
- Bell
- Fenders
- Vado 3 Custom Alloy Profile Fenders
- Radar
- Garmin Active Car Detection
- Kickstand
- Vado 3 Custom Kickstand, With Adjustable Shoe

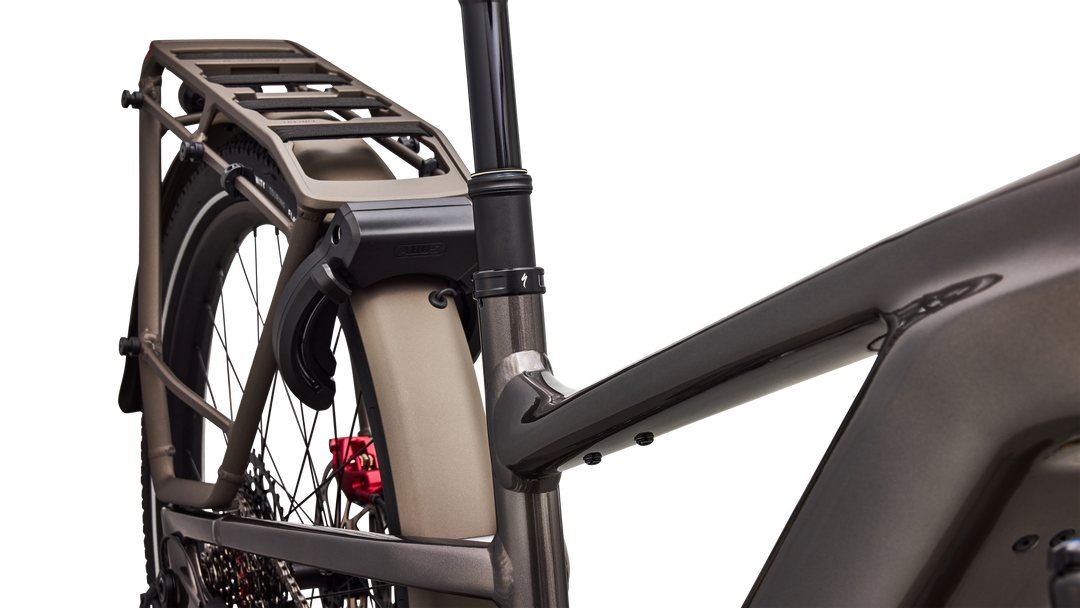

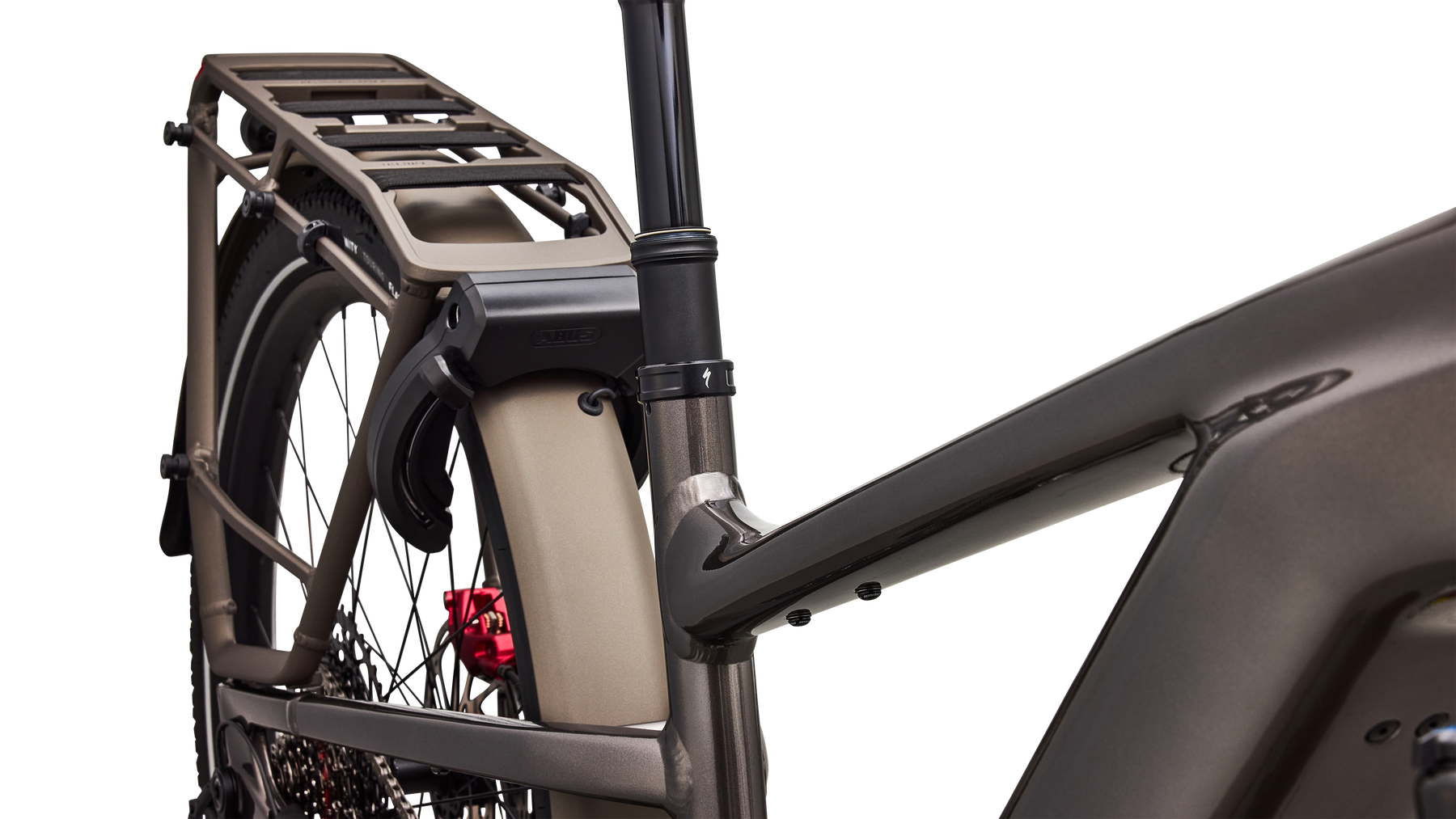

- Rack

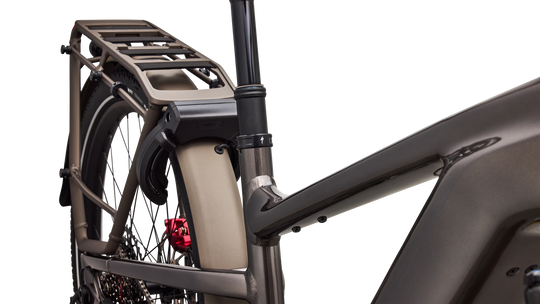

- Vado 3 Custom Seatstay Mounted MIK HD Rack, 27Kg Max Load
- Taillight
- Spanninga Rack Integrated Rear Light With Brake Light
- Bike Lock
- Digital Keyless Battery Lock
- SWAT
- MIK HD 27.5 Kg rear rack with premium metalic finish, integrated elastics, MIK front rack 10kg compatible
- Headlight
- Supernova Custom Cockpit Integrated Hi/Low-Beam 805lm/450lm
- Pedals
- Turbo Pedals, anti-slip
Weight
- Weight
- 31.1 kg (68 lb, 9.0 oz)
- Weight Size
- MD
| SM | MD | LG | XL | |
| Crank Length | 170 | 170 | 170 | 170 |
| Handlebar Width | 730 | 730 | 730 | 730 |
| Saddle Width | 168 | 168 | 168 | 168 |
| Seatpost Length | 400 | 400 | 450 | 450 |
| Stack | 636 | 645 | 659 | 682 |
| Reach | 430 | 450 | 470 | 485 |
| Head-Tube Length | 135 | 120 | 135 | 160 |
| Head-Tube Angle | 67 | 68 | 68 | 68 |
| B-B Height | 293.5 | 293.5 | 293.5 | 293.5 |
| B-B Drop | 66.5 | 66.5 | 66.5 | 66.5 |
| Trail | 105 | 98 | 98 | 98 |
| Fork Length (full) | 501 | 521 | 521 | 521 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 |
| Front-Center | 772 | 734 | 460 | 784 |
| Chain-Stay Length | 470 | 470 | 470 | 470 |
| Wheelbase | 1185 | 1197 | 1222 | 1247 |
| Top-Tube Length (horizontal) | 612 | 635 | 659 | 681 |
| Bike Stand-Over Height | 768 | 806 | 821 | 854 |
| Seat-Tube Length | 385 | 440 | 460 | 500 |
| Seat-Tube Angle | 74 | 74 | 74 | 74 |
