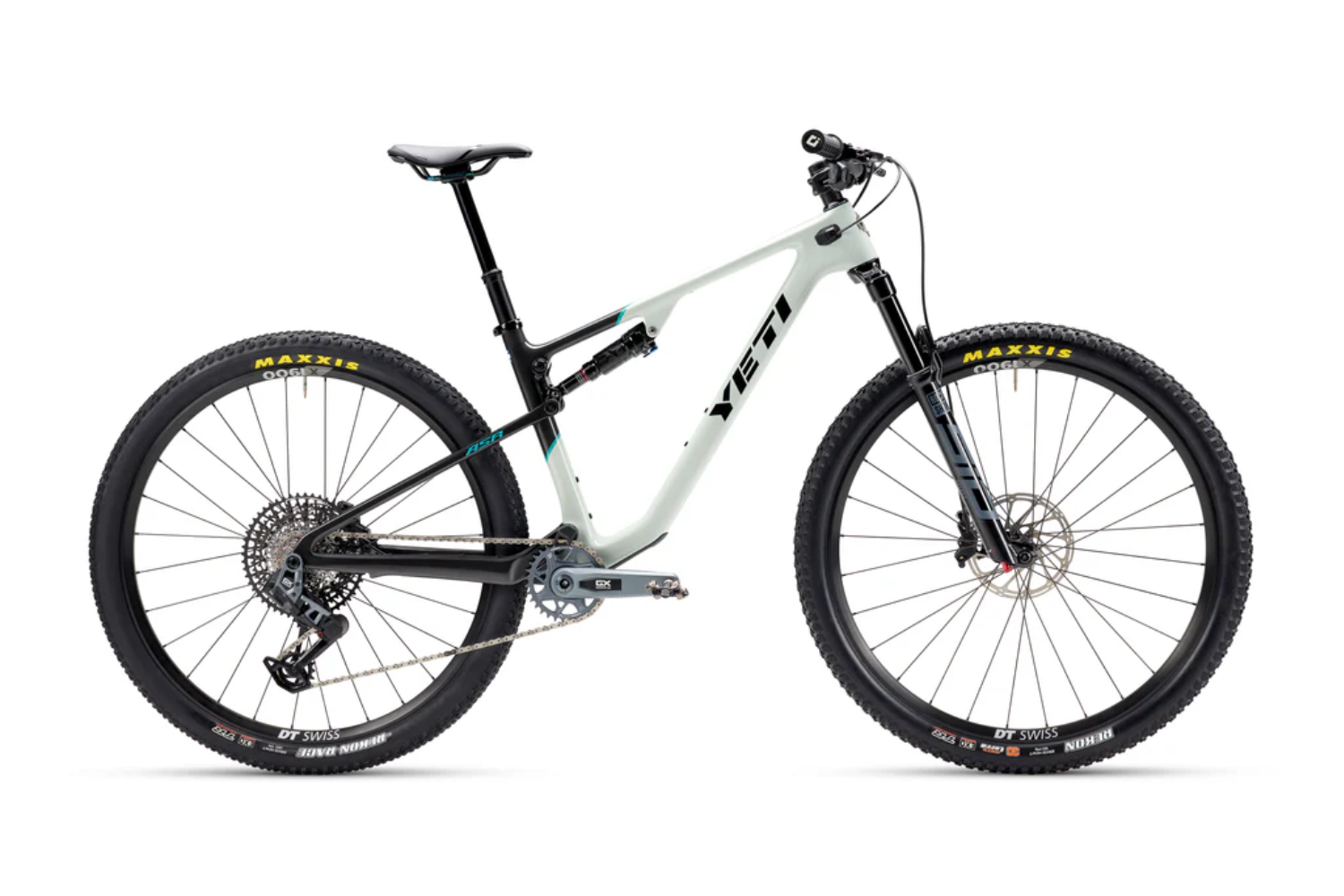

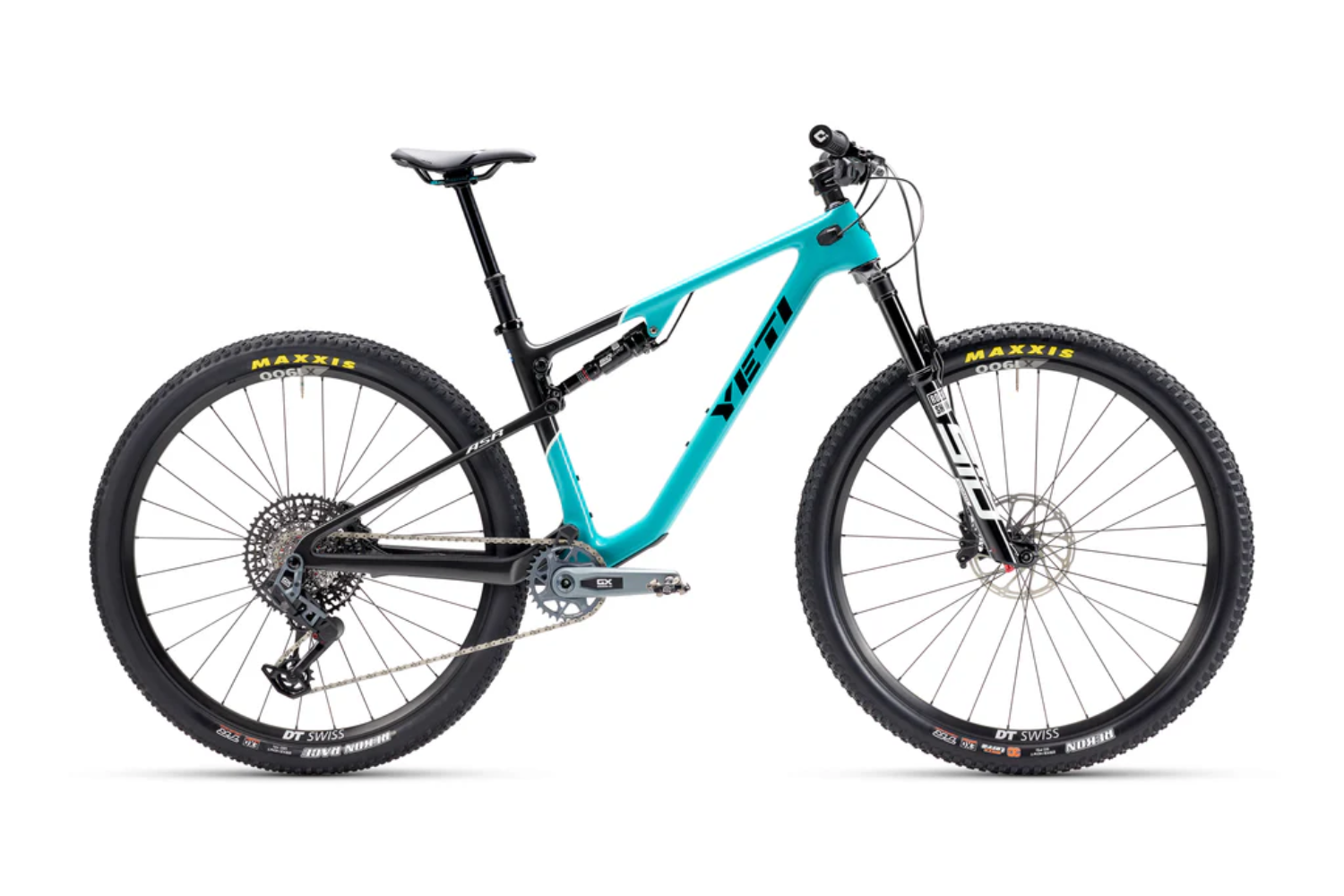

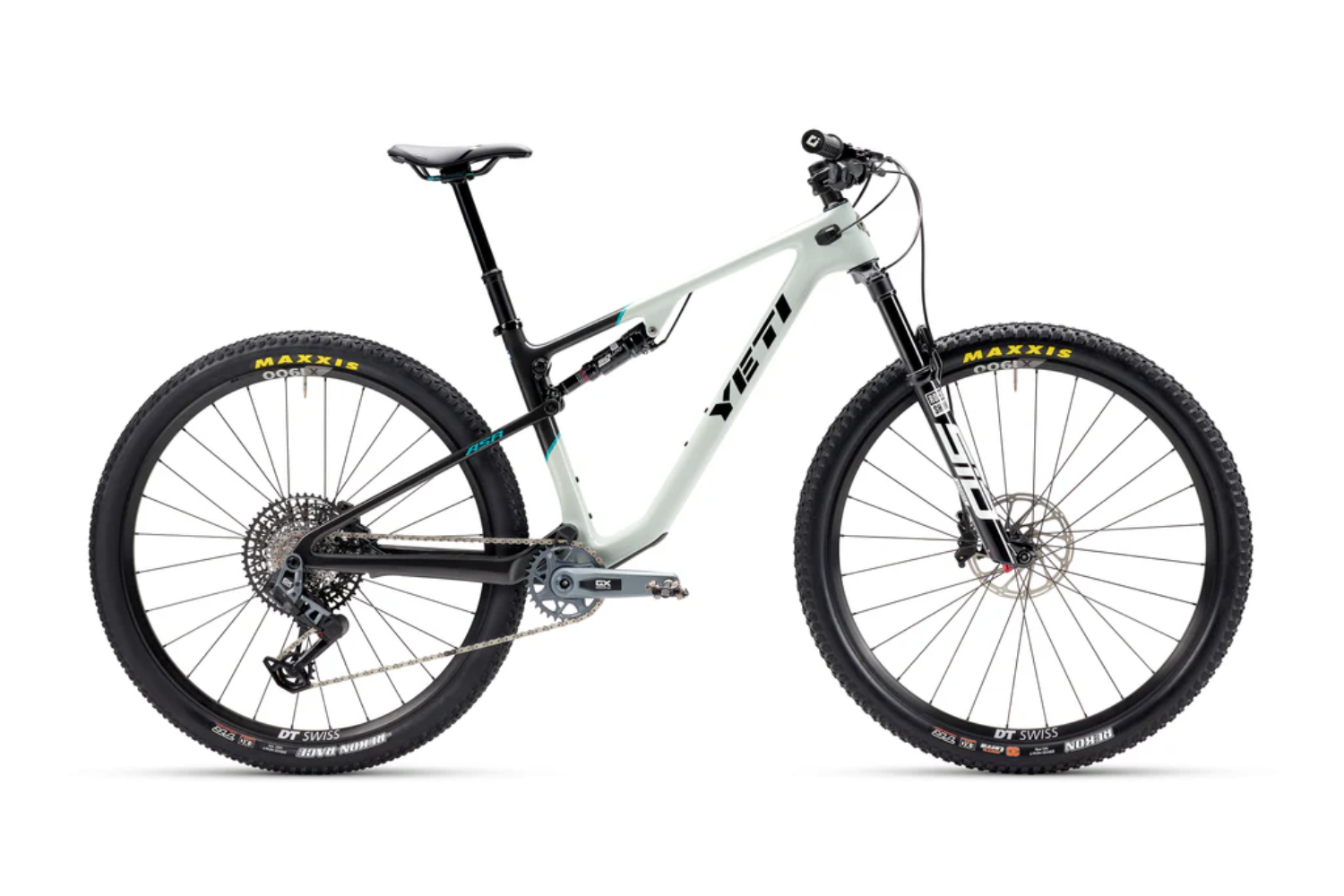

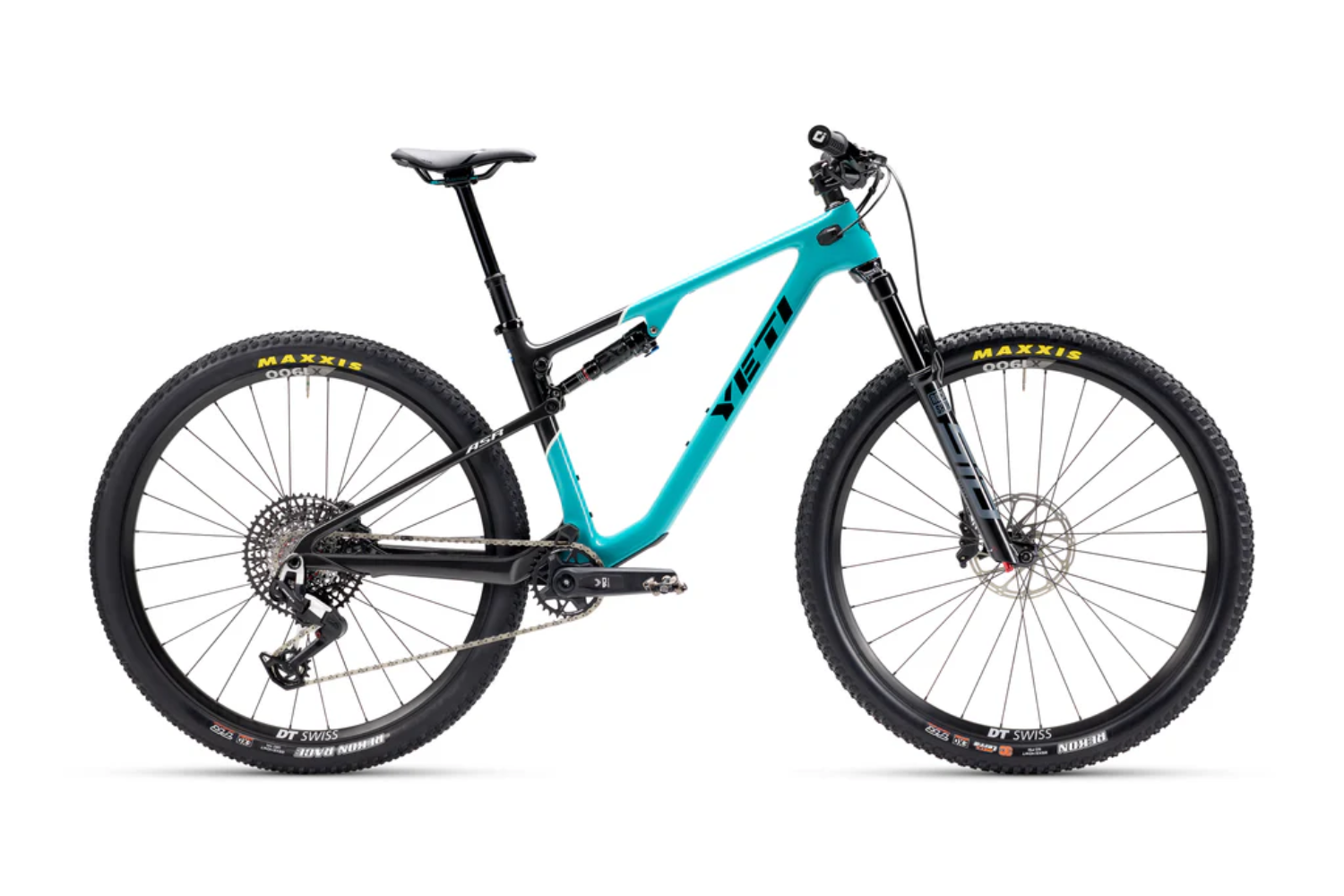

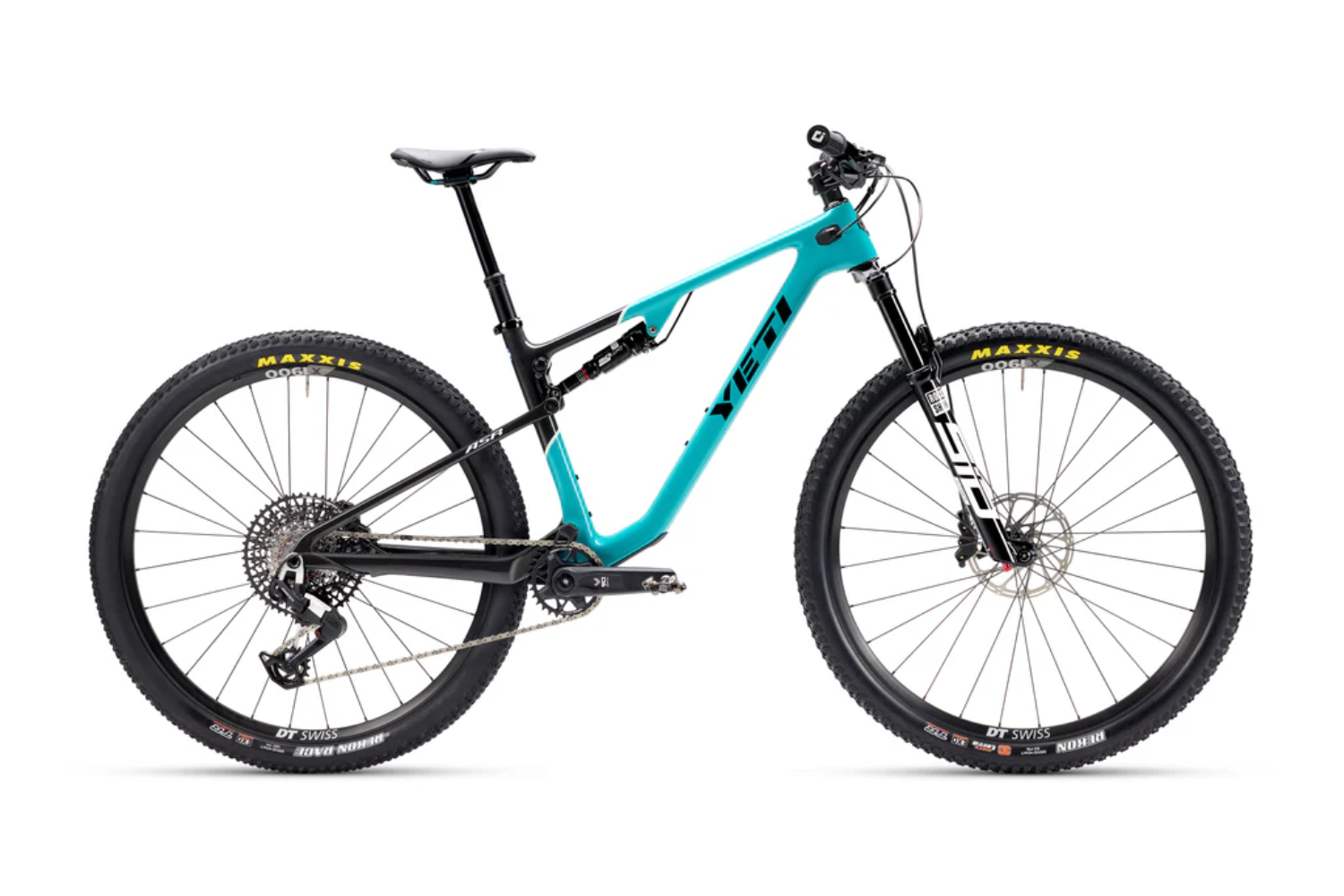

A decade ago Yeti peaced out of the lycra game. While they were busy getting down, XC got a lot more X, calling for the comeback of a legend. Flashing a crazy-light, zero - redundant carbon layup that’s far beyond the previously possible. Featuring 115mm of flex stay suspension for 100% usable travel, and energy saving small-bump compliance. Helping today’s racers be faster where they have to be. On first blush it may appear to have peers, but don’t get it twisted. The reincarnated ASR is a lot like nothing else.
| C2 | C3 | C2 Ultimate | C3 Ultimate |
| FORK SID SELECT 3P | FORK SID SELECT 3P | FORK SID ULT 3P RMT | FORK SID ULT 3P RMT |
| SHOCK SIDLUXE SELECT + 3p | SHOCK SIDLUXE SELECT + 3p | SHOCK SIDLUXE ULT 3P RMT | SHOCK SIDLUXE ULT 3P RMT |
| CRANK GX T-Type 32T | CRANK GX T-Type 32T | CRANK E90 TRANSMISSION 32T | CRANK GX T-Type 32T |
| BB BB DUB BSA 73 MTB | BB BB DUB BSA 73 MTB | BB BB DUB BSA 73 MTB | BB BB DUB BSA 73 MTB |
| REAR DER GX T-Type | REAR DER GX T-Type | REAR DER E90 TRANSMISSION | REAR DER GX T-Type |
| CASSETTE GX T-Type 10-52 | CASSETTE GX T-Type 10-52 | CASSETTE GX T-Type 10-52 | CASSETTE GX T-Type 10-52 |
| CHAIN GX T-TYPE 122 LINK | CHAIN GX T-TYPE 122 LINK | CHAIN GX T-TYPE 122 LINK | CHAIN GX T-TYPE 122 LINK |
| SHIFT AXS POD W/CHARGER | SHIFT AXS POD W/CHARGER | SHIFT AXS POD W/CHARGER | SHIFT AXS POD W/CHARGER |
| BRAKES MOTIVE SRAM BRAKE BRONZE | BRAKES MOTIVE SRAM BRAKE BRONZE | BRAKES MOTIVE SRAM BRAKE BRONZE | BRAKES MOTIVE SRAM BRAKE BRONZE |
| FRONT ROTOR CENTERLINE 180 | FRONT ROTOR CENTERLINE 180 | FRONT ROTOR CENTERLINE 180 | FRONT ROTOR CENTERLINE 180 |
| REAR ROTOR CENTERLINE 160 | REAR ROTOR CENTERLINE 160 | REAR ROTOR CENTERLINE 160 | REAR ROTOR CENTERLINE 160 |
| WHEELSET X1900 29" 25MM | WHEELSET X1900 29" 25MM | WHEELSET X1900 29" 25MM | WHEELSET X1900 29" 25MM |
| FRONT TIRE REKON MAXX TERRA EXO 29X2.4 | FRONT TIRE REKON MAXX TERRA EXO 29X2.4 | FRONT TIRE REKON MAXX TERRA EXO 29X2.4 | FRONT TIRE REKON MAXX TERRA EXO 29X2.4 |
| REAR TIRE REKON RACE DUAL EXO 29X2.4 | REAR TIRE REKON RACE DUAL EXO 29X2.4 | REAR TIRE REKON RACE DUAL EXO 29X2.4 | REAR TIRE REKON RACE DUAL EXO 29X2.4 |
| HEADSET 40 INTEGRATED 8MM | HEADSET 40 INTEGRATED 8MM | HEADSET 40 INTEGRATED 8MM | HEADSET 40 INTEGRATED 8MM |
| BAR RIDE WIDE ALLOY ENDURO 35x760 AL2014 | BAR RIDE WIDE ALLOY ENDURO 35x760 AL2014 | BAR RIDE WIDE ALLOY ENDURO 35x760 AL2014 | BAR RIDE WIDE ALLOY ENDURO 35x760 AL2014 |
| STEM Enduro MK3 35X50 OE | STEM Enduro MK3 35X50 OE | STEM Enduro MK3 35X50 OE | STEM Enduro MK3 35X50 OE |
| POST ONEUP Dropper Post | POST ONEUP Dropper Post | POST ONEUP Dropper Post | POST ONEUP Dropper Post |
| SEAT SOLANO CHROMOLY FUSION FORM | SEAT SOLANO CHROMOLY FUSION FORM | SEAT SOLANO CHROMOLY FUSION FORM | SEAT SOLANO CHROMOLY FUSION FORM |
| Grips ELITE PRO BLACK | Grips ELITE PRO BLACK | GRIPS ELITE PRO BLACK | Grips ELITE PRO BLACK |
| LOCKOUT | LOCKOUT | FRAME ASR C-SERIES FRAME | LOCKOUT |
| FRAME ASR C-SERIES FRAME | FRAME ASR C-SERIES FRAME | FRAME ASR C-SERIES FRAME NO SHOCK |
| XS | SM | MD | LG | XL | ||
| A | SEAT TUBE LENGTH | 15.7 | 16.1 | 16.9 | 17.3 | 19.5 |
| B | EFFECTIVE TOPTUBE LENGTH | 21.8 | 22.6 | 23.6 | 24.5 | 25.7 |
| C | HEADTUBE ANGLE | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
| D | EFF. SEAT TUBE ANGLE | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 |
| E | ACTUAL SEAT TUBE ANGLE | 70.4 | 70.8 | 71.2 | 71.6 | 72.1 |
| F | CHAINSTAY LENGTH | 17.0 | 17.1 | 17.2 | 17.3 | 17.4 |
| G | WHEELBASE | 44.2 | 45.0 | 46.2 | 47.3 | 48.7 |
| H | ESTIMATED BB HEIGHT | 13.2 | 13.2 | 13.2 | 13.2 | 13.2 |
| I | STANDOVER | 30.2 | 30.2 | 30.4 | 30.4 | 30.6 |
| J | HEADTUBE LENGTH | 3.6 | 3.6 | 4.0 | 4.4 | 5.2 |
| K | AXLE TO CROWN | 20.9 | 20.9 | 20.9 | 20.9 | 20.9 |
| L | OFFSET | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
| M | STACK | 23.3 | 23.3 | 23.6 | 24.0 | 24.8 |
| N | REACH | 15.7 | 16.5 | 17.5 | 18.3 | 19.3 |
| O | FRONT CENTER | 27.1 | 27.9 | 29.0 | 30.0 | 31.3 |
| P | Vertical Fork Travel | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 |
