Pedals not included.
Got any questions about condition or specs? Flick us a message - happy to help.
These are ex-demo bikes, all sold in good working order. Each bike is serviced after purchase so it’s running mint when you get it allow around a week for servicing.
Forget The Numbers. Mute The Speculation. Let The Other Guys Invent Cute Alternatives For “Cross Country.” Steer Clear Of Pigeonholes And Limiting Beliefs. Strap On Your Blinders And Go Get Lost. Then Decide What The Sb120 Means To You. And You Alone. Definition Ready.

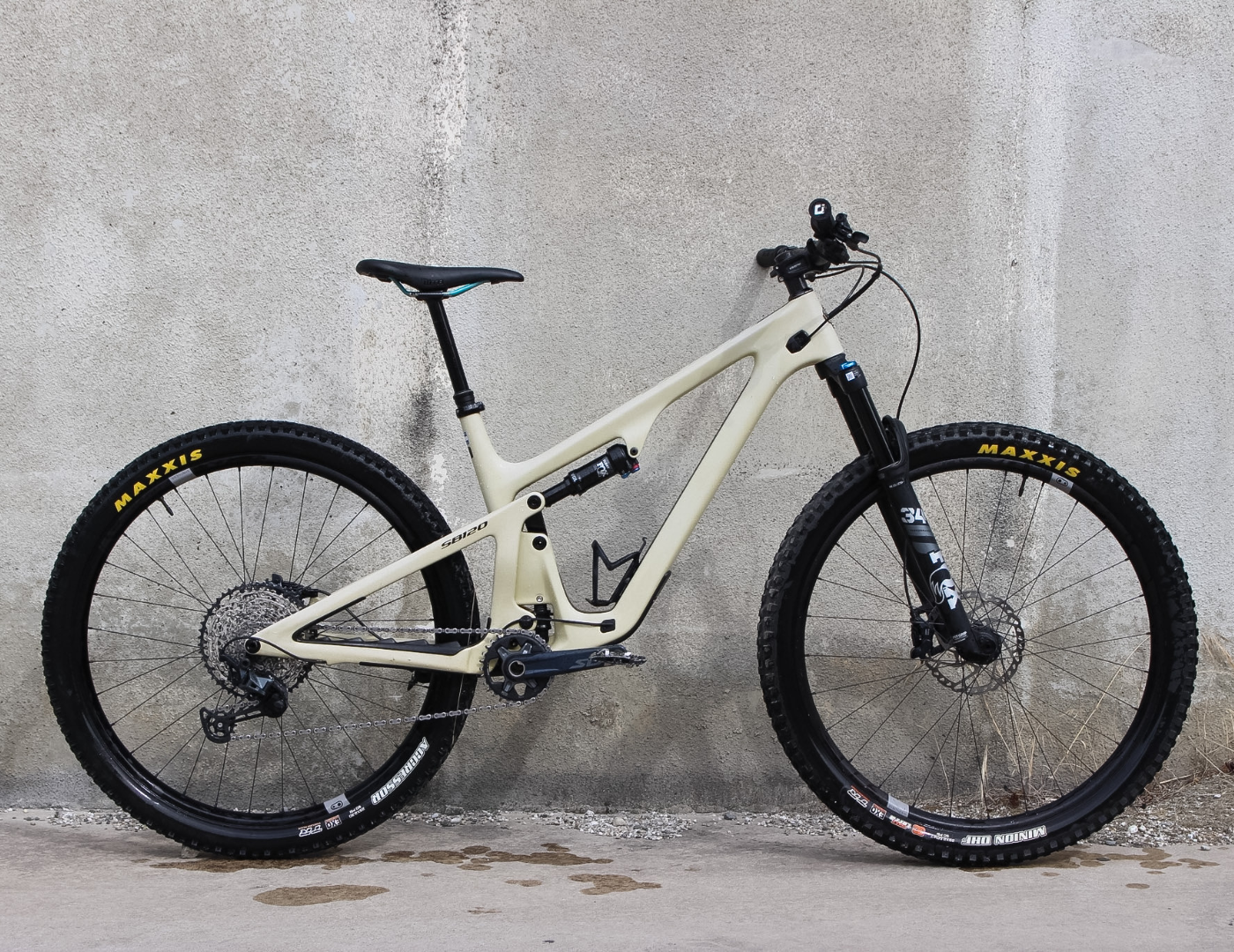

- Frame: C/Series carbon, 120mm travel, Switch Infinity V2 suspension

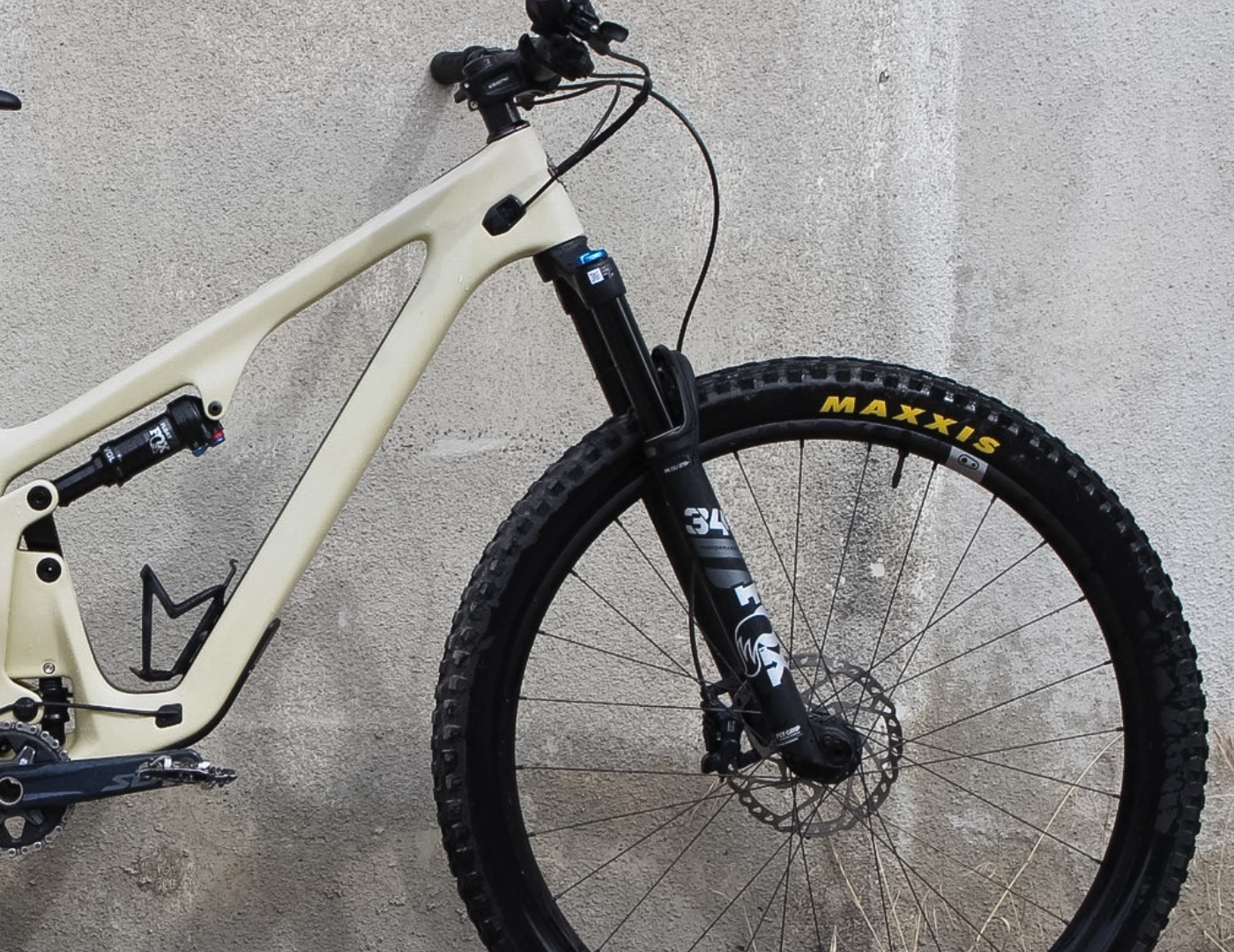

- Fork: Fox Performance 34, 130mm travel

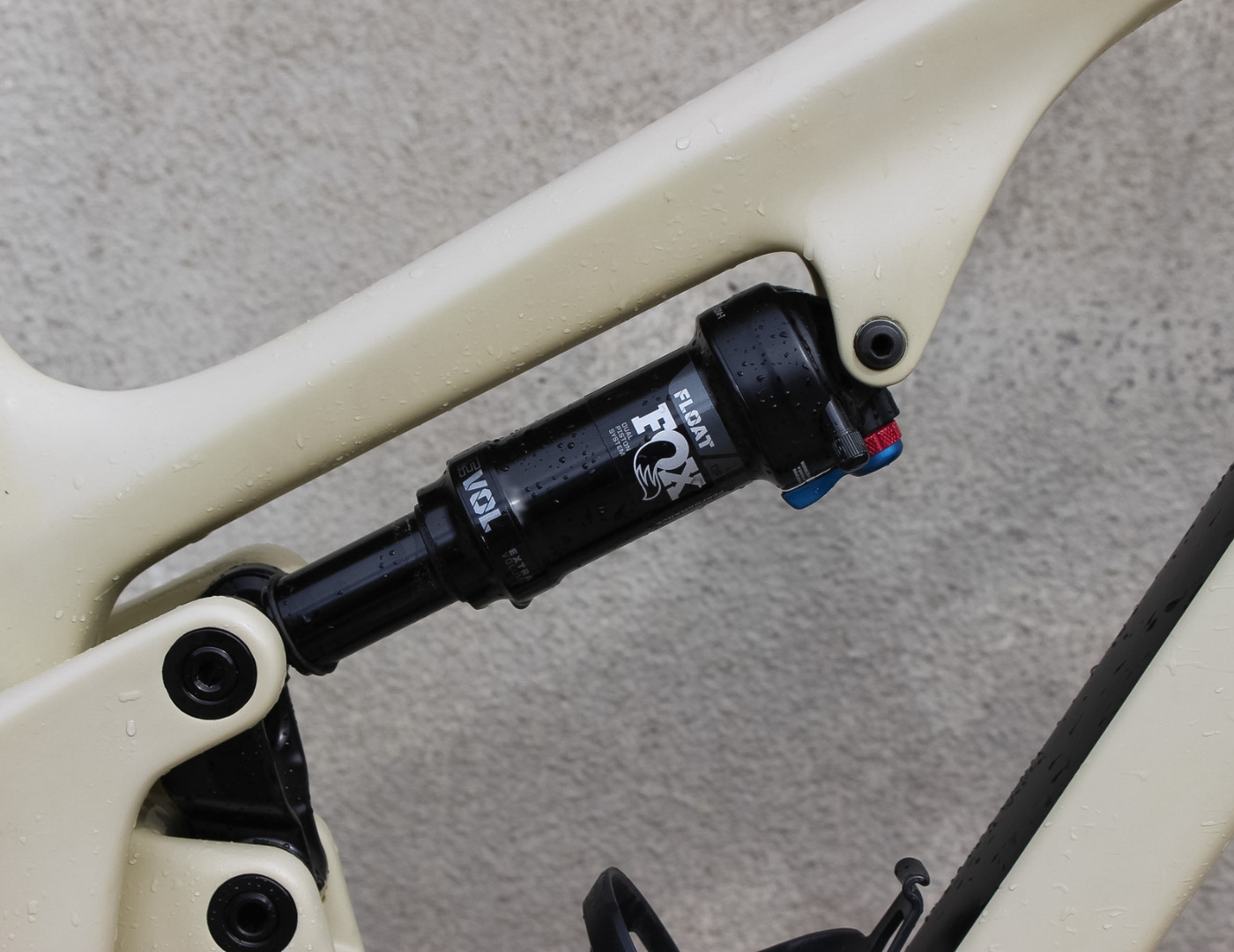

- Rear Shock: Fox Float DPS Performance, 190x45mm

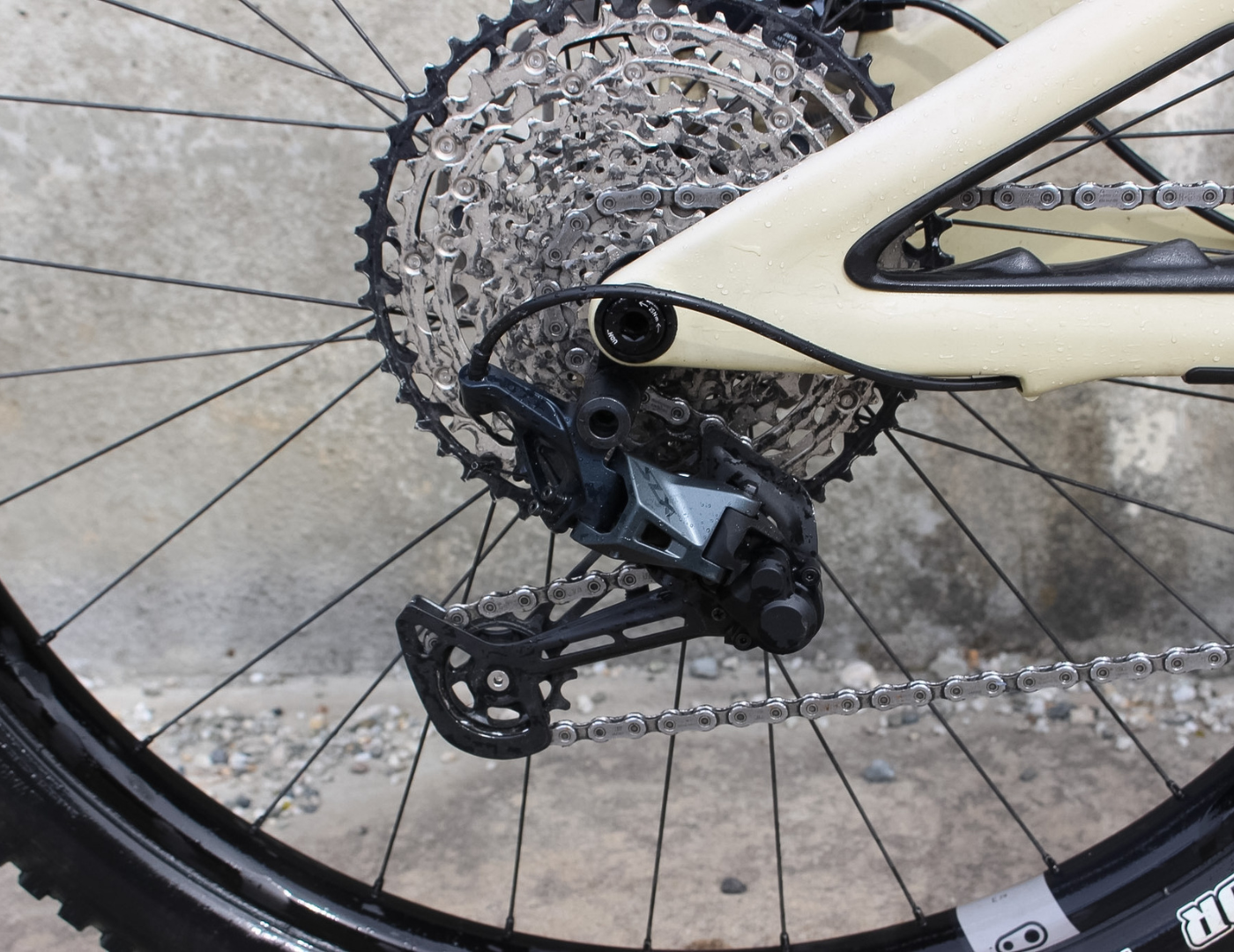

- Drivetrain: Shimano SLX 12-speed with XT rear derailleur
- Brakes: Shimano SLX 4-piston (C1)
- Wheels: Crank Brothers Synthesis Enduro, 30mm internal width
- Dropper Post: OneUp Dropper Post 210mm LG-XXL)
- Bottom Bracket: Threaded BSA 73mm
| SM | MD | LG | XL | 2XL | ||
| A | SEAT TUBE LENGTH | 14.4 | 15.7 | 17.3 | 18.5 | 19.1 |
| B | EFFECTIVE TOPTUBE LENGTH | 22.5 | 23.7 | 24.6 | 25.7 | 26.4 |
| C | HEADTUBE ANGLE | 65 | 65 | 65 | 65 | 65 |
| D | EFF. SEAT TUBE ANGLE | 77 | 77 | 77 | 77 | 77 |
| E | ACTUAL SEAT TUBE ANGLE | 71.8 | 72.2 | 72.4 | 72.8 | 73.3 |
| F | CHAINSTAY LENGTH | 17.2 | 17.2 | 17.3 | 17.4 | 17.5 |
| G | WHEELBASE | 46.8 | 48.1 | 49 | 50.3 | 51.3 |
| H | ESTIMATED BB HEIGHT | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| I | STANDOVER | 28.6 | 28.8 | 29.0 | 29.1 | 29.3 |
| J | HEADTUBE LENGTH | 3.6 | 3.7 | 4.0 | 4.4 | 5.3 |
| K | FORK AXLE TO CROWN | 22.6 | 22.6 | 22.6 | 22.6 | 22.6 |
| L | FORK OFFSET | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
| M | STACK | 24.3 | 24.4 | 24.6 | 25.7 | 26.4 |
| N | REACH | 16.9 | 18.1 | 18.9 | 19.9 | 20.5 |
| O | FRONT CENTER | 29.6 | 30.8 | 31.7 | 32.9 | 33.8 |
| P | Vertical Fork Travel | 5.7 | 5.7 | 5.7 | 5.7 | 5.7 |
