Pedals not included.
Got any questions about condition or specs? Flick us a message - happy to help.
These are ex-demo bikes, all sold in good working order. Each bike is serviced after purchase so it’s running mint when you get it allow around a week for servicing.

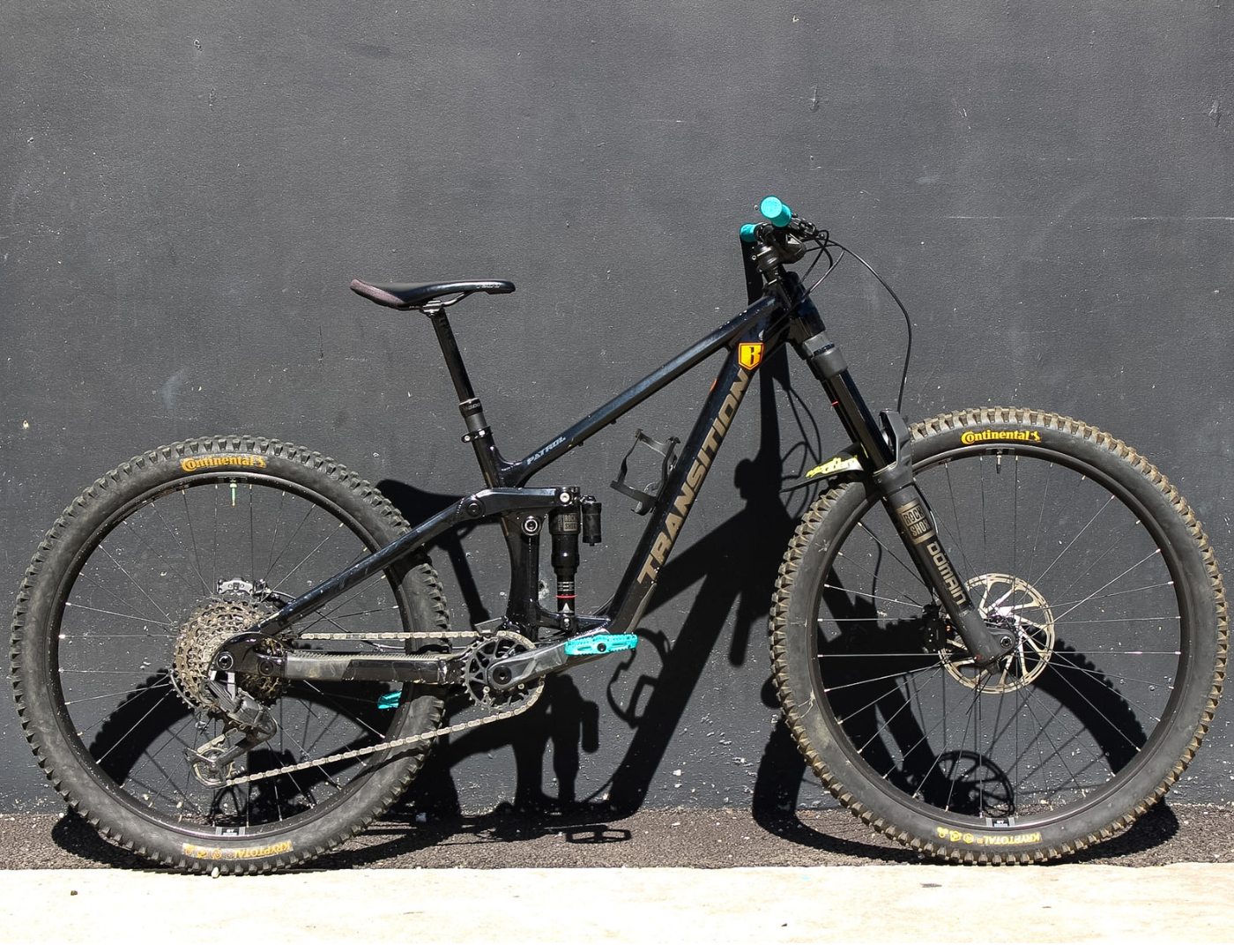

The Purebred Party Animal
The mixed wheel Patrol has a new haircut but is still down for anything and truly unapologetic when it comes to shredding trail.
Being one of the longest standing bikes in our lineup, it was the obvious choice to mix it up. Updated geometry to accommodate the 29" front / 27.5" rear wheels and revised suspension tune might just make you ride all day, and then all night. Jibbing, jumping, pumping and hooting your way down the trail, the updated Patrol loves to party. From bike parks to your local trails, the Patrol isn't concerned with where you ride but rather how much fun you are having.
| SM | MD | LG | XL | |
| B.STACK | 623 | 628 | 623 | 628 | 632 | 637 | 641 | 646 |
| C.EFFECTIVE TOPTUBE LENGTH | 543 | 540 | 578 | 575 | 606 | 603 | 639 | 636 |
| D.SEATTUBE LENGTH | 360 | 390 | 430 | 460 |
| E.EFFECTIVE SEATTUBE ANGLE | 79.6 | 79.1 | 78.8 | 78.3 | 78.1 | 77.6 | 77.5 | 77 |
| SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE | 600 | 660 | 720 | 780 |
| ACTUAL SEATTUBE ANGLE | 70.5 | 70 | 70.5 | 70 | 70.5 | 70 | 70.5 | 70 |
| SEATTUBE OFFSET AT BOTTOM BRACKET | 100 | 100 | 100 | 100 |
| F.HEADTUBE LENGTH | 100 | 100 | 110 | 120 |
| G.HEADTUBE ANGLE | 63.5 | 63 | 63.5 | 63 | 63.5 | 63 | 63.5 | 63 |
| H.CHAINSTAY LENGTH | 434 | 436 | 434 | 436 | 440 | 442 | 440 | 442 |
| I.WHEELBASE | 1196 | 1198 | 1231 | 1233 | 1266 | 1268 | 1301 | 1303 |
| J.BOTTOM BRACKET DROP (FRONT) | 35 | 42 | 35 | 42 | 35 | 42 | 35 | 42 |
| J.BOTTOM BRACKET DROP (REAR) | 15 | 22 | 15 | 22 | 15 | 22 | 15 | 22 |
| K.ESTIMATED BOTTOM BRACKET HEIGHT | 340 | 333 | 340 | 333 | 340 | 333 | 340 | 333 |
| STANDOVER HEIGHT | 675 | 685 | 690 | 700 | 705 | 715 | 720 | 730 |
