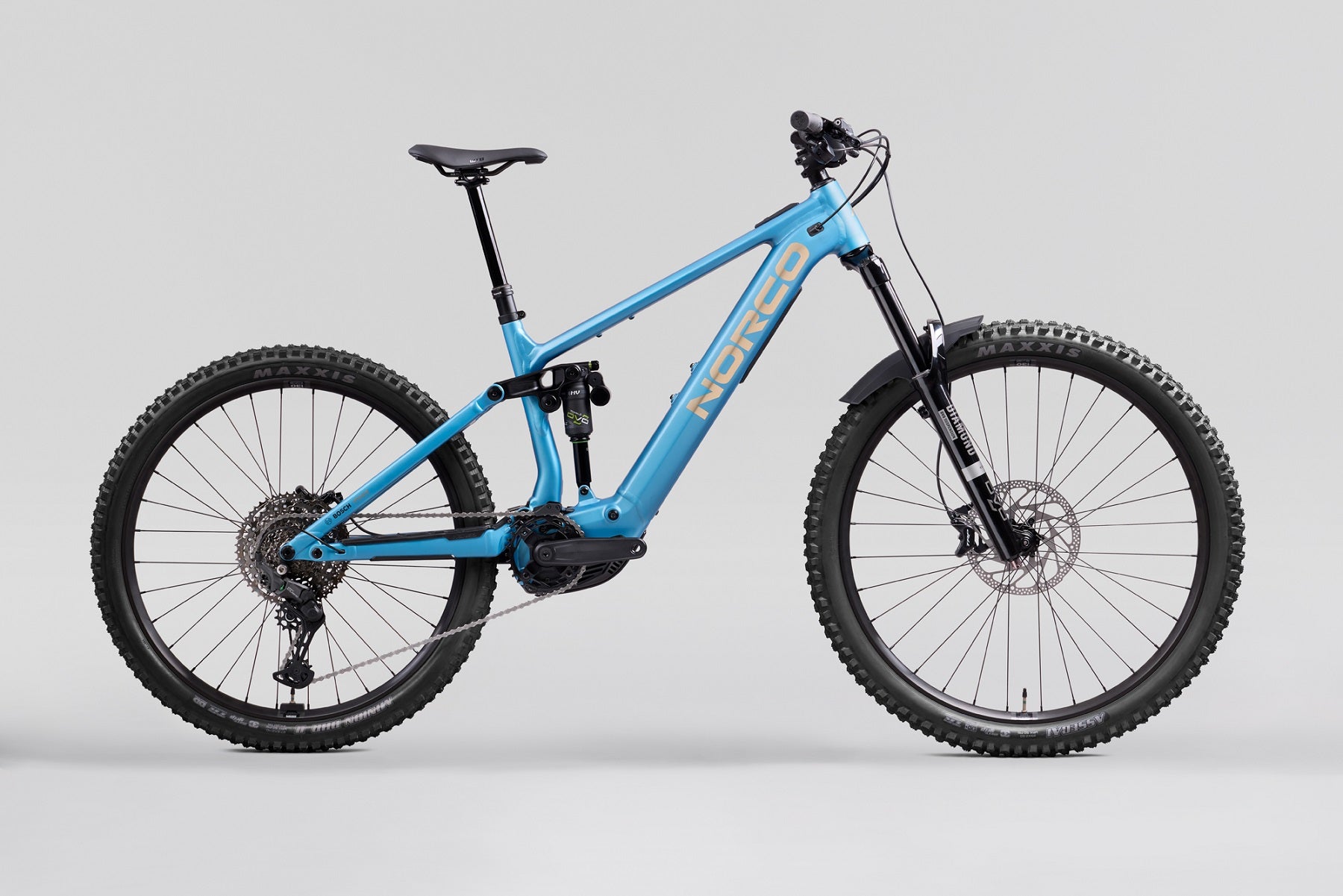

Sight VLT Bosch A3 delivers full-power eMTB performance where it matters most. No fluff, just composure and confidence. Designed for easy maintenance and serviceability, built for all-mountain riding. With 160 mm of travel in the front and 150 mm in the rear, with Norco’s proven VPS platform and dependable system. Everything you need to get out and go, more.
| Frame | Aluminum Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™ |
| Fork | DVO Diamond 36 Core, Low Speed Compression | Rebound , 160mm, 44mm Offset |
| Rear Shock | DVO Topaz Core, 205x60mm TR |
| Rear Shifter | Shimano CUES SL-U6000-11R, 11sp |
| Rear Derailleur | Shimano CUES RD-U6000, 11sp, GS |
| Crankset | Prowheel Aluminum Bosch Cranks, 34T, 155mm (S1,S2,S3) - 160mm (S4, S5) |
| Bottom Bracket | Bosch PX |
| Cassette | Shimano CUES CS-LG3400-11, 11-50T, 11sp |
| Chain | Shimano CUES CN-LG500-Q, 11sp |
| Front Brake | TRP Slate EVO, Organic Pads |
| Front Brake Rotor | TRP 203mm, 2.3mm Thickness, Centerlock |
| Rear Brake | TRP Slate EVO, Organic Pads |
| Rear Brake Rotor | TRP RS01E, 180mm, 2.3mm Thickness, Centerlock |
| Brake Levers | TRP Slate EVO |
| Handlebar | Norco 6061 DB Alloy, 800mm, 25mm rise (S1,S2) - 35mm rise (S3,S4,S5) |
| Stem | Norco 6061, 40mm Length, 35mm Clamp |
| Seatpost | TranzX YSI34QL , 31.6mm, 125 (S1) -150mm (S2) -170mm (S3) -200mm (S4,S5) |
| Headset | FSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 ) |
| Saddle | WTB Solano Med, 142x240 mm, Steel Rails |
| Grips | WTB Wavelength, 140mm Length |
| Front Hub | Shimano HB-MTC500-15-B,15x110mm Boost, 32H, C-lock |
| Rear Hub | Shimano FH-TC500-MS-B, 12x148mm Boost, HG, 32H, C-Lock |
| Rims | WTB ST Tough TCS 2.0 ,30 mm, 32H, 29"-27.5" F/R |
| Front Tire | Maxxis Assegai, 3C MaxxGrip EXO+, 29x2.5", Folding |
| Rear Tire | Maxxis Minion DHR II, 3C Maxx Grip DD, 27.5.5x2.4", Folding |
| Spokes/Nipples | Sapim Sprint DB Spokes 2.0/1.8/2.0,Black stainless steel |
| Drive Unit | Bosch Performance Line PX, 90 Nm / 700W |
| Battery | Bosch PowerTube 600 Wh |
| 5 | 4 | 3 | 2 | 1 | ||
|---|---|---|---|---|---|---|
| Wheel Size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | |
| Travel (mm front/mm rear) |
160/150
|
|||||
| Reach | 510 | 490 | 470 | 450 | 430 | |
| Stack | 652 | 643 | 634 | 625 | 616 | |
| HTA | Head Tube Angle |
64
|
||||
| OS | Fork Offset |
44
|
||||
| ST | Seat Tube Length | 475 | 445 | 415 | 395 | 385 |
| STA | Effective Seat Tube Angle | 78 | 77.75 | 77.5 | 77.25 | 77 |
| RC | Rear Centre Length | 448 | 444 | 440 | 436 | 432 |
| BBDF/R | Bottom Bracket Drop (Front/Rear) |
27/8
|
||||
| BBH | Bottom Bracket Height |
347
|
||||
| HTT | Horizontal Top Tube | 638 | 621 | 604 | 587 | 571 |
| WB | Wheelbase | 1311 | 1283 | 1255 | 1226 | 1202 |
| SOH | Standover | 745 | 723 | 706 | 704 | 696 |
| HT | Head Tube Length | 140 | 130 | 120 | 110 | 100 |
| Trail |
133
|
|||||
| Recommended Seatpost Drop | 230 | 200 | 170 | 150 | 125 | |
| Maximum Post Insertion | 330 | 300 | 270 | 250 | 240 | |
| Stem Length |
40
|
|||||
| Crank Length |
160
|
155
|
||||
| Tire Size |
2.35" – 2.5"
|
|||||
| Water Bottle Compatible |
1 x 750mL
|
1 x 620mL | ||||
