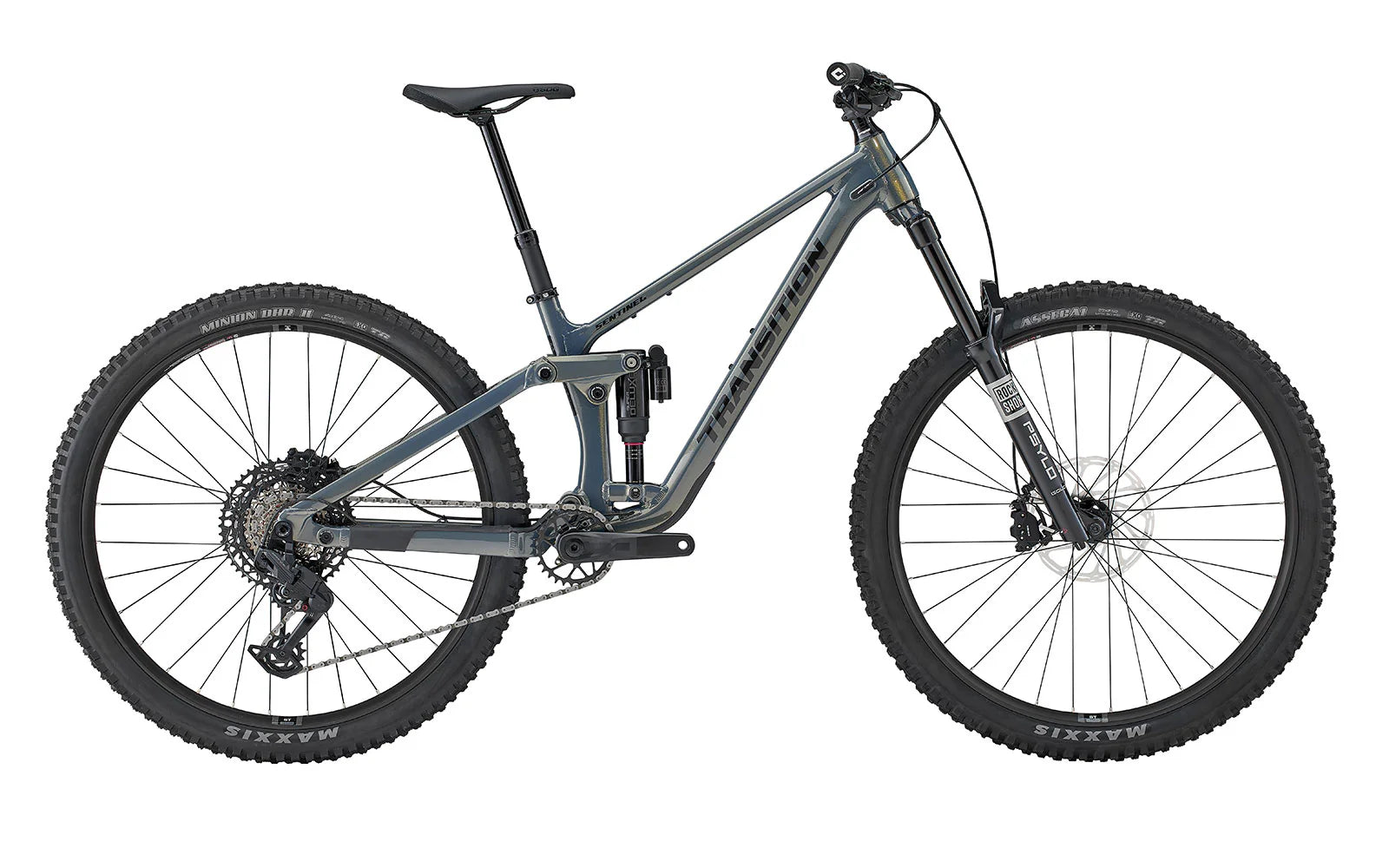

Send-it-all on the Sentinel
A bike that says yes to every trail, every ride, and begs for more.
The Sentinel rides the lines between planted bottomless sender and playful, poppy trail pony. This leaves it right in the sweet spot, as we like to call it. Its versatile attitude helps riders excel and push their limits, making it the "one bike" most will need. Its intuitive nature is easy to get acquainted with; you'll find yourself sending lines, jumps, and maneuvers you always felt were beyond your ability. Where before you went around, now you go over. Where you pushed up, now you pedal. Where you rolled, now you boost. It's time to Send-It-All.

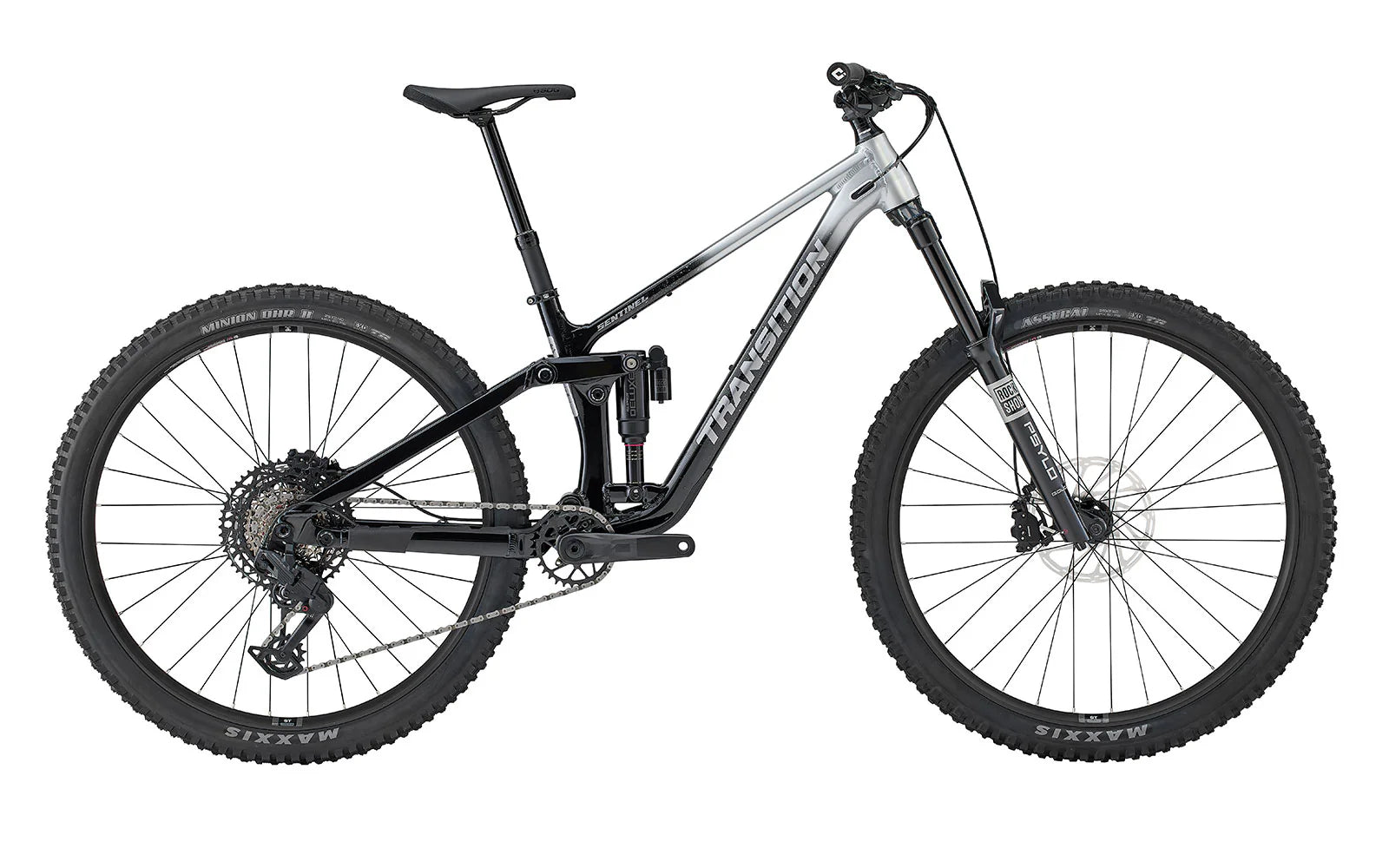

| FRAME | Sentinel Alloy 150mm |
| WHEEL SIZE | 29" & Mixed |
| REAR SHOCK | RockShox SuperDeluxe Base (205x60mm) |
| FORK | RockShox Psylo Gold RC (160mm) |
| HEADSET | FSA No.57E |
| STEM | Race Face Aeffect R (40mm) |
| HANDLEBAR | Race Face Chester 35 SM(780x20) MD/LG/XL(780x35) |
| GRIPS | ODI Elite Flow Lock-On |
| SADDLE | SDG Bel Air 3 |
| SEATPOST | SDG Tellis SM(150mm) MD(170mm) LG(200mm) XL(230mm) |
| BRAKES | SRAM Maven Base |
| ROTORS | SRAM Centerline (180/200mm) |
| SHIFTER | SRAM Eagle 70 MMX |
| DERAILLEUR | SRAM Eagle 70 |
| CASSETTE | SRAM XS 1270 (10-52t) |
| CHAIN | SRAM Eagle 70 |
| CRANK | SRAM Eagle 70 DUB 29(30t/165mm) 27.5(32t/165mm) |
| RIMS | WTB ST i30 |
| SPOKES | Pillar Double Butted |
| HUBS | Novatech D791SB/D902SB |
| TIRE/FRONT | Maxxis Assegai EXO/TR (2.5) |
| TIRE/REAR | Maxxis Minion DHRII EXO/TR (2.4) |
| INCLUDED | Tubeless Valves & Sealant |
| SM | MD | LG | XL | |
| A.REACH | 430 | 455 | 480 | 505 |
 |
||||
| B.STACK | 615 | 621 | 633 | 642 |
|
||||
| C.EFFECTIVE TOPTUBE LENGTH | 549 | 577 | 605 | 632 |
|
||||
| D.SEATTUBE LENGTH | 360 | 390 | 430 | 460 |
|
||||
| E.EFFECTIVE SEATTUBE ANGLE | 79.3 | 78.7 | 78.3 | 77.9 |
|
||||
| SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE | 600 | 660 | 720 | 780 |
|
||||
| ACTUAL SEATTUBE ANGLE | 73.0 | 73.0 | 73.0 | 73.0 |
|
||||
| SEATTUBE OFFSET AT BOTTOM BRACKET | 69 | 69 | 69 | 69 |
|
||||
| F.HEADTUBE LENGTH | 100 | 110 | 120 | 130 |
|
||||
| G.HEADTUBE ANGLE | 64.0 | 64.0 | 64.0 | 64.0 |
|
||||
| H.CHAINSTAY LENGTH | 442 | 442 | 442 | 448 |
|
||||
| I.WHEELBASE | 1208 | 1237 | 1267 | 1302 |
|
||||
| J.BOTTOM BRACKET DROP (FRONT) | 25 | 25 | 25 | 25 |
|
||||
| J.BOTTOM BRACKET DROP (REAR) | 25 | 25 | 25 | 25 |
|
||||
| K.ESTIMATED BOTTOM BRACKET HEIGHT | 350 | 350 | 350 | 350 |
|
||||
| STANDOVER HEIGHT | 690 | 690 | 695 | 705 |
