Transition  |  SKU: 01.012630.MB
10% off

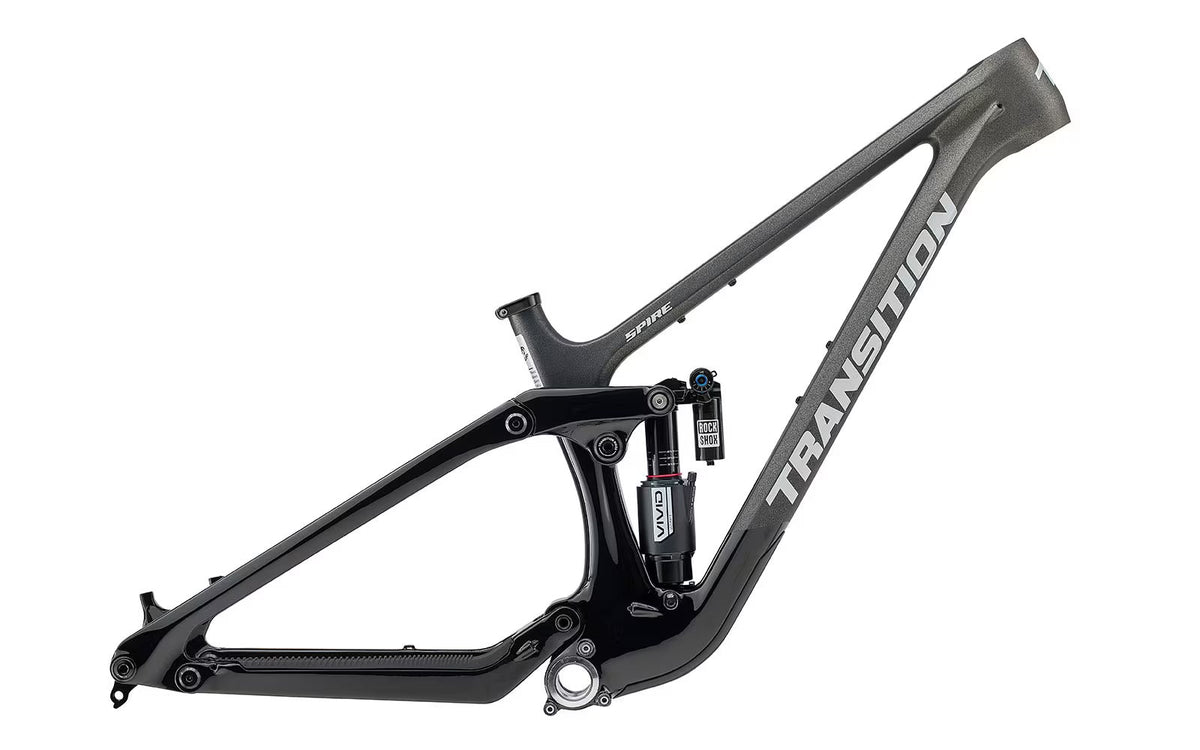

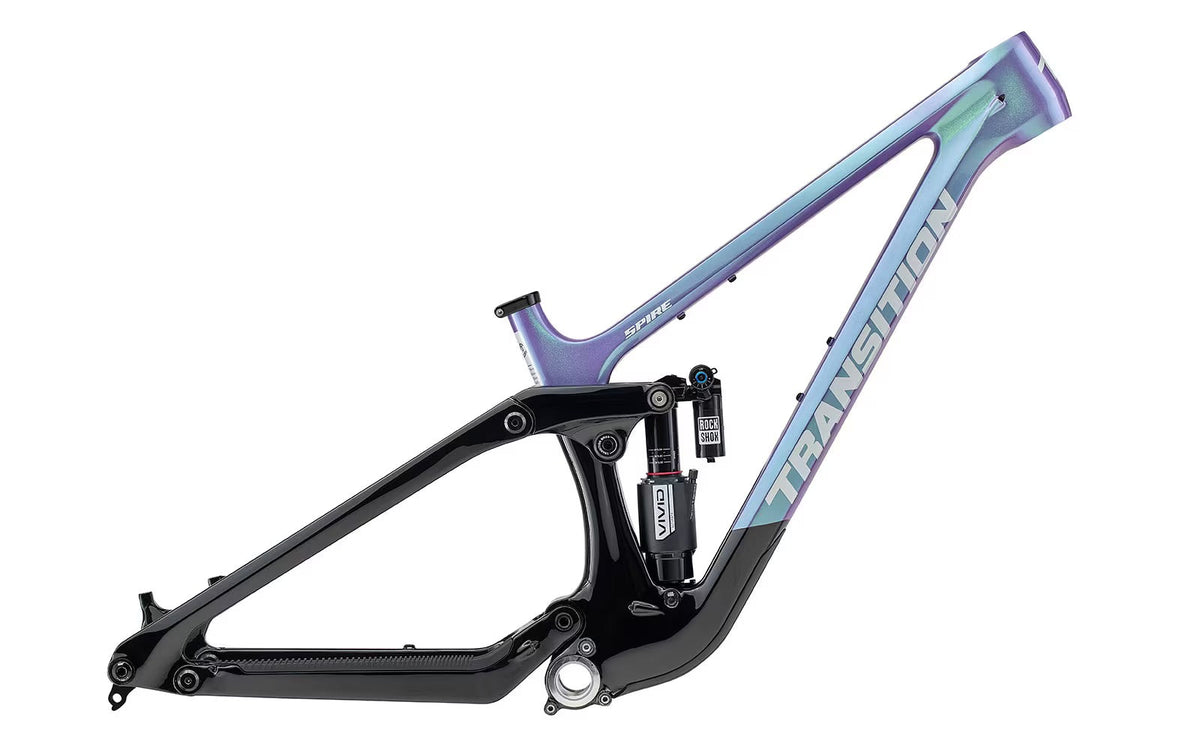

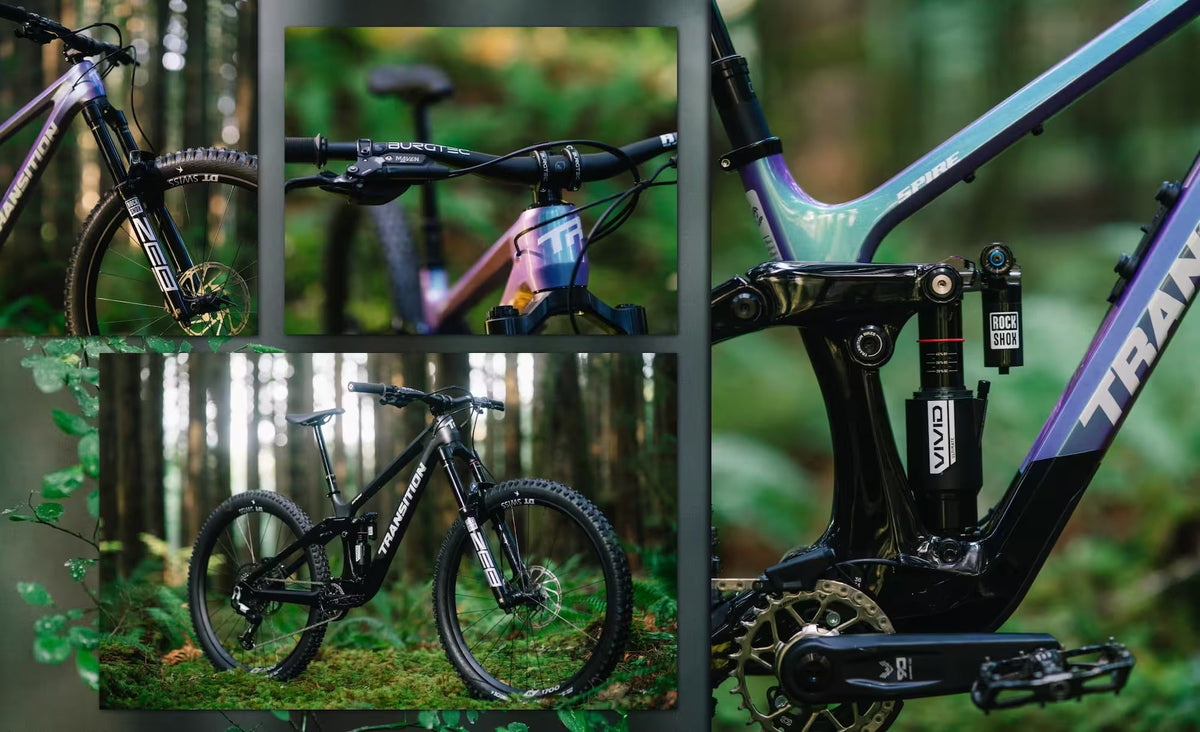

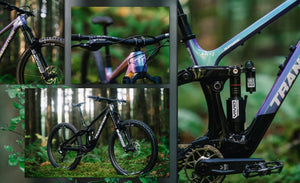

Transition Spire Carbon Frameset

$6,150.00 $6,850.00
Tax included
Size

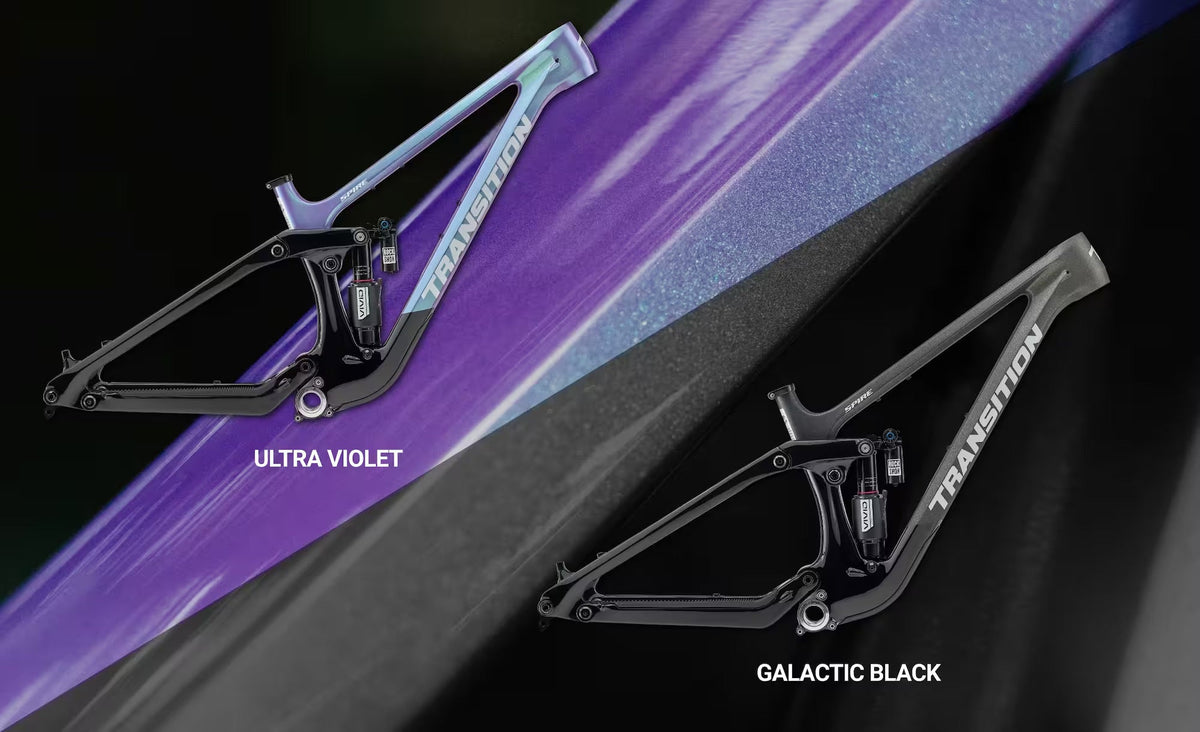

Colour

Description
Get ready to be inSpired
For those looking to take on the biggest terrain, we give you the Spire. Ready to go up, or down anything you put in front of it.
The Spire blends DH bike capability with mid-travel efficiency in such a way it's almost two bikes in one. A delicately tuned pedaling and pumping platform, supple beginning stroke sensitivity and all the travel you could ask for makes for a mind bending ride. Happily climb up to your favorite challenging descent, then cruise on over to your local flow trail and you'll be rewarded on both ends of the spectrum. This multi-trick pony lives to push your limits.

Specification
FRAME
Spire Carbon 170mm
WHEEL SIZE 29"
REAR SHOCK
RockShox Vivid Ultimate
(205x65mm)
HEADSET FSA NO.55R/57
(Included)

Geometry
SM MD LG XL 2XL
A. REACH 430 / 425 460 / 455 485 / 480 510 / 505 535 / 530
B.STACK 619 / 624 619 /624 628 / 633 637 / 642 646 / 651
C.EFFECTIVE TOPTUBE LENGTH 547 / 550 577 / 580 605 / 608 633 / 636 661 / 664
D.SEATTUBE LENGTH 360 390 430 460 490
E.EFFECTIVE SEATTUBE ANGLE 79.6° / 79.1° 78.8° / 78.3° 78.1° / 77.6° 77.5° / 77° 77.2° / 76.7°
SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE 600 660 720 780 820
ACTUAL SEATTUBE ANGLE 70.5° / 70° 70.5° / 70° 70.5° / 70° 70.5° / 70° 70.5° / 70°
SEATTUBE OFFSET AT BOTTOM BRACKET 100 100 100 100 100
F.HEADTUBE LENGTH 100 100 110 120 130
G.HEADTUBE ANGLE 63° / 62.5° 63° / 62.5° 63° / 62.5° 63° / 62.5° 63° / 62.5°
H.CHAINSTAY LENGTH 446 / 448 446 / 448 446 / 448 452 / 454 452 / 454
I.WHEELBASE 1227 / 1229 1257 / 1259 1287 / 1289 1322 / 1324 1352 / 1354
J.BOTTOM BRACKET DROP (FRONT) 25 / 32 25 / 32 25 / 32 25 / 32 25 / 32
K.ESTIMATED BOTTOM BRACKET HEIGHT 350 / 343 350 / 343 350 / 343 350 / 343 350 / 343
