E-bike
- Wiring Harness
- Custom Specialized wiring harness
- Charger
- Custom charger, 48V System w/ SL system charger plug
- UI/Remote
- Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
- Motor
- Specialized SL 1.2 Custom Rx Trail Tuned Motor
- Battery
- Specialized SL1-320, fully integrated, 320Wh
Frameset
- Seat Binder
- Alloy, 38.6mm
- Frame

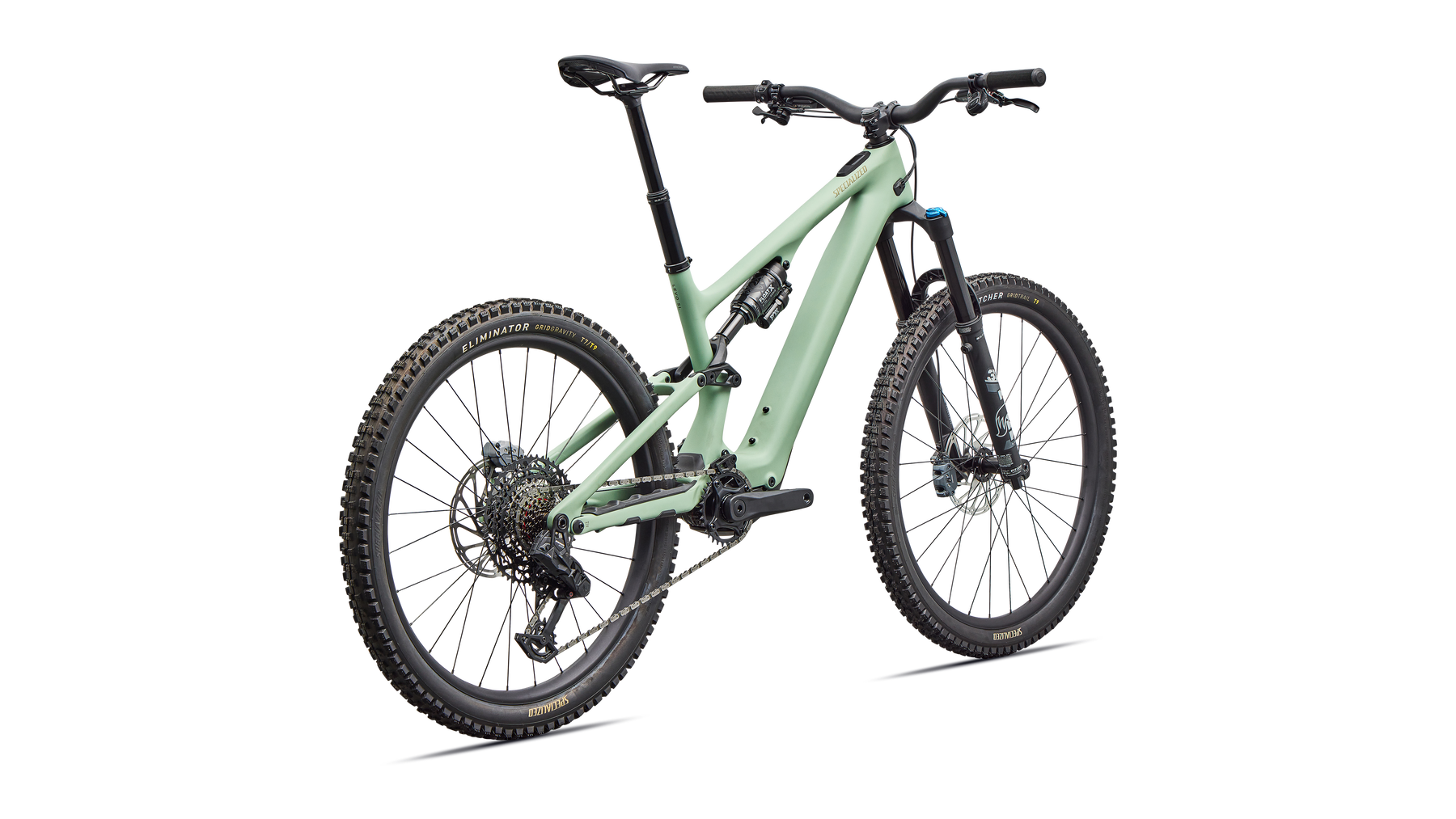

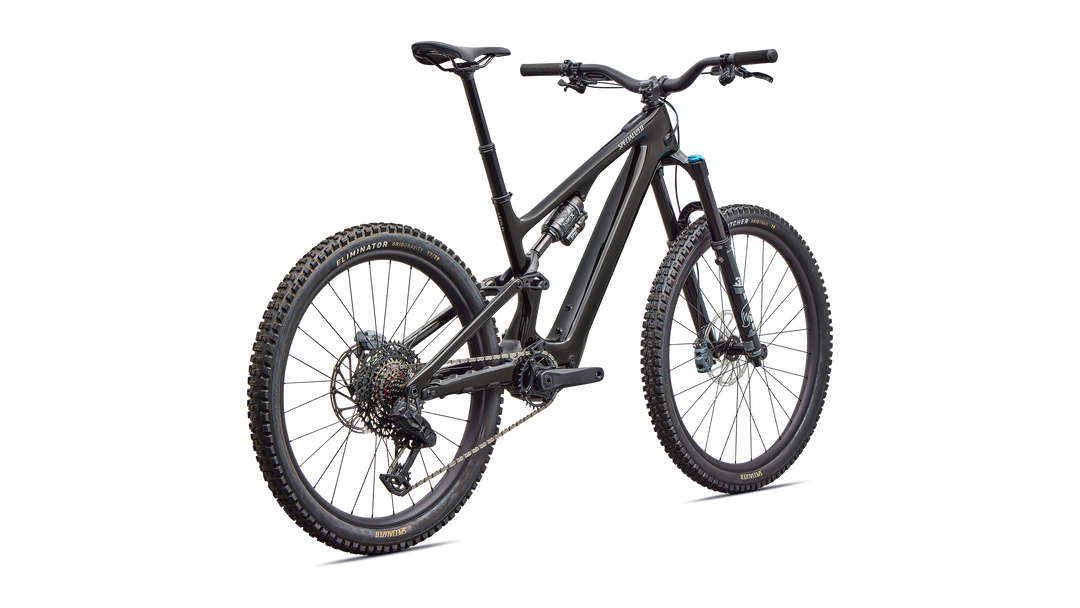

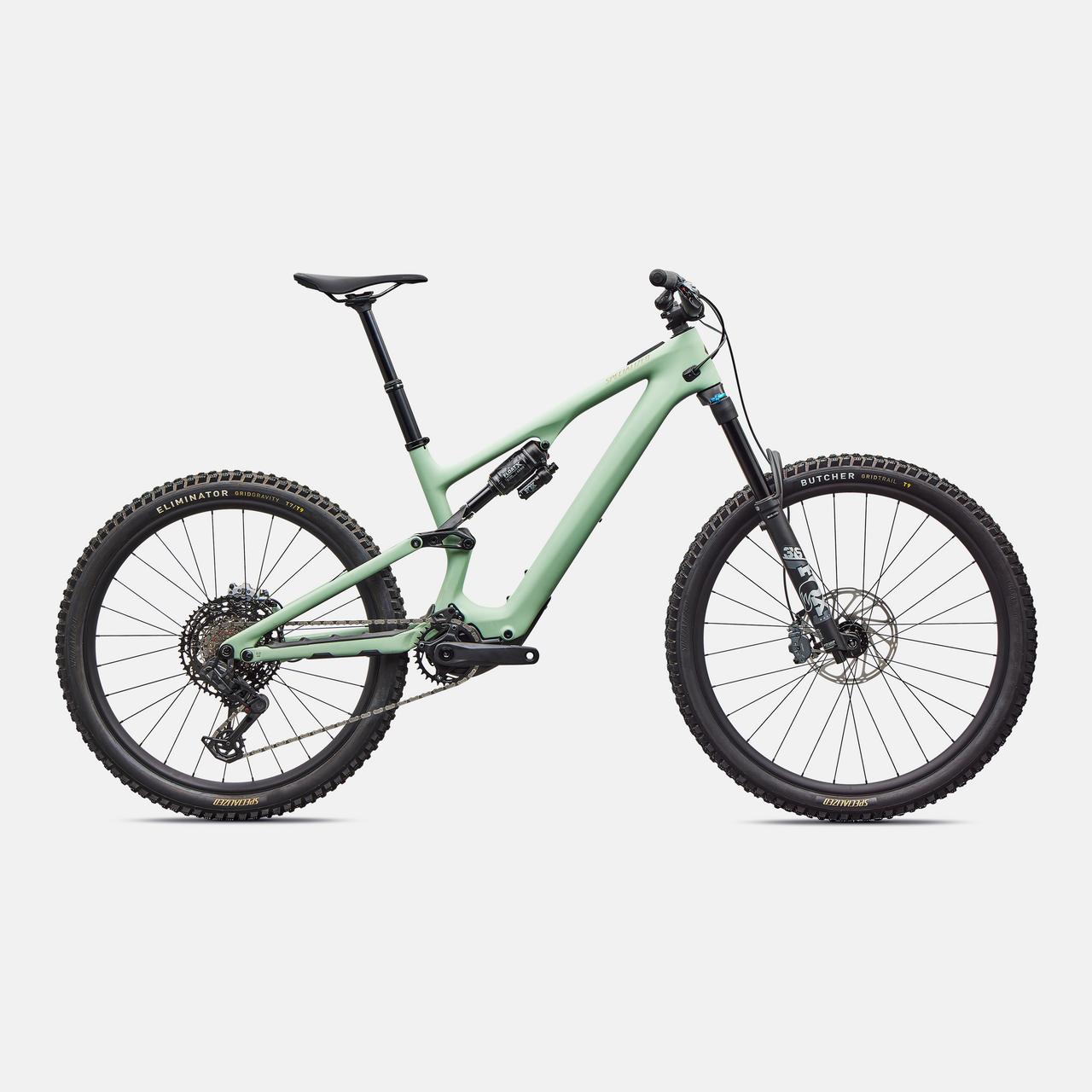

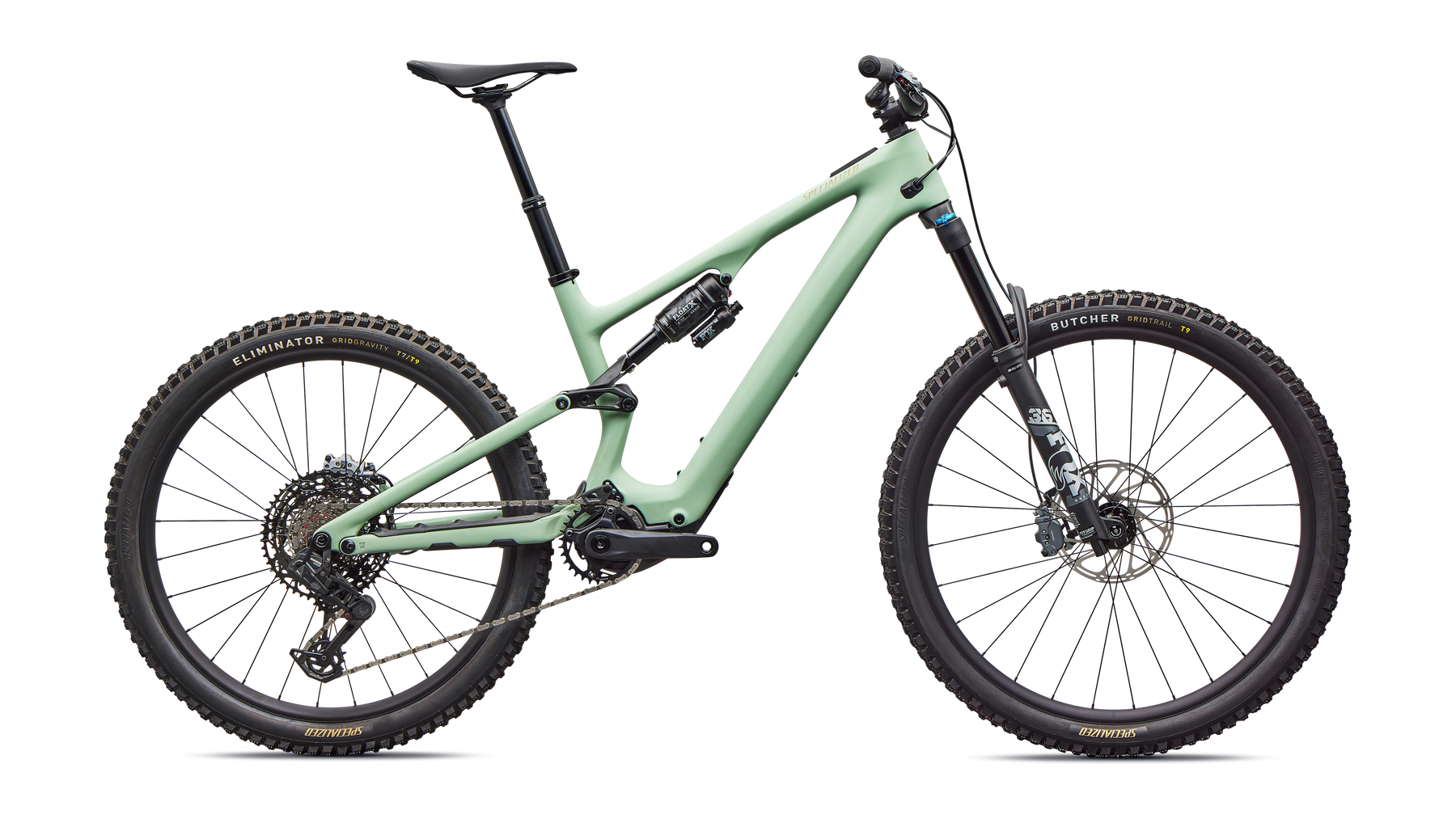

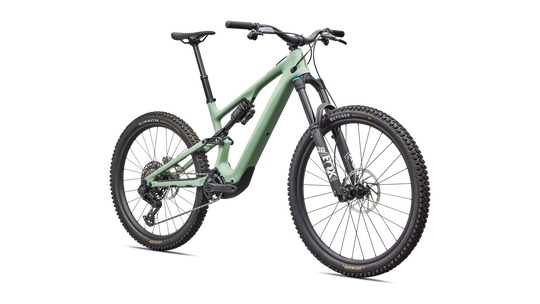

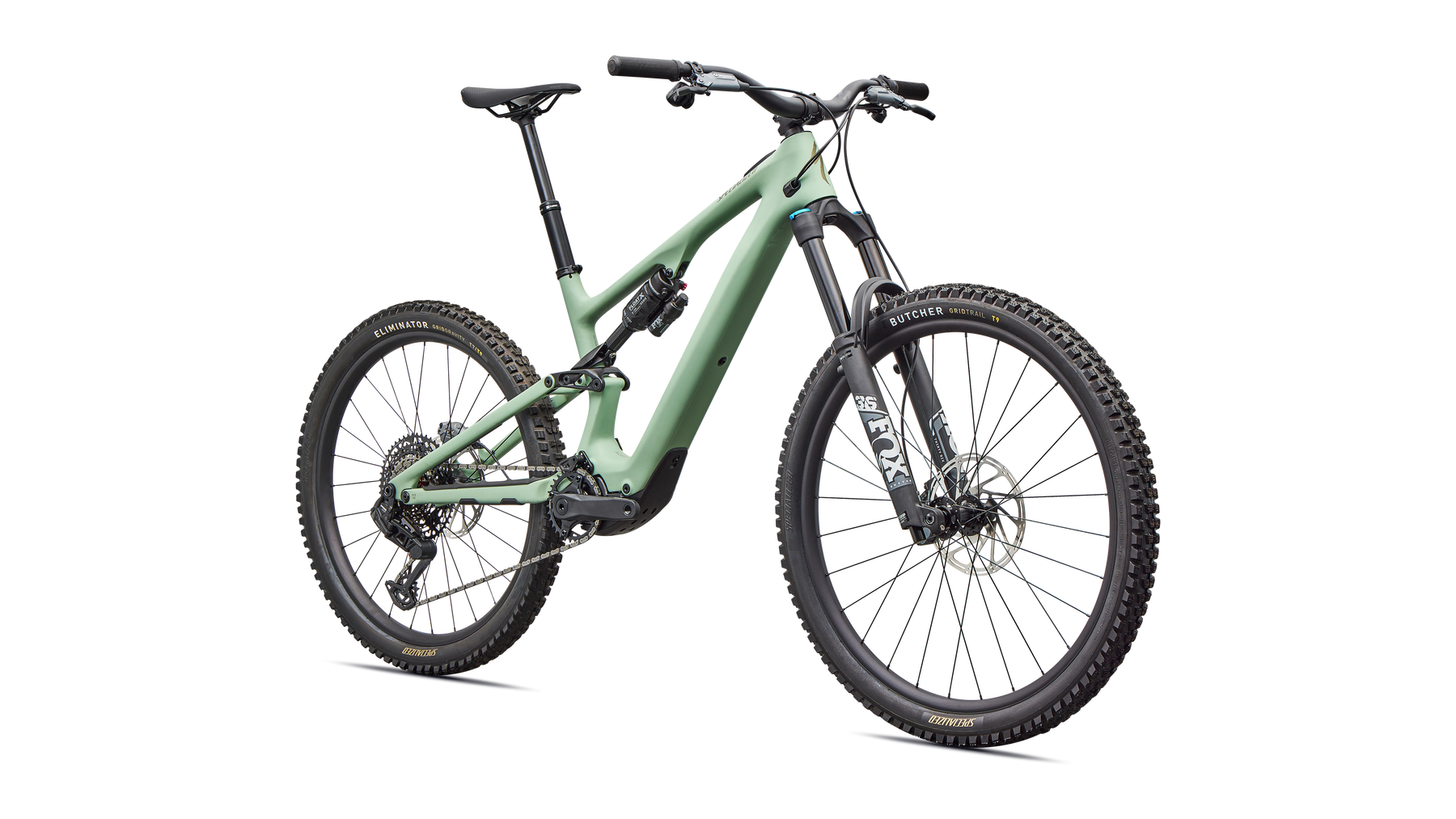

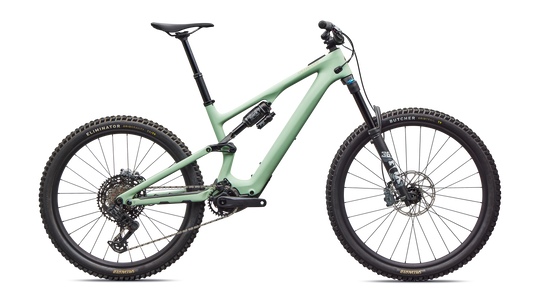

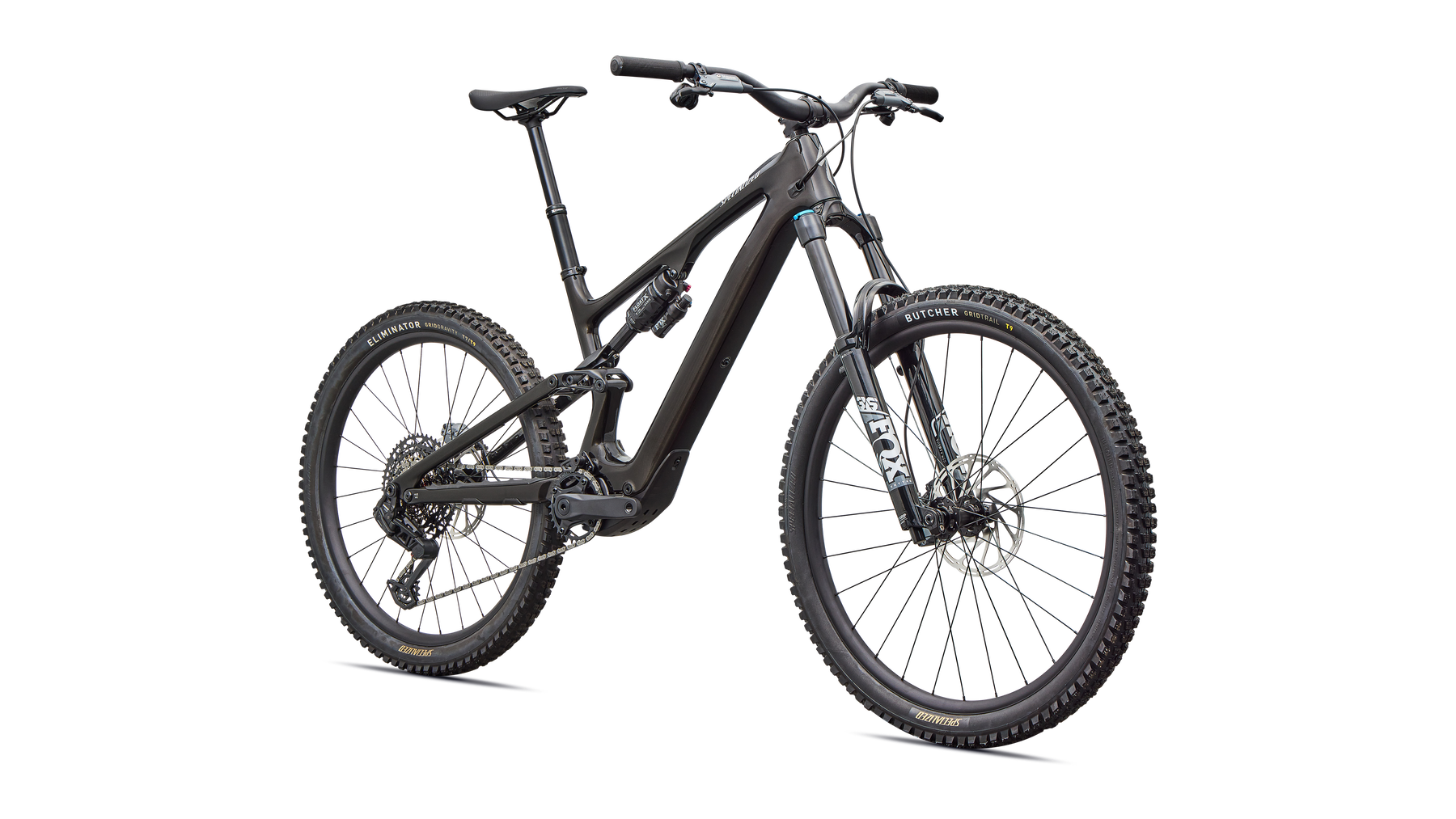

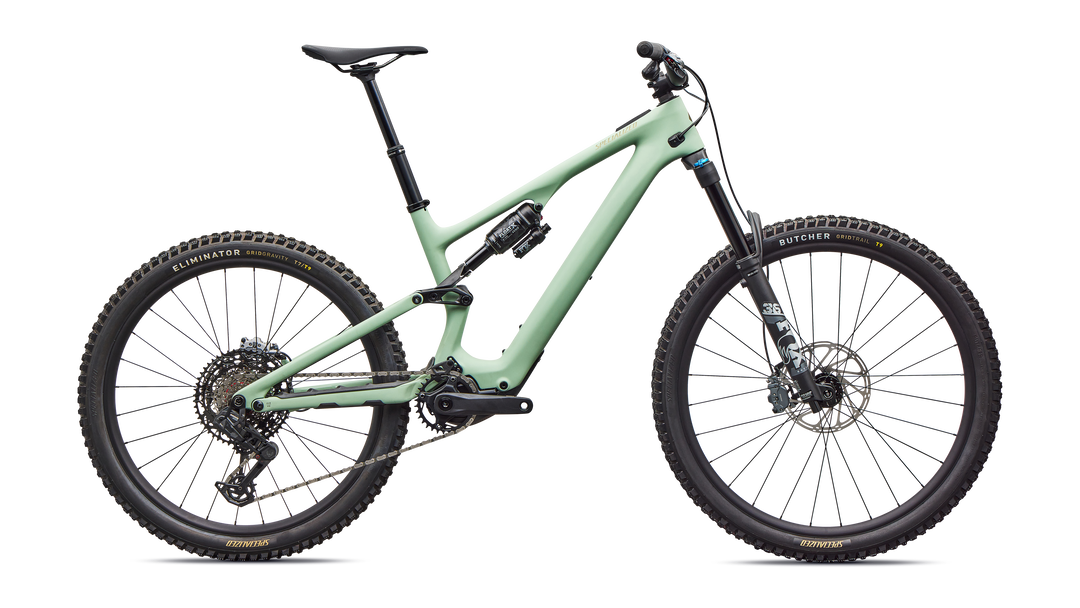

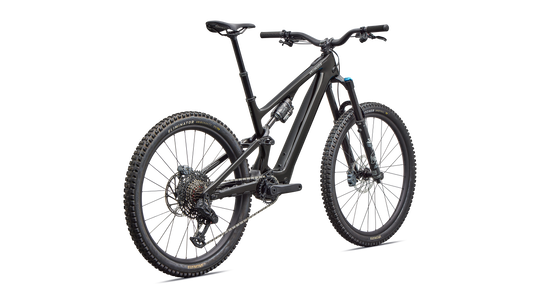

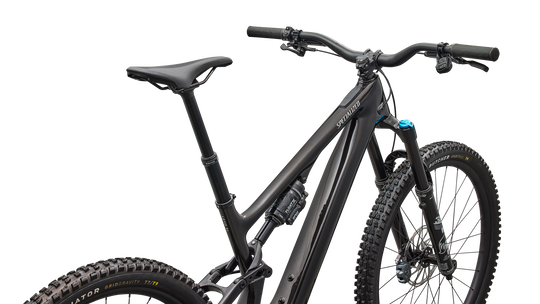

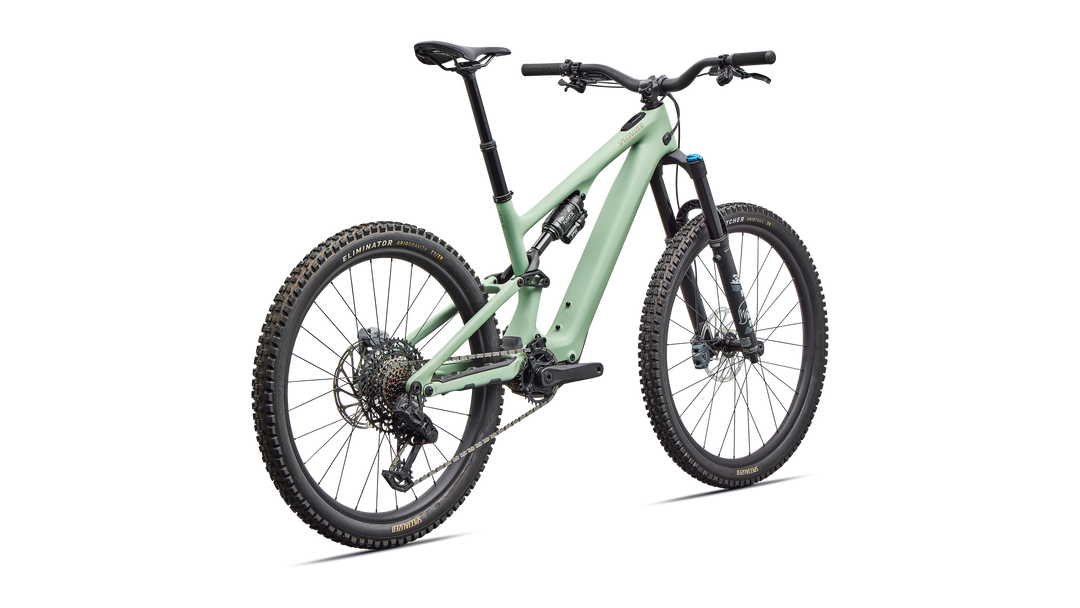

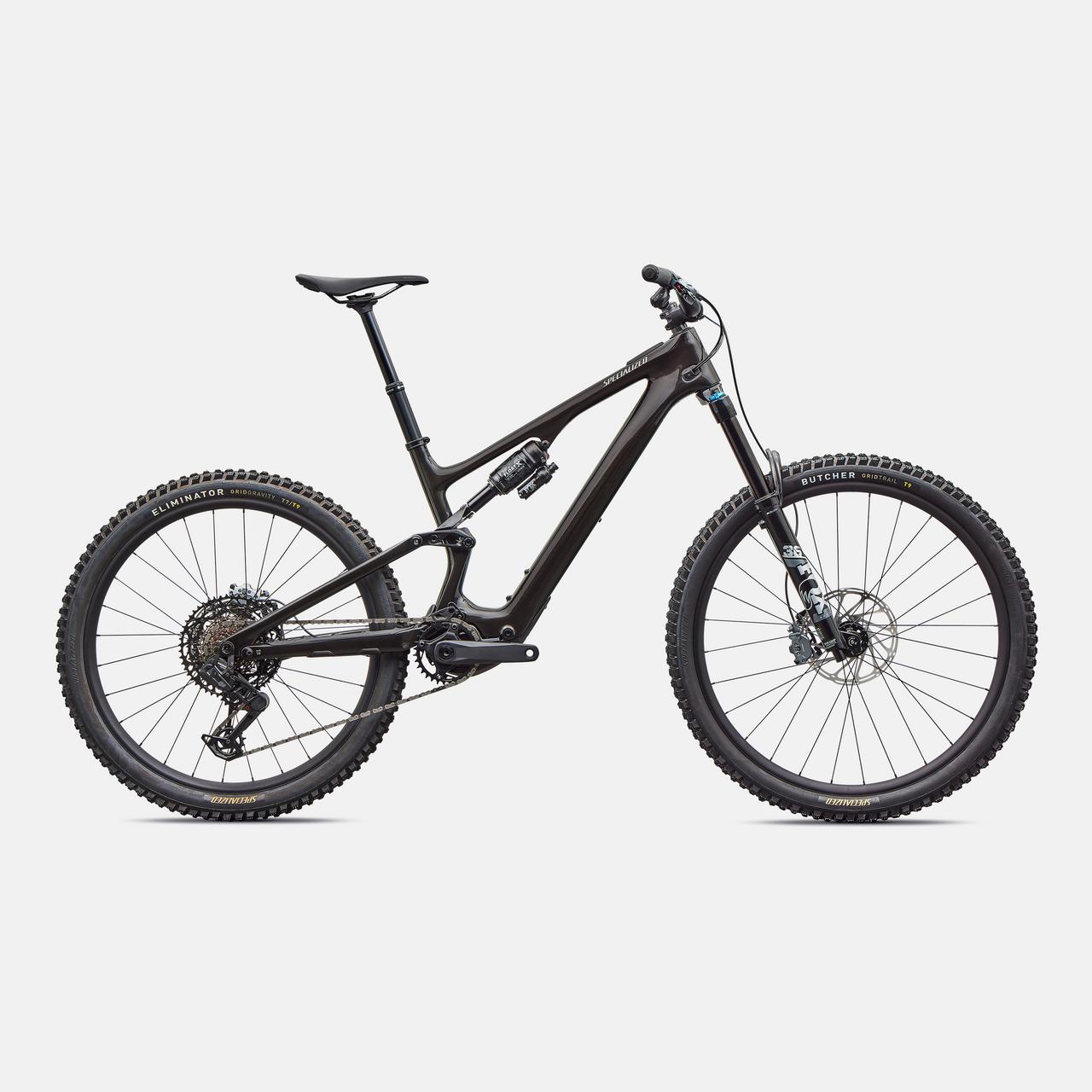

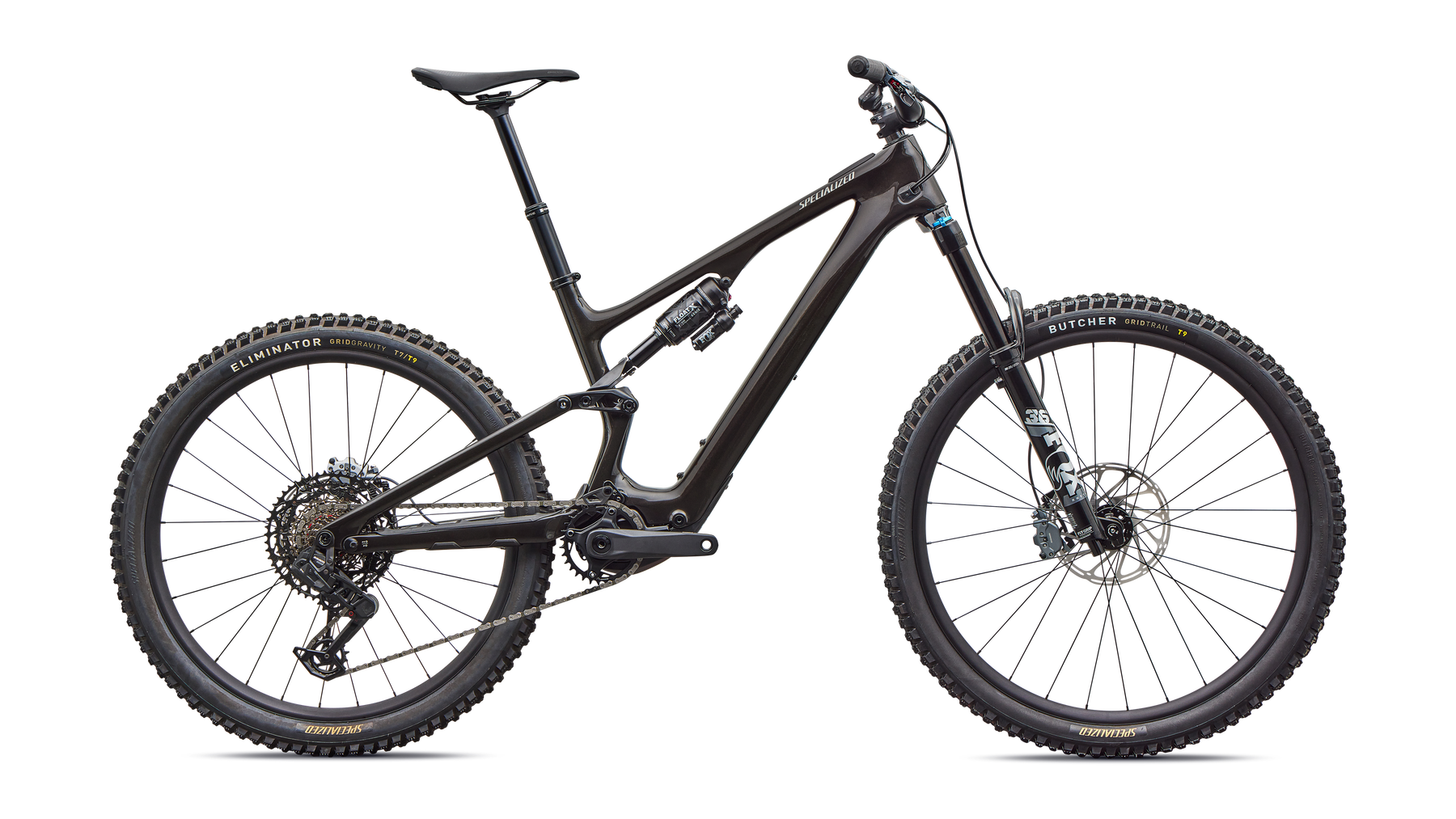

- Levo SL carbon Frame, Fact 11m carbon, alloy shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.
Suspension
- Fork
- FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset
- Rear Shock
- FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, S2-S6:210x55mm, S1: FOX FLOAT Performance 210x52.5mm
Brakes
- Front Brake
- SRAM Maven Bronze, 4-piston caliper, hydraulic disc
- Rear Brake
- SRAM Maven Bronze, 4-piston caliper, hydraulic disc
Drivetrain
- Cassette
- SRAM 1270 Transmission Cassette, 12 Spd,10-52t
- Chain
- SRAM 70 Transmission Chain
- Shift Levers
- SRAM AXS POD Controller w/discrete clamp
- Crankset
- SRAM Alloy Crankset, 165mm, Dub interface
- Rear Derailleur
- SRAM S-1000 Eagle AXS Transmission
- Chainrings
- SRAM T-type ring, 32t, alloy
Wheels & tires
- Front Tire
- Butcher, GRID TRAIL casing, Gripton T9 compound, 29X2.4
- Spokes
- DT Swiss Elemental
- Rear Tire
- Eliminator, GRID GRAVITY casing, Gripton T7/T9 compound, 27.5X2.4
- Front Hub
- Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h
- Rear Hub
- Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 28h, HD Steel Fhb
- Rims
- Specialized, hookless alloy, 30mm inner width, tubeless ready
- Inner Tubes
- Standard, Presta Valve
Cockpit

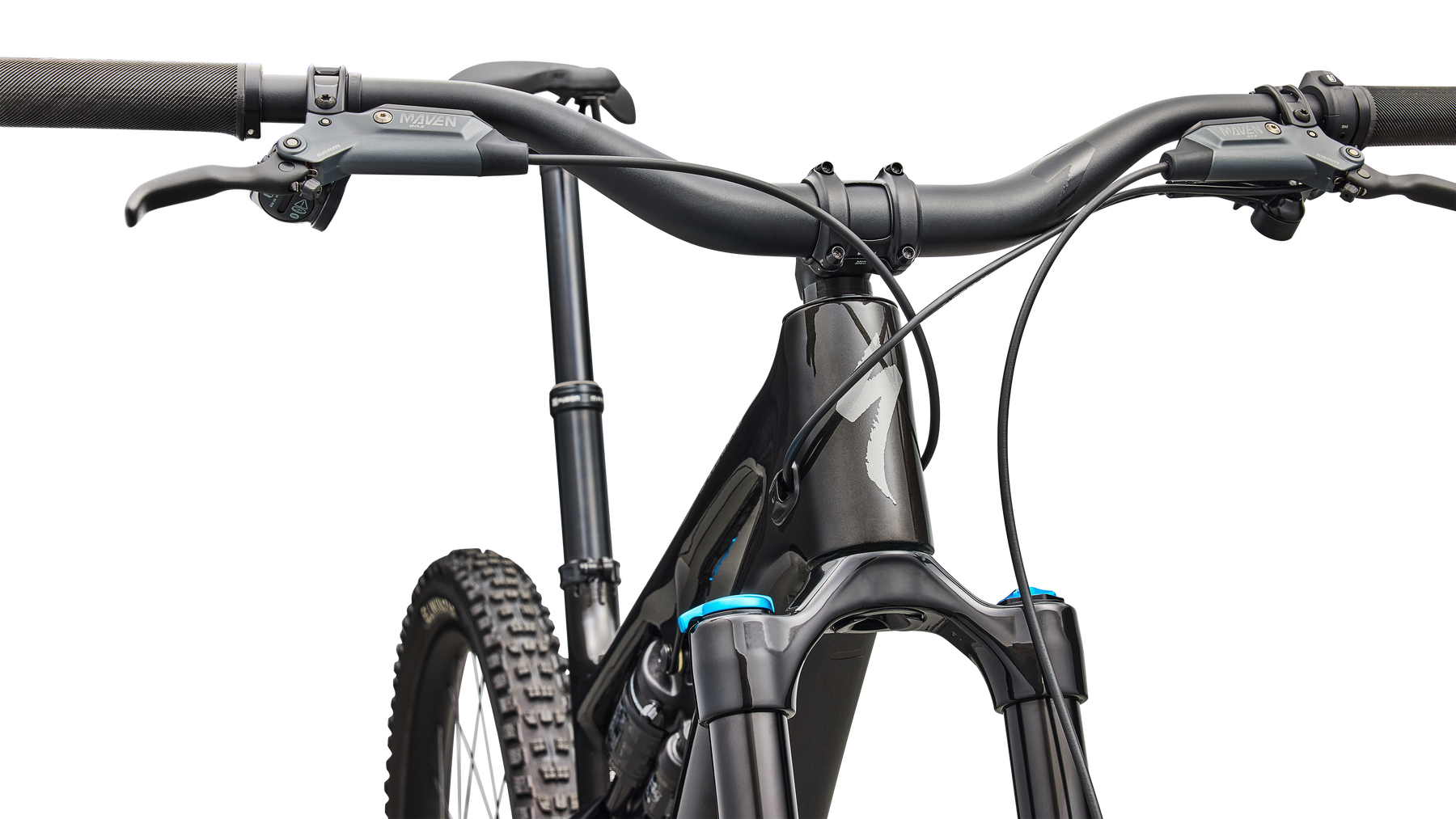

- Stem

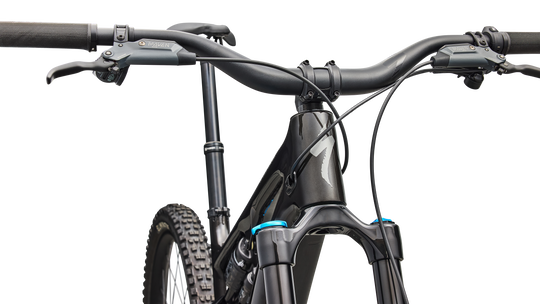

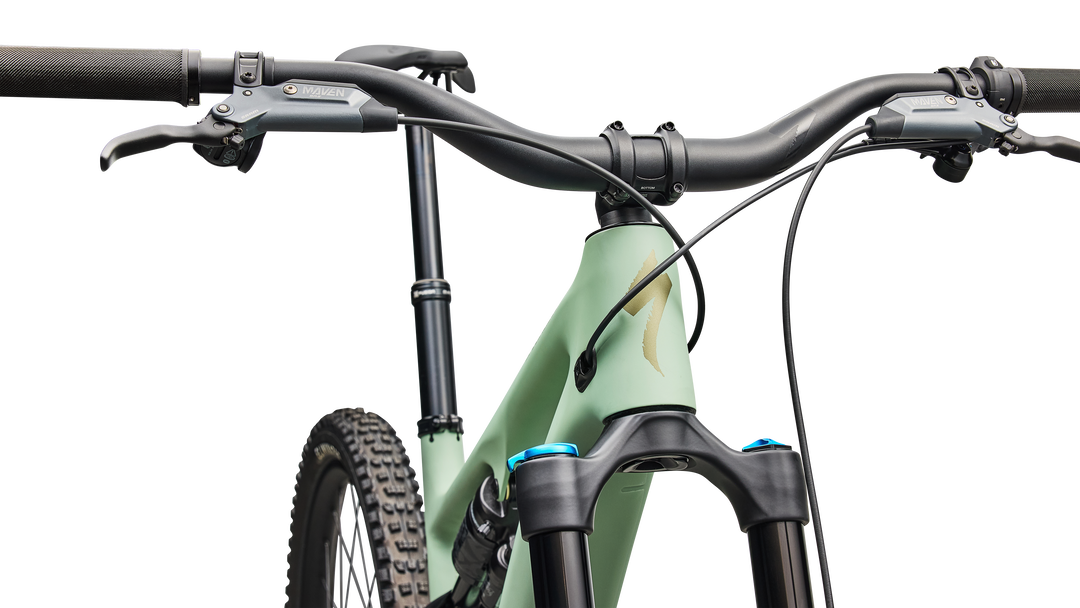

- Alloy Trail Stem, 35mm bar bore
- Handlebars
- Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
- Saddle
- Bridge Comp, Hollow Cr-mo rails 155/143
- Grips
- Specialized Trail Grips
- SeatPost
- X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 170mm, S6: 190mm
Accessories
- SWAT
- SWAT CC steerer tube integrated tool with chain tool and link
Product details
- Product ID
- 221352
- Compliance Certification
- As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. <br>For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
- Weight
- 19.37 kg (42 lb, 11.3 oz)
- Weight Size
- S4
| S1 | S2 | S3 | S4 | S5 | S6 | |
| Crank Length | 165 | 165 | 165 | 165 | 165 | 165 |
| Handlebar Width | 780 | 780 | 800 | 800 | 800 | 800 |
| Stem Length | 40 | 40 | 40 | 40 | 40 | 40 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 100 | 125 | 150 | 170 | 190 | 190 |
| Stack | 609 | 617 | 626 | 635 | 645 | 654 |
| Reach | 405 | 425 | 445 | 470 | 495 | 525 |
| Head-Tube Length | 110 | 120 | 130 | 140 | 95 | 100 |
| Head-Tube Angle | 64.6 | 64.6 | 64.6 | 64.6 | 64.6 | 64.6 |
| B-B Height | 343 | 348 | 348 | 348 | 348 | 348 |
| B-B Drop | -34 | -29 | -29 | -29 | -29 | -29 |
| Trail | 132 | 132 | 132 | 132 | 132 | 132 |
| Fork Length, Full | 560 | 570 | 570 | 570 | 570 | 570 |
| Fork Rake/Offset | 42 | 42 | 42 | 42 | 42 | 42 |
| Front-Center | 726 | 752 | 776 | 806 | 835 | 869 |
| Chain-Stay Length | 433 | 432 | 432 | 432 | 432 | 432 |
| Wheelbase | 1158 | 1184 | 1208 | 1238 | 1267 | 1301 |
| Top Tube Length, Horizontal | 560 | 582 | 604 | 631 | 659 | 691 |
| Bike Stand-Over Height | 727 | 763 | 766 | 767 | 773 | 778 |
| Seat-Tube Length | 385 | 385 | 405 | 425 | 445 | 465 |
| Seat-Tube Angle | 75.8 | 75.8 | 75.8 | 75.8 | 75.8 | 75.8 |
