Transition  |  SKU: 01.0126012.MN

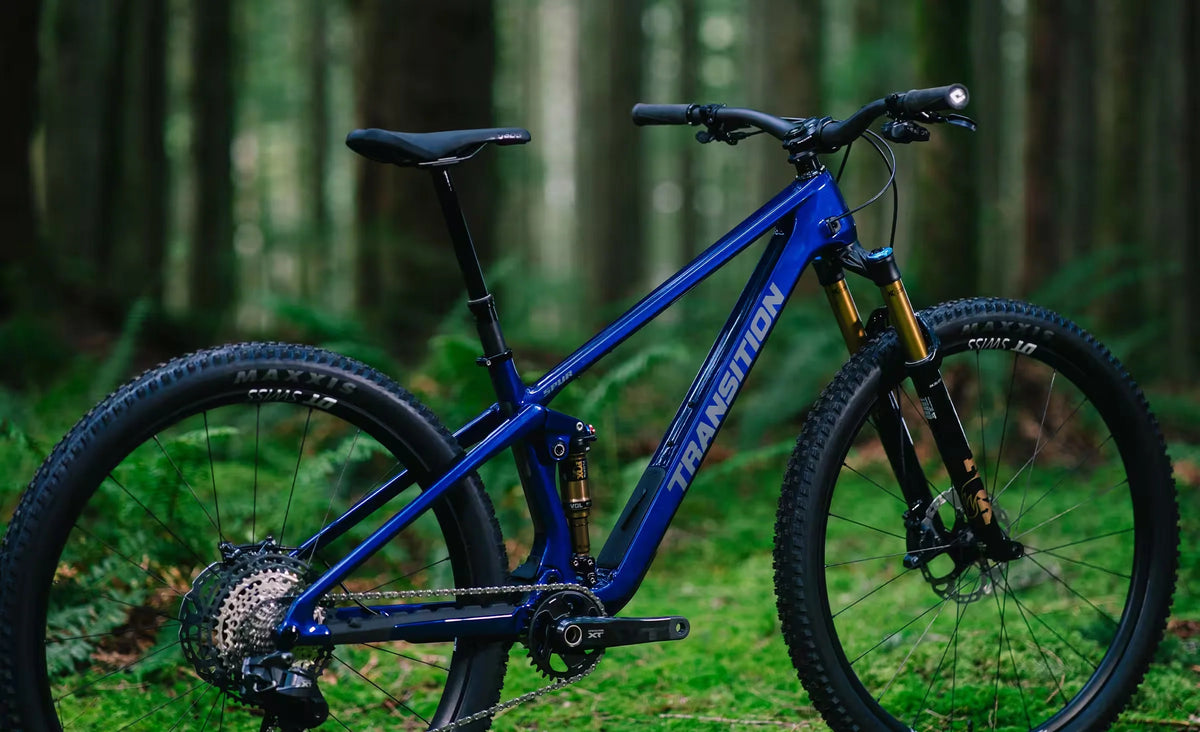

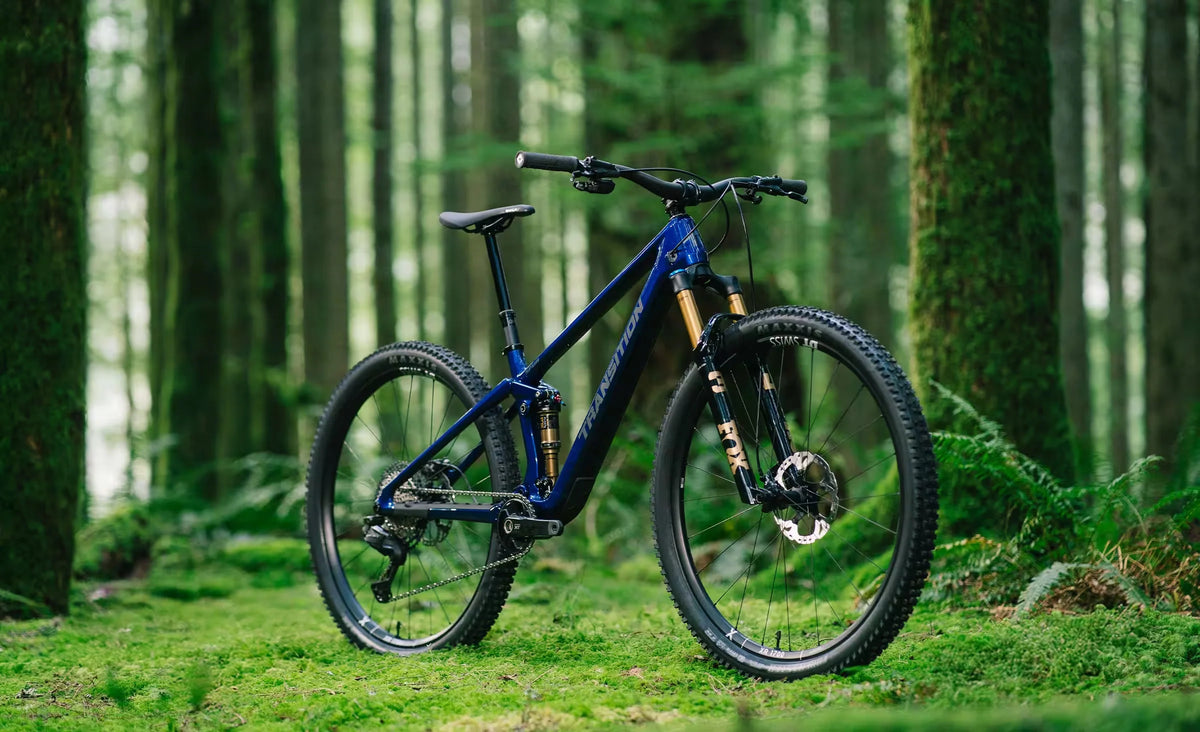

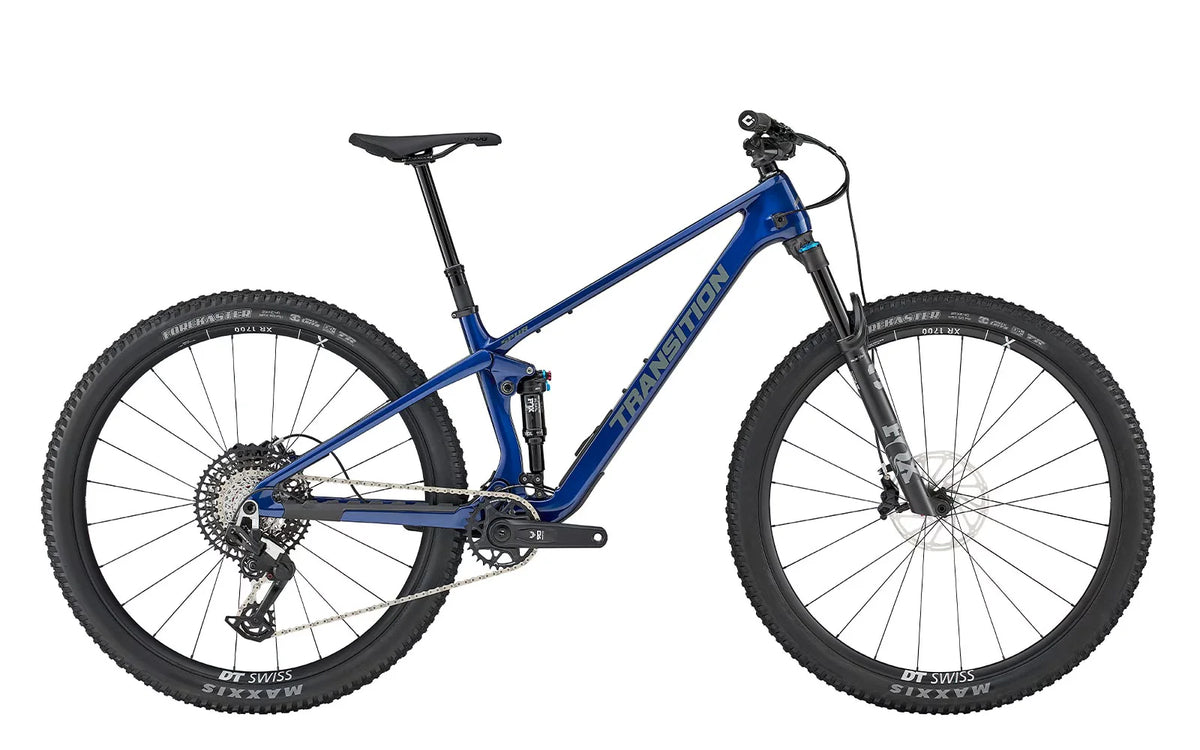

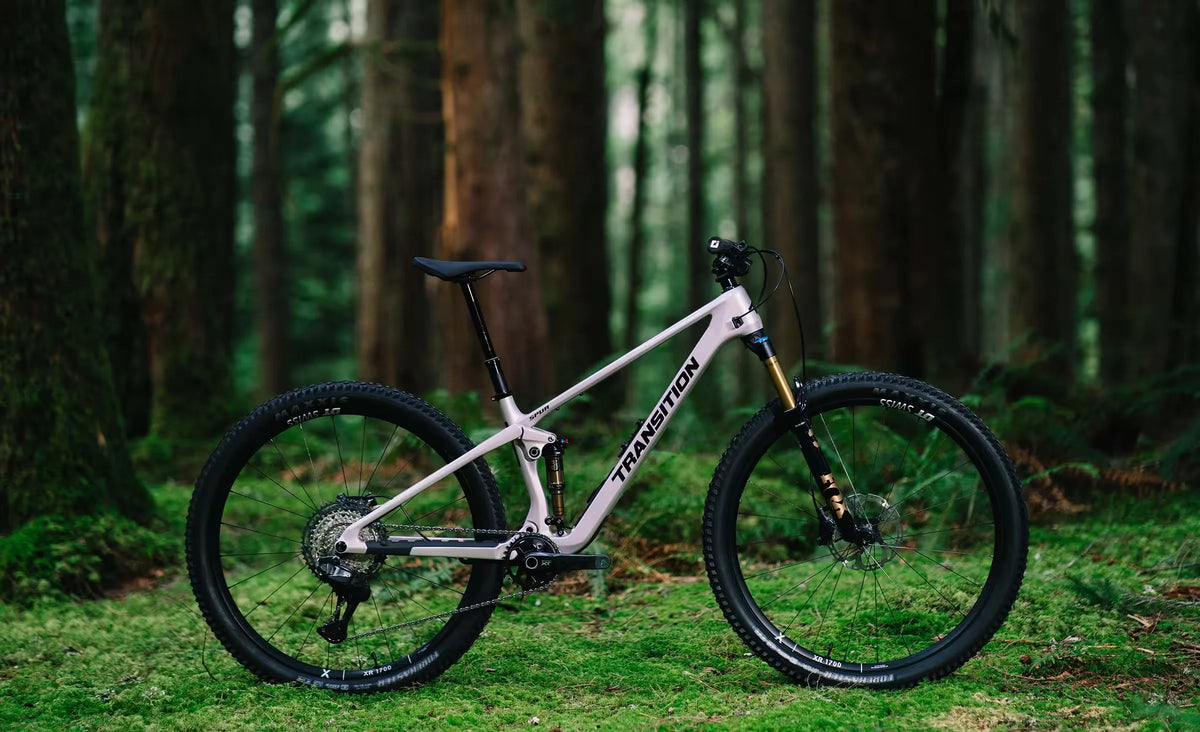

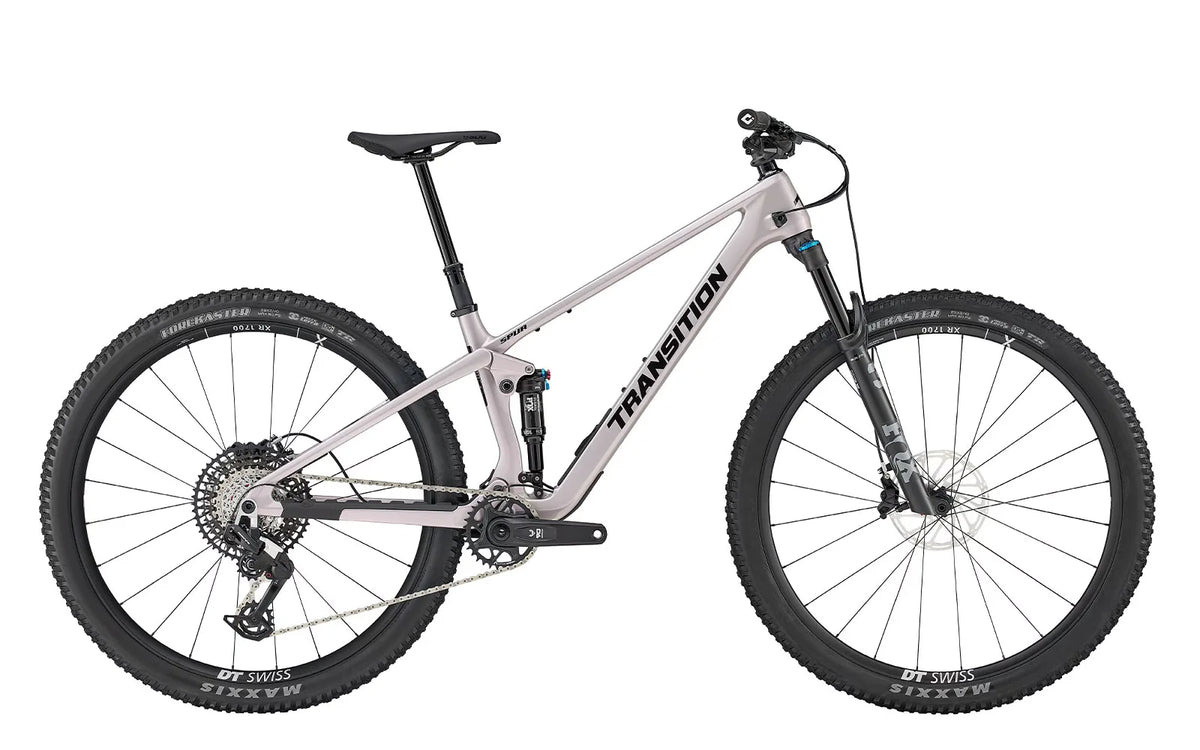

Transition Spur Carbon Eagle 90

$13,250.00
Tax included
Size
Colour

Description
THE SINGLETRACK ENTHUSIAST
The Spur is our cross-country bike that refuses to be confined by labels. Now featuring 120mm rear and 130mm front travel paired with our famously progressive geometry, it blurs the lines of traditional XC. It's fast enough to race, tough enough for downcountry, and versatile enough to pull trail duty after hours. The Spur's broad range doesn't compromise performance in the category, it delivers across the board, making it the perfect ride for true singletrack enthusiasts.

Specification
FRAME Spur Carbon 120mm
WHEEL SIZE 29"
REAR SHOCK Fox Float SL Performance Elite
(190x45mm)
FORK Fox Float 34 SL Grip X Performance Elite
(130mm)
HEADSET FSA No.42/48/ACB
STEM RaceFace Aeffect R (40mm)
HANDLEBAR RaceFace Turbine Bar
SM(760x20mm)
MD(780x40mm)
LG/XL(800x40mm)
GRIPS ODI Elite Flow Lock-On
SADDLE SDG Bel Air 3
SEATPOST OneUp Dropper Post
SM(150mm)
MD(180mm)
LG/XL(210mm)
BRAKES SRAM Motive Silver
ROTORS SRAM Centerline (180mm)
SHIFTER SRAM Eagle 90 MMX
DERAILLEUR SRAM Eagle 90
CASSETTE SRAM XS 1275 T-Type (10-52t)
CHAIN SRAM GX Eagle Transmission
CRANK SRAM Eagle 90 DUB
(32t/165mm)
RIMS DT Swiss XR 1700 Spline
SPOKES DT Swiss Competition Straightpull
HUBS DT Swiss 350 Spline Ratchet 54
TIRE/FRONT Maxxis Forekaster 3C EXO+ (2.4)
TIRE/REAR Maxxis Forekaster 3C EXO+ (2.4)
INCLUDED Tubeless Valves & Sealant

Geometry
SM MD LG XL
A.REACH 430 | 425 460 | 455 485 | 480 510 | 505
B.STACK 608 | 612 617 | 621 626 | 630 640 | 644
C.EFFECTIVE TOPTUBE LENGTH 570 603 631 660
D.SEATTUBE LENGTH 360 390 430 460
E.EFFECTIVE SEATTUBE ANGLE 77.3 | 76.7 76.8 | 76.3 76.4 | 75.9 76.0 | 75.6
SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE 600 660 720 780
ACTUAL SEATTUBE ANGLE 72 | 71.5 72 | 71.5 72 | 71.5 72 | 71.5
F.HEADTUBE LENGTH 100 110 120 135
G.HEADTUBE ANGLE 66.0 | 65.5 66.0 | 65.5 66.0 | 65.5 66.0 | 65.5
H.CHAINSTAY LENGTH 434 | 436 434 | 436 439 | 441 439 | 441
I.WHEELBASE 1163 1197 1231 1262
J.BOTTOM BRACKET DROP (REAR) 40 | 47 40 | 47 40 | 47 40 | 47
K.ESTIMATED BOTTOM BRACKET HEIGHT 335 | 328 335 | 328 335 | 328 335 | 328
STANDOVER HEIGHT 660 660 660 660
