The all-new PBJ is here!
The best thing in-between sliced bread.

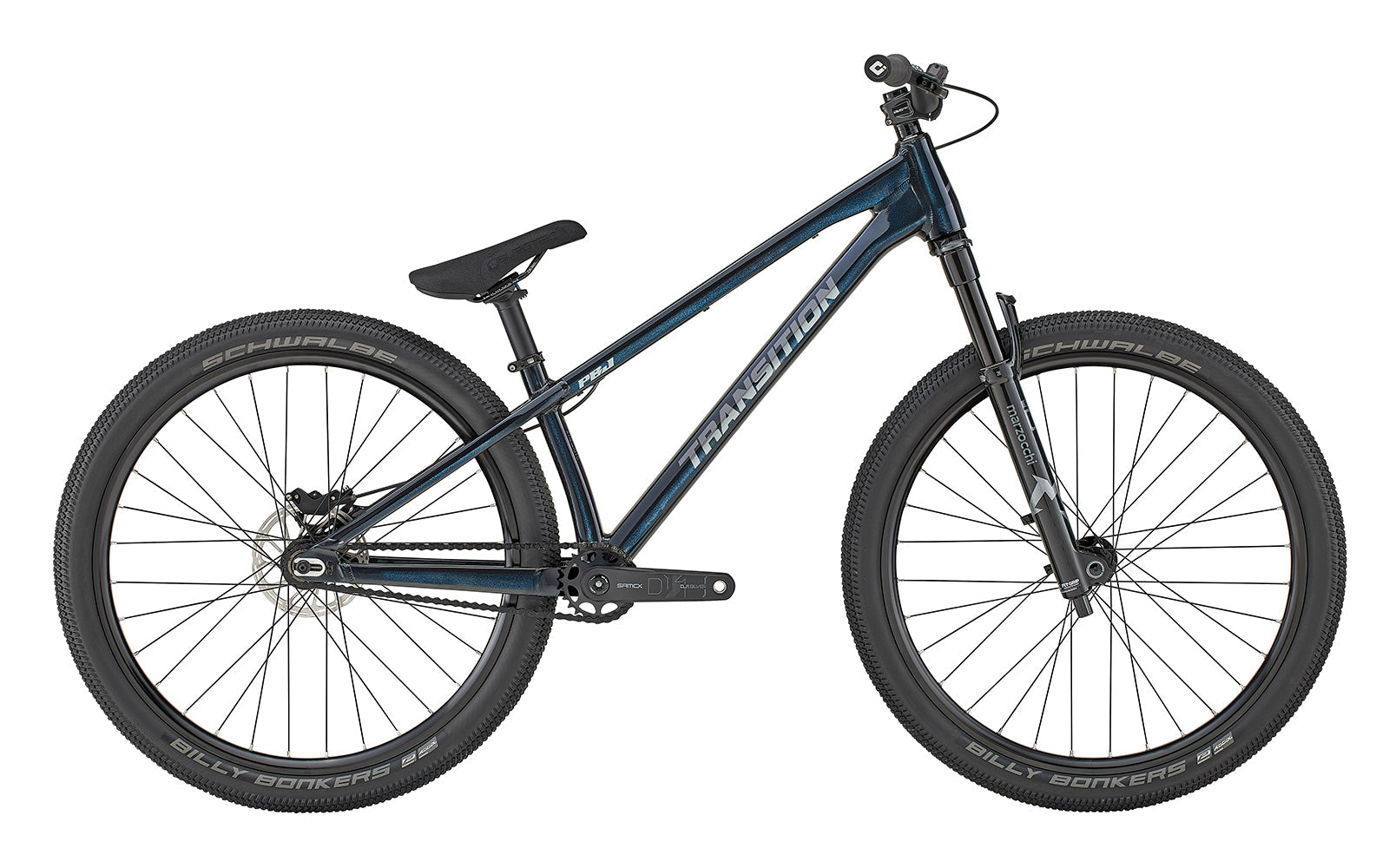

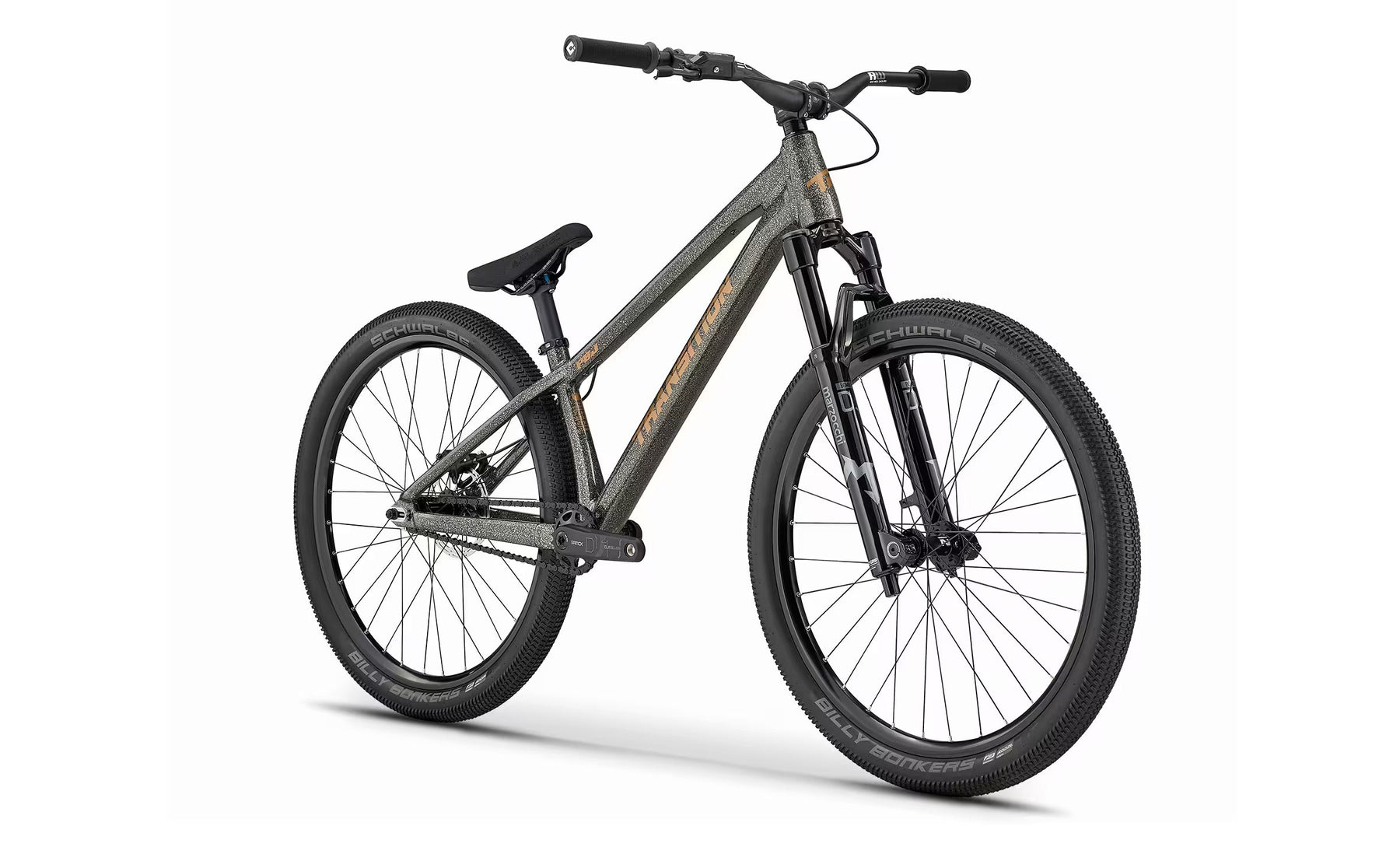

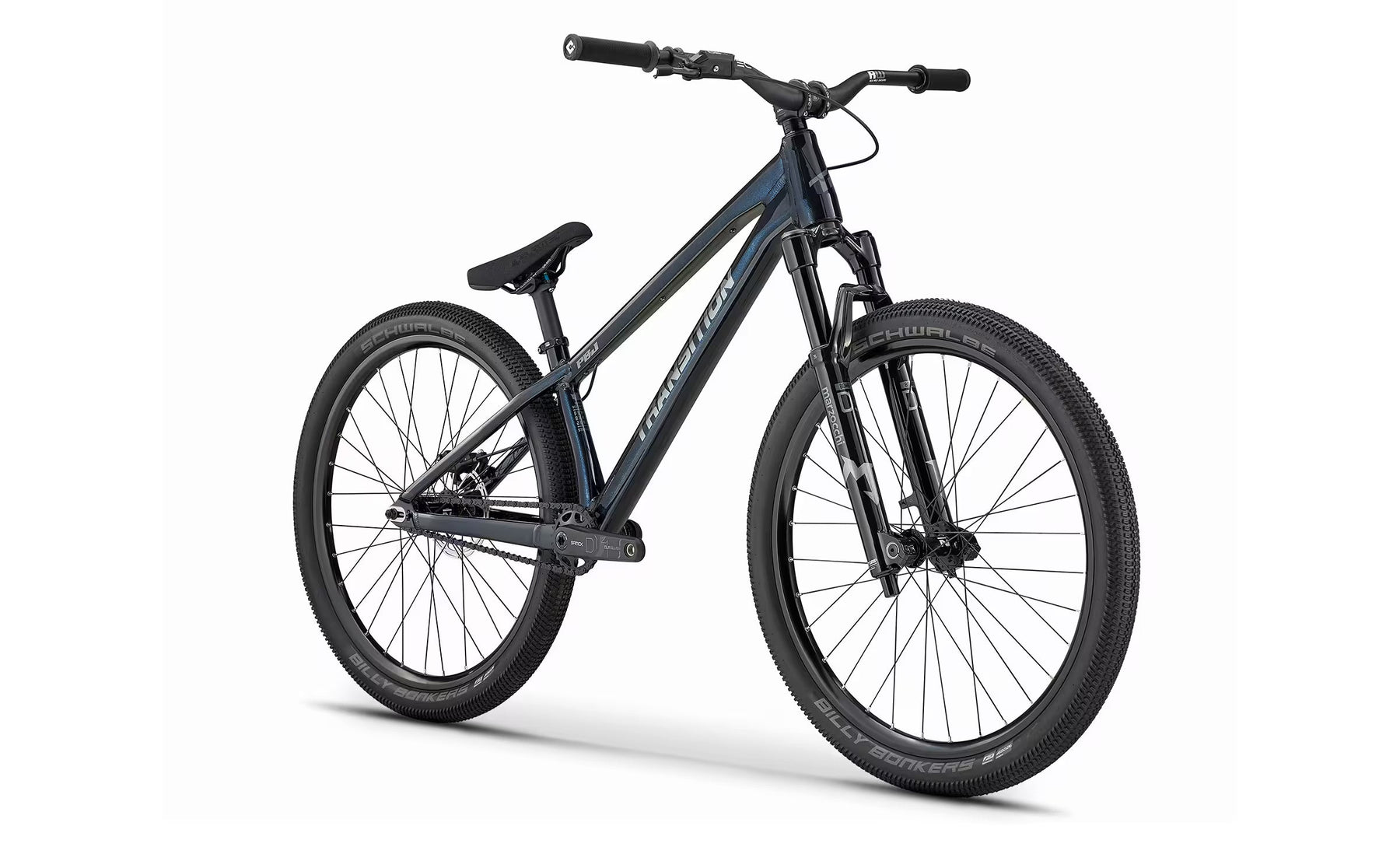

The all-new PBJ was redesigned from the ground up, now featuring an aluminum frame, new geometry and added features. The hydro-formed 6061 aluminum frame allowed us to build in the features that riders need for the level of riding today, unlocking extremely short chainstays and low standover height. The geometry and sizing has evolved to provide a quick and responsive feel, to help pump through corners and pull back off the steepest of lips. For riders seeking to find their flow riding dirt jumps, skate park, and pump track, look no further, the PBJ is here to pump, bump and jump everything in sight. Now available in two sizes, short and standard, to best suit rider's needs.
| FRAME | PBJ Alloy | ||||
| WHEEL SIZE | 26" | ||||
| FORK | Marzocchi Bomber DJ (100mm) |
||||
| HEADSET | FSA No.57E | ||||
| STEM | Burgtec Enduro MK3 35 (35mm) | ||||
| HANDLEBAR | Burgtec Ride Wide Alloy Enduro Handlebar Short (780x30mm) Standard (800x38mm) |
||||
| GRIPS | ODI Longneck V2.1 Lock-On | ||||
| SADDLE | Burgtec Cloud Boost Saddle | ||||
| SEATPOST | Trans-X SP66 | ||||
| BRAKES | SRAM DB4 (Rear Only) | ||||
| ROTORS | SRAM Centerline (160mm) | ||||
| CASSETTE | 12t Single Cog | ||||
| CHAIN | KMC K1 Wide | ||||
| CRANK | Samox 2-Piece Alloy Direct Mount (25t/160mm) |
||||
| RIMS | Kinlin DDT32 | ||||
| SPOKES | Pillar Straight Gauge | ||||
| HUBS | Novatech D791SB/D256SBT | ||||
| TIRE/FRONT | Schwalbe Billy Bonkers (2.25) | ||||
| TIRE/REAR | Schwalbe Billy Bonkers (2.25) | ||||

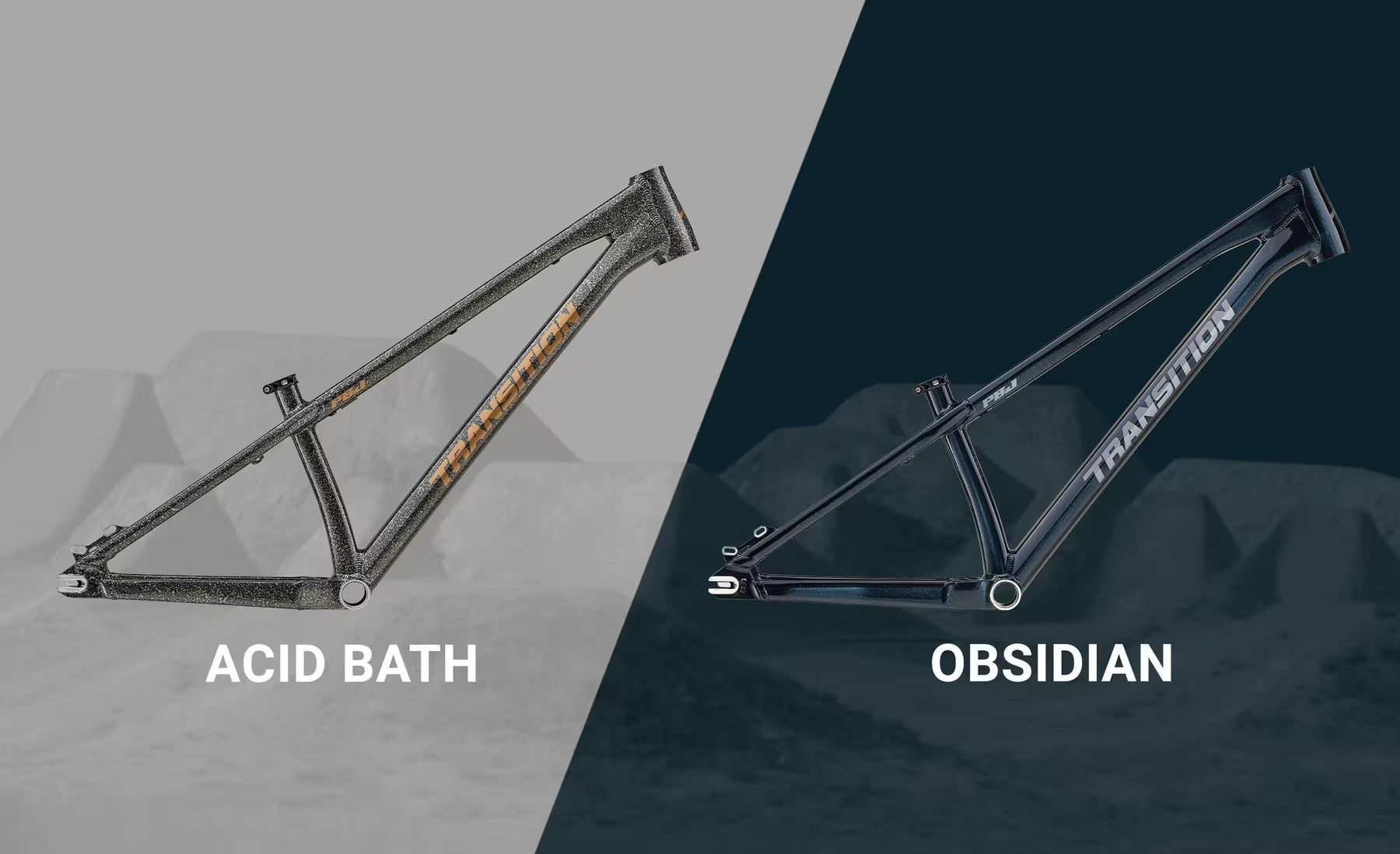

| COLOR OPTIONS |
|
 |
A.REACH | 360 | 395 | 420 | |||
|
 |
||||||
|
B.STACK | 538 | 575 | 584 | |||
|
|
||||||
|
C.EFFECTIVE TOPTUBE LENGTH | 556 | 603 | 631 | |||
|
|
||||||
|
D.SEATTUBE LENGTH | 280 | 310 | 310 | |||
|
|
||||||
|
E.EFFECTIVE SEATTUBE ANGLE | 71 | 71 | 71 | |||
|
|
||||||
|
SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE | 380 | 420 | 420 | |||
|
|
||||||
|
ACTUAL SEATTUBE ANGLE | 68 | 68.3 | 68.3 | |||
|
|
||||||
|
SEATTUBE OFFSET AT BOTTOM BRACKET | 22 | 22 | 22 | |||
|
|
||||||
|
F.HEADTUBE LENGTH | 115 | 120 | 130 | |||
|
|
||||||
|
G.HEADTUBE ANGLE | 69.0 | 69.5 | 69.5 | |||
|
|
||||||
|
H.CHAINSTAY LENGTH | 357 - 375 | 377 - 395 | 377-395 | |||
|
|
||||||
|
I.WHEELBASE | 958 - 976 | 1018 - 1036 | 1047 - 1065 | |||
|
|
||||||
|
J.BOTTOM BRACKET DROP (FRONT) | 15 | 20 | 20 | |||
|
|
||||||
|
J.BOTTOM BRACKET DROP (REAR) | 15 | 20 | 20 | |||
|
|
||||||
|
K.ESTIMATED BOTTOM BRACKET HEIGHT | 291 | 315 | 315 | |||
