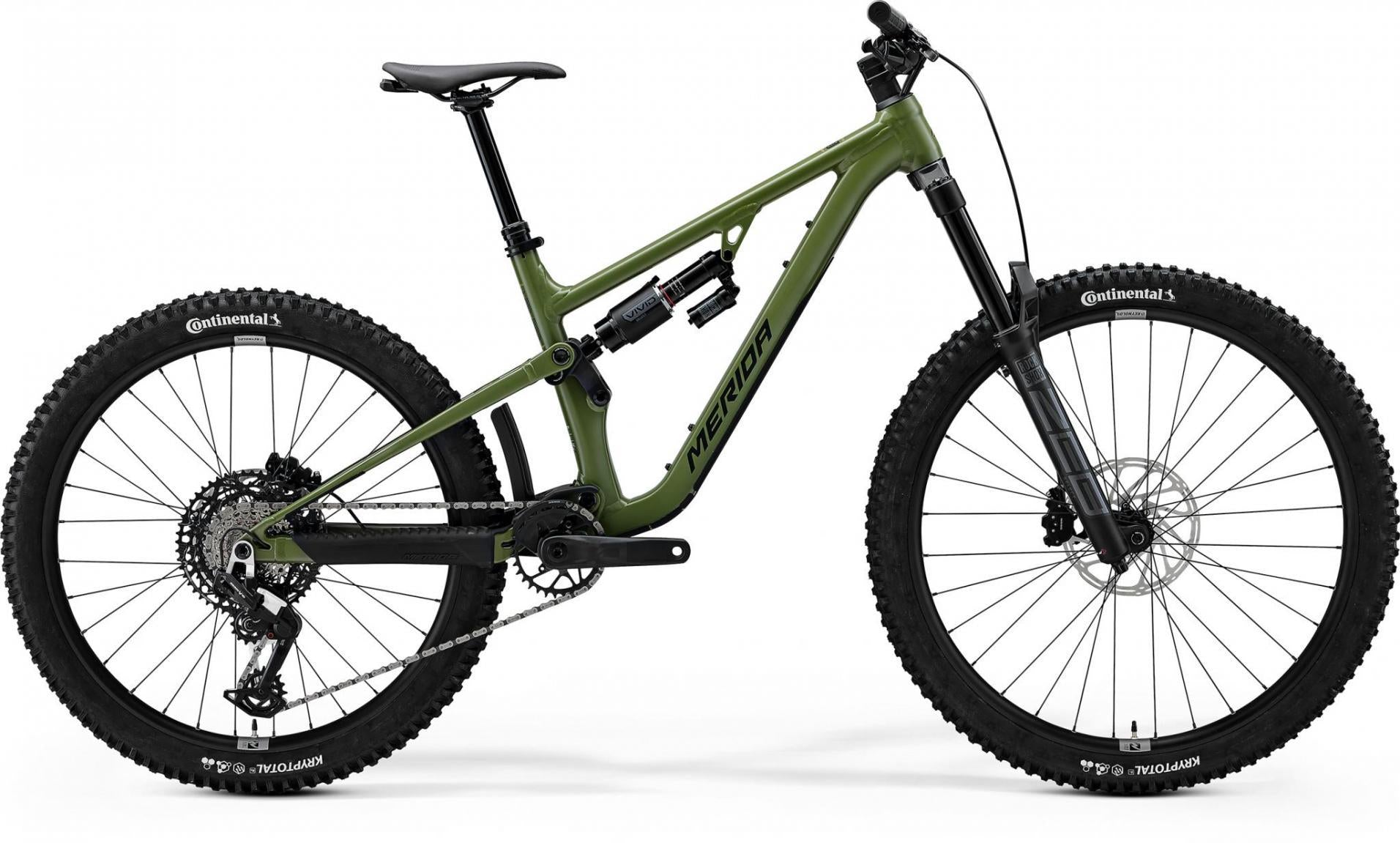

Our entry-level ONE-SIXTY keeps the price low but the performance high, because we use suspension from legendary brand Marzocchi, super grippy rubber from Continental and Shimano's durable Deore drivetrain. Add in our progressive geometry, the option of mixed 29/27.5" or full 29" wheels and award winning FAST kinematic suspension and you can race, rip and rally any enduro trail you fancy, even if you're not flush with cash.
Evolution or revolution? How about both? The ONE-SIXTY is a radical, award-winning design that pushes our hard-hitting enduro platform to new heights. Just as well, because once it’s there it’s ready to rip the longest, toughest descents too. Our proven suspension system uses a flexstay design with an adjustable rocker, so whether you choose to run it as a full 29er (162 mm travel) or mixed 29/27.5” setup (171 mm travel), the geometry is preserved. There’s a radically steep 79° seat tube angle for goat-like climbing and slack 64° head angle plus 170 mm fork to deal with downhill trail chaos. Our AGILOMETER sizing allows riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. WIRE PORT cable routing plus reliable threaded bottom bracket round out the package, while carbon frames offer on-board tool storage and FidLock magnetic bottle cages.
| FRAME | ONE-SIXTY LITE III, 171 STR mullet / 162 STR 29", MAT aluminium, 29x2.5" max. WHS, 148x12 AST, BSA BBR, |
| SHOCK | Marzocchi Bomber inline, lockout |
| FORK | Marzocchi Z1, Air, 170 STR, Tapered, 44mm fork offset, 29x2.6" max. WHS, |
| BRAKE FRONT | Sram DB4, 4 piston |
| BRAKE REAR | Sram DB4, 4 piston |
| ROTOR FRONT | Sram CenterLine, 200mm |
| ROTOR REAR | Sram CenterLine, 200mm |
| CHAIN | KMC xGlide, |
| CRANKSET | MERIDA Expert TR II, 32t |
| CRANK LENGTH | 165 mm for all sizes, |
| BB SET | Samox BSA 24mm EB2401, |
| DERAILLEUR FRONT | 0, |
| DERAILLEUR REAR | Shimano CUES U6000, GS |
| CASSETTE | SunRace 10-50t ZX11, CS-UX700 EA5, 10-50t, 11sp Linkglide, |
| PEDAL | 0, |
| GRIP | MERIDA COMP TR, |
| HANDLEBAR | MERIDA COMP TR II, MAT aluminium, 780 WHB, 35 RHB |
| STEM | MERIDA COMP TR, MAT aluminium, 35 DSH, 0 ASD |
| STEM SIZE | 40 mm, |
| HEADSET | Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing |
| HUB FRONT | Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock |
| HUB REAR | Shimano TC500-HM-B, 148x12 WHR, 32 SPH, Centerlock |
| RIM | MERIDA COMP TR II, 28 IWR, MAT aluminium, Tubeless ready (tubeless tape and valves not included), rear 27.5" up to Size M / L & XL rear 29", |
| SADDLE | MERIDA COMP SL, 25% recycled material, V-mount, |
| SEAT CLAMP | MERIDA EXPERT, |
| SEAT POST | MERIDA EXPERT TR II, 34.9 DSP, 0 SSB, XSHORT/SHORT: 150mm travel - MID: 170mm travel - LONG: 200mm travel - XLONG: 230mm travel |
| SHIFTER FRONT | 0, |
| SHIFTER REAR | Shimano CUES U6000, |
| TYRE FRONT | Maxxis Minion DHF, 29x2.5", EXO wire, tubeless ready, |
| TYRE REAR | Maxxis Dissector, 27.5x2.4" XS/S/M 29x2.4" L/XL, EXO wired, tubeless ready, |
| Frame Size | XShort | Short | Mid | Long | XLong |
| Tyre Sizes | 29/27.5" | 29/27.5" | 29/27.5" | 29" | 29" |
| ST seat tube [mm] | 400 | 410 | 425 | 445 | 470 |
| TT top tube [mm] | 535 | 562 | 589 | 621 | 653 |
| CS chain stay length [mm] | 434 | 434 | 434 | 437.5 | 437.5 |
| HTA head tube angle [°] | 64 | 64 | 64 | 64 | 64 |
| STA seat tube angle [°] | 79 | 79 | 79 | 79 | 79 |
| BD bottom bracket drop [mm] | 7 | 7 | 7 | 27.5 | 27.5 |
| HT head tube [mm] | 95 | 95 | 95 | 105 | 120 |
| FL fork length [mm] | 581 | 581 | 581 | 581 | 581 |
| R reach [mm] | 415 | 442 | 470 | 498 | 525 |
| S stack [mm] | 615 | 615 | 615 | 625 | 638 |
| WB wheel base [mm] | 1188 | 1215 | 1242 | 1275 | 1308 |
| SH stand over height [mm] | 735 | 740 | 743 | 740 | 735 |
| FRAME SIZE | BODY HEIGHT |
| S | < 173 cm |
| M | 167 - 183 cm |
| L | 177 - 190 cm |
| XL | > 187 cm |
