Norco  |  SKU: 587861

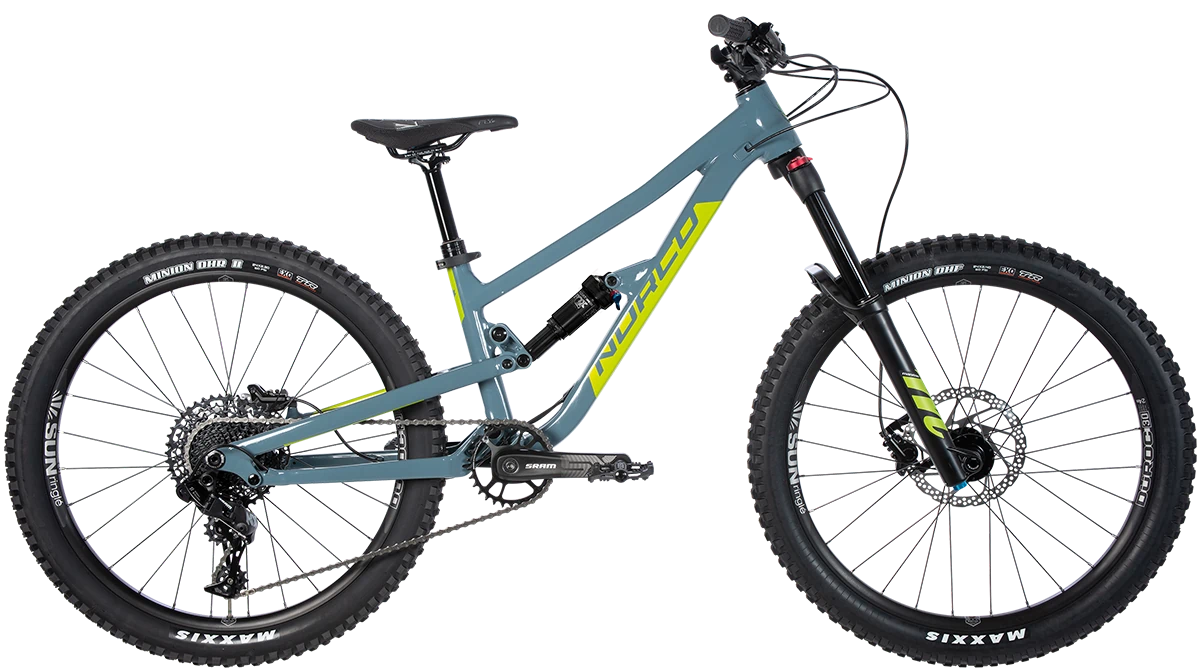

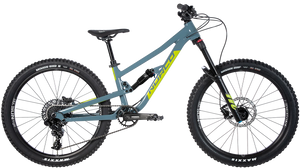

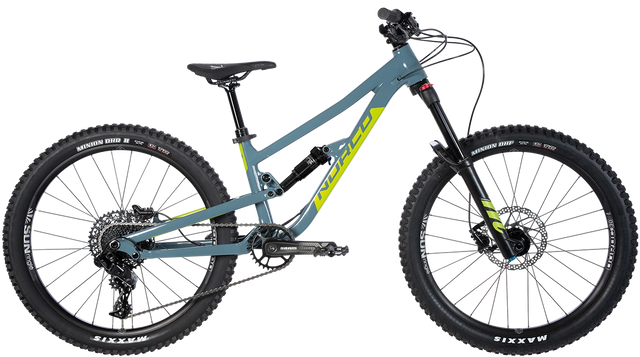

Fluid FS 1 24"

$4,199.90
Tax included

Description

The Fluid FS 1 24 features progressive handling, low standover, youth-tuned suspension and a dropper that is optimized for 9-12 year old riders below 90 pounds.

The Fluid FS 1 24 is an aggressive trail bike designed to tackle demanding trails.

The quality and build reflect everything Norco put into their full-size bikes, so you know the new Fluid FS Youth is up for every trail they are, and its quality parts will keep it out of the shop.



fluid fs2

Specifications



FRAME 6061 Alloy Frame, 120mm Travel, tapered headtube, boost axle spacing, ISCG05 mount
FORK Manitou J-Unit 24", Expert Air, Alloy Steerer, 145mm Travel
REAR SHOCK Fox Performance FLOAT 3-position, SV/EVOL, custom light tune
REAR SHIFTER SRAM NX 11 speed
CRANKSET SRAM SX Eagle 155mm, 30T
BOTTOM BRACKET SRAM PowerSpline
CASSETTE SRAM PG-1130 11-42T
CHAIN SRAM PC-1110
PEDALS SDG Composite Jr Flat
FRONT BRAKE Shimano BR-MT500 hydraulic, 180mm
REAR BRAKE Shimano BR-MT500 hydraulic, 160mm
HANDLEBAR SDG Kids Alloy, 640mm, 25mm rise, 31.8mm bore
STEM 35mm reach MTB
SEATPOST JD TransX Light Action Dropper, 100mm,1x lever
HEADSET FSA #57 E
SADDLE SDG Fly JR
GRIPS SDG Jr
SEATPOST CLAMP Norco Alloy QR
FRONT HUB Sun Ringle Duroc 30 Kids wheelset, 15x110mm Boost
RIMS Sun Ringle Duroc 30 Kids tubeless ready
FRONT TIRE Maxxis Minion DHF Folding Bead EXO / TR 24x2.40”
REAR TIRE Maxxis Minion DHR II Folding Bead EXO / TR 24x2.30”
REAR HUB SKEWER Sun Ringle Duroc 30 Kids wheelset, 12x148mm Boost
REAR HUB SKEWER 12mm TA
FRONT HUB SKEWER Included with fork
SPOKES/NIPPLES Sun Ringle Duroc 30 Kids wheelset

Geometry

Fluid fs 1 geometry

Wheel Size 24"
Travel (mm front/mm rear) 145/120
Reach 350
Stack 531
Head Tube Angle 64.5
Fork Offset 40
Seat Tube Length 305
Effective Seat Tube Angle 75.0
Rear Centre Length 407
Bottom Bracket Rise/Drop -5
Bottom Bracket Height 305
Horizontal Top Tube 492
Wheelbase 1052
Standover 569
Head Tube Length 100
Trail 106
Recommended Seatpost Drop 100
Maximum Post Insertion 160
Stem Length 35
Crank Length 152
Tire Size 2.35" - 2.6"

Size

Norco Youth Size Guide
