Transition | SKU: 01.0126010.MF

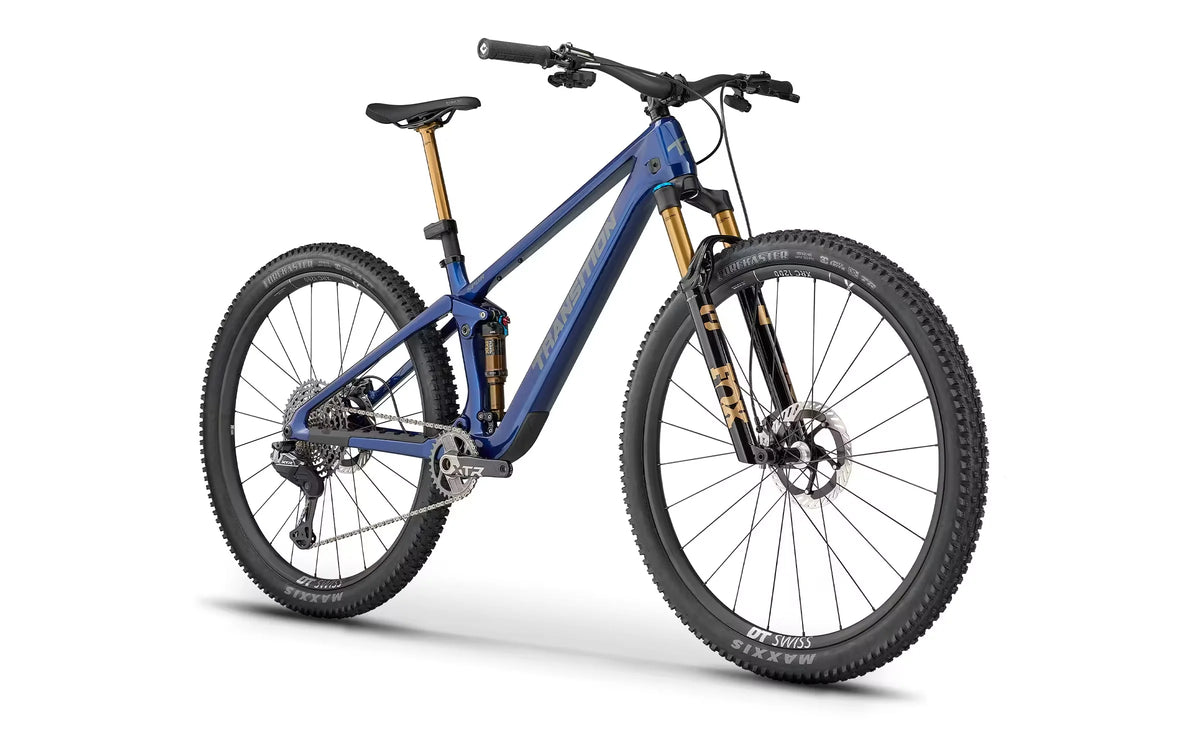

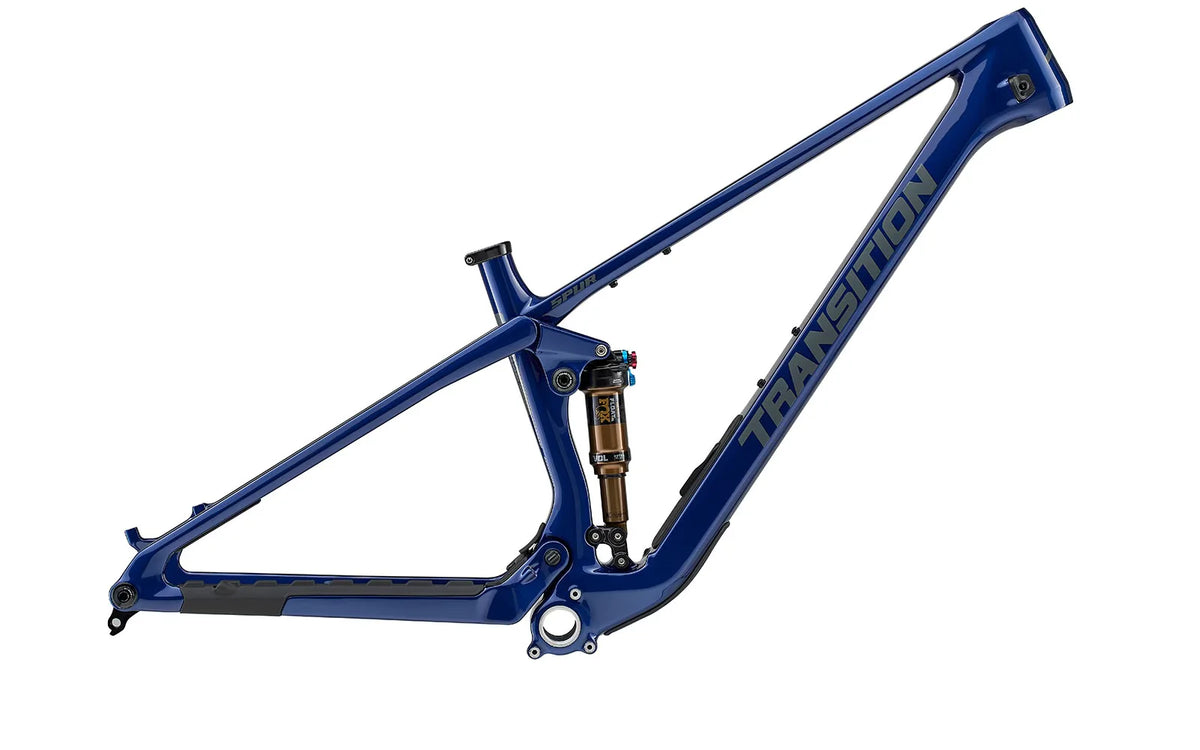

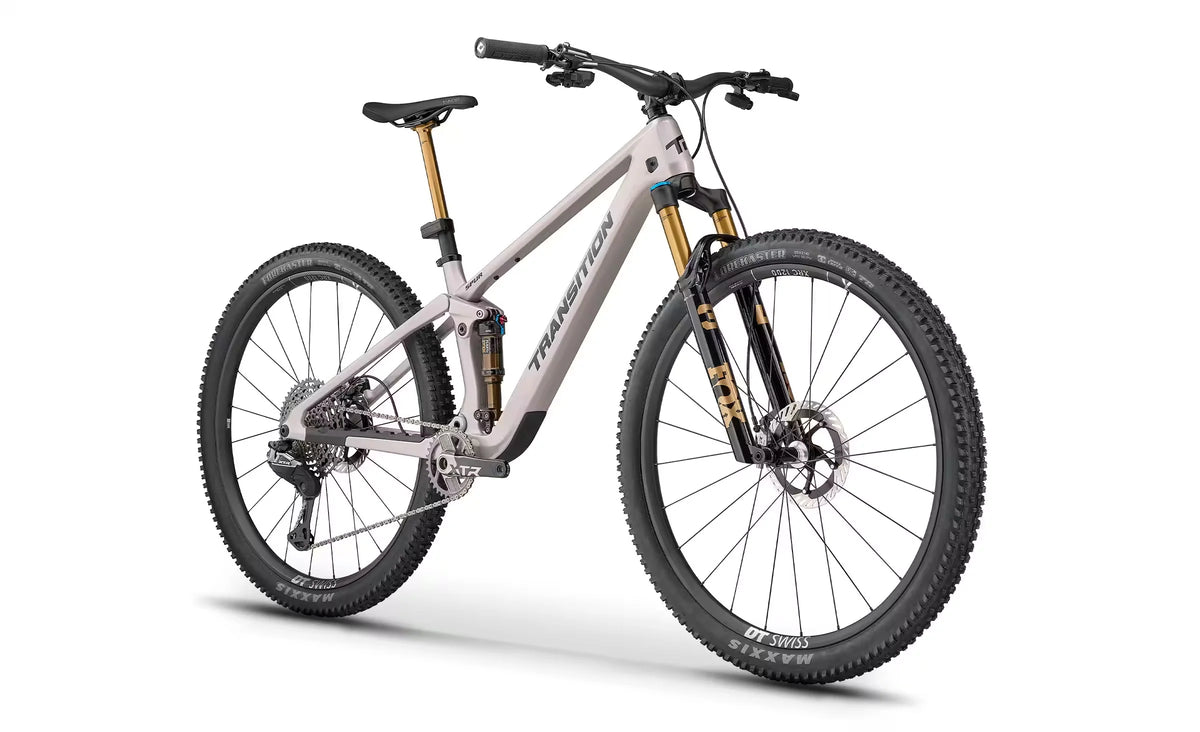

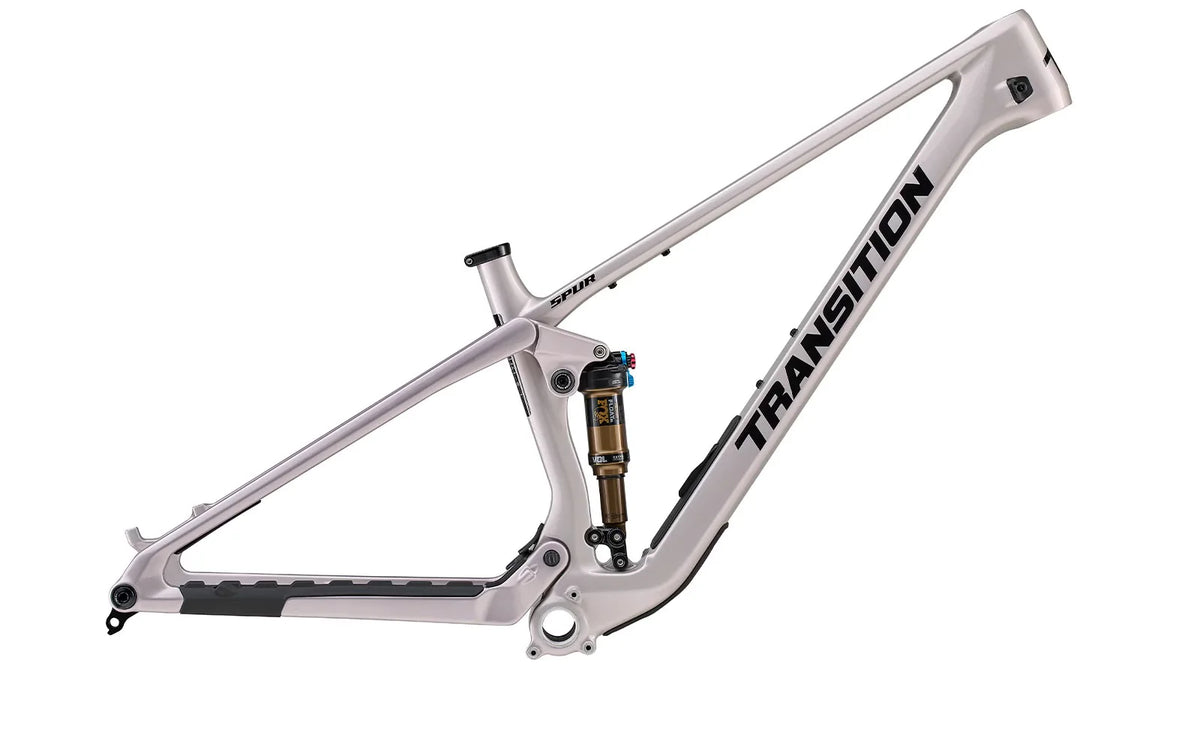

Transition Spur Carbon Frameset

$6,650.00

Tax included

Description

THE SINGLETRACK ENTHUSIAST

The Spur is our cross-country bike that refuses to be confined by labels. Now featuring 120mm rear and 130mm front travel paired with our famously progressive geometry, it blurs the lines of traditional XC. It's fast enough to race, tough enough for downcountry, and versatile enough to pull trail duty after hours. The Spur's broad range doesn't compromise performance in the category, it delivers across the board, making it the perfect ride for true singletrack enthusiasts.

Specification

FRAME	Spur Carbon 120mm
WHEEL SIZE	29"
REAR SHOCK	Fox Float SL Factory (190x45mm)
HEADSET	FSA No.42/48/ACB (Included)

Geometry

	SM	MD	LG	XL
A.REACH	430 \| 425	460 \| 455	485 \| 480	510 \| 505

B.STACK	608 \| 612	617 \| 621	626 \| 630	640 \| 644

C.EFFECTIVE TOPTUBE LENGTH	570	603	631	660

D.SEATTUBE LENGTH	360	390	430	460

E.EFFECTIVE SEATTUBE ANGLE	77.3 \| 76.7	76.8 \| 76.3	76.4 \| 75.9	76.0 \| 75.6

SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE	600	660	720	780

ACTUAL SEATTUBE ANGLE	72 \| 71.5	72 \| 71.5	72 \| 71.5	72 \| 71.5

F.HEADTUBE LENGTH	100	110	120	135

G.HEADTUBE ANGLE	66.0 \| 65.5	66.0 \| 65.5	66.0 \| 65.5	66.0 \| 65.5

H.CHAINSTAY LENGTH	434 \| 436	434 \| 436	439 \| 441	439 \| 441

I.WHEELBASE	1163	1197	1231	1262

J.BOTTOM BRACKET DROP (REAR)	40 \| 47	40 \| 47	40 \| 47	40 \| 47

K.ESTIMATED BOTTOM BRACKET HEIGHT	335 \| 328	335 \| 328	335 \| 328	335 \| 328

STANDOVER HEIGHT	660	660	660	660
