Specialized  |  SKU: 91427-1149
Sold out

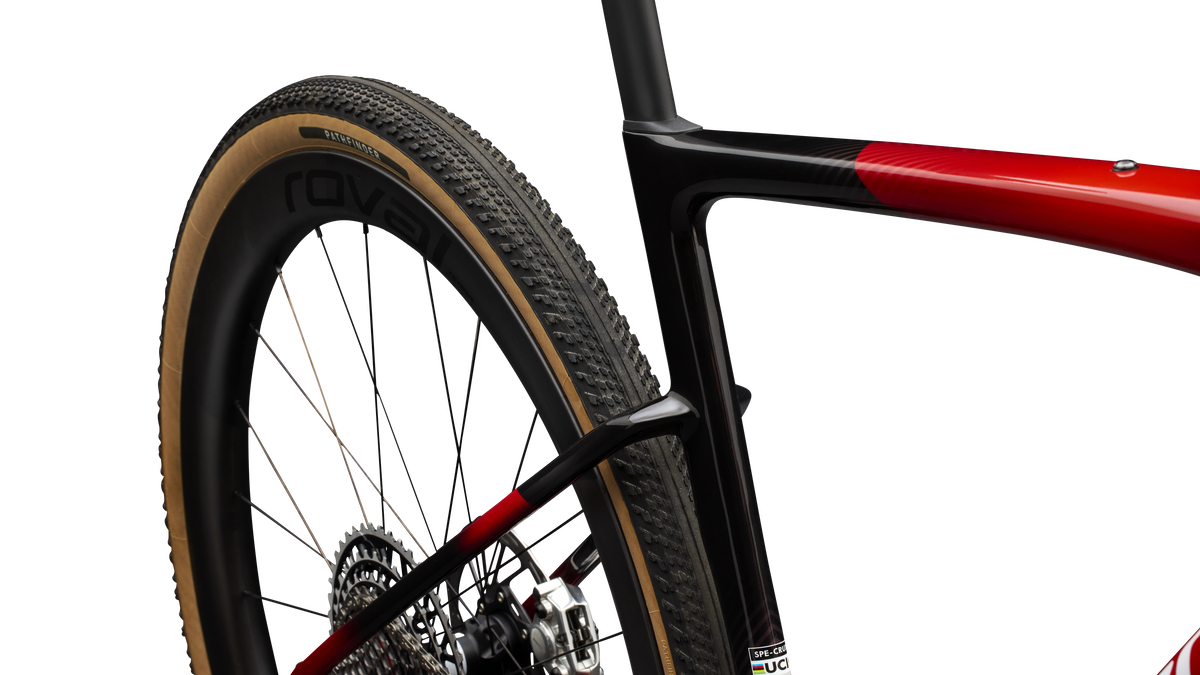

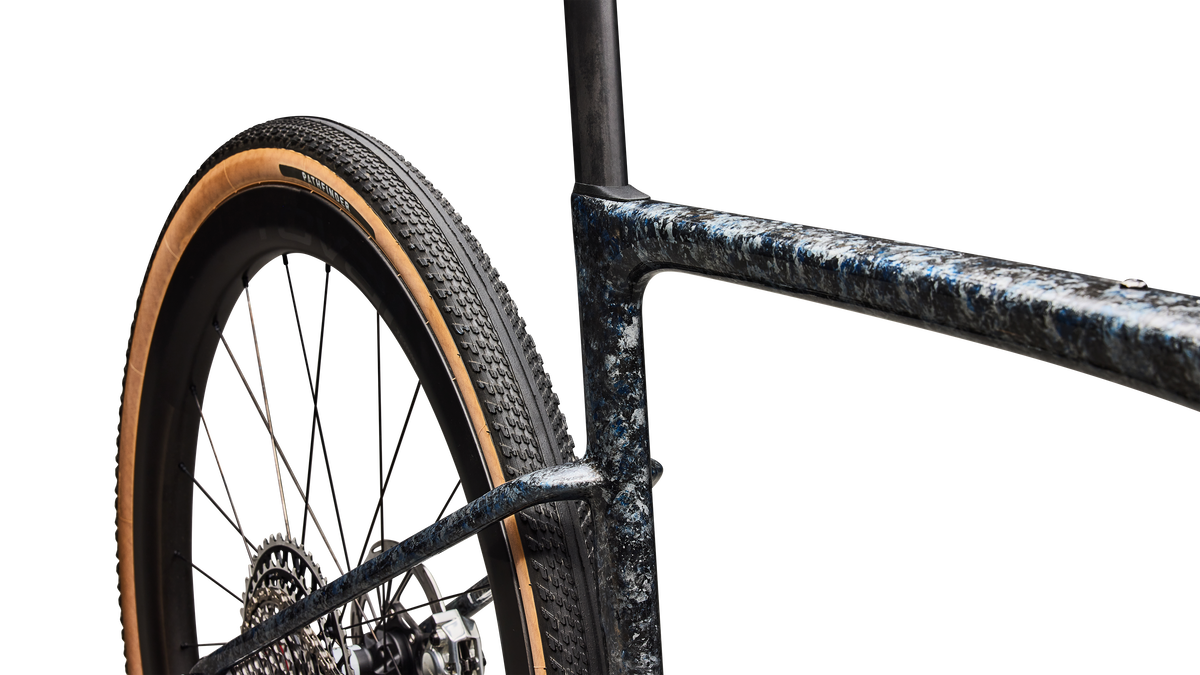

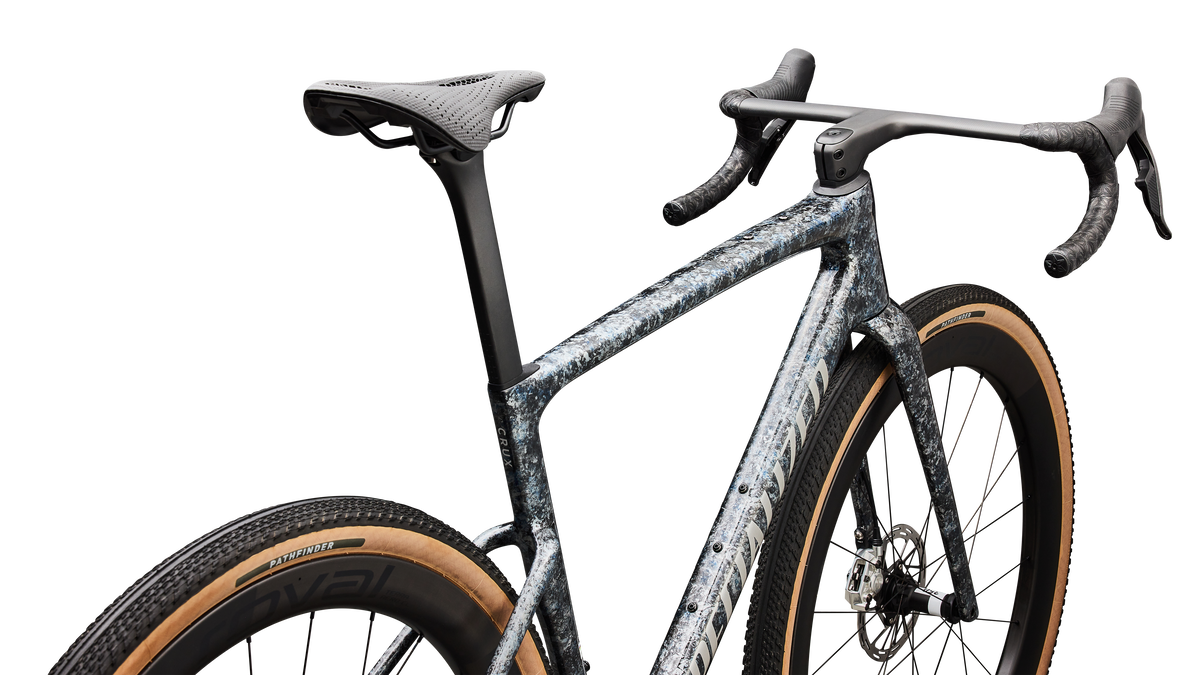

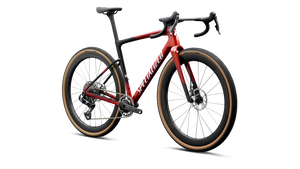

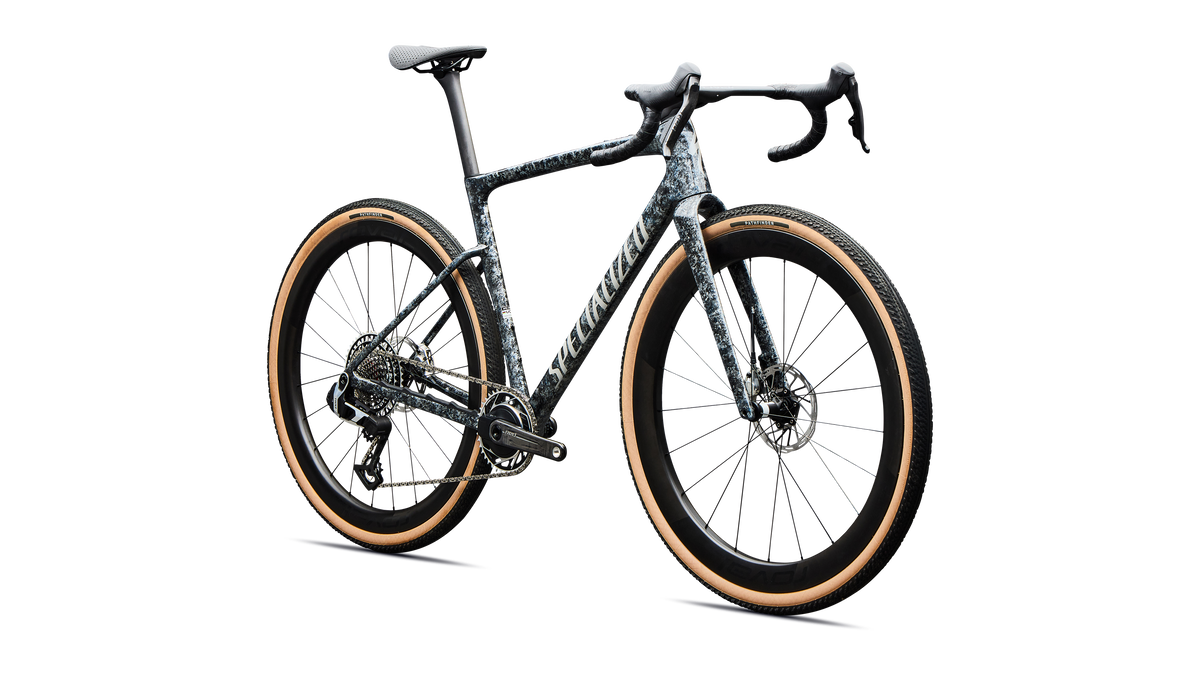

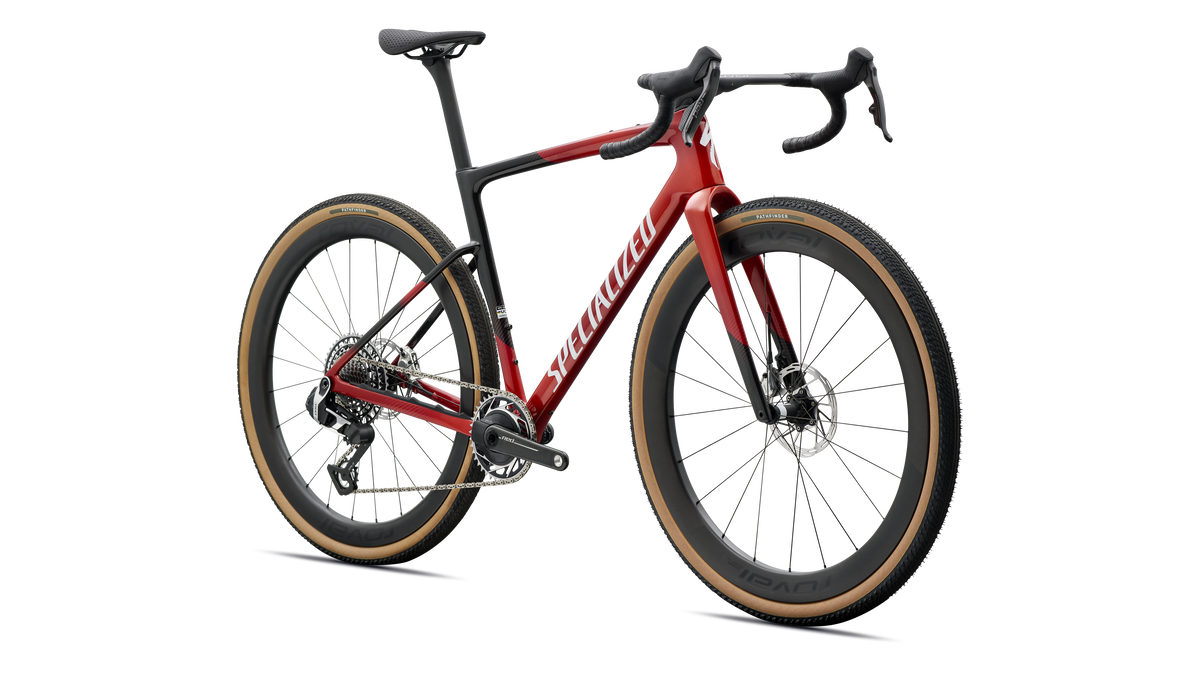

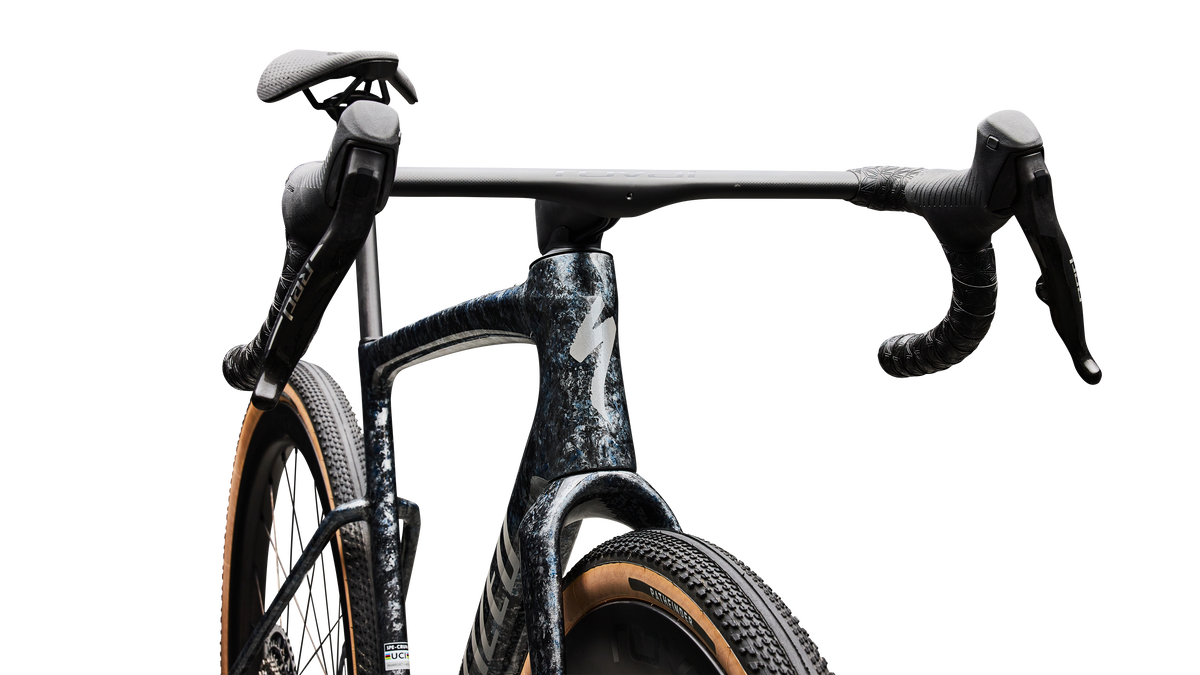

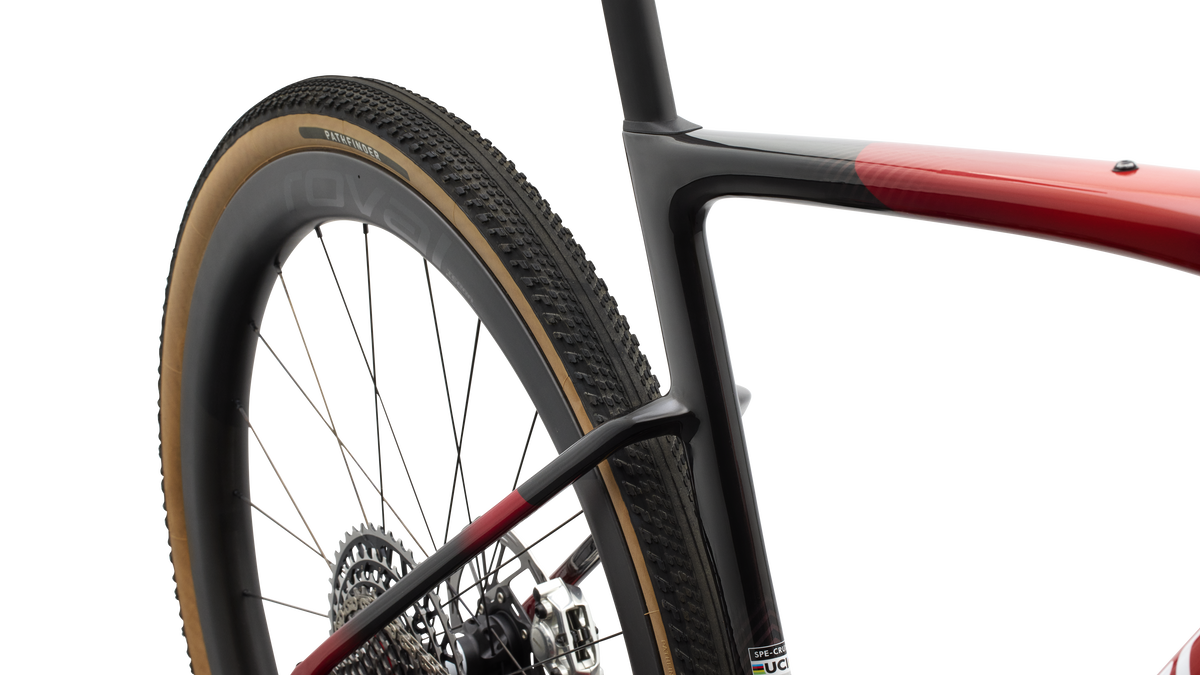

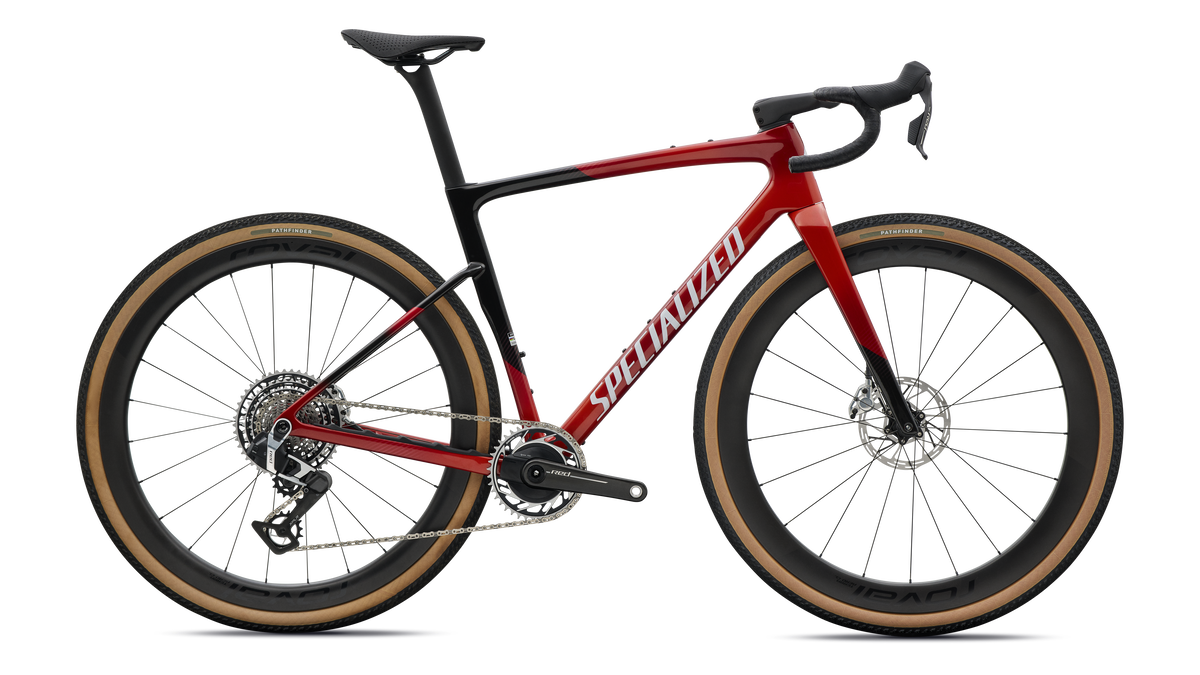

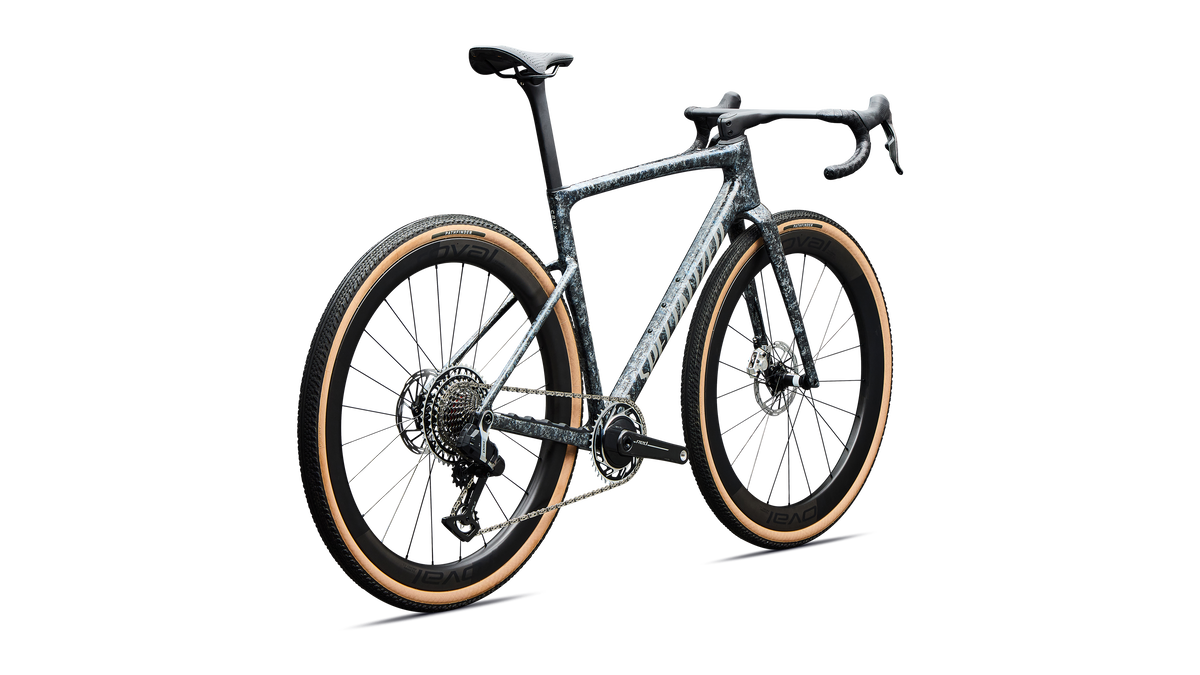

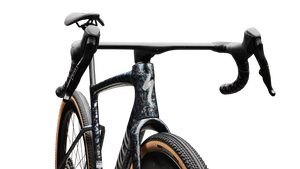

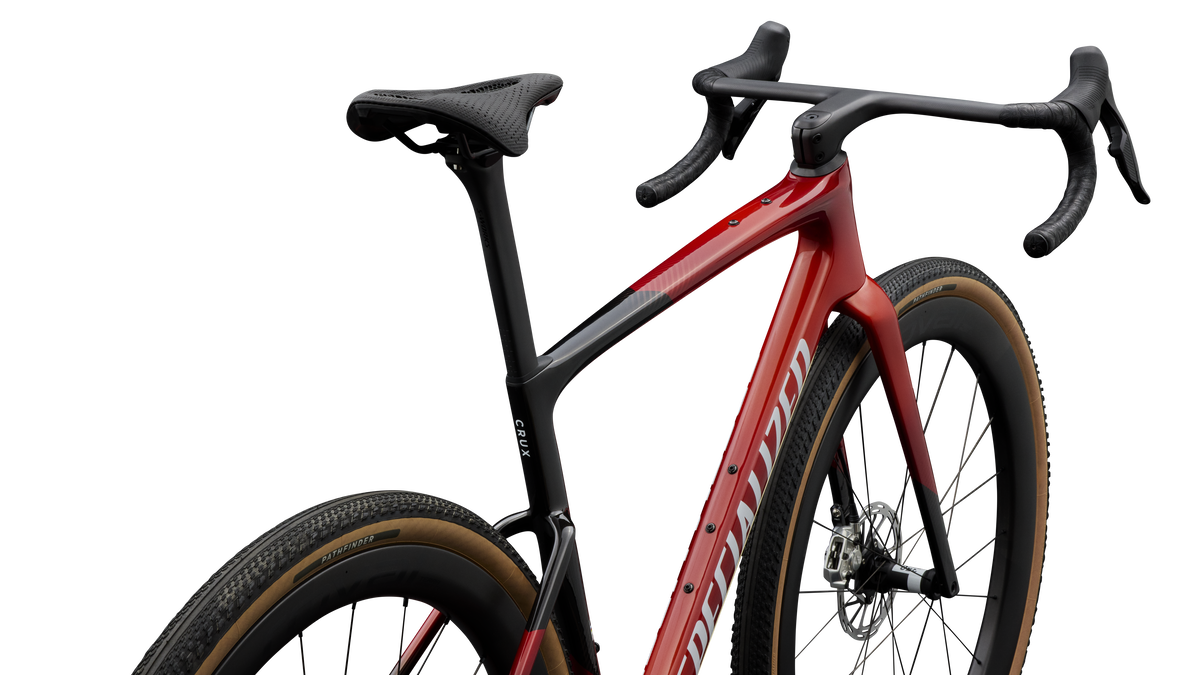

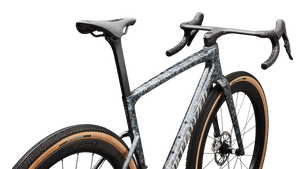

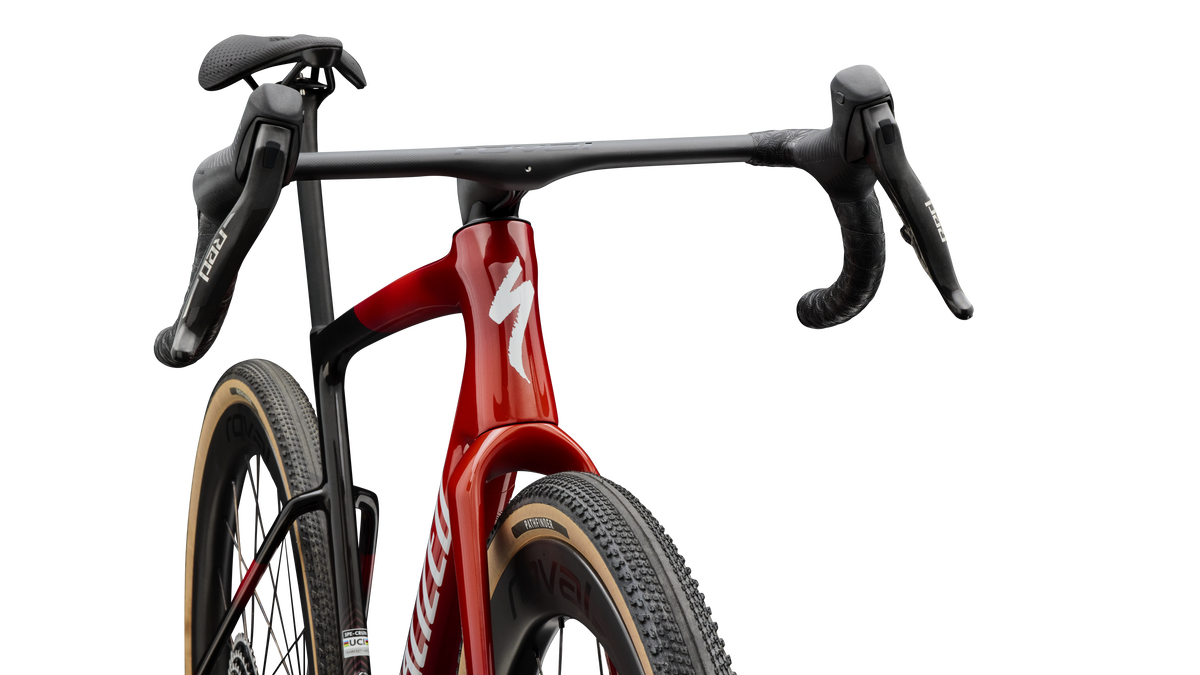

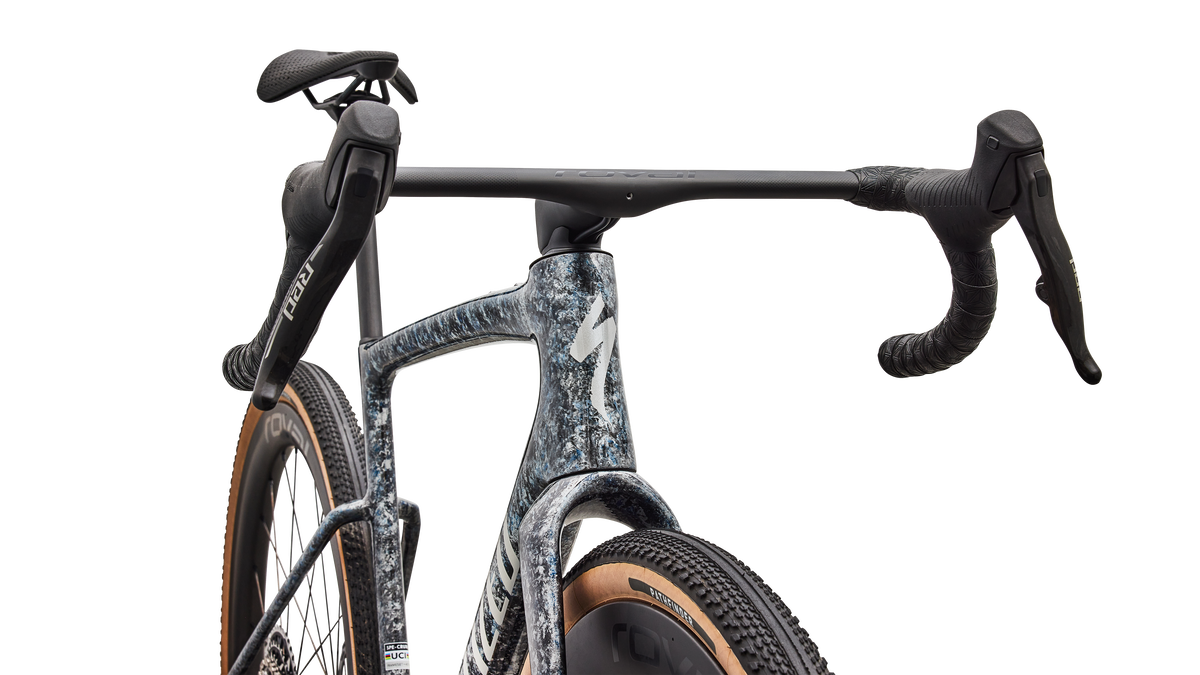

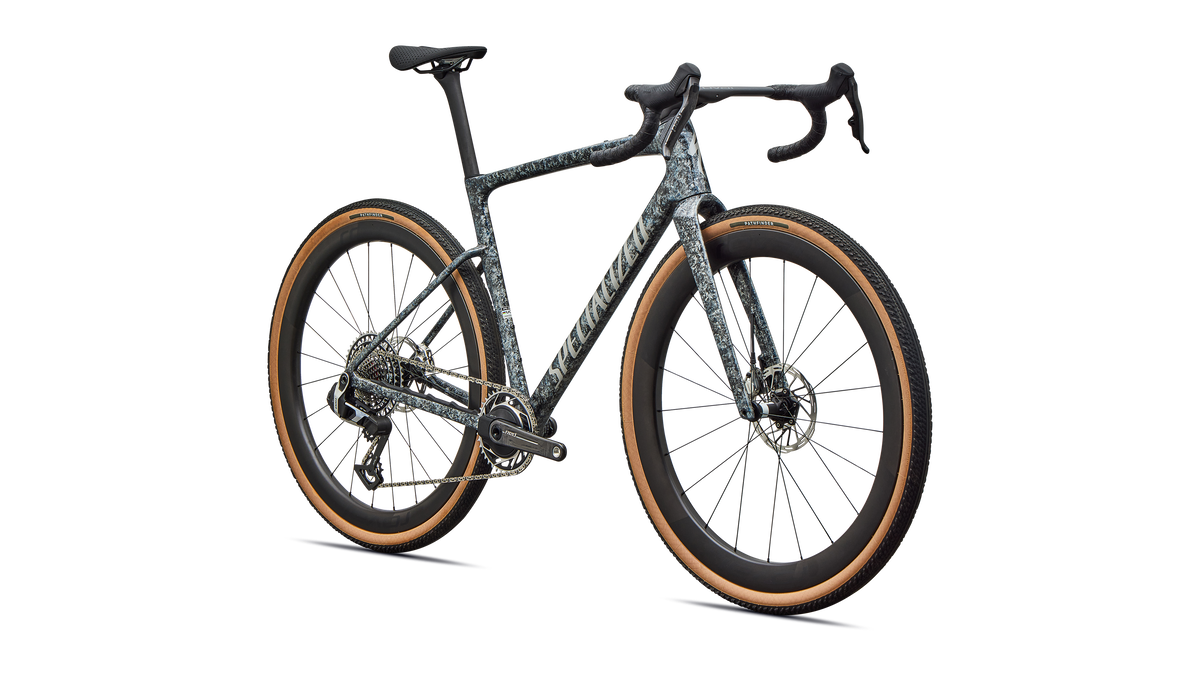

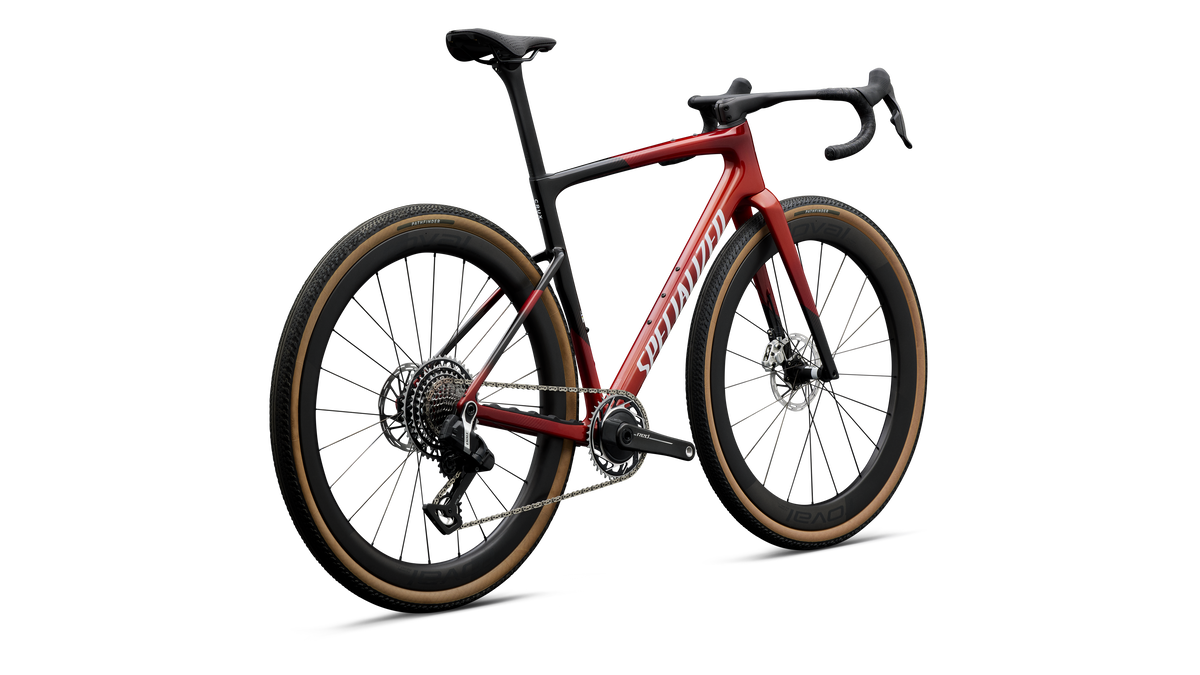

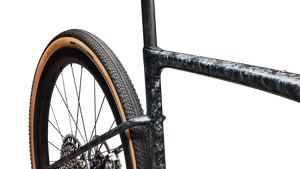

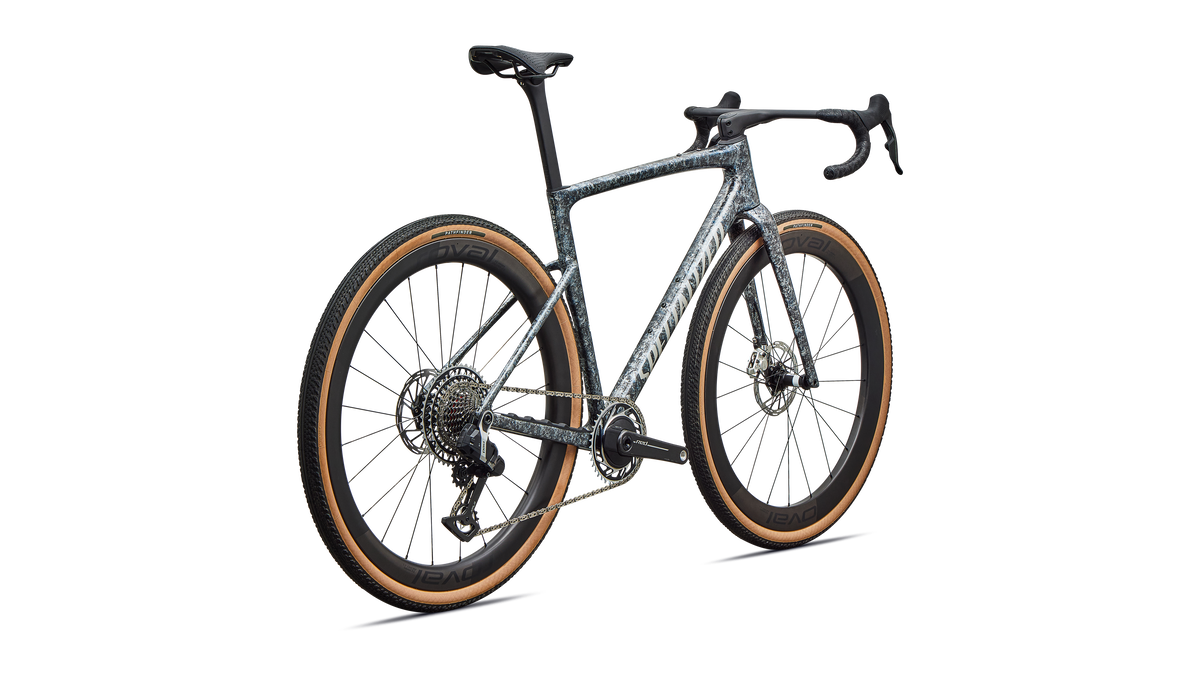

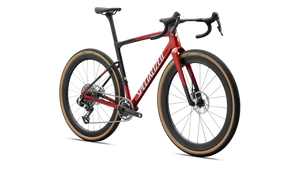

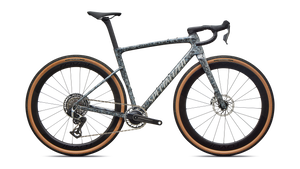

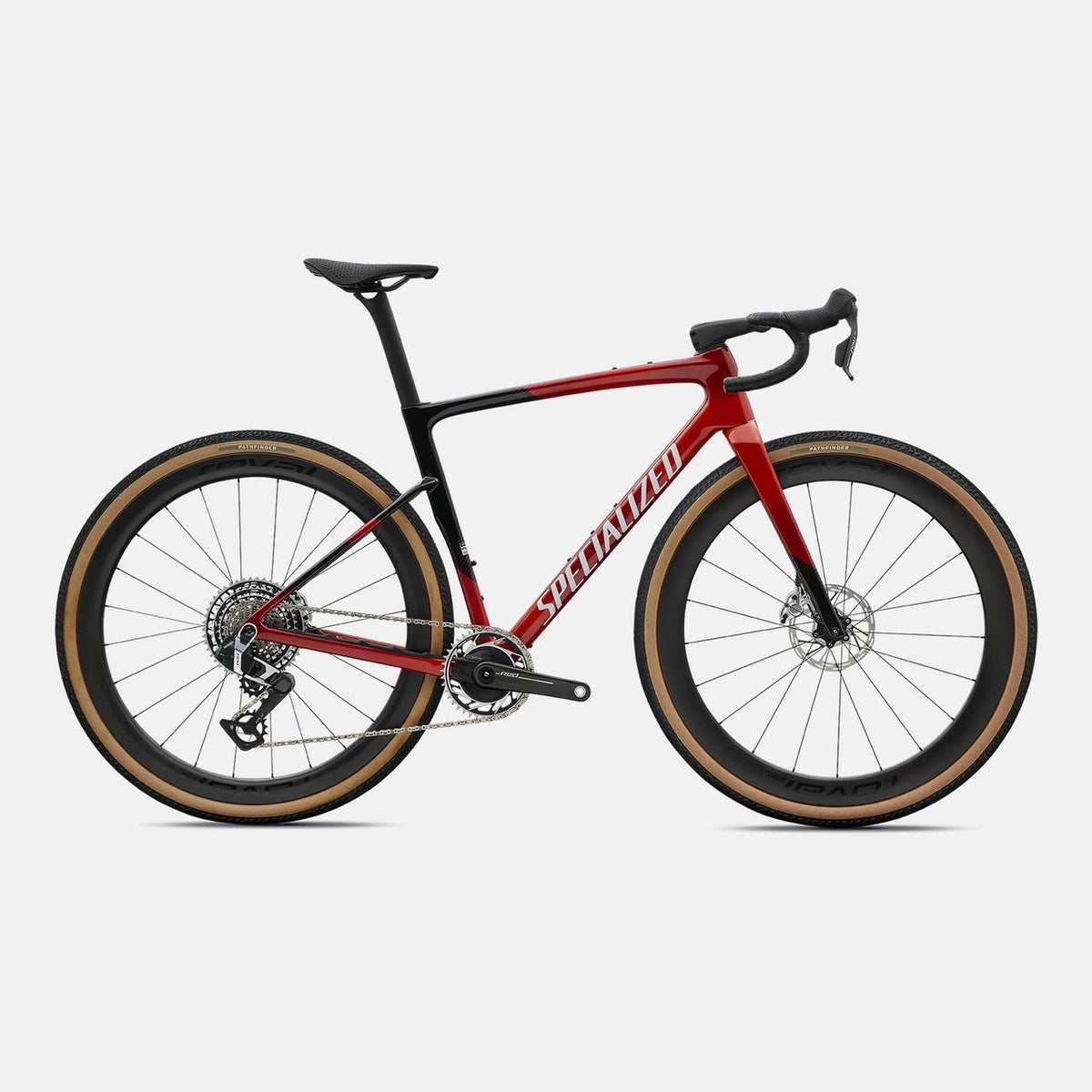

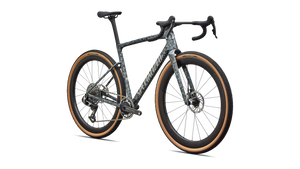

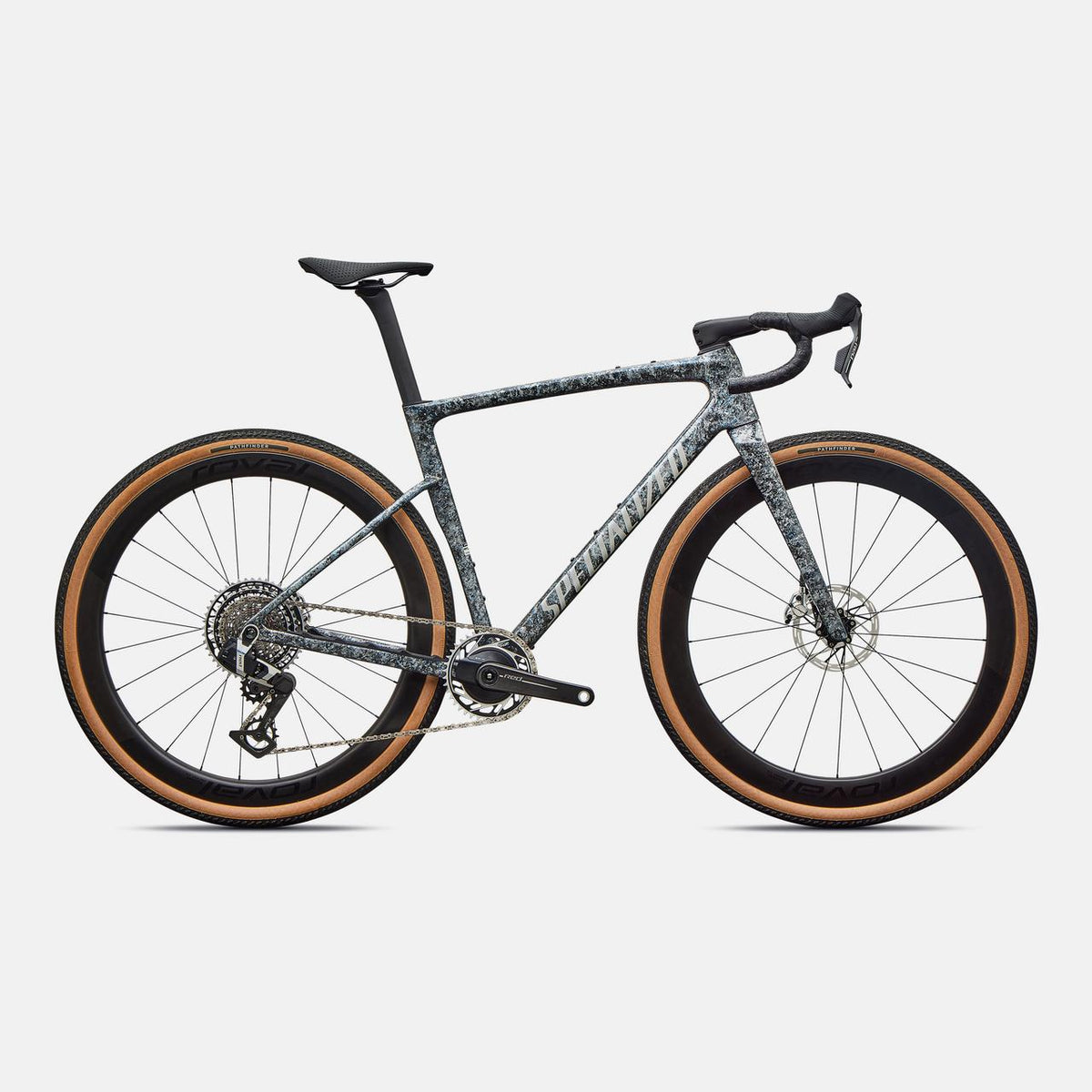

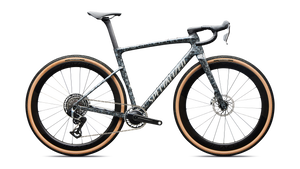

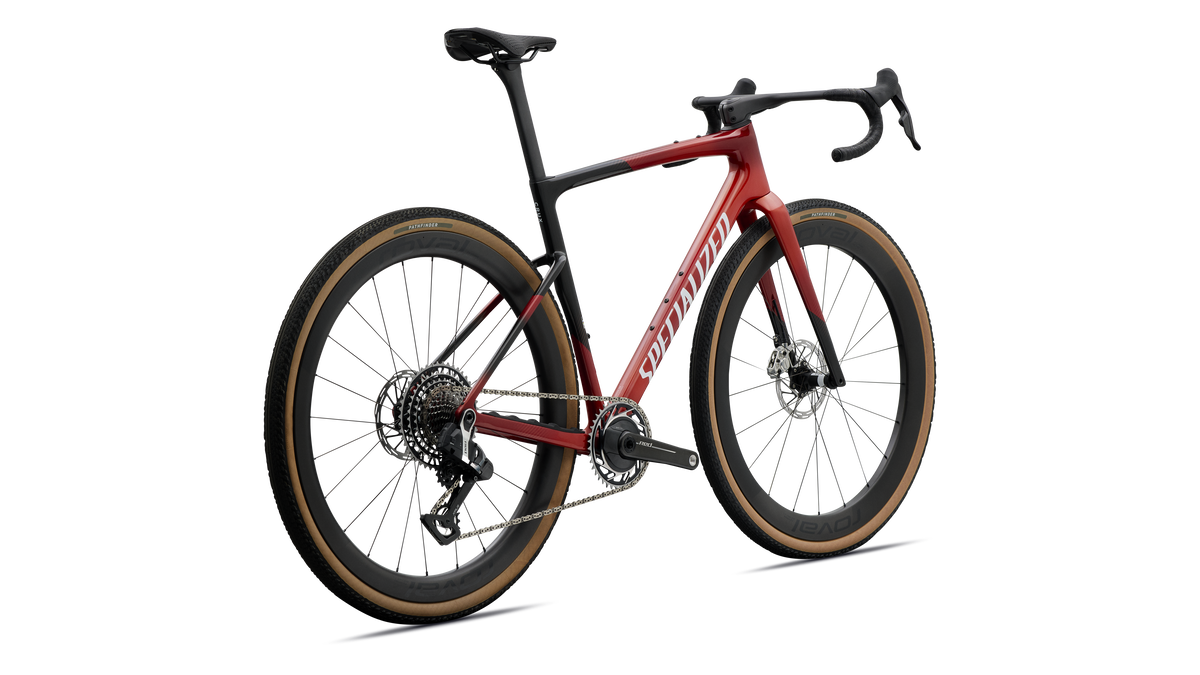

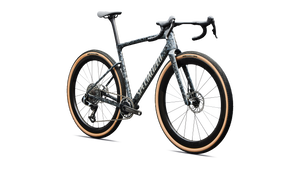

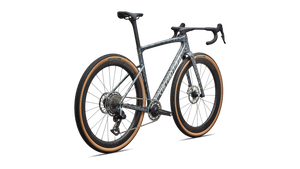

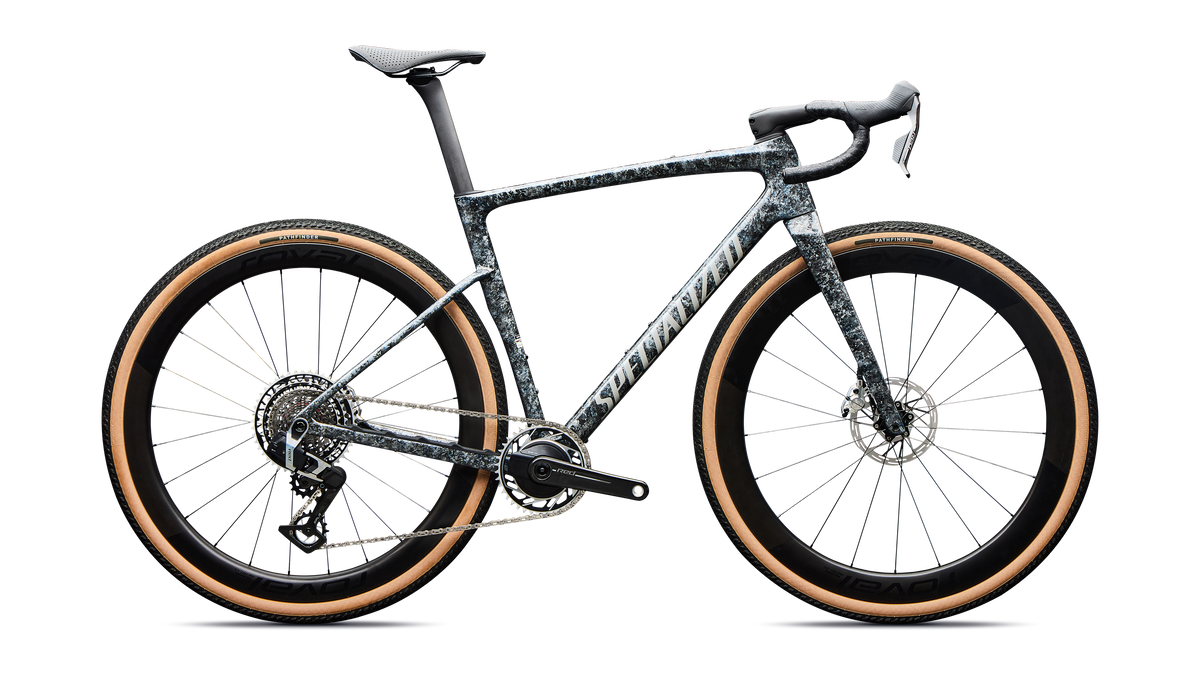

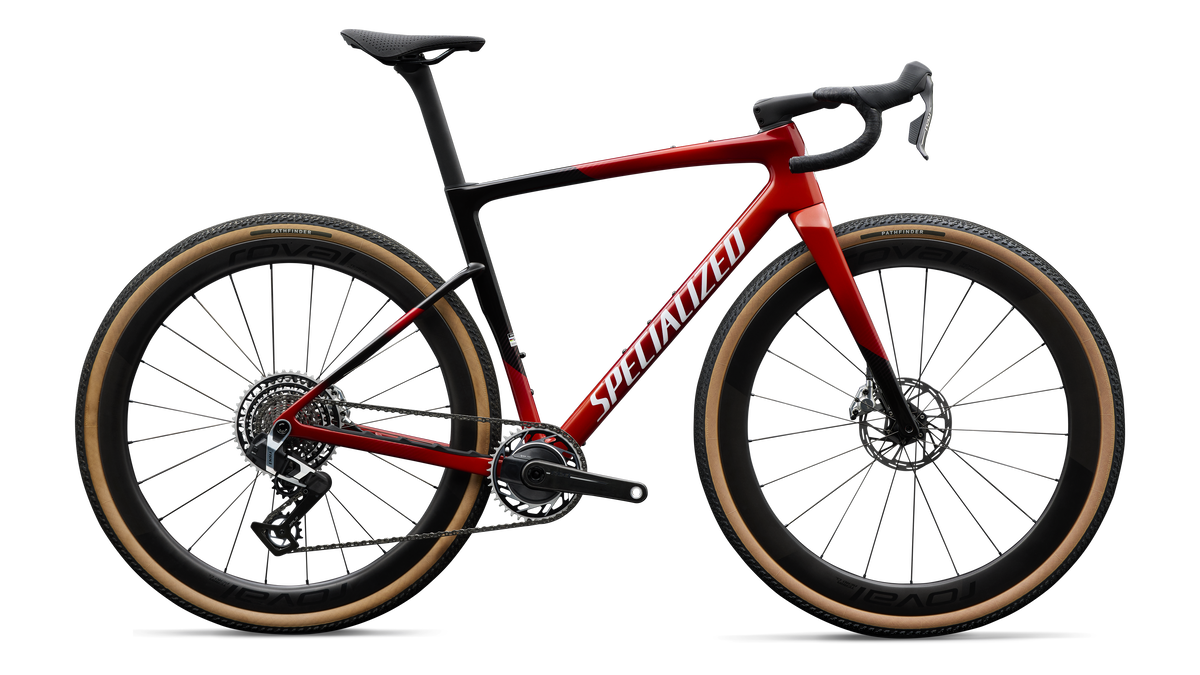

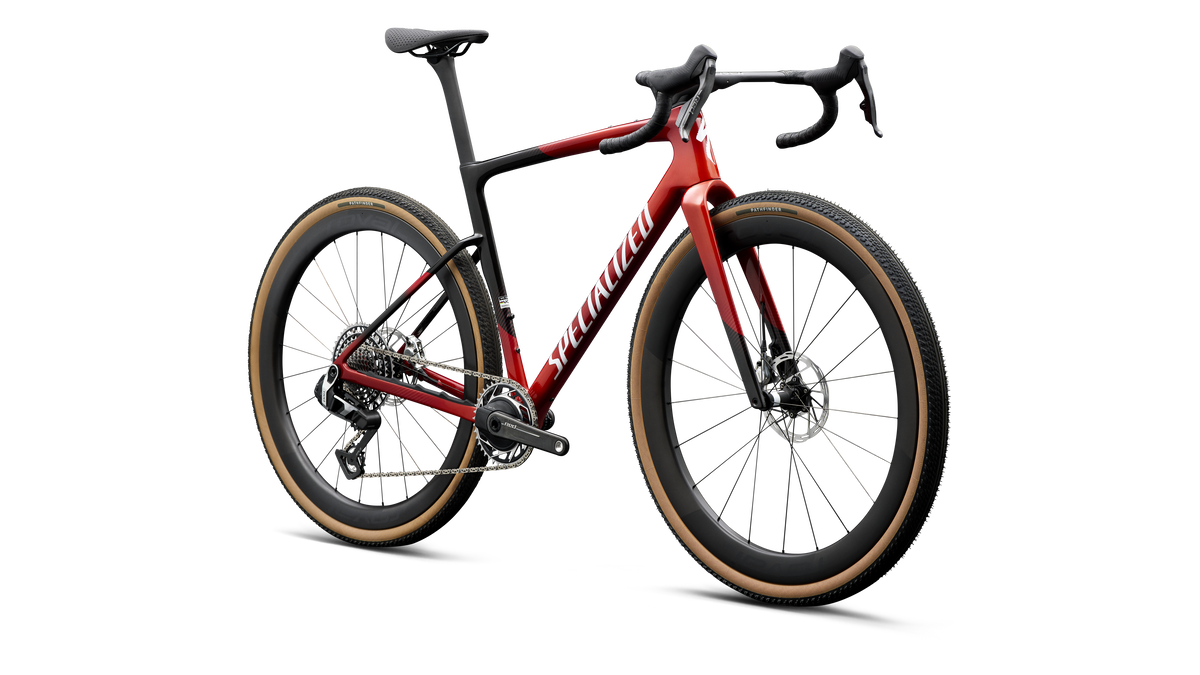

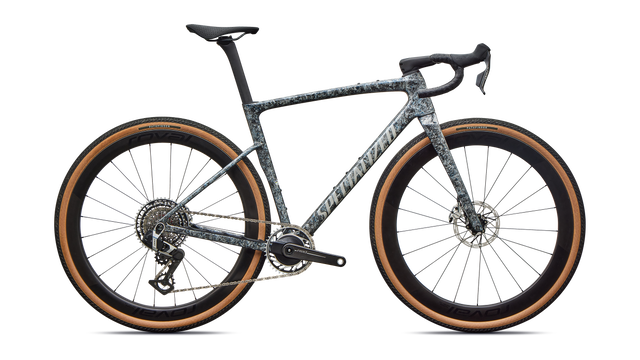

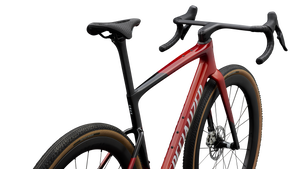

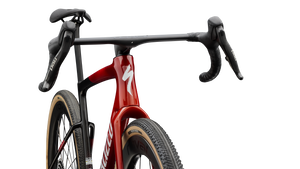

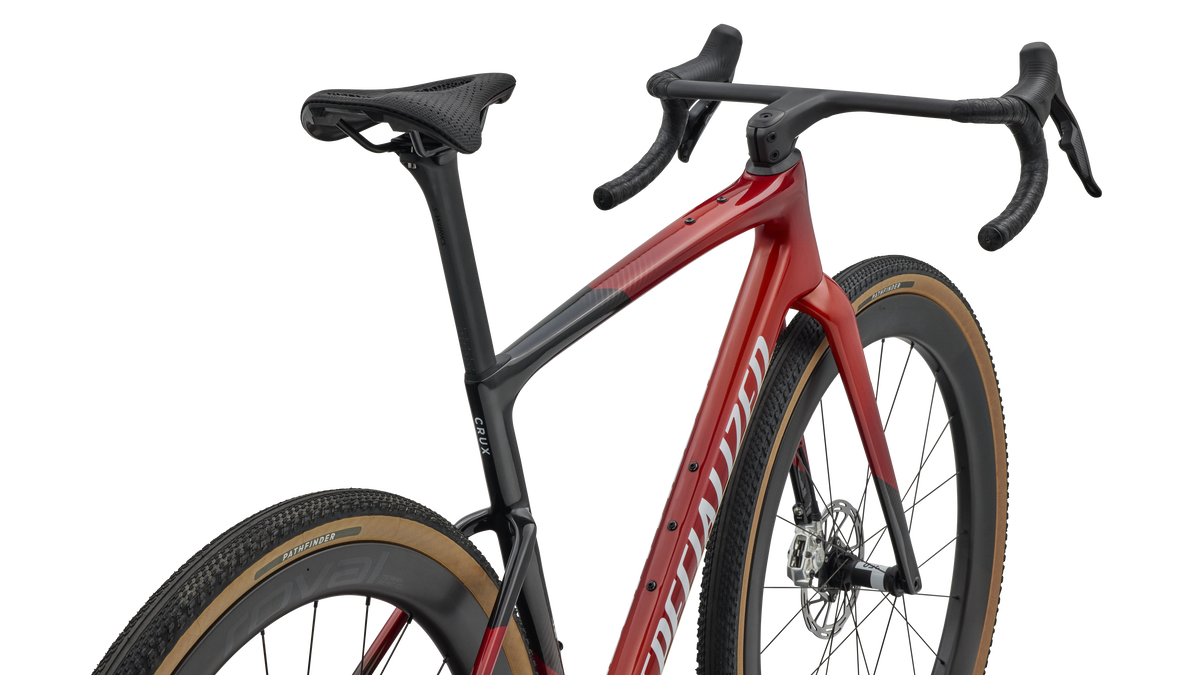

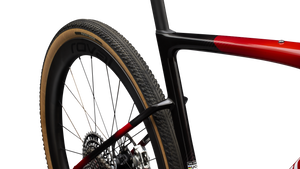

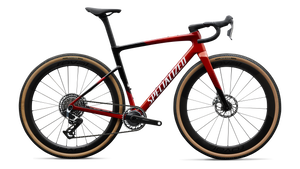

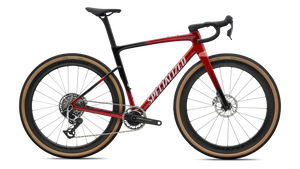

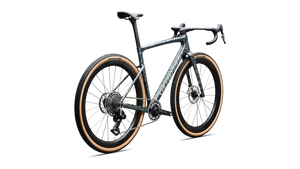

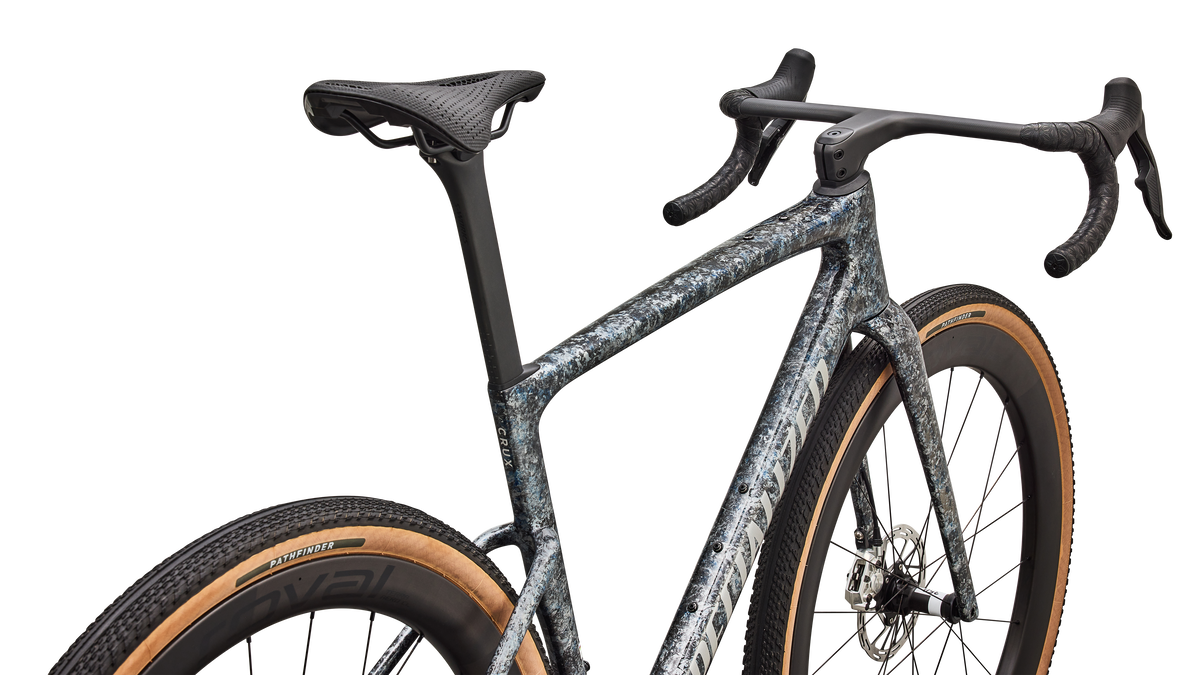

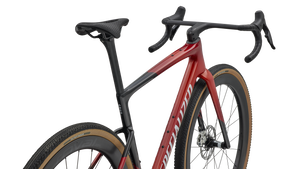

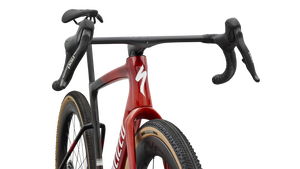

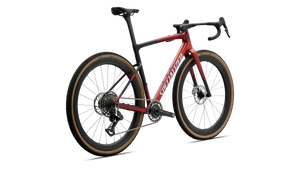

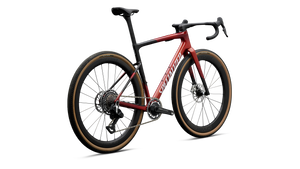

Crux 5 S-Level - SRAM RED XPLR 2027

$16,900.00
Tax included
Colour
Size

Description

Crux 5 S-Level

Eat My Dust

The Crux 5 S-Level was born from the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated across real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.

Specification
Frameset
Frame
Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
Fork
S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Brakes
Front Brake
SRAM RED E1, hydraulic disc
Rear Brake
SRAM RED E1, hydraulic disc
Drivetrain
Bottom Bracket
SRAM DUB BSA 68 Wide
Shift Levers
SRAM RED AXS E1, hydraulic disc
Rear Derailleur
SRAM RED AXS XPLR E1, 13-speed
Chain
SRAM RED E1
Cassette
SRAM RED XPLR E1, 13-speed, 10-46t
Crankset
SRAM RED XPLR E1, Quarq power meter, 40t
Wheels & tires
Inner Tubes
700x32-50mm, 60mm Presta valve
Front Wheel
Roval Terra Aero CL, 27mm internal width, tubeless ready, 50mm depth, 21h, DT 350 hub, Centerlock disc, DT Swiss Competition spokes
Rear Wheel
Roval Terra Aero CL, 27mm internal width, tubeless ready, 45mm depth, 24h, DT 350 hub, Centerlock disc, DT Swiss Competition spokes
Front Tire
Pathfinder 700x45, Tubeless Ready
Rear Tire
Pathfinder 700x45, Tubeless Ready
Cockpit
SeatPost
S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
Saddle
Power Pro Mirror, Hollow Ti rails
Handlebars

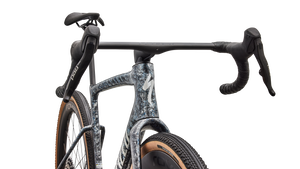

Roval Terra Cockpit, Integrated Bar/Stem
Tape
Supacaz Super Sticky Kush
Seat Binder
Integrated Wedge
Product details
Product ID
294829
Weight
Weight Size
56
Weight
7.7 kg (16 lb, 15.6 oz)

Geometry

49 52 54 56 58 61
Crank Length 165 165 170 170 172.5 172.5
Handlebar Width 380 380 400 400 420 420
Stem Length 75 90 90 100 100 100
Saddle Width 155 155 143 143 143 143
Seatpost Length 300 300 380 380 380 380
Stack 530 547 560 578 598 621
Reach 375 382 388 400 412 425
Head Tube Length 95 110 125 142 163 188
Head Tube Angle 70.5 70.75 71 71.5 71.5 71.5
BB Height 278 278 280 280 280 280
BB Drop 80 80 78 78 78 78
Trail 72 71 69 66 66 66
Fork Length, Full 401 401 401 401 401 401
Fork Rake/Offset 51 51 51 51 51 51
Front Center 594 604 613 626 644 665
Chainstay Length 425 425 425 425 425 425
Wheelbase 1008 1016 1026 1039 1057 1078
Top Tube Length, Horizontal 512 534 543 566 583 603
Bike Standover Height 753 766 781 803 823 849
Seat Tube Length 445 456 473 497 515 545
Seat Tube Angle 75.5 74.5 74.5 74 74 74
