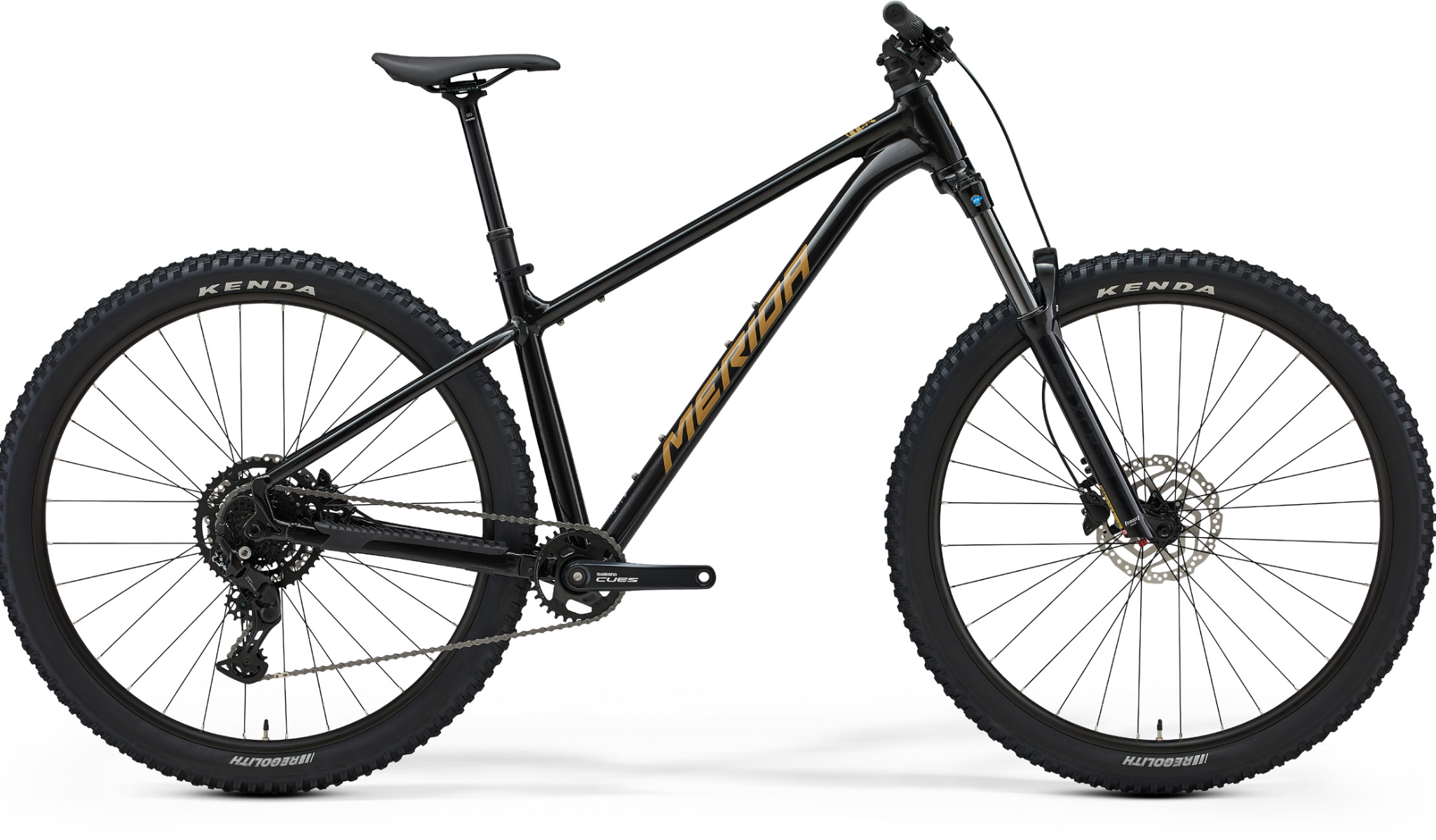

Relentless speed and low weight uphill, paired with trail-hardtail swagger on the descents. The BIG.NINE TR 5000 is ready to push beyond what cross-country hardtails should do. We've added a longer travel 120 mm travel RockShox fork, more aggressive high-volume tyres and our own lightweight dropper post to a CF3 carbon frame that features progressive geometry and our AGILOMETER sizing. Add in the precision and benchmark reliability of Shimano's XT 12-speed and you're good to go.
When it comes to the demanding world of cross-country mountain biking, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes with the choice of carbon or two different aluminium frames to deliver a ride for all budgets. The latest CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today. They also have downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. For riders starting out, the updated BIG.NINE TFS offers more relaxed geometry and builds that deliver great value and versatility on or off the trail, with BIG.SEVEN TFS models using 27.5" wheels to deliver a fit for for shorter riders. Our classic XC hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we have gained in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship that 'Made in Taiwan' stands for.
Â
| FRAME | BIG.NINE TR CF3 III, MAT carbon, 29x2.4" max WHS, 148x12 AST, BSA BBR, |
| SHOCK | 0, |
| FORK | Rock Shox Reba RL, Air, 120 STR, Tapered, 44 mm fork offset, |
| BRAKE FRONT | Shimano SLX M7100, 2 piston |
| BRAKE REAR | Shimano SLX M7100, 2 piston |
| ROTOR FRONT | Shimano RT54, 180mm |
| ROTOR REAR | Shimano RT54, 160mm |
| CHAIN | KMC X12, |
| CRANKSET | Shimano Deore MT512, 32t |
| CRANK LENGTH | 170 mm for all sizes, |
| BB SET | Shimano BB-MT-501, 24mm |
| DERAILLEUR FRONT | 0, |
| DERAILLEUR REAR | Shimano XT, SGS |
| CASSETTE | Shimano Deore M6100, 10-51t, 12sp |
| PEDAL | 0, |
| GRIP | MERIDA COMP TR, |
| HANDLEBAR | MERIDA EXPERT CC, MAT aluminium, 760 WHB, flat |
| STEM | MERIDA TEAM CC III, MAT aluminium, 31.8 DSH, -6 ASD, incl. MERIDA SMART MOUNT, |
| STEM SIZE | 60mm, |
| HEADSET | Acros ICR MERIDA INTEGRATED neck, Upper and lower IPS sealing |
| HUB FRONT | Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock |
| HUB REAR | Shimano TC500-MS-B, 148x12 WHR, 32 SPH, Centerlock |
| RIM | MERIDA EXPERT CC II, 25 IWR, MAT aluminium, Tubeless ready (tubeless tape and valves not included) |
| SADDLE | MERIDA COMP SL, 25% recycled material, V-mount, |
| SEAT CLAMP | MERIDA EXPERT, |
| SEAT POST | MERIDA TEAM TR SL, 30.9 DSP, 0 SSB, S/M: 150mm travel - L/XL/XXL: 170mm travel |
| SHIFTER FRONT | JD-FL lever, |
| SHIFTER REAR | Shimano Deore M6100, |
| TYRE FRONT | Maxxis Rekon, 29x2.4" WT, tubeless ready, 3C EXO, |
| TYRE REAR | Maxxis Rekon, 29x2.4" WT, tubeless ready, 3C EXO, |
| Frame Size | S | M | L | XL | XXL |
| Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
| ST seat tube [mm] | 380 | 410 | 440 | 470 | 500 |
| TT top tube [mm] | 594 | 614 | 637 | 659 | 681 |
| CS chain stay length [mm] | 430 | 433 | 436 | 439 | 442 |
| HTA head tube angle [°] | 66.9 | 66.9 | 66.9 | 66.9 | 66.9 |
| STA seat tube angle [°] | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
| BD bottom bracket drop [mm] | 57 | 57 | 57 | 57 | 57 |
| HT head tube [mm] | 95 | 95 | 105 | 115 | 125 |
| FL fork length [mm] | 530 | 530 | 530 | 530 | 530 |
| R reach [mm] | 420 | 440 | 460 | 480 | 500 |
| S stack [mm] | 614 | 614 | 624 | 633 | 643 |
| WB wheel base [mm] | 1132 | 1155 | 1182 | 1209 | 1235 |
| SH stand over height [mm] | 711 | 711 | 717 | 738 | 759 |
