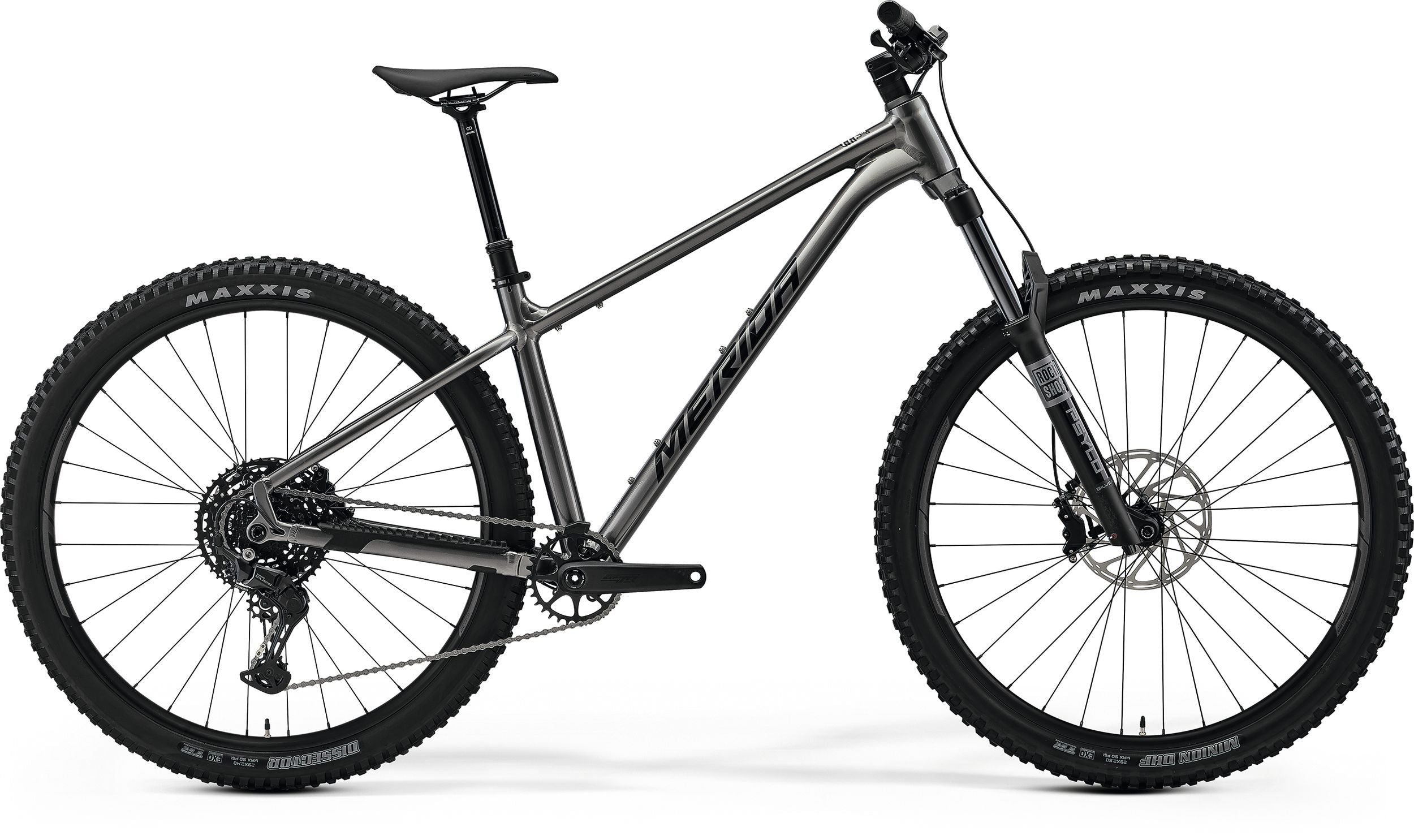

The BIG.TRAIL 300 is a fun-packed and hugely capable trail bike at an amazing price. Its progressive geometry combined with a long travel 140 mm fork and grippy 2.4" wide 29er trail tyres make it the perfect companion for exciting trail sessions and challenging all-day rides over rough terrain. And the long list of exciting features and upgrades adds to its premium looks.
The BIG.TRAIL is back and better than ever! Hailed by the international mountain bike press as one of the best trail hardtails around, we've tweaked it so it goes up, down and along even faster - which obviously means more fun. With updated, progressive geometry, the new BIG.TRAIL builds on an incredibly successful heritage, with a slack head angle and extended reach helping tame the gnarliest trails and a steeper seat angle that makes climbing up to do it again a breeze. We've also given it a slicker and tricker look and improved the frame protection too, so it'll stay looking good for longer. Join the BIG.TRAIL family and enjoy hassle-free trail fun in spades. Available from XSmall to XLarge, perfect for finding your preferred size and reach options.
Â
| FRAME | BIG.TRAIL TFS II, MAT aluminium, 29x2.4" max. WHS, 148x12 AST, BSA BBR, |
| SHOCK | 0, |
| FORK | Suntour XCR34 2CR, Air, 140 STR, Tapered, lockout, 44mm fork offset, 29x2.4" max WHS, |
| BRAKE FRONT | Shimano MT200, 2 piston |
| BRAKE REAR | Shimano MT200, 2 piston |
| ROTOR FRONT | Shimano RT10, 180mm |
| ROTOR REAR | Shimano RT10, 180mm |
| CHAIN | KMC xGlide, |
| CRANKSET | Shimano CUES UT-400-1, 32t |
| CRANK LENGTH | 170mm on all sizes, |
| BB SET | Shimano BB-UN101, 73mm |
| DERAILLEUR FRONT | 0, |
| DERAILLEUR REAR | Shimano CUES U4000, |
| CASSETTE | SunRace U9, CS-U980 9AZ, 11-46t, |
| PEDAL | 0, |
| GRIP | MERIDA COMP TR, |
| HANDLEBAR | MERIDA COMP TR II, MAT aluminium, 780 WHB, 35 RHB |
| STEM | MERIDA COMP TR, MAT aluminium, 35 DSH, 0 ASD |
| STEM SIZE | 40 mm, |
| HEADSET | Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing |
| HUB FRONT | Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock |
| HUB REAR | Shimano TC500-HM-B, 148x12 WHR, 32 SPH, Centerlock |
| RIM | MERIDA COMP CC II, 25 IWR, MAT aluminium, tubeless ready |
| SADDLE | MERIDA COMP SL, V-mount |
| SEAT CLAMP | MERIDA EXPERT, |
| SEAT POST | MERIDA COMP TR II, 34.9 DSP, 0 SSB, XSHORT: 150mm travel - SHORT, MID, LONG, XLONG: 170mm travel, |
| SHIFTER FRONT | 0, |
| SHIFTER REAR | Shimano CUES U4000, |
| TYRE FRONT | Kenda Regolith, 29x2.4", wire, |
| TYRE REAR | Kenda Regolith, 29x2.4", wire, |
| Frame Size | XShort | Short | Mid | Long | XLong |
| Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
| ST seat tube [mm] | 385 | 400 | 420 | 445 | 475 |
| TT top tube [mm] | 559 | 581 | 603 | 630 | 657 |
| CS chain stay length [mm] | 435 | 435 | 435 | 435 | 435 |
| HTA head tube angle [°] | 64 | 64 | 64 | 64 | 64 |
| STA seat tube angle [°] | 76.5 | 76.5 | 76.5 | 76.5 | 76.5 |
| BD bottom bracket drop [mm] | 70 | 70 | 70 | 70 | 70 |
| HT head tube [mm] | 90 | 100 | 110 | 120 | 130 |
| FL fork length [mm] | 551 | 551 | 551 | 551 | 551 |
| R reach [mm] | 415 | 435 | 455 | 480 | 505 |
| S stack [mm] | 627 | 636 | 645 | 654 | 663 |
| WB wheel base [mm] | 1165 | 1189 | 1214 | 1243 | 1272 |
| SH stand over height [mm] | 715 | 721 | 724 | 726 | 729 |
| Str Stack To Reach Ratio Pc | 1.51 | 1.46 | 1.42 | 1.36 | 1.31 |
| Seat Post Mounting Depth Max Mm | 300 | 315 | 335 | 360 | 390 |
| FRAME SIZE | BODY HEIGHT |
| XS | < 163 cm |
| S | 157 - 173 cm |
| M | 167 - 183 cm |
| L | 177 - 190 cm |
| XL | 187 - 196 cm |
| XXL | > 192 cm |
