Big Trail 500 2026

Big Trail 500 2026

Regular price$2,499.00
/
Tax included.

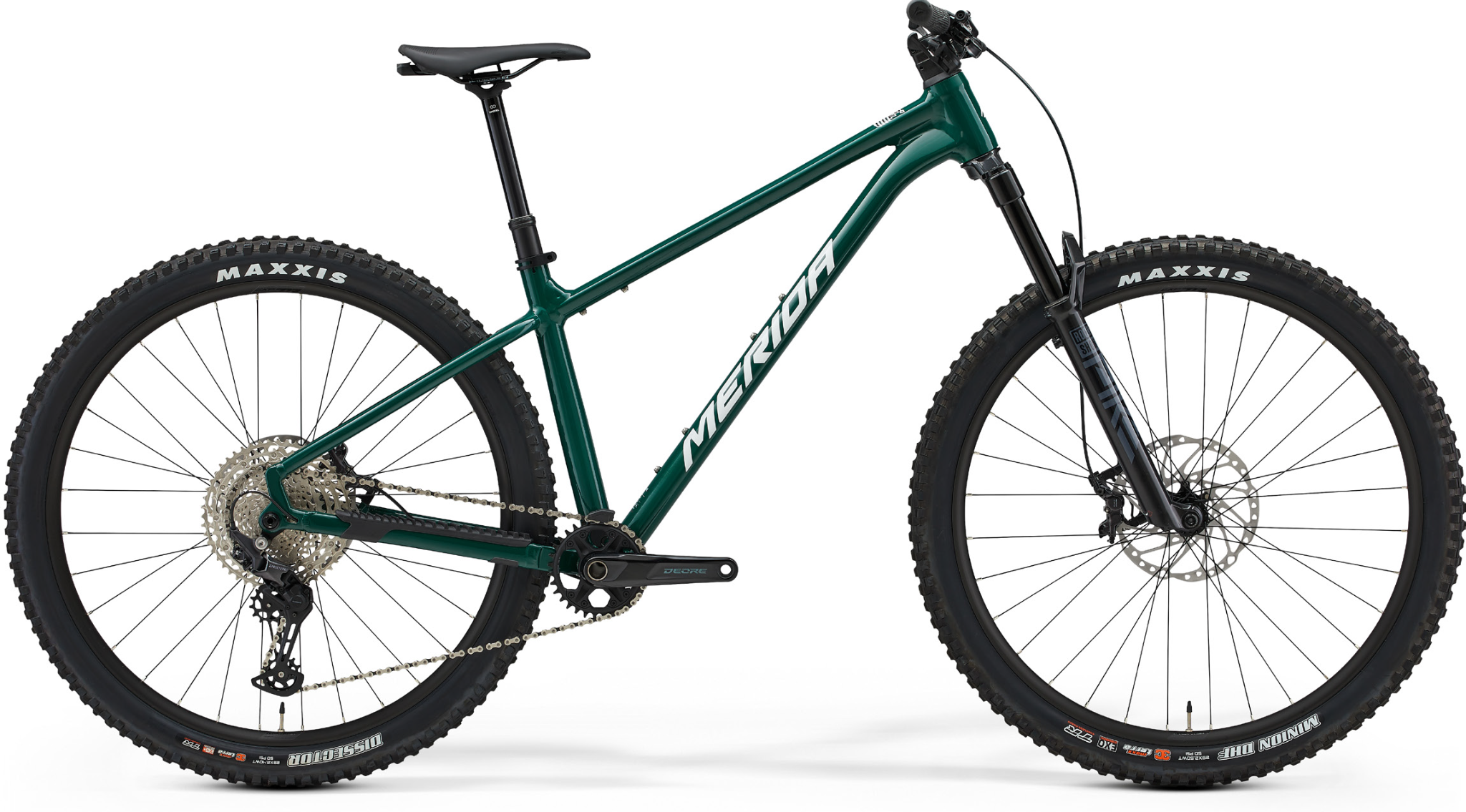

A passion for trail fun, all wrapped up in a no-nonsense package. The BIG.TRAIL 500 offers handling that at inspires confidence and pushes you to go that little bit further in your search for true trail connection. Our top-quality aluminium frame is paired with tough, trail-ready 29er tyres, a 140 mm travel fork and a long travel dropper post to add confidence and capability to any ride.

The BIG.TRAIL is back and better than ever! Hailed by the international mountain bike press as one of the best trail hardtails around, we've tweaked it so it goes up, down and along even faster - which obviously means more fun. With updated, progressive geometry, the new BIG.TRAIL builds on an incredibly successful heritage, with a slack head angle and extended reach helping tame the gnarliest trails and a steeper seat angle that makes climbing up to do it again a breeze. We've also given it a slicker and tricker look and improved the frame protection too, so it'll stay looking good for longer. Join the BIG.TRAIL family and enjoy hassle-free trail fun in spades. Available from XSmall to XLarge, perfect for finding your preferred size and reach options.



FRAME BIG.TRAIL TFS II; MAT aluminium; 29x2.4" max. WHS; 148x12 AST; BSA BBR
SHOCK
FORK Rock Shox Psylo Silver RC; Air; 140 STR; platform
BRAKE FRONT Sram DB4; 4 piston
BRAKE REAR Sram DB4; 4 piston
ROTOR FRONT Sram CenterLine; 200mm
ROTOR REAR Sram CenterLine; 180mm
CHAIN KMC xGlide
CHAINWHEEL MERIDA Expert TR II; 32 ATC
CRANKSET 165mm XSHORT, SHORT, MID and LONG; 170mm XLONG
BOTTOM BRACKET
DERAILLEUR FRONT
DERAILLEUR REAR Shimano CUES U6000; GS
CASSETTE Shimano LG300; 11-48 ATC; 10 GER
PEDAL
GRIP MERIDA COMP TR
HANDLEBAR MERIDA COMP TR II; MAT aluminium; 780 WHB; 35 RHB
STEM MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD
STEM SIZE 40 mm
HEAD SET Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing
HUB FRONT Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock
HUB REAR Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock
AXLE REAR MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
RIM MERIDA COMP TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)
SADDLE MERIDA COMP SL; 25% recycled material; V-mount
SEAT CLAMP MERIDA EXPERT
SEAT POST MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XSHORT: 150 SPT - SHORT/MID : 170 SPT - LONG: 200 SPT - XLONG: 230 SPT
SHIFTER FRONT Shimano SL-MT500-L
SHIFTER REAR Shimano CUES U6000
TYRE FRONT Maxxis Minion DHF; 29x2.5"; fold; TR EXO Dual
TYRE REAR Maxxis Dissector; 29x2.4"; fold; TR EXO Dual




FRAME SIZE BODY HEIGHT
XS < 163 cm
S 157 - 173 cm
M 167 - 183 cm
L 177 - 190 cm
XL 187 - 196 cm
XXL > 192 cm
