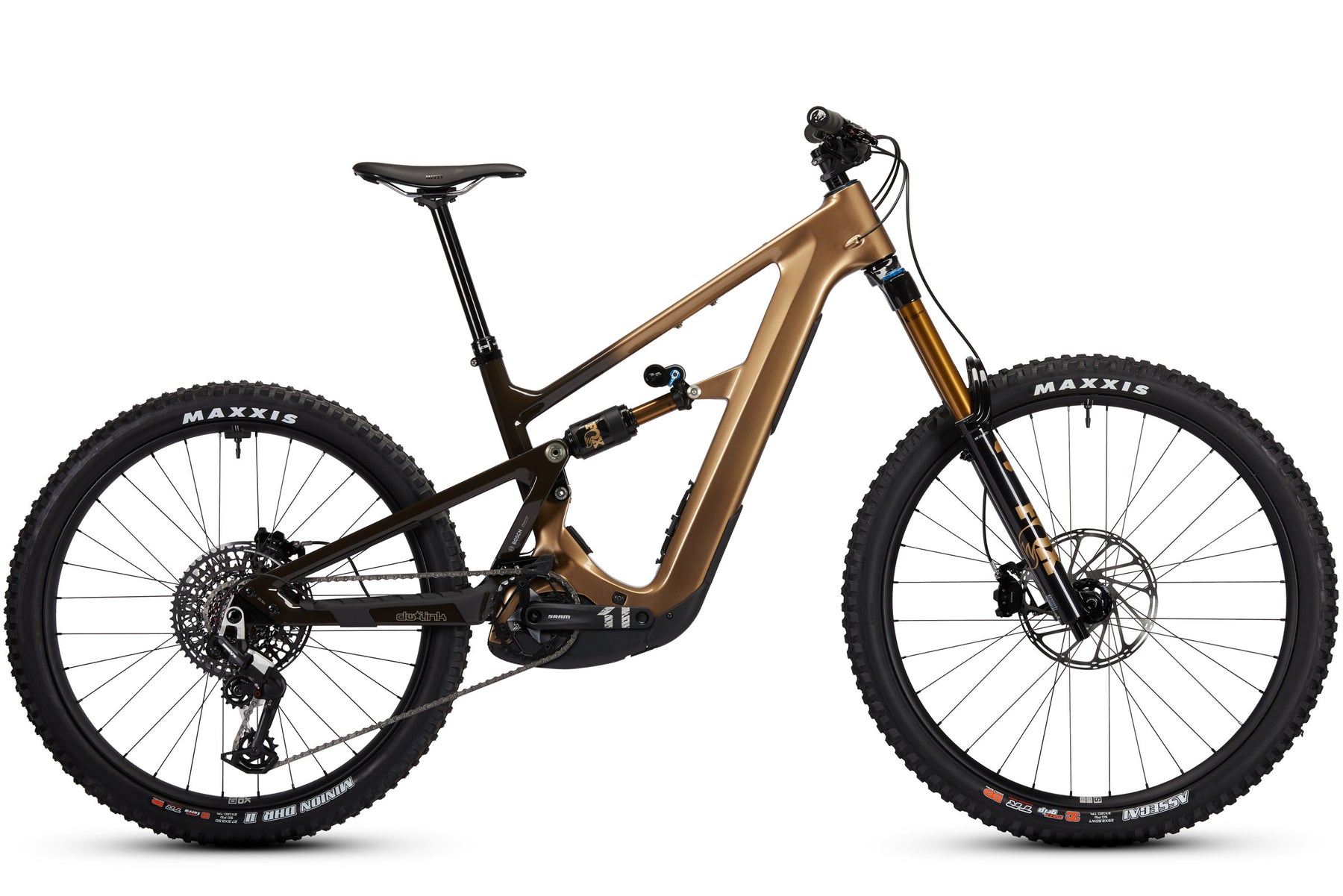

Built for shuttle laps and big mountain lines. With longer travel and gravity-focused geometry, it thrives on fast, technical descents. And the Bosch CX Gen 5 motor gets you back to the top for another lap.

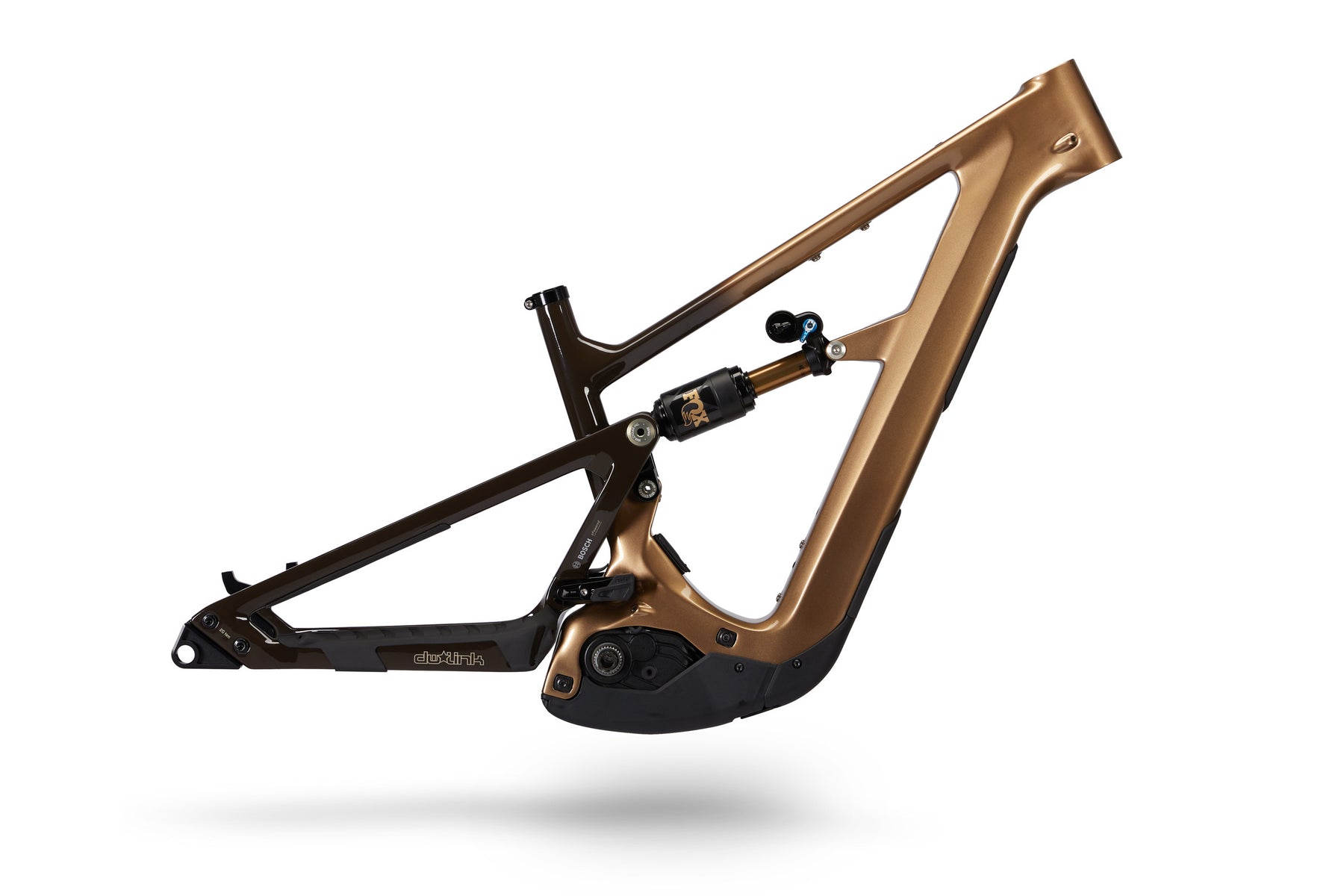

| 90 | Frame | |
| Fork | Fox Factory 38, Grip X2, 180mm, 29” | |
| Shock | Fox Factory Float X2, 230x65mm | Fox Factory Float X2, 230x65mm |
| Motor | Bosch Performance Line CX, Generation 5 | Bosch Performance Line CX, Generation 5 |
| Wheels | Blackbird Send Alloy, 32H, Blackbird Hubs | |
| Front Tire | Maxxis Assegai, DD, MaxxGrip, 29x2.5 | |
| Rear Tire | Maxxis DHR2, DD, MaxxTerra | |
| Brakes | SRAM Maven, Silver | |
| Rotors (F/R) | SRAM Centerline 220mm, 6-Bolt | |
| Crankset | SRAM EX1, 160mm, 34T Steel Ring | |
| Rear Derailleur | SRAM Eagle 90 Transmission | |
| Shifter | SRAM Eagle 90 Transmission | |
| Cassette | SRAM XS 1275 Transmission, T-Type, 10-52T | |
| Chain | SRAM GX Eagle Transmission, T-Type | |
| Chain Guide | MRP TR2 Top Guide | |
| Headset | Cane Creek 50, ZS56/ZS56 | |
| Grips | Lizard Skins Strata Single Clamp | |
| Handlebar | Blackbird 35 Aluminum Riser Bar 800mm | |
| Stem | Blackbird 35 Stem | |
| SM-MD: 35mm, XM-XL: 50mm | ||
| Seatpost | KS Vantage Dropper, 34.9mm | |
| Saddle | WTB Silverado Fusion CrMo 142 |
62.3-63.1°Head Tube Angle I 76.1-77.6°Seat Tube Angle I 440–455mm Chainstays
| Nominal Size | SM | MD | XM | LG | XL | |
|---|---|---|---|---|---|---|
| Wheel Size | 27.5 | 27.5 | 27.5 | 29 | 29 | |
| Seat Tube | A | 381 | 381 | 405 | 432 | 450 |
| Top Tube | B | 583 | 608 | 628 | 648 | 668 |
| Head Tube | C | 99 | 109 | 121 | 136 | 152 |
| Chainstay | D | 440 | 440 | 455 | 455 | 455 |
| Seat Tube Angle | E | 76.1° | 76.1° | 76.6° | 77.1° | 77.6° |
| Saddle Height for Seat Tube Angle | F | 650 | 700 | 745 | 790 | 830 |
| Head Tube Angle | G | 62.3° | 63.1° | 63.1° | 63.1° | 63.1° |
| Wheelbase | H | 1233 | 1251 | 1295 | 1325 | 1357 |
| Stack | I | 626 | 637 | 646 | 656 | 668 |
| Reach | J | 428 | 450 | 474 | 498 | 522 |
| BB Drop | K | 27 | 24 | 21 | 18 | 15 |
| BB Height* | 346 | 349 | 352 | 355 | 358 | |
| Standover | L | 706 | 717 | 745 | 755 | 771 |
| Dropper Post Length | 140–170 | 140–170 | 180–210 | 180–210 | 180–210 | |
| Crank Length | 160 | 160 | 160 | 160 | 160 | |
| Water Bottle Size | 22oz | 22oz | 26oz | 26oz | 26oz |
| SM | 152 - 168CM |
| MD | 165 - 175CM |
| XM | 173 - 183CM |
| LG | 180 - 191CM |
| XL | 188 - 201CM |
