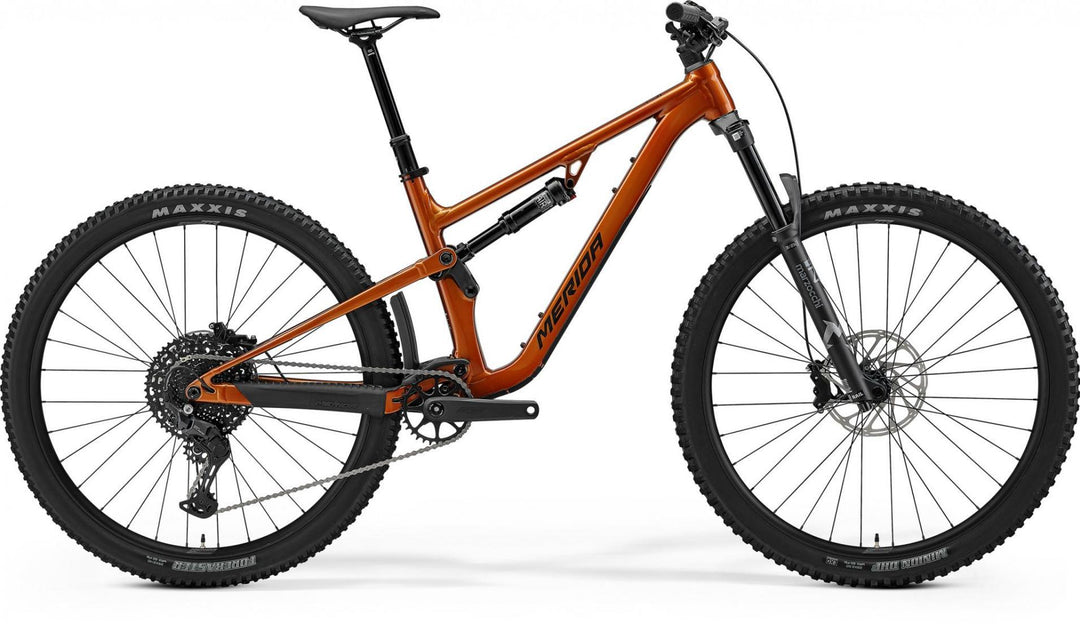

The ONE-FORTY 400 brings an unheard of level of climbing and descending performance into a high-value package built around our test and award-winning aluminium frame. It's got exactly the same ground-breaking geometry as its more expensive brethren, just paired with kit that delivers the performance you need, without the price tag. Dropper posts on all models, a wide-range 11-speed Shimano drivetrain and no-nonsense suspension from Marzocchi get the job done without fuss.
The test and award-winning ONE-FORTY is the ultimate trail bike, made for the toughest trails in the world. It’s the pinnacle of modern trail riding, with a super-steep 80° seat angle, low front end and bottom bracket allow it to clear the most technical climbs, while longer reach figures across all sizes and a well-balanced 65° head angle mean it’s still more than capable of ripping any descent. With our AGILOMETER sizing system, riders can run a longer or shorter reach frame independently of their height, with suspension that becomes more progressive as you size up to better cope with heavier/harder riders. We’ve focused on weight reduction and rolling speed too, for improved efficiency. All bikes come with long travel dropper posts, WIRE PORT cable routing and a reliable threaded bottom bracket plus carbon frames have on-board tool storage and Fidlock magnetic bottle cages.
| Frame Size | XShort | Short | Mid | Long | XLong |
| Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
| ST seat tube [mm] | 400 | 410 | 425 | 445 | 470 |
| TT top tube [mm] | 532 | 559 | 586 | 618 | 649 |
| CS chain stay length [mm] | 437.5 | 437.5 | 437.5 | 437.5 | 437.5 |
| HTA head tube angle [°] | 65 | 65 | 65 | 65 | 65 |
| STA seat tube angle [°] | 80 | 80 | 80 | 80 | 80 |
| BD bottom bracket drop [mm] | 35 | 35 | 35 | 35 | 35 |
| HT head tube [mm] | 95 | 95 | 95 | 105 | 120 |
| FL fork length [mm] | 557 | 557 | 557 | 557 | 557 |
| R reach [mm] | 426 | 453 | 480 | 509 | 535 |
| S stack [mm] | 607 | 607 | 607 | 616 | 629 |
| WB wheel base [mm] | 1177 | 1204 | 1232 | 1265 | 1298 |
| SH stand over height [mm] | 730 | 735 | 738 | 735 | 730 |
| FRAME SIZE | BODY HEIGHT |
| S | < 173 cm |
| M | 167 - 183 cm |
| L | 177 - 190 cm |
| XL | > 187 cm |
