THE SINGLETRACK ENTHUSIAST

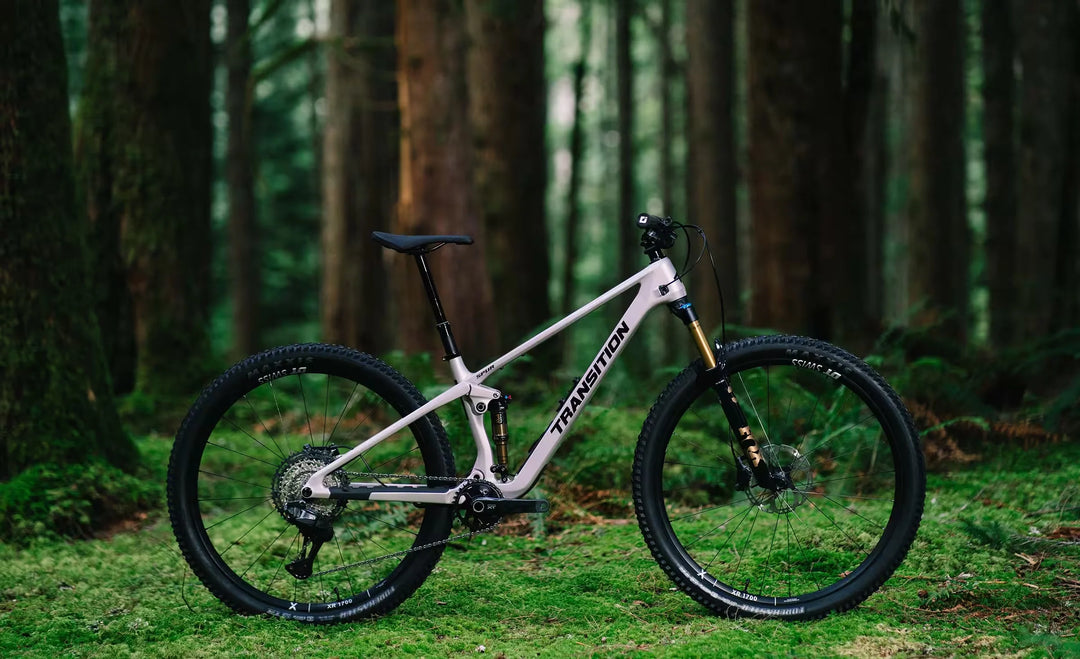

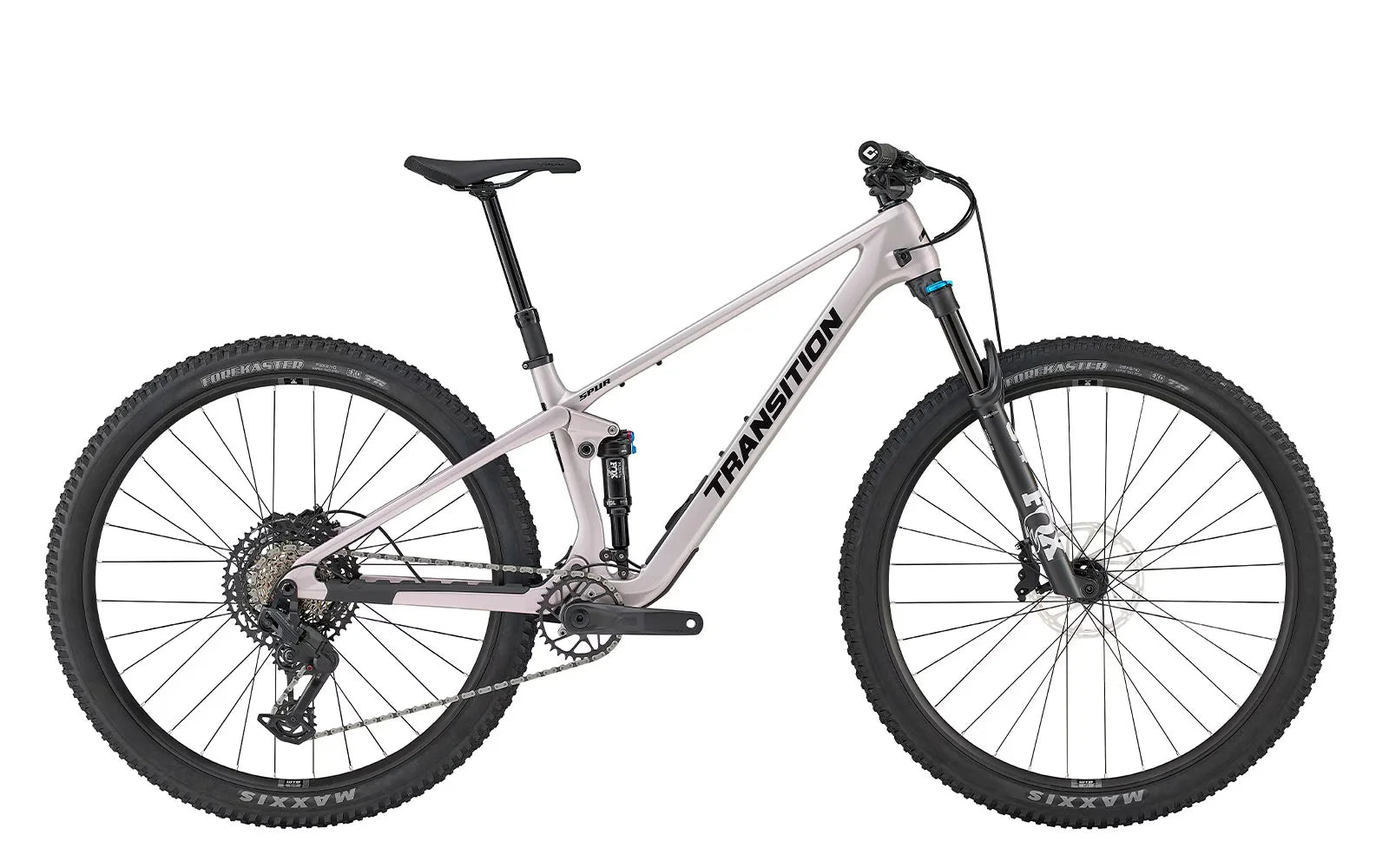

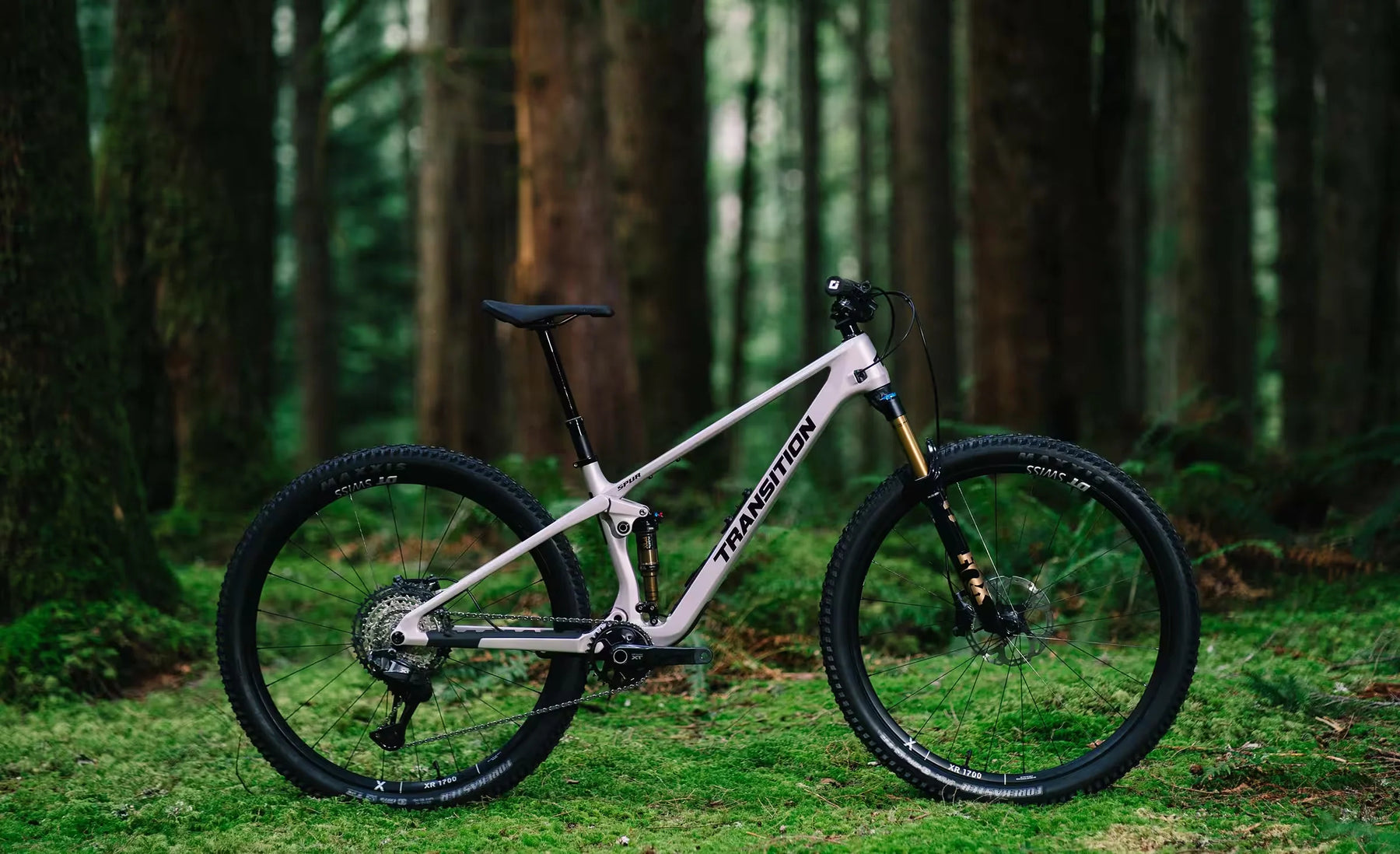

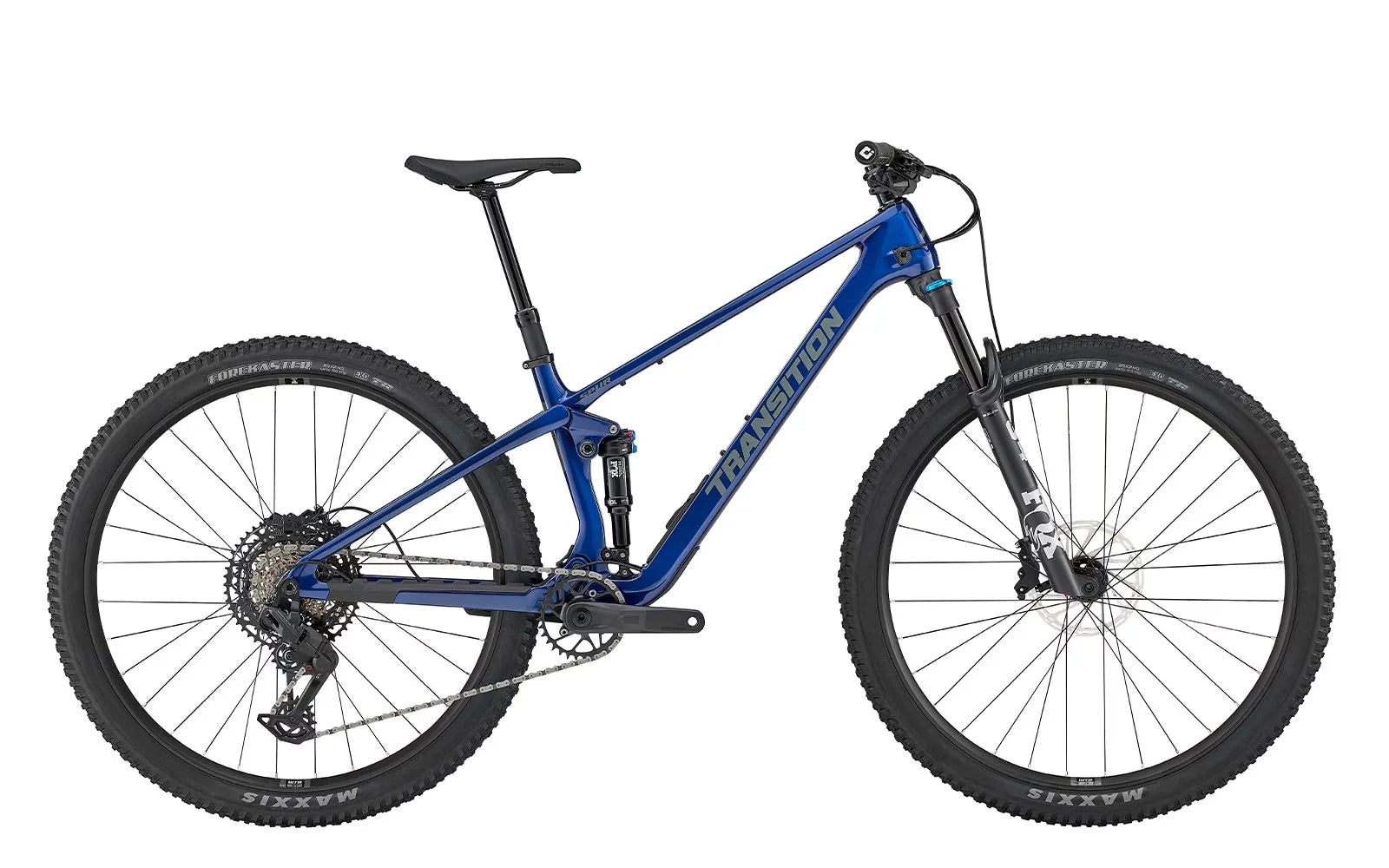

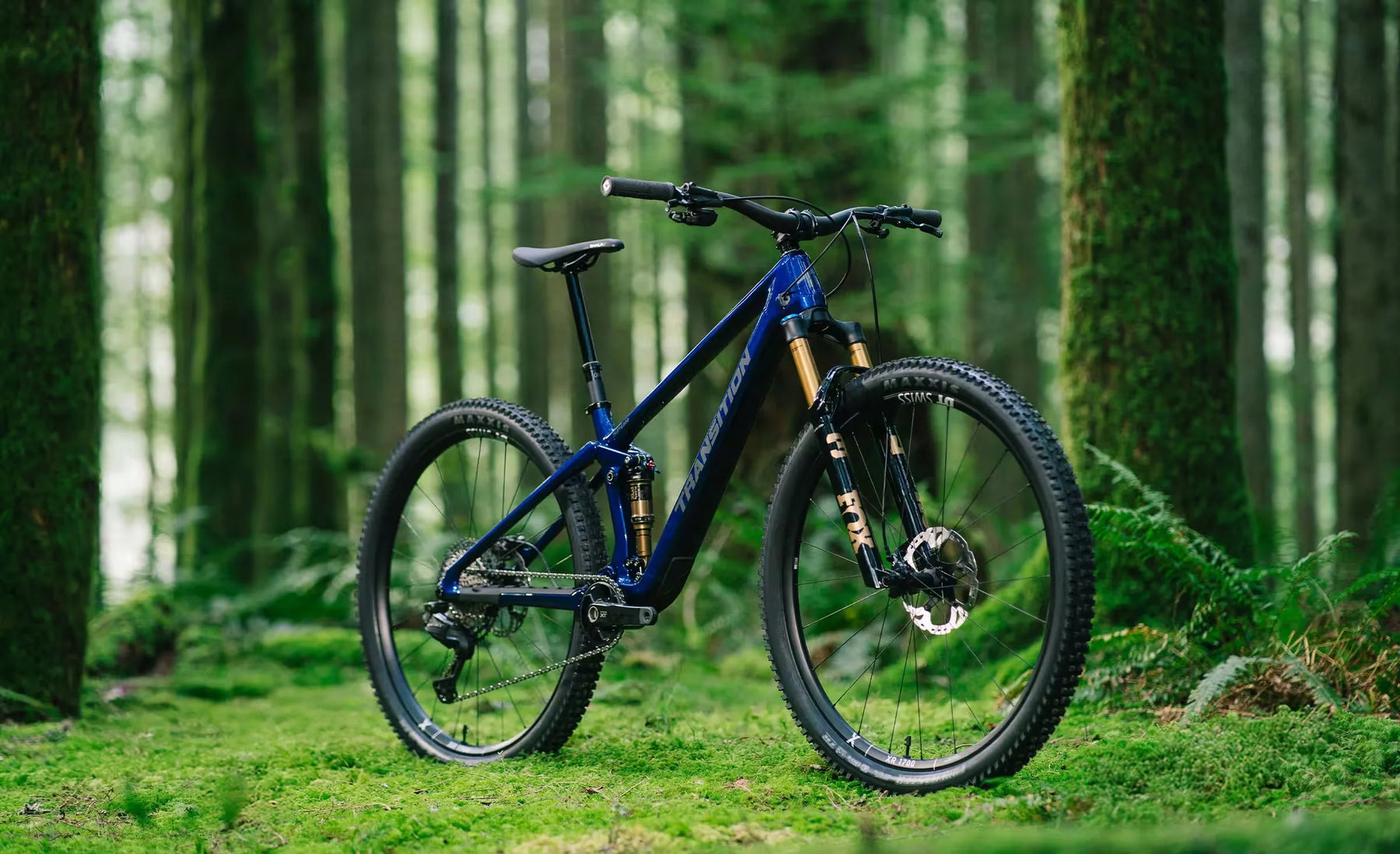

The Spur is our cross-country bike that refuses to be confined by labels. Now featuring 120mm rear and 130mm front travel paired with our famously progressive geometry, it blurs the lines of traditional XC. It's fast enough to race, tough enough for downcountry, and versatile enough to pull trail duty after hours. The Spur's broad range doesn't compromise performance in the category, it delivers across the board, making it the perfect ride for true singletrack enthusiasts.
| FRAME | Spur Carbon 120mm |
| WHEEL SIZE | 29" |

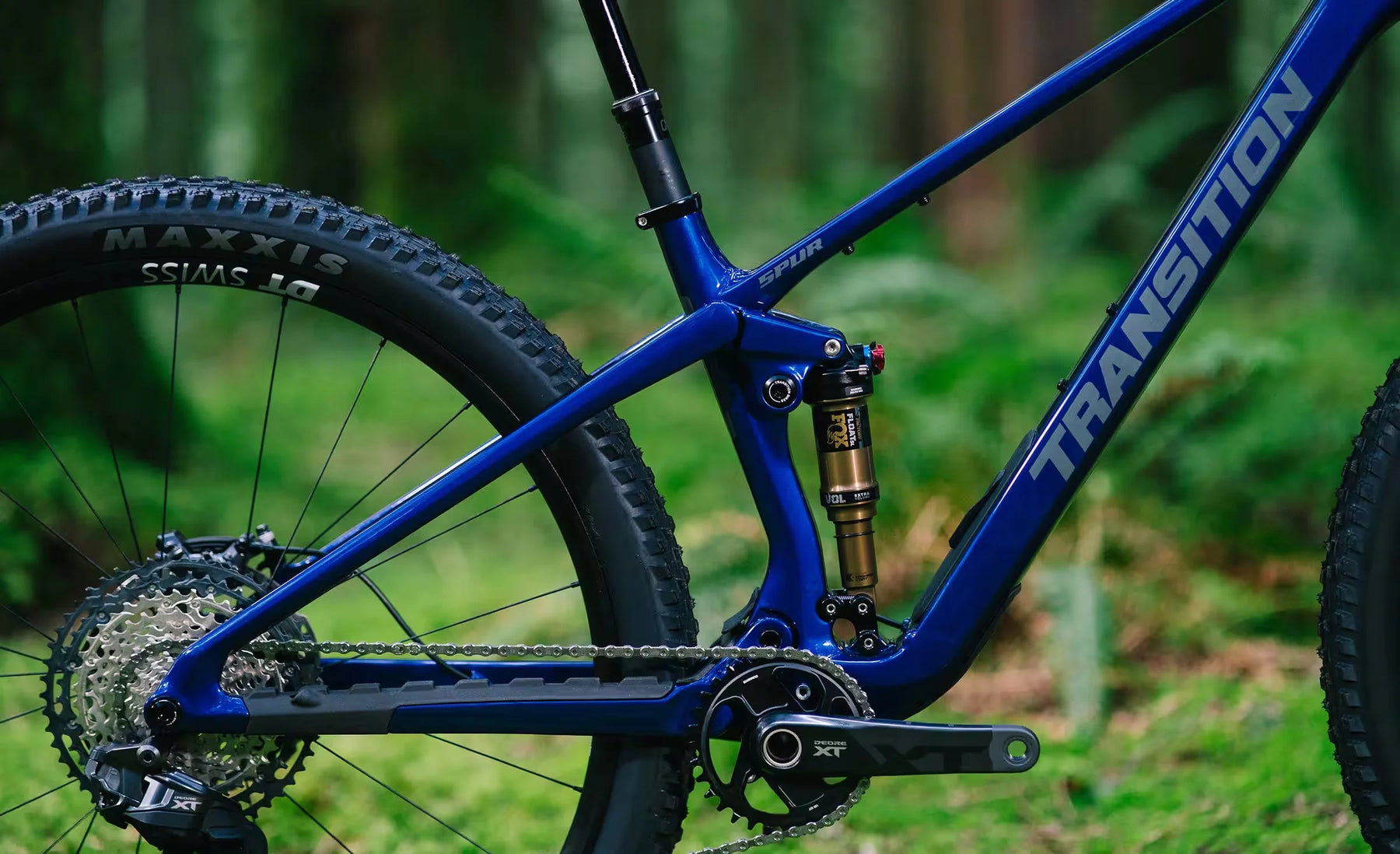

| REAR SHOCK | Fox Float SL Performance (190x45mm) |
| FORK | Fox Float 34 SL Performance (130mm) |
| HEADSET | FSA No.42/48/ACB |
| STEM | RaceFace Aeffect R (40mm) |
| HANDLEBAR | RaceFace Aeffect R SM/MD/LG/XL(780x20mm) |
| GRIPS | ODI Elite Flow Lock-On |
| SADDLE | SDG Bel Air 3 |
| SEATPOST | SDG Tellis SM(150mm) MD(170mm) LG/XL(200mm) |
| BRAKES | SRAM Motive Bronze |
| ROTORS | SRAM Centerline (180mm) |
| SHIFTER | SRAM Eagle 70 MMX |
| DERAILLEUR | SRAM Eagle 70 |
| CASSETTE | SRAM XS 1270 (10-52t) |
| CHAIN | SRAM Eagle 70 |
| CRANK | SRAM Eagle 70 DUB (32t/165mm) |
| RIMS | WTB ST i27 |
| SPOKES | Pillar Double Butted |
| HUBS | Novatech D791SB/D902SB |
| TIRE/FRONT | Maxxis Forekaster EXO/TR (2.4) |
| TIRE/REAR | Maxxis Forekaster EXO/TR (2.4) |
| INCLUDED | Tubeless Valves & Sealant |
| SM | MD | LG | XL | |
| A.REACH | 430 | 425 | 460 | 455 | 485 | 480 | 510 | 505 |
| B.STACK | 608 | 612 | 617 | 621 | 626 | 630 | 640 | 644 |
| C.EFFECTIVE TOPTUBE LENGTH | 570 | 603 | 631 | 660 |
| D.SEATTUBE LENGTH | 360 | 390 | 430 | 460 |
| E.EFFECTIVE SEATTUBE ANGLE | 77.3 | 76.7 | 76.8 | 76.3 | 76.4 | 75.9 | 76.0 | 75.6 |
| SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE | 600 | 660 | 720 | 780 |
| ACTUAL SEATTUBE ANGLE | 72 | 71.5 | 72 | 71.5 | 72 | 71.5 | 72 | 71.5 |
| F.HEADTUBE LENGTH | 100 | 110 | 120 | 135 |
| G.HEADTUBE ANGLE | 66.0 | 65.5 | 66.0 | 65.5 | 66.0 | 65.5 | 66.0 | 65.5 |
| H.CHAINSTAY LENGTH | 434 | 436 | 434 | 436 | 439 | 441 | 439 | 441 |
| I.WHEELBASE | 1163 | 1197 | 1231 | 1262 |
| J.BOTTOM BRACKET DROP (REAR) | 40 | 47 | 40 | 47 | 40 | 47 | 40 | 47 |
| K.ESTIMATED BOTTOM BRACKET HEIGHT | 335 | 328 | 335 | 328 | 335 | 328 | 335 | 328 |
| STANDOVER HEIGHT | 660 | 660 | 660 | 660 |
