THE SINGLETRACK ENTHUSIAST

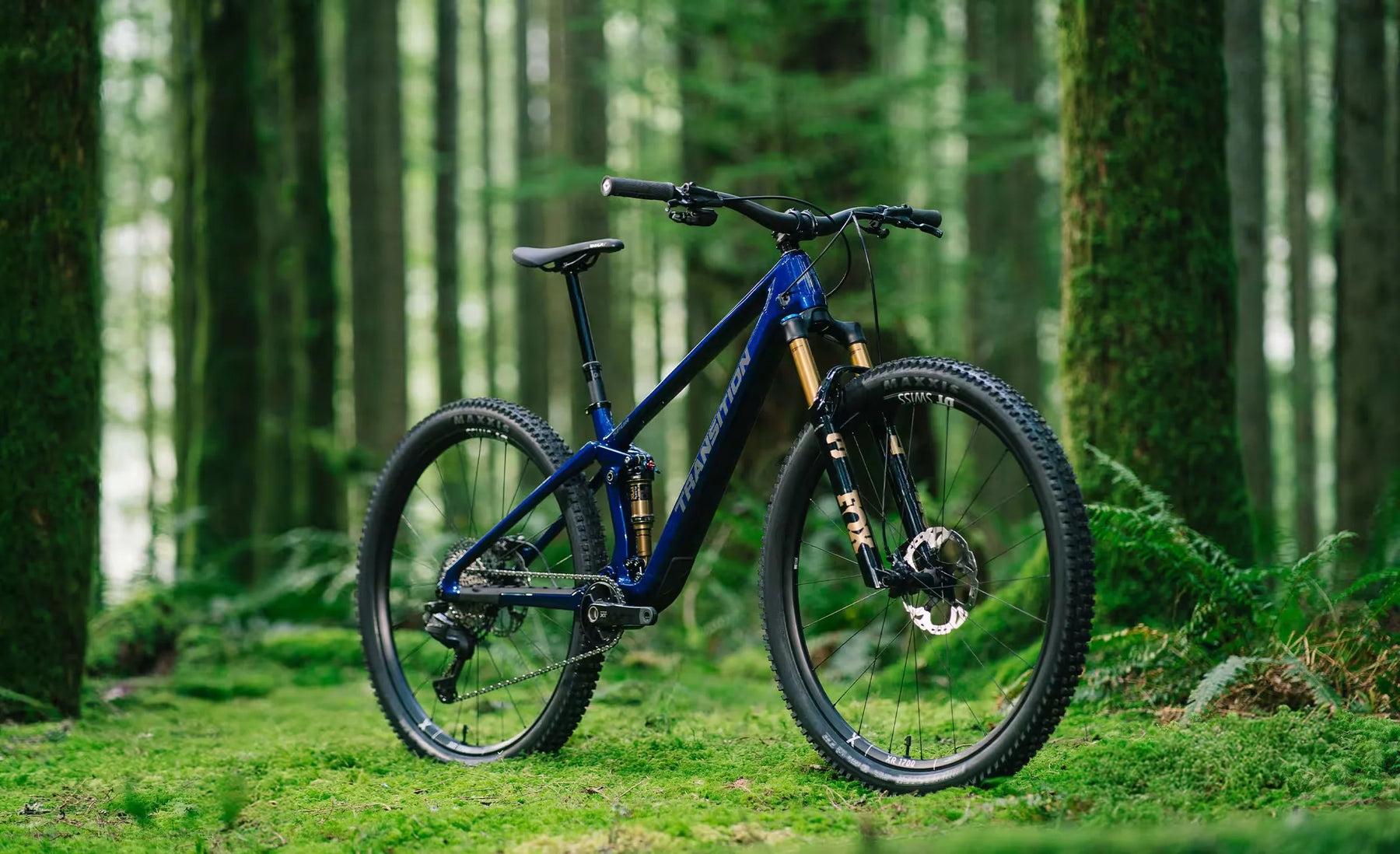

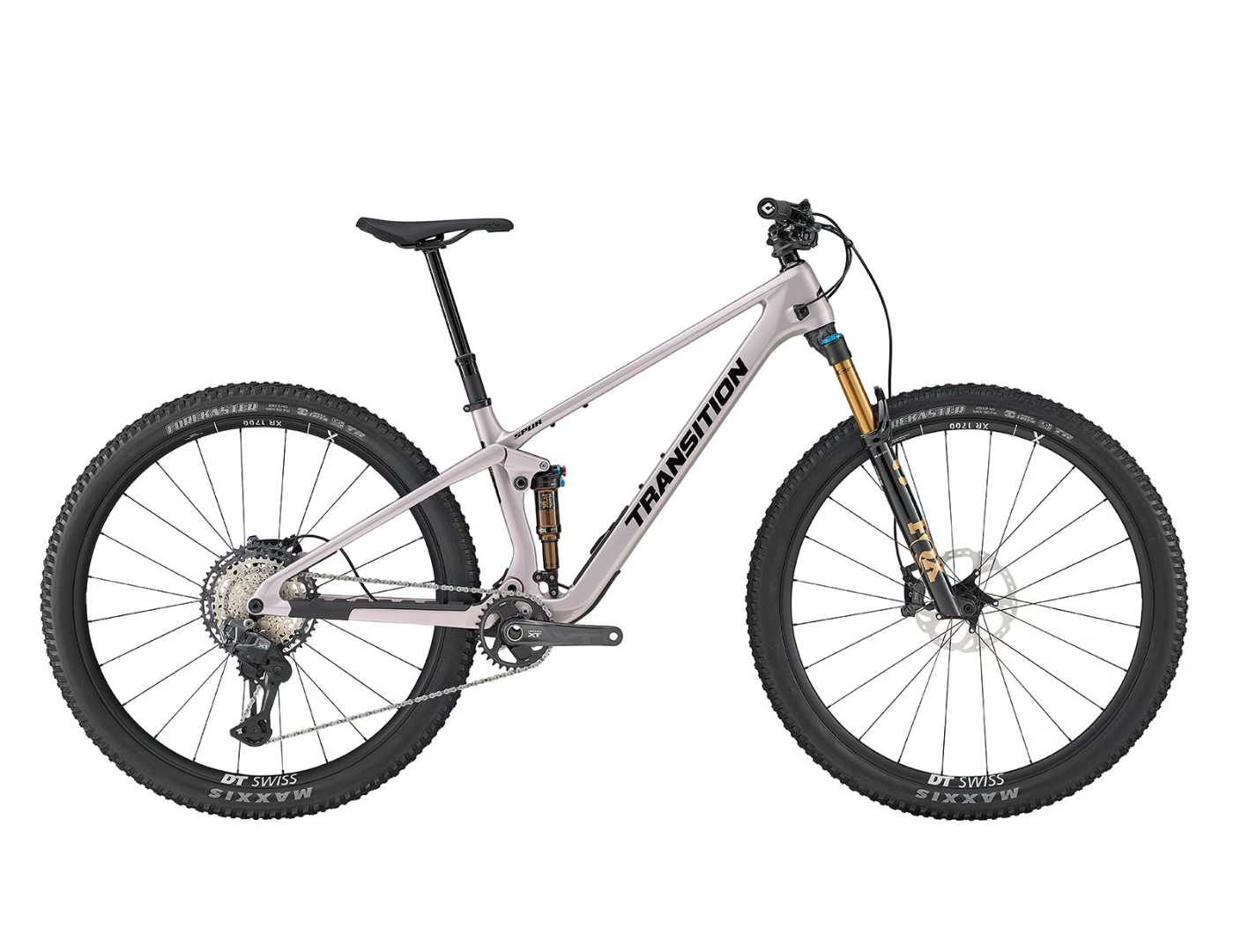

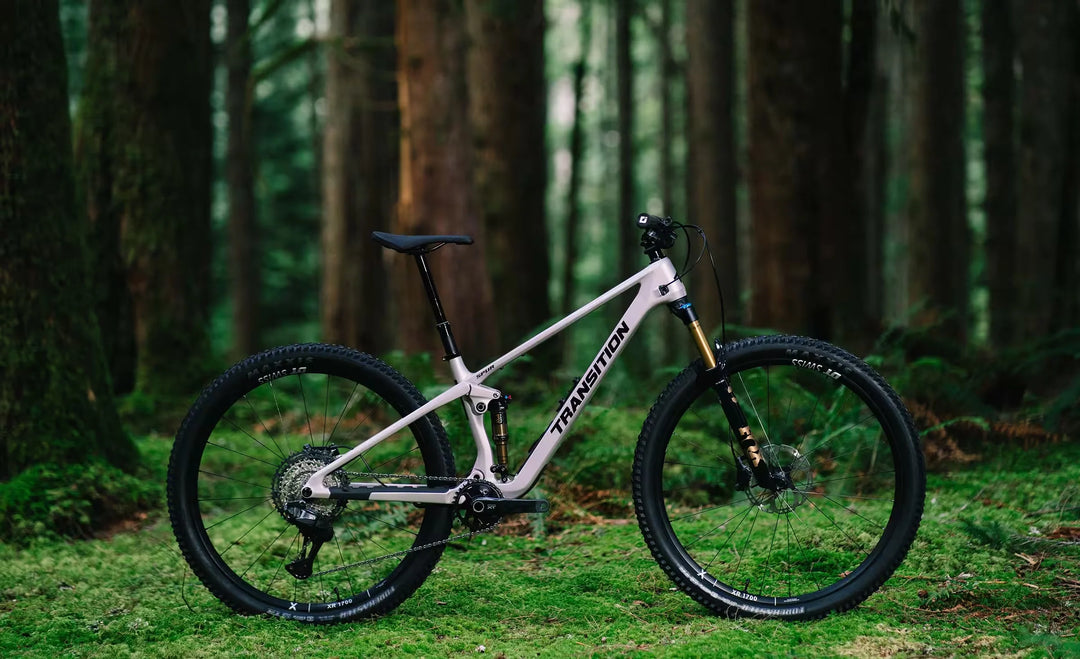

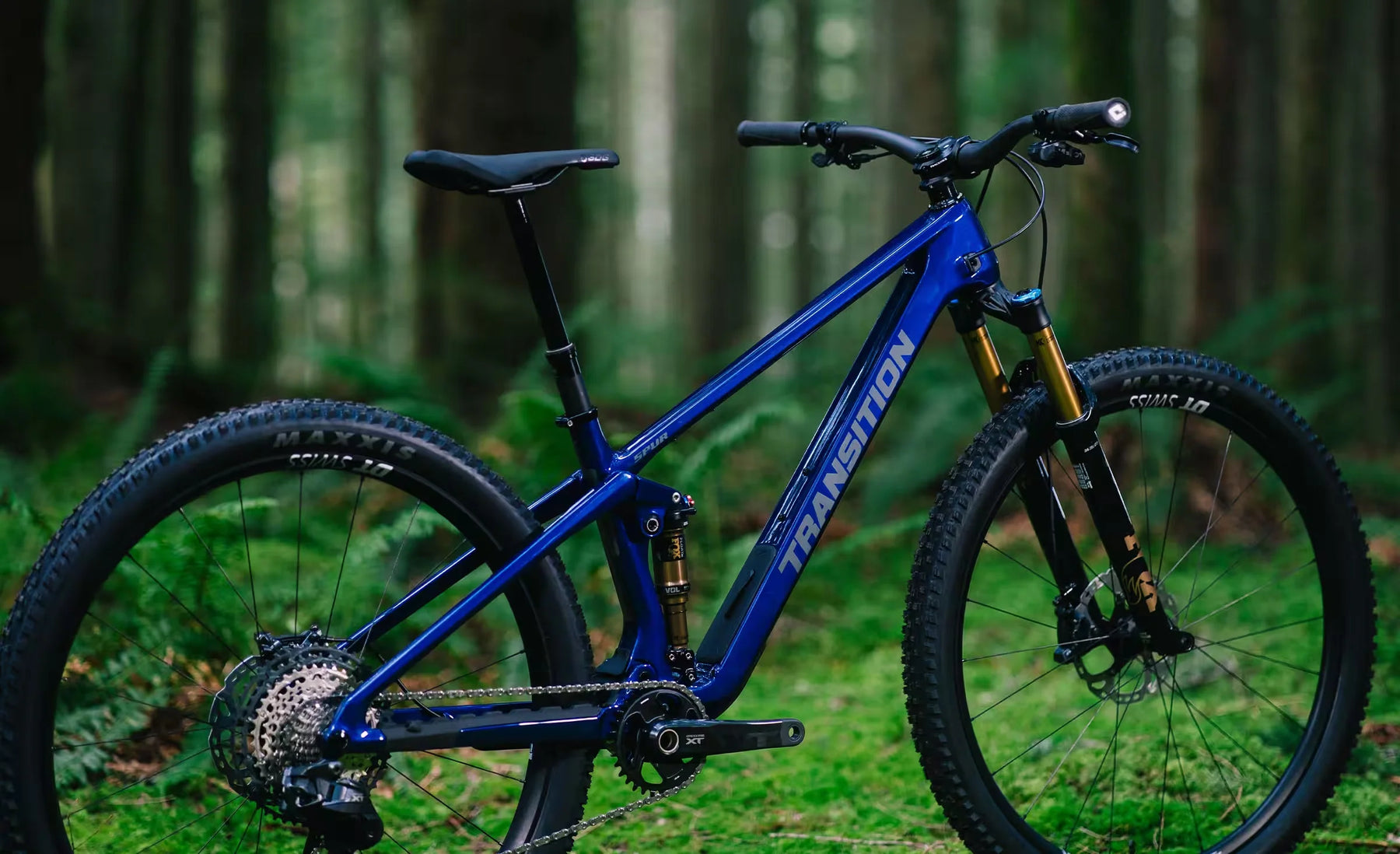

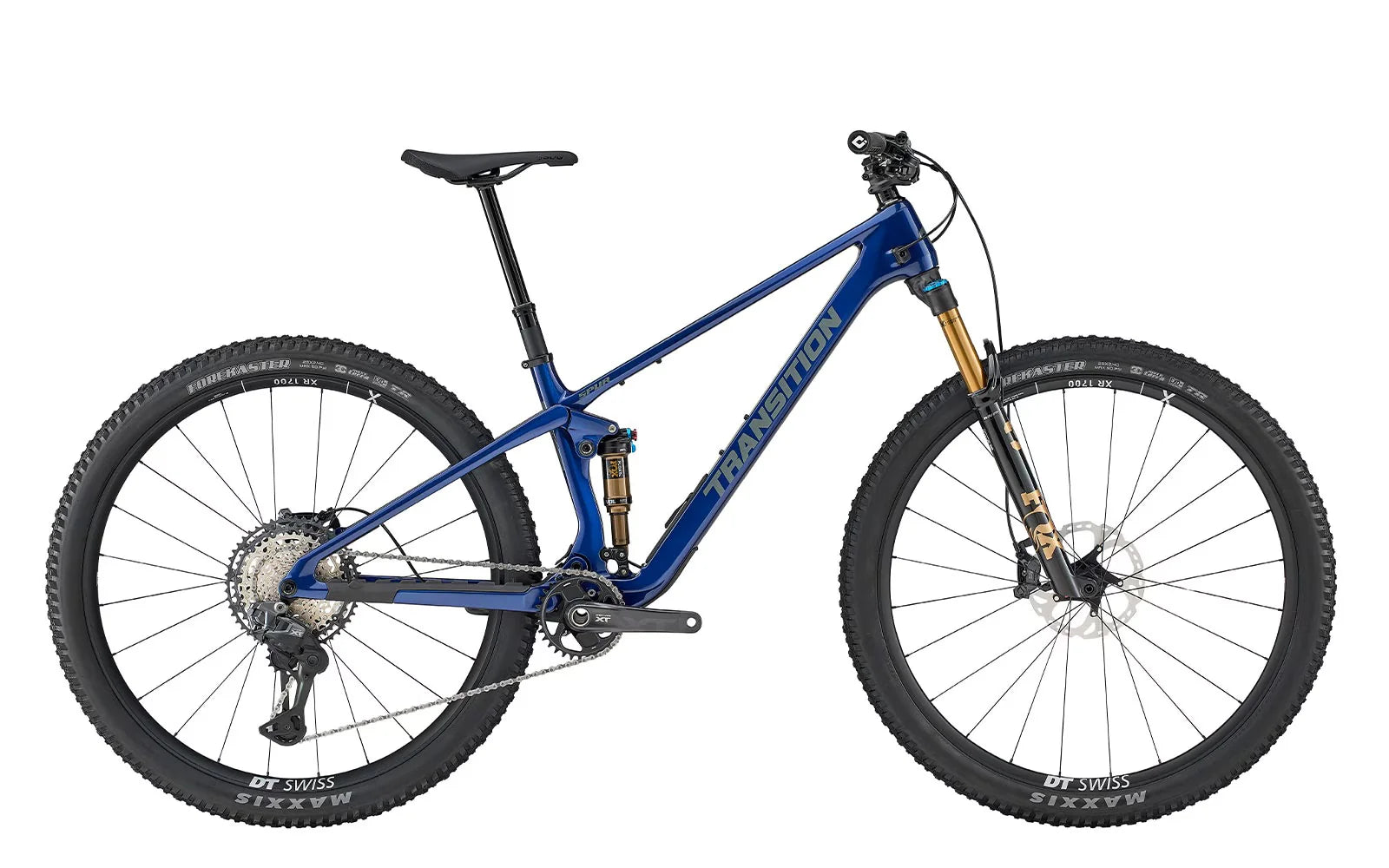

The Spur is our cross-country bike that refuses to be confined by labels. Now featuring 120mm rear and 130mm front travel paired with our famously progressive geometry, it blurs the lines of traditional XC. It's fast enough to race, tough enough for downcountry, and versatile enough to pull trail duty after hours. The Spur's broad range doesn't compromise performance in the category, it delivers across the board, making it the perfect ride for true singletrack enthusiasts.

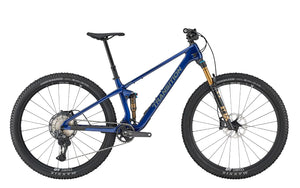

| RAME | Spur Carbon 120mm |
| WHEEL SIZE | 29" |
| REAR SHOCK | Fox Float SL Factory (190x45mm) |
| FORK | Fox Float 34 SL Grip X Factory (130mm) |
| HEADSET | FSA No.42/48/ACB |
| STEM | RaceFace Aeffect R (40mm) |
| HANDLEBAR | RaceFace Era Carbon Bar SM(760x20mm) MD(780x40mm) LG/XL(800x40mm) |
| GRIPS | ODI Elite Flow Lock-On |
| SADDLE | SDG Bel Air 3 LUX |
| SEATPOST | OneUp Dropper Post SM(150mm) MD(180mm) LG/XL(210mm) |
| BRAKES | Shimano XT M8220 4 Piston |
| ROTORS | Shimano RT86 (180mm) |
| SHIFTER | Shimano XT Di2 SW-M8250-R |
| DERAILLEUR | Shimano XT Di2 RD-M8250-SGS |
| CASSETTE | Shimano XT CS-M8200 (10-51t) |
| CHAIN | Shimano XT CN-8100 |
| CRANK | Shimano XT FC-8200 (32t/165mm) |
| RIMS | DT Swiss XR 1700 Spline |
| SPOKES | DT Swiss Competition Straightpull |
| HUBS | DT Swiss 350 Spline Ratchet 54 |
| TIRE/FRONT | Maxxis Forekaster 3C EXO+ (2.4) |
| TIRE/REAR | Maxxis Forekaster 3C EXO+ (2.4) |
| INCLUDED | Shimano Di2 Battery Charger, Tubeless Valves & Sealant |
| SM | MD | LG | XL | |
| A.REACH | 430 | 425 | 460 | 455 | 485 | 480 | 510 | 505 |
| B.STACK | 608 | 612 | 617 | 621 | 626 | 630 | 640 | 644 |
| C.EFFECTIVE TOPTUBE LENGTH | 570 | 603 | 631 | 660 |
| D.SEATTUBE LENGTH | 360 | 390 | 430 | 460 |
| E.EFFECTIVE SEATTUBE ANGLE | 77.3 | 76.7 | 76.8 | 76.3 | 76.4 | 75.9 | 76.0 | 75.6 |
| SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE | 600 | 660 | 720 | 780 |
| ACTUAL SEATTUBE ANGLE | 72 | 71.5 | 72 | 71.5 | 72 | 71.5 | 72 | 71.5 |
| F.HEADTUBE LENGTH | 100 | 110 | 120 | 135 |
| G.HEADTUBE ANGLE | 66.0 | 65.5 | 66.0 | 65.5 | 66.0 | 65.5 | 66.0 | 65.5 |
| H.CHAINSTAY LENGTH | 434 | 436 | 434 | 436 | 439 | 441 | 439 | 441 |
| I.WHEELBASE | 1163 | 1197 | 1231 | 1262 |
| J.BOTTOM BRACKET DROP (REAR) | 40 | 47 | 40 | 47 | 40 | 47 | 40 | 47 |
| K.ESTIMATED BOTTOM BRACKET HEIGHT | 335 | 328 | 335 | 328 | 335 | 328 | 335 | 328 |
| STANDOVER HEIGHT | 660 | 660 | 660 | 660 |
