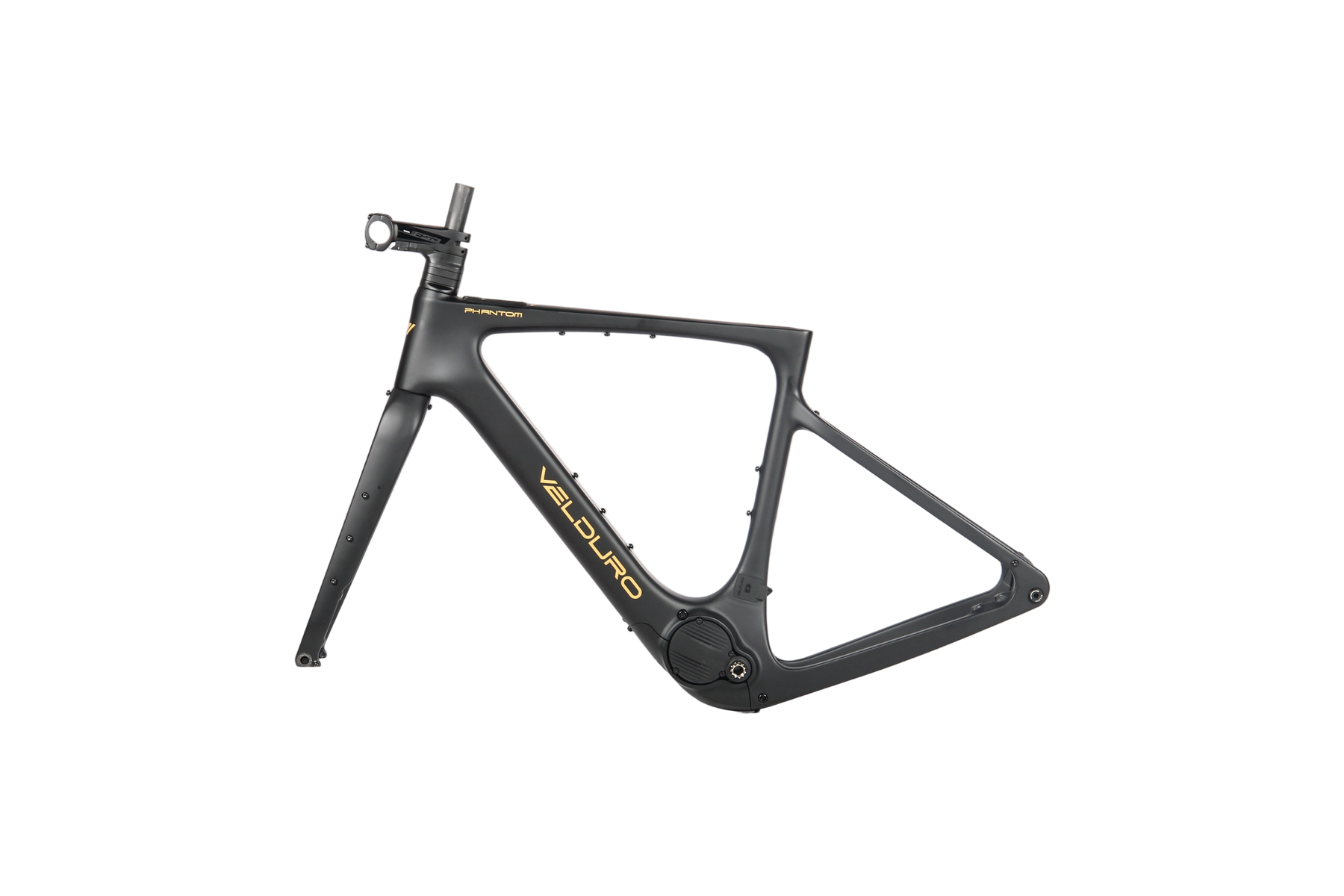

Our Gold Award-winning e-gravel carbon frame is available as a Frame-and-Fork only option. Build your own ultra-lightweight Avinox-powered gravel or flat bar adventure bike.
*Stem, Spacers and headset not included.
Included with Frame and Fork.

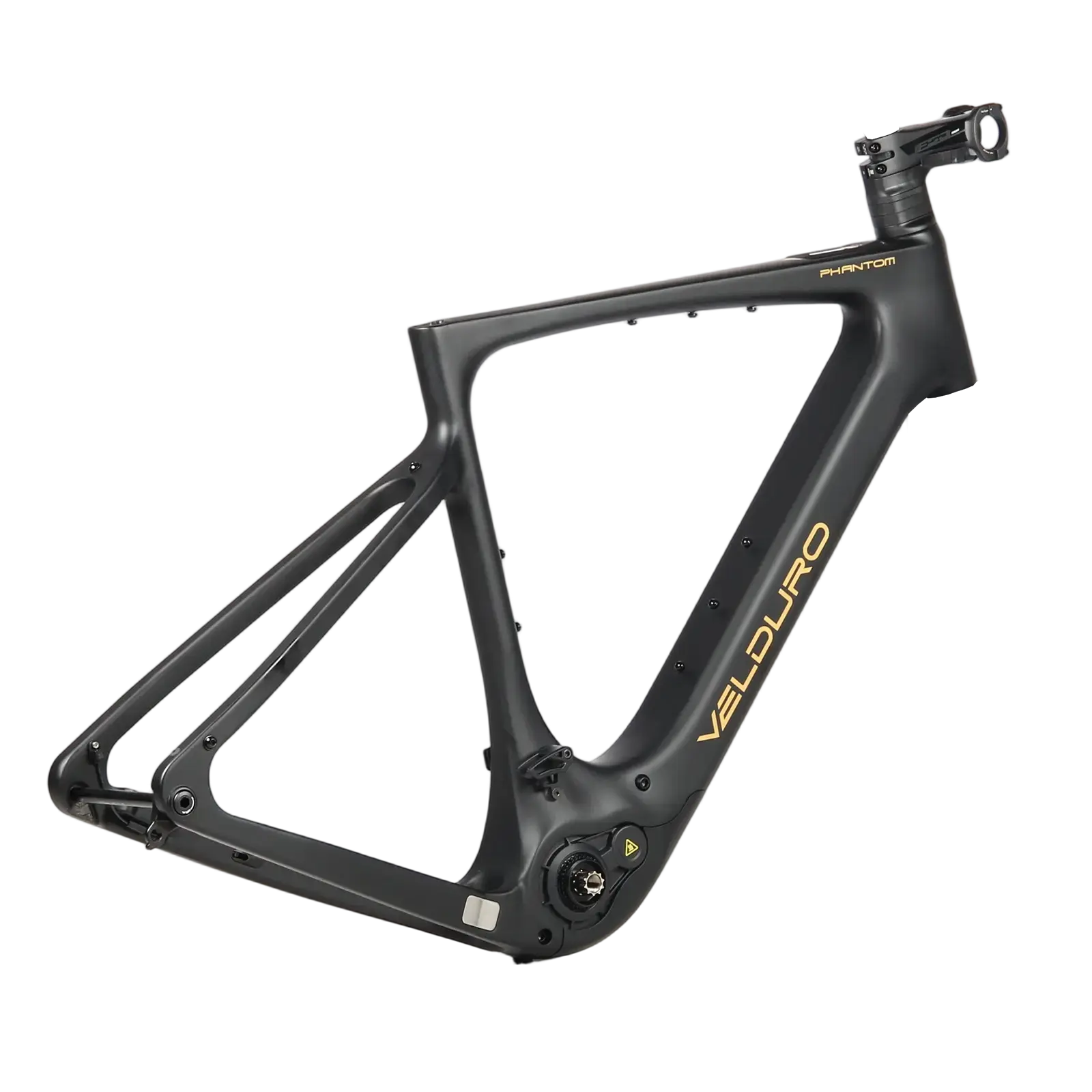

Phantom carbon frame
-Phantom carbon fork
-Phantom motor cover
-12X142 rear thru axle
-UDH Hanger Bottle cage screws
-Seatpost lock
-Dji avinox M1 motor 250W 105Nm
-Custom chainwheel and spider.
-Dji avinox isis crank 155mm
-Dji avinox battery 36V 600Wh
-Dji DP100 2inch smart screen
-Dji BC100 bluetooth remoter X2
-Dji speed sensor
-Dji 4A 168Wh charger
-Phantom charge port cover
Internal cable routing headset dia 52mm for both top/bottom
- Drop bar and flat bar both suitable
- Suspension gravel fork suitable, RS-Rudy/ Fox-32TC / SR GVX etc.
-Circle seatpost dia 27.2mm, frame insert depth 250mm
-dropper and manual Dropper suitable, Dia 27.2mn
- Dropper cable length 1100mm
| SM | MD | LG | XL | ||
| A | Seat Tube Length (mm) | 466 | 486 | 506 | 526 |
| B | Top Tube Horizontal (mm) | 520 | 534 | 551 | 565 |
| C | Top Tube Actual (mm) | 495 | 515 | 534 | 548 |
| D | Head Tube Angle (°) | 70 | 70.5 | 71 | 71 |
| E | Seat Tube Angle (°) | 74.4 | 74.1 | 73.6 | 73.6 |
| F | Standover (mm) | 772 | 785 | 815 | 830 |
| G | Head Tube Length (mm) | 135 | 147 | 159 | 179 |
| H | Wheelbase (mm) | 1015 | 1019 | 1030 | 1040 |
| I | Front Center (mm) | 600 | 605 | 606 | 620 |
| J | Chain Stay Length (mm) | 425 | 425 | 430 | 430 |
| K | Bottom Bracket Drop (mm) | 72.5 | 72.5 | 72.5 | 72.5 |
| L | Bottom Bracket Height (mm) | 283 | 283 | 283 | 283 |
| M | Fork Rake (mm) | 50 | 50 | 50 | 50 |
| N | Trail (mm) | 64 | 63 | 63 | 63 |
| O | Stack (mm) | 554 | 567 | 581 | 600 |
| P | Reach (mm) | 366 | 372 | 377 | 385 |
| Q | Axle to Crown (mm) | 395 | 395 | 395 | 395 |
| Recommended Height | 160-170 | 172-182 | 180-188 | 185-195 | |
