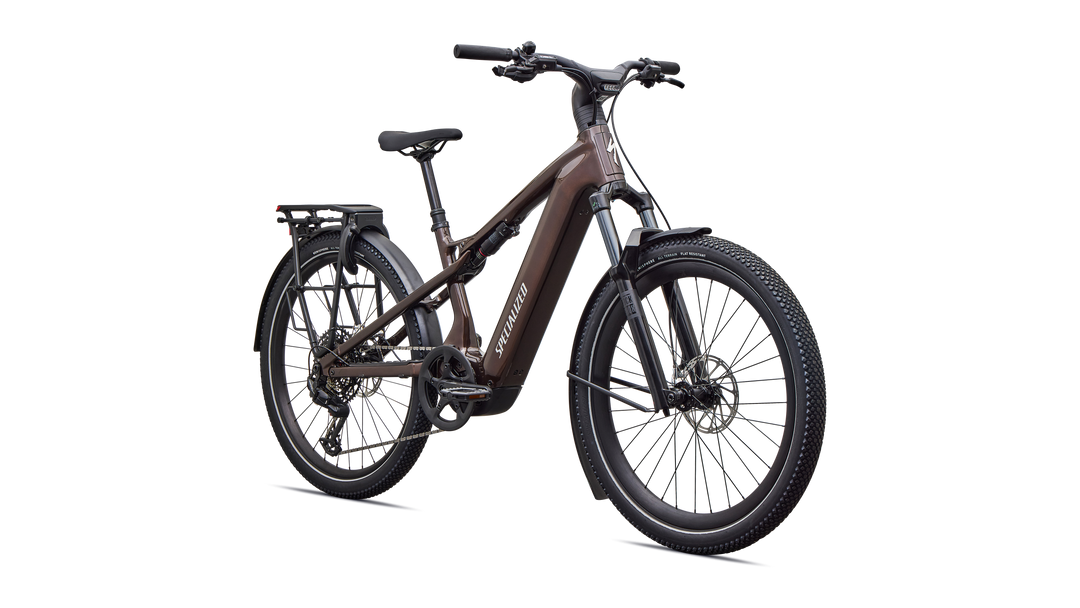

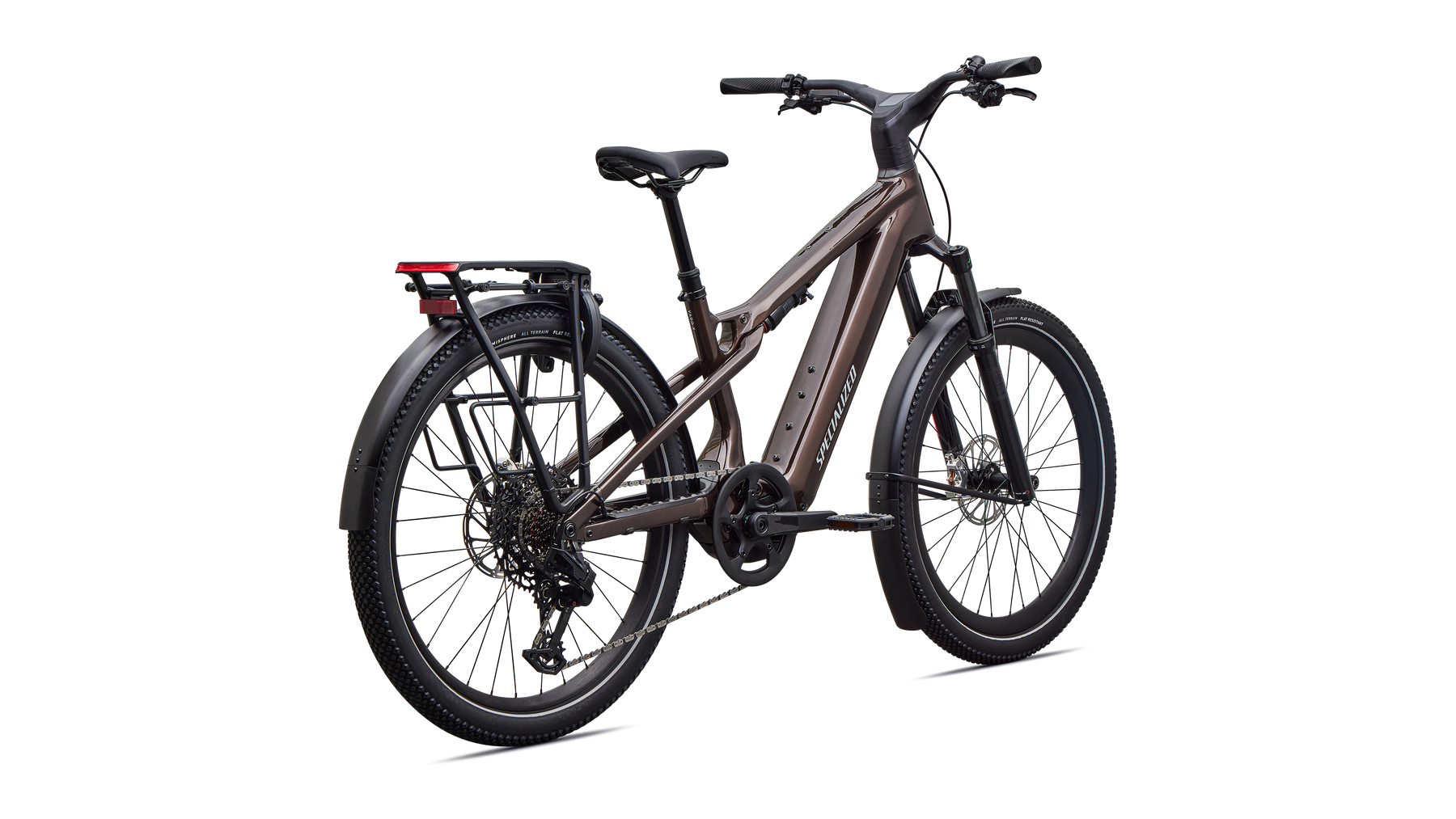

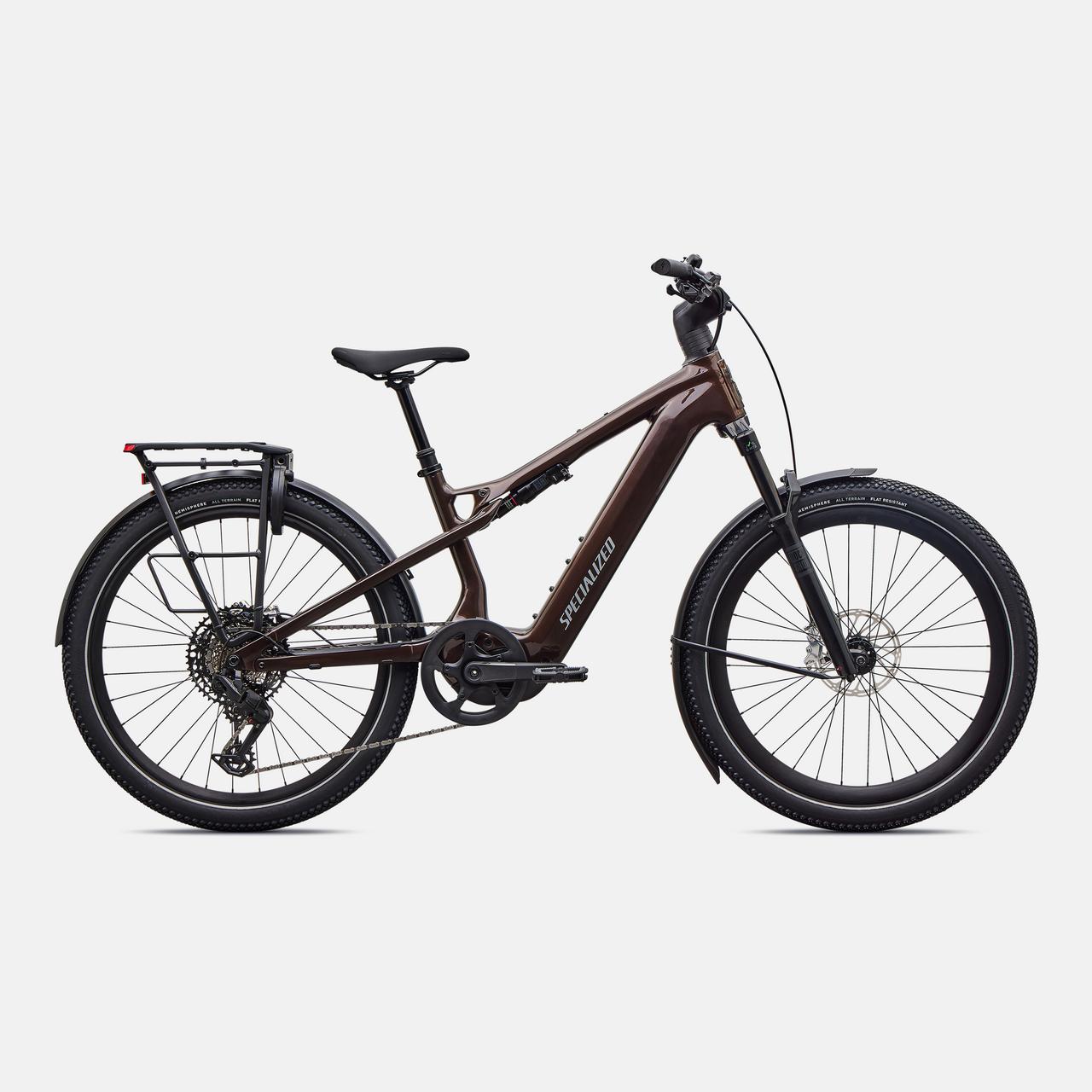

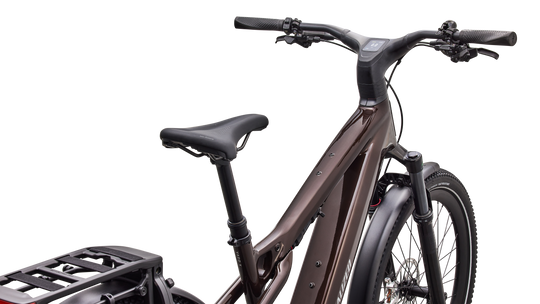

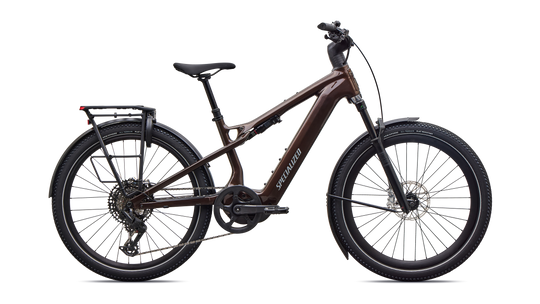

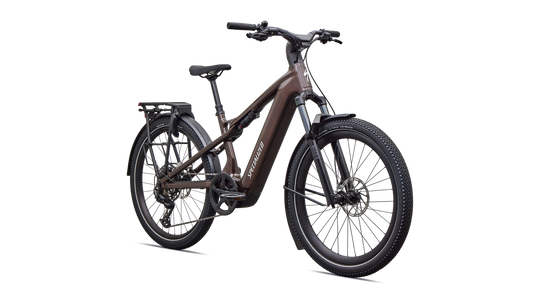

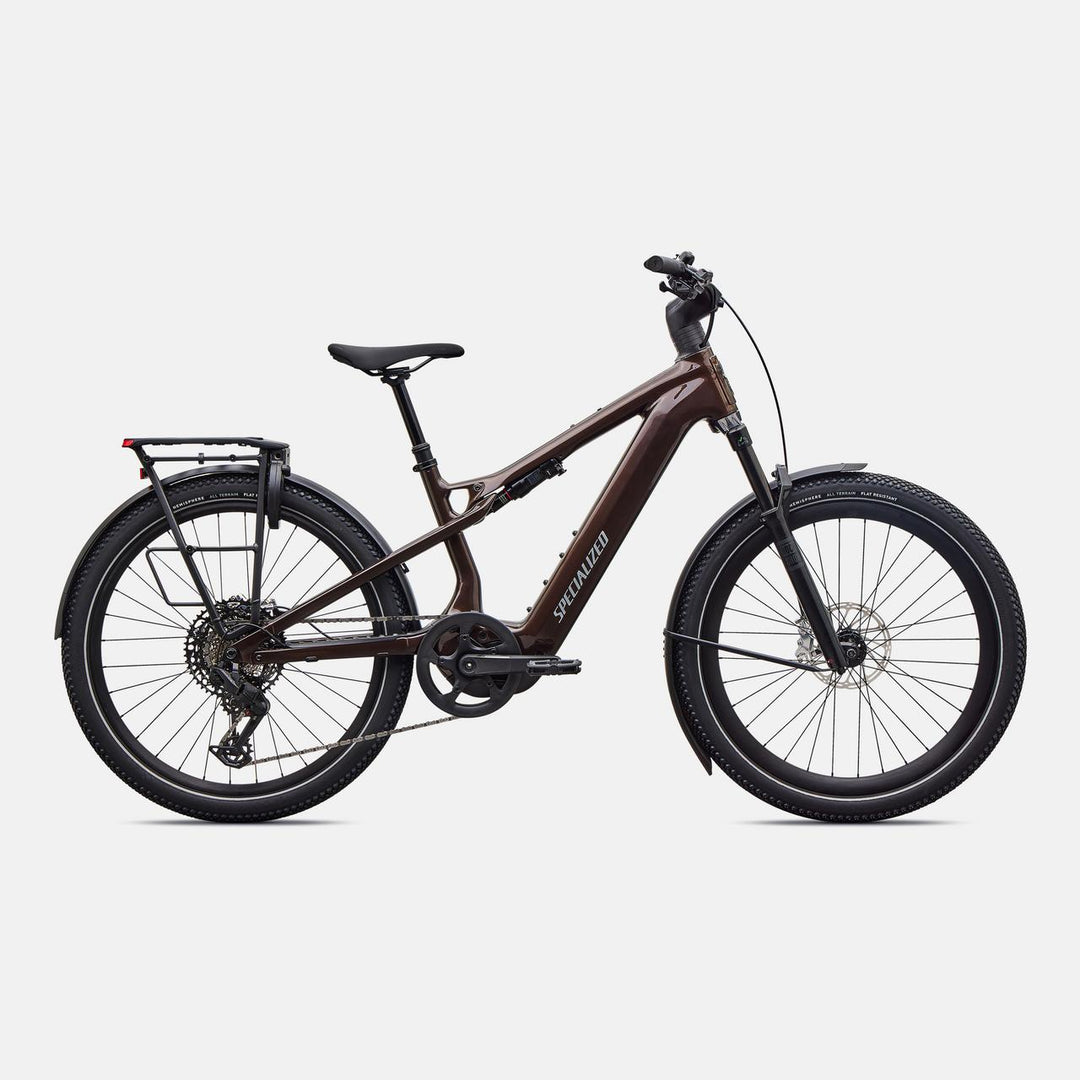

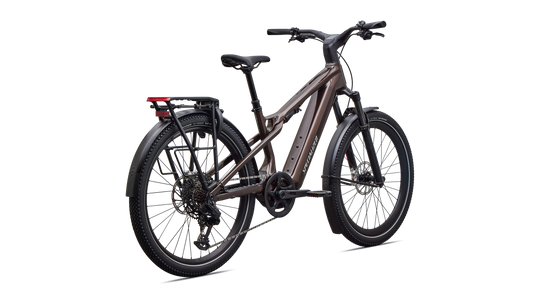

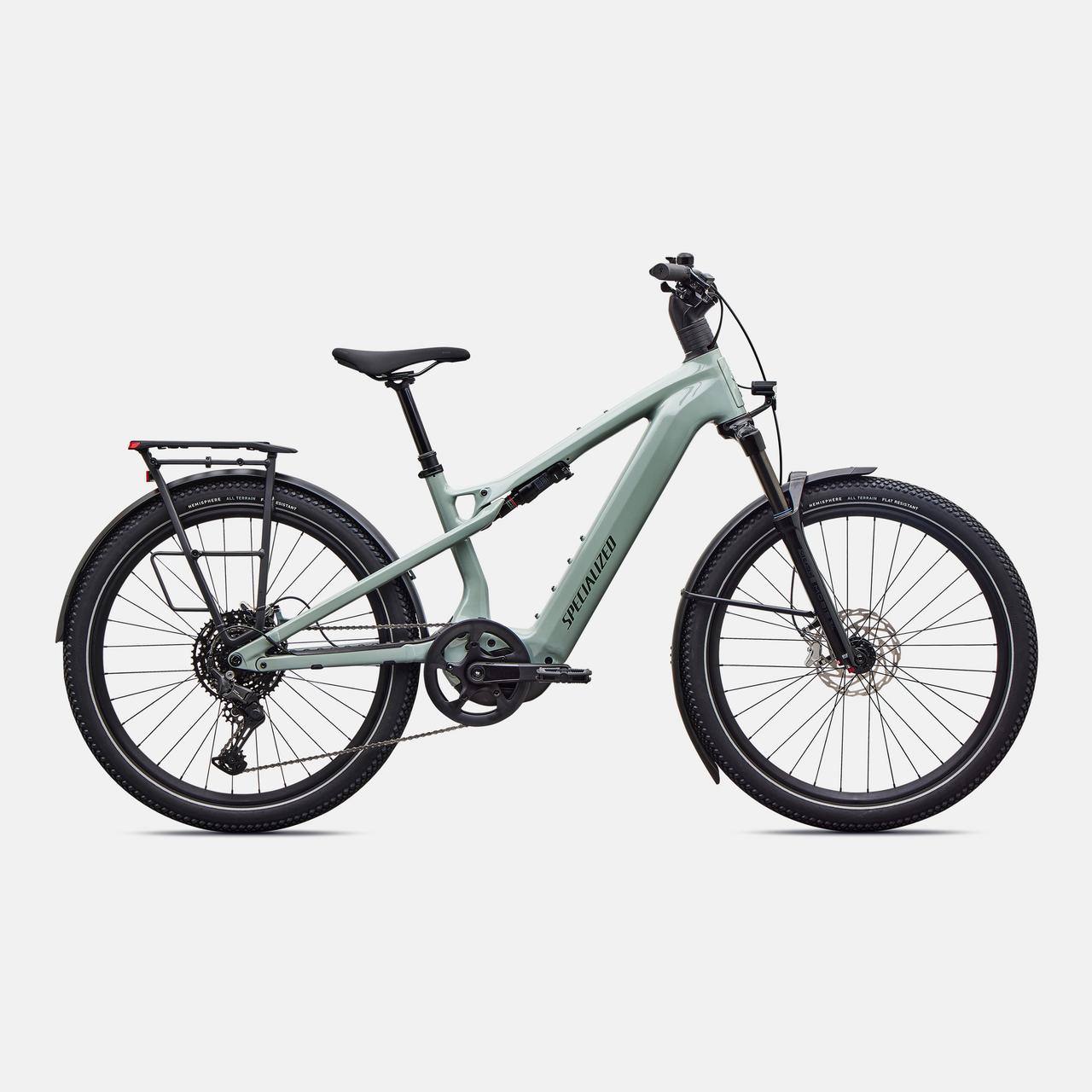

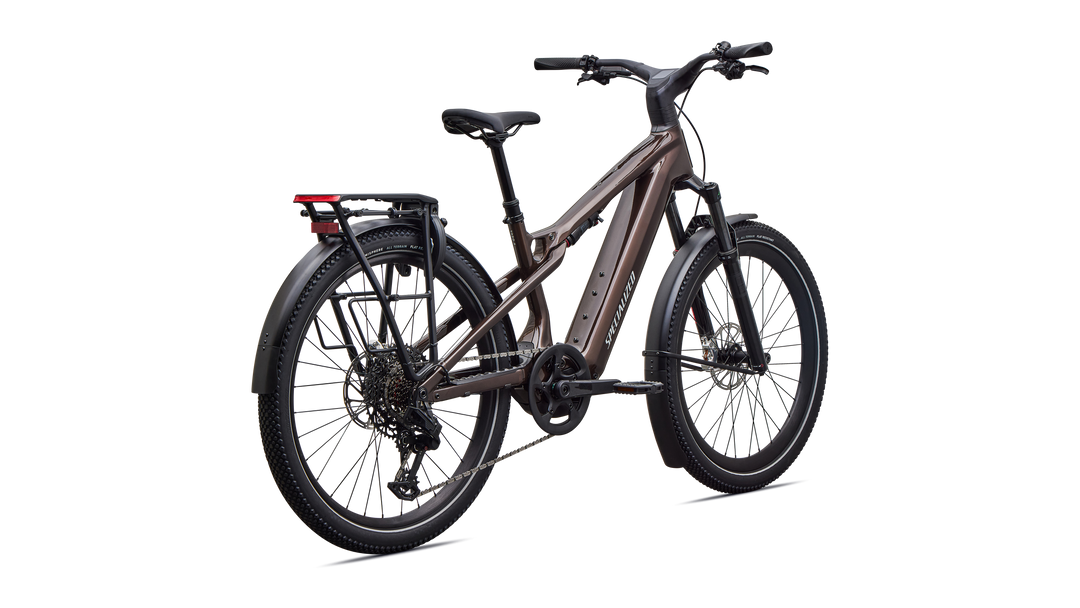

Turbo Vado 3 X 5.0
Take A Ride on The Wild Side
When the ride demands more, Vado 3 X answers. From urban adventures to off-road trekking, this is effortless power, elevated by full-suspension confidence. Born from Levo 4’s SuperNatural DNA with instinctive power, exceptional comfort, and incredible ride-anywhere range. With its class-leading features like the wheel lock and built-in Apple Find My, Vado 3 X keeps every ride calm, composed, and in control wherever the journey leads. The art of arrival - perfected.
E-bike
- Battery
- Specialized Turbo 840Wh, with Abus key lock

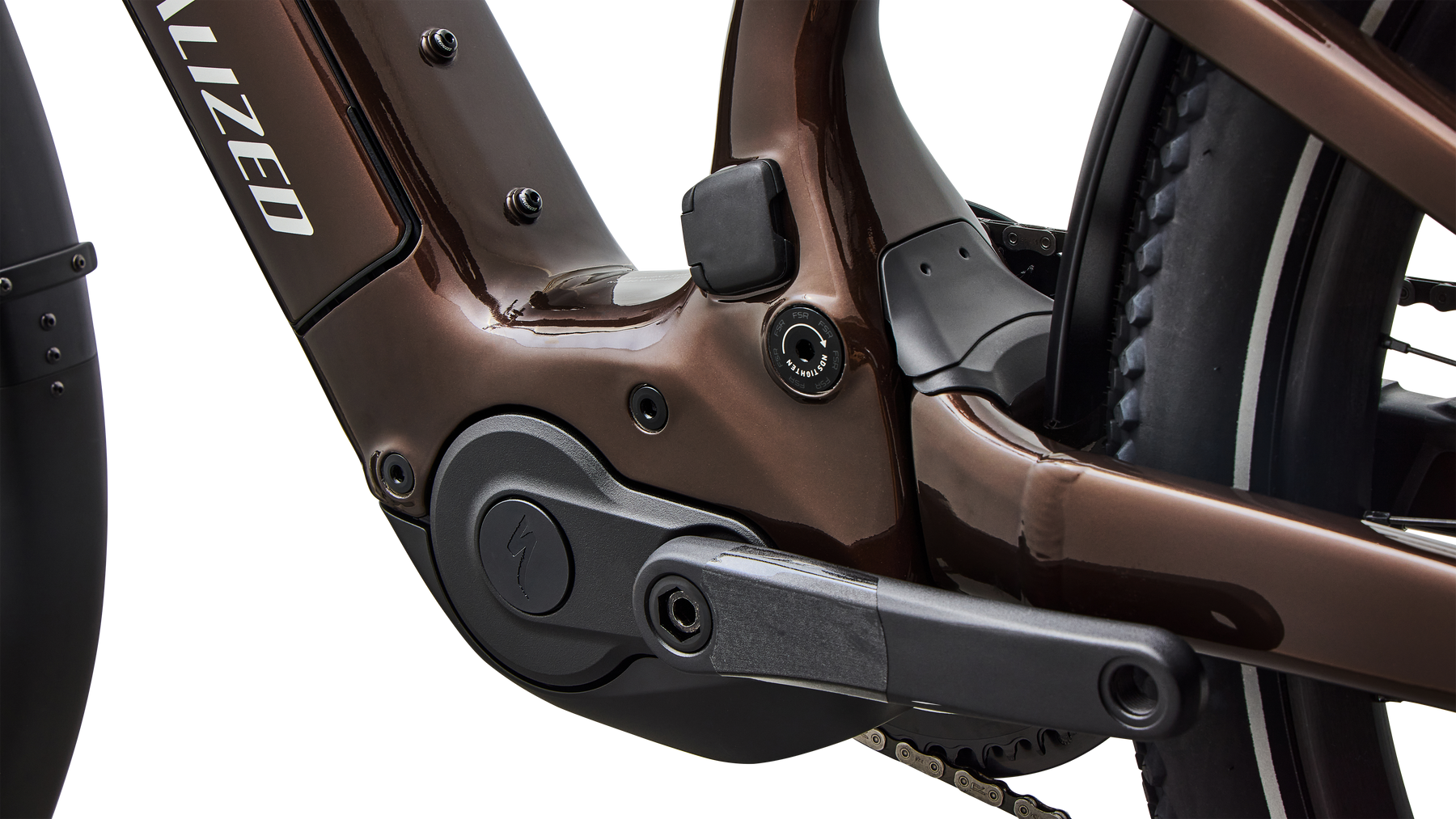

- Motor

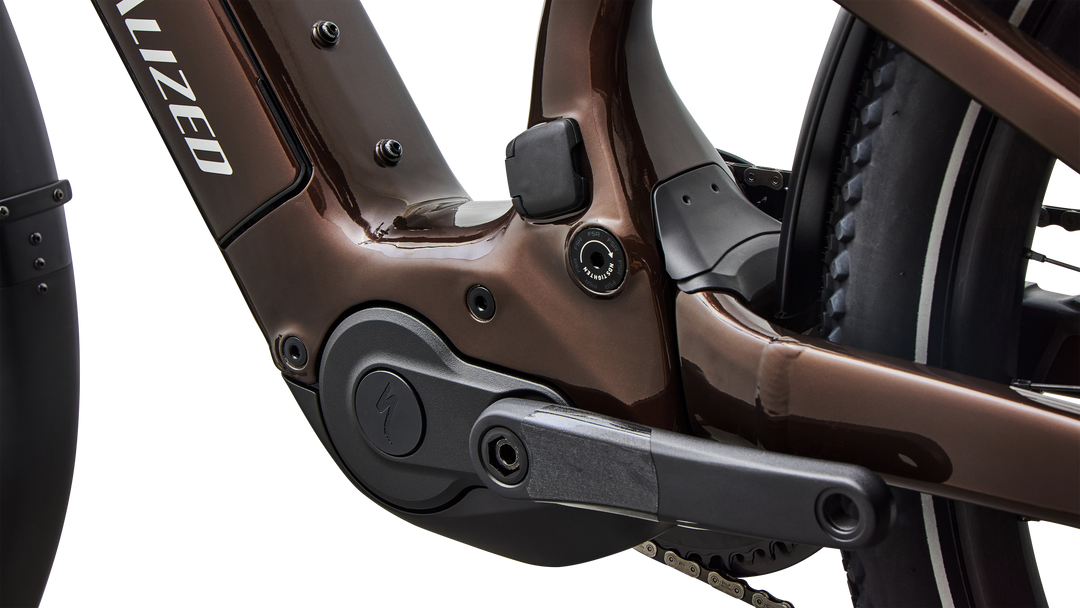

- Specialized 3.1 Motor, 105Nm torque, 810W power
- Charger
- Specialized 4amp charger
- UI/Remote
- Turbo ergonomic remote
Frameset
- Seat Binder
- Alloy, 38.6mm
- Frame
- Vado X frame, premium comfort with 120mm rear travel, side entry battery
Suspension
- Rear Shock
- Rock Shox Delux Select rear suspension, 120mm of travel
- Fork
- Rock Shox Psylo suspension fork, extra comfort and sensitivity, 130MM of travel, 15MM Thru axle, 27.5 wheel
Brakes
- Front Brake
- SRAM DB6, extra power 4 pistons, with custom silver finish
- Rear Brake
- SRAM DB6, extra power 4 pistons, with custom silver finish
Drivetrain
- Crankset
- 170mm, CL 55mm, w/BCD 110mm, 48t, chain guard
- Cassette
- SRAM 12-speed,10-52t
- Chainrings
- SRAM CR T-Type 110 BCD 48t
- Chain
- SRAM Eagle 130 Link
- Shift Levers
- SRAM Eagle 70
- Rear Derailleur
- SRAM Eagle 70 Transmission, 12-speed, easy shift under load
Wheels & tires
- Rims
- 27.5 Specialized rim with high profile, balck brush finish
- Spokes
- DT Swiss Elemental
- Inner Tubes
- Reinforced anti-flat 27.5X2.5/2.7, Schrader valve 60mm
- Front Hub
- Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h
- Front Tire
- Specialized Hemisphere Flat Resistant ALLTERRAIN Reflect 27.5X2.6
- Rear Tire
- Specialized Hemisphere Flat Resistant ALLTERRAIN Reflect 27.5X2.6
- Rear Hub
- Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 32h, HG Steel Fhb

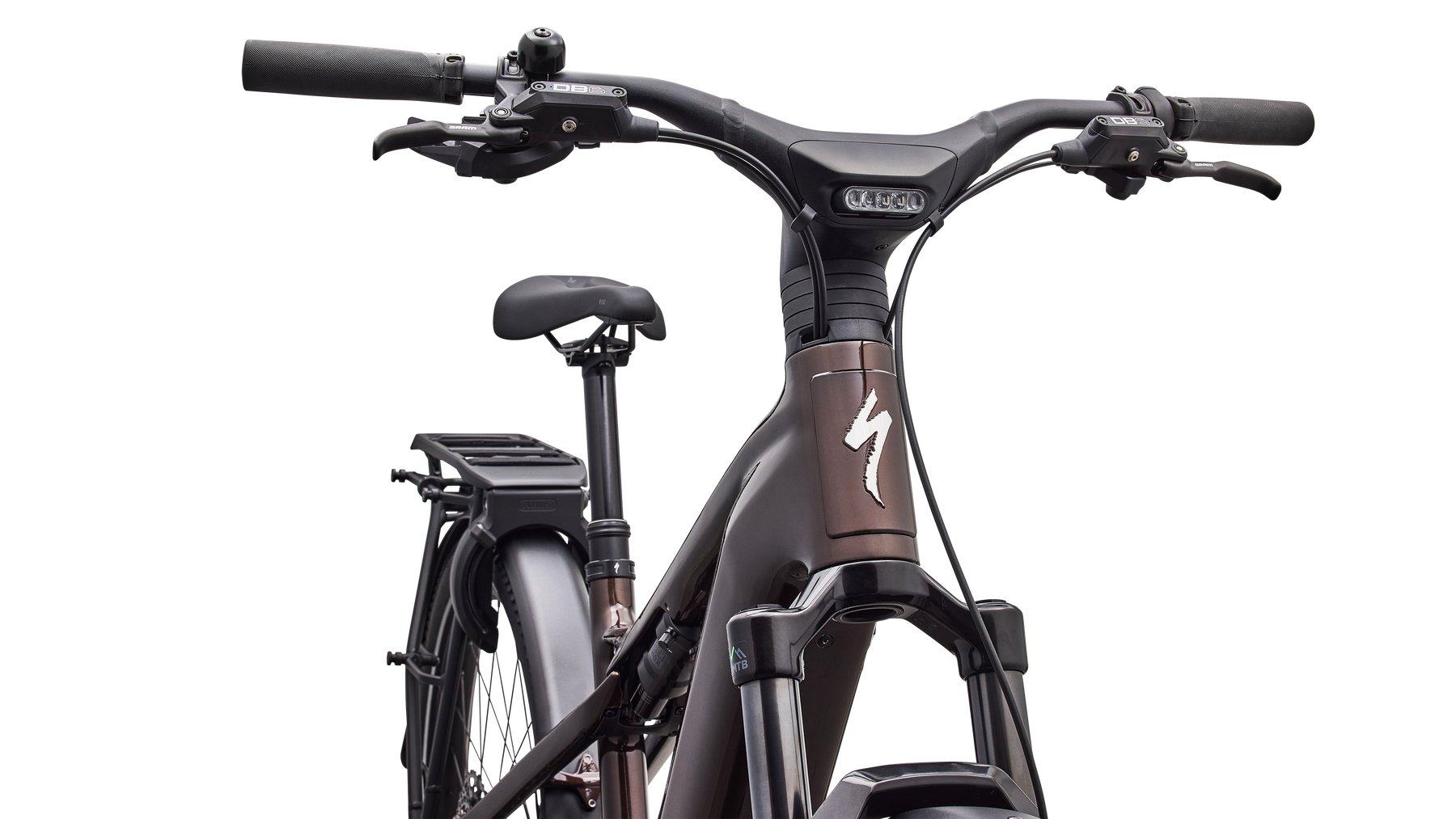

Cockpit
- Saddle
- Body geometry, Rivo 2 Gel,168mm
- Stem

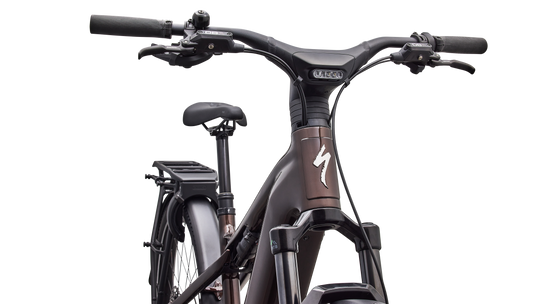

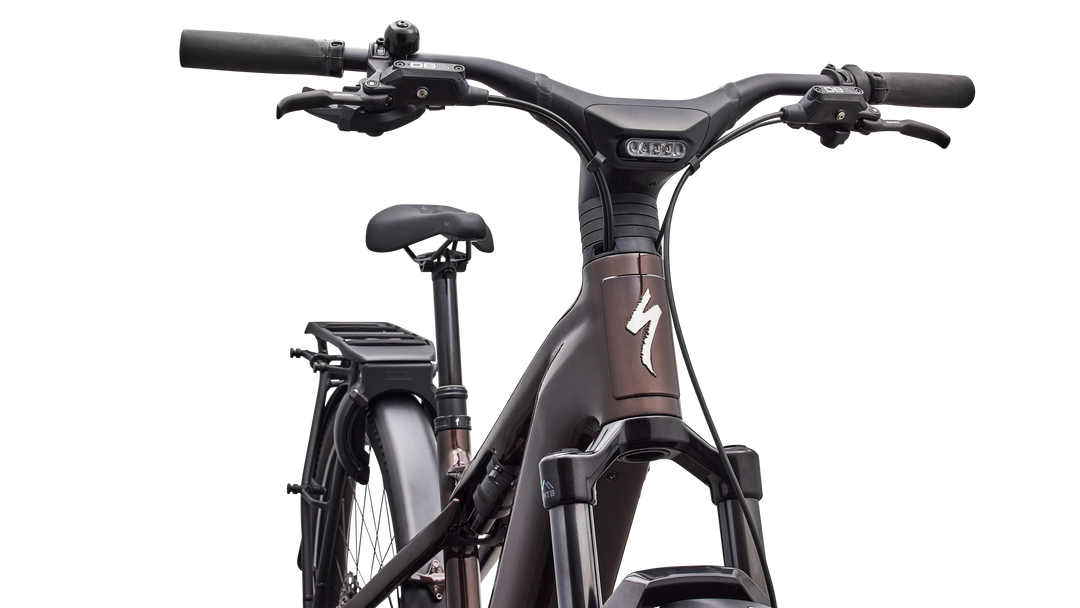

- Cockpit with integrated colored touch screen display
- Handlebars
- Integrated cockpit
- SeatPost
- Seatpost, Lowerable, 34.9mm, Offset 0mm, 100/125/150 Travel
- Grips
- Specialized Body Geometry
Accessories

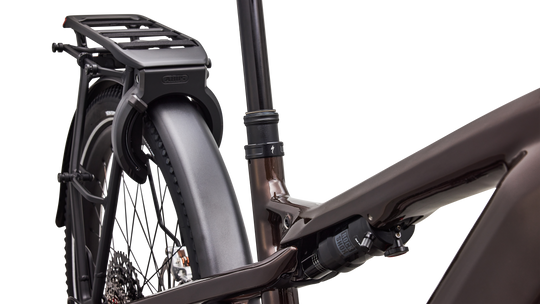

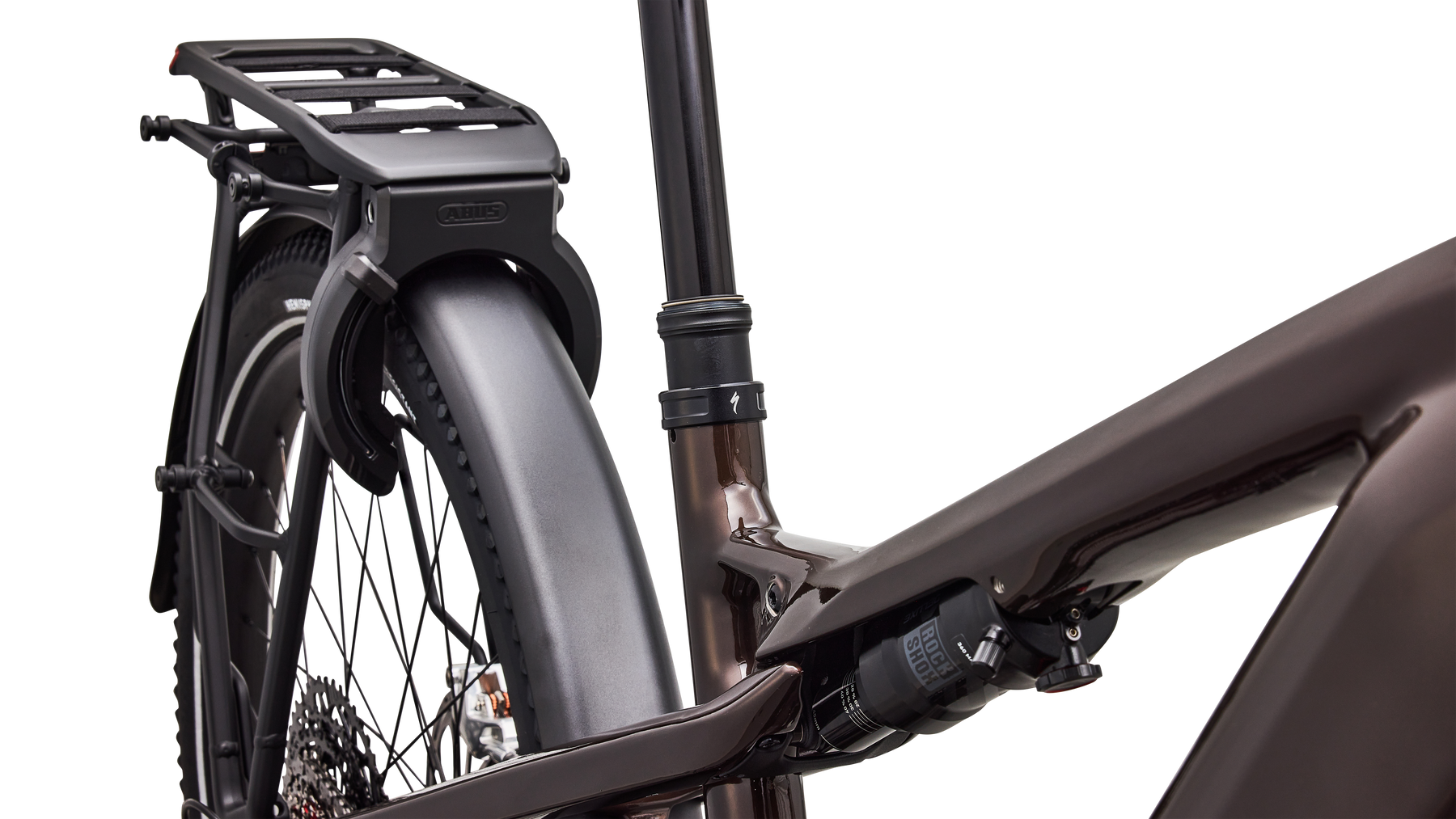

- Rack

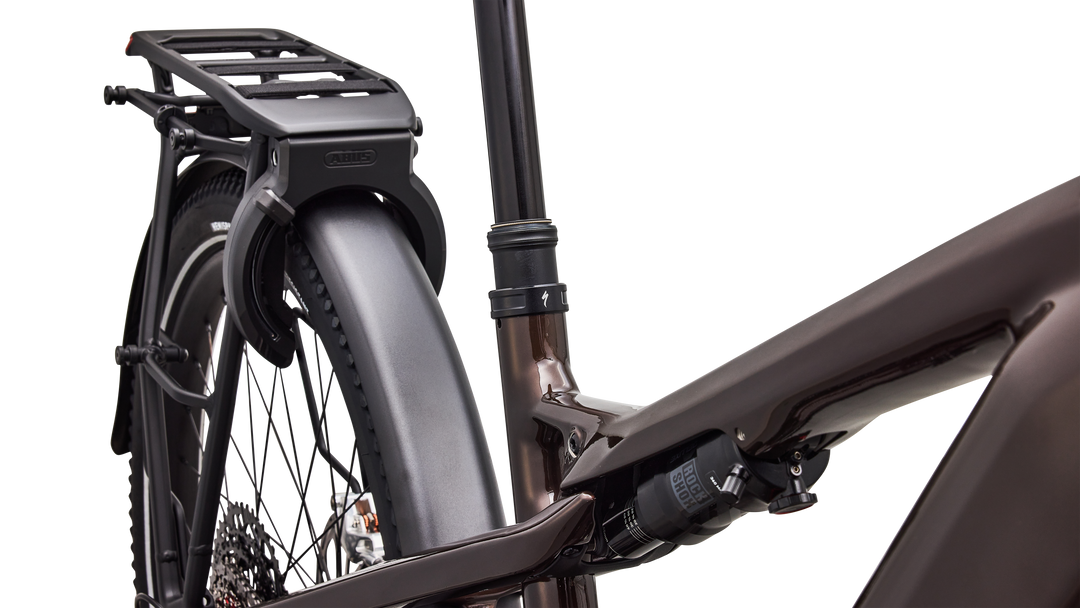

- 25kg rear rack with integrated straps, QL3.1, MIK Stud, Arkel
- Kickstand
- Adjustable alloy kickstand
- Bell
- Bell
- Fenders
- Extra long fender, water diffusion, durable metal construction
- Bike Lock
- Key secured battery by Abus
- SWAT
- MIK 25Kg rear rack with premium metalic finish, integrated elastics, MIK front rack 10kg compatible
- Taillight
- Rack integrated, automatic braking detection
- Headlight
- SUPERNOVA, integrated light, high beam and low beam remote, adjustable 12°, up to 800 Lumens
- Pedals
- Turbo pedals anti-slip
Product details
- Product ID
- 293139
- Compliance Certification
- As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. <br>For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
- Weight
- 31.35 kg (69 lb, 1.8 oz)
- Weight Size
- MD
| SM | MD | LG | XL | |
| Crank Length | 170 | 170 | 170 | 170 |
| Handlebar Width | 730 | 730 | 730 | 730 |
| Saddle Width | 168 | 168 | 168 | 168 |
| Seatpost Length | 345 | 402 | 402 | 447 |
| Stack | 618 | 625 | 640 | 667 |
| Reach | 430 | 450 | 475 | 500 |
| Head-Tube Length | 131 | 139 | 155 | 185 |
| Head-Tube Angle | 66 | 66 | 66 | 66 |
| B-B Height | 330 | 330 | 330 | 330 |
| B-B Drop to front | 30 | 30 | 30 | 30 |
| Trail | 112 | 112 | 112 | 112 |
| Fork Length (full) | 531 | 531 | 531 | 531 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 |
| Front-Center | 740 | 764 | 795 | 832 |
| Chain-Stay Length | 473 | 473 | 473 | 473 |
| Wheelbase | 1212 | 1235 | 1267 | 1304 |
| Top-Tube Length (horizontal) | 665 | 700 | 607 | 632 |
| Bike Stand-Over Height | 747 | 747 | 747 | 747 |
| Seat-Tube Length | 390 | 415 | 435 | 460 |
| Seat-Tube Angle | 74 | 74 | 74 | 73 |
