One Bike to Rule All Trails
Capability, Control, Personalization

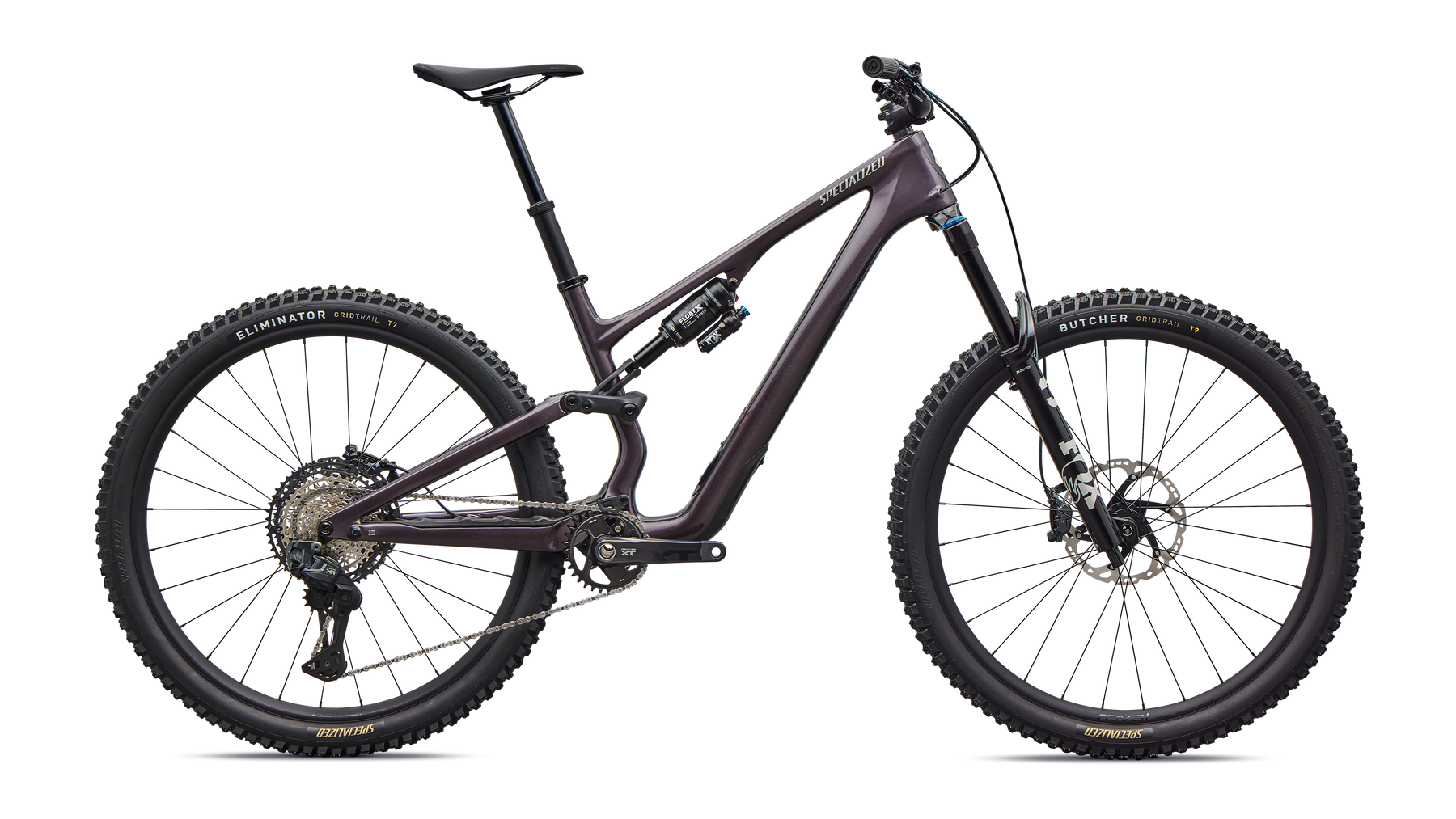

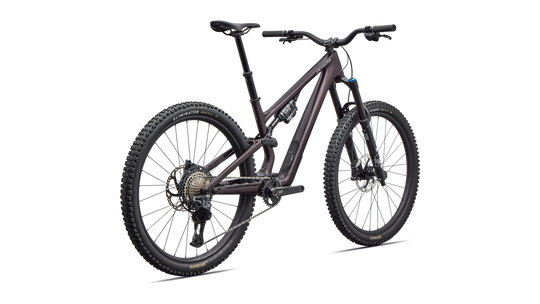

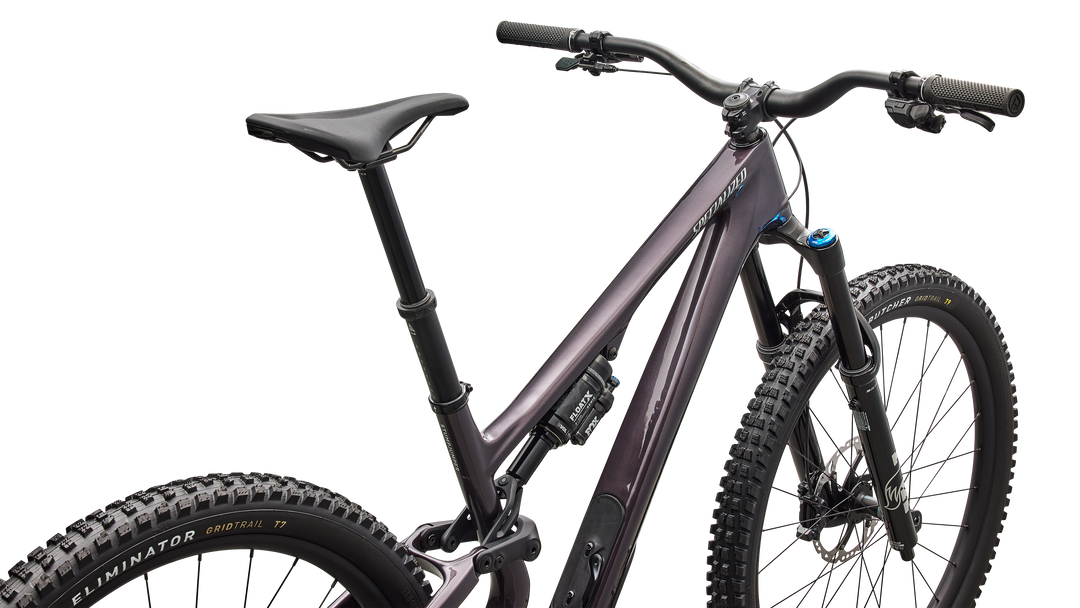

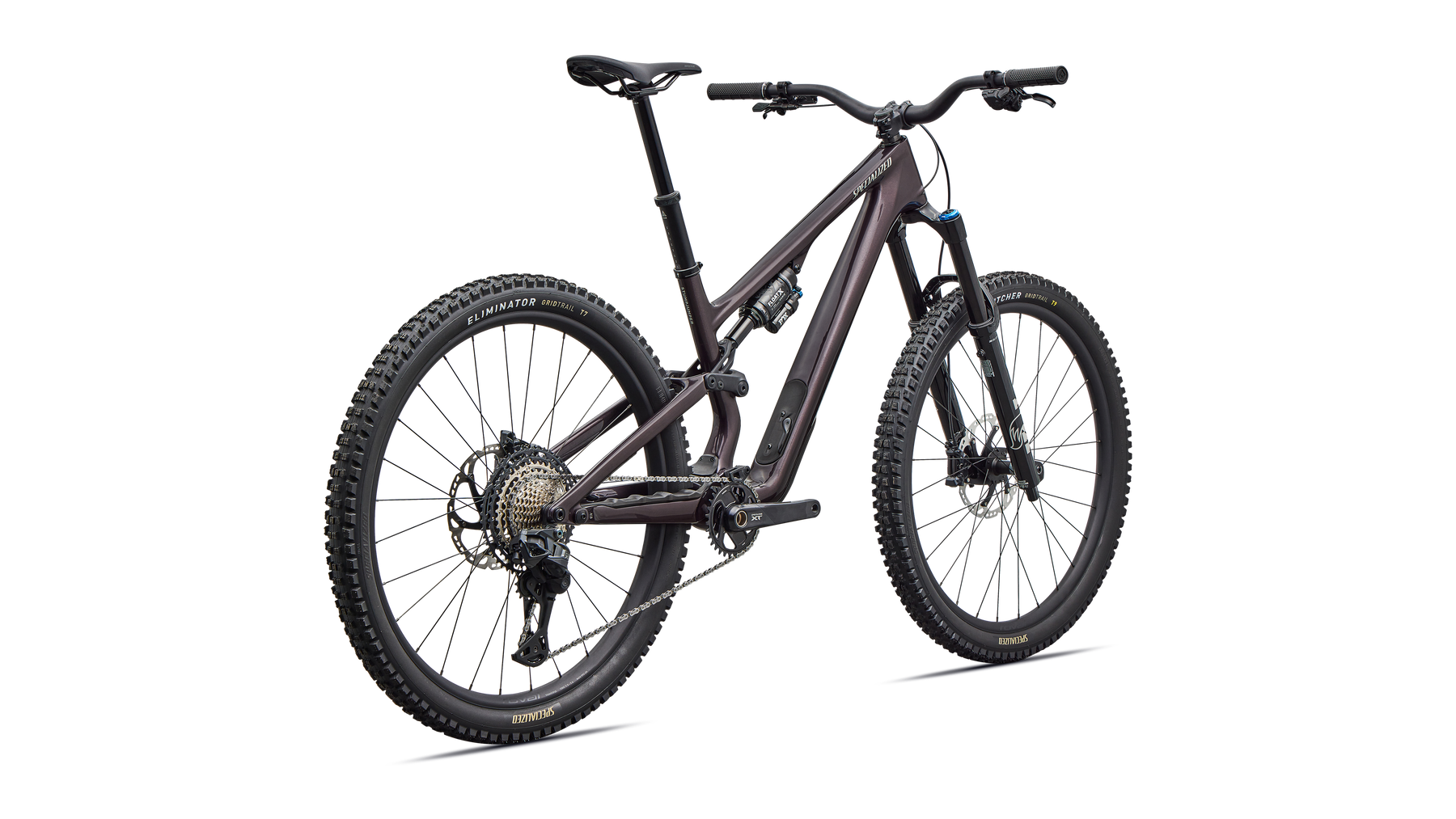

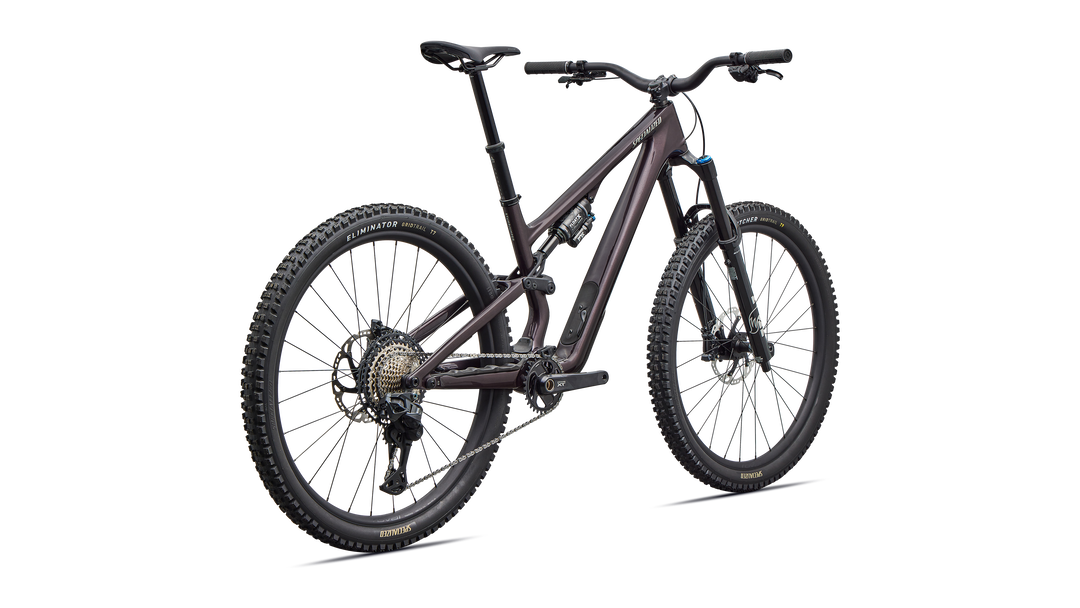

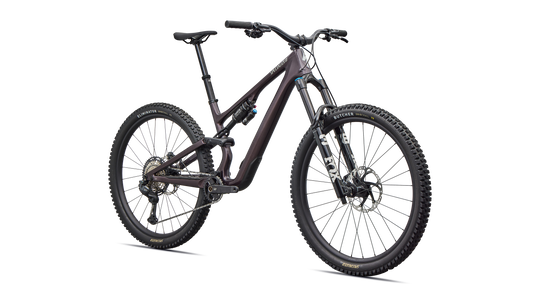

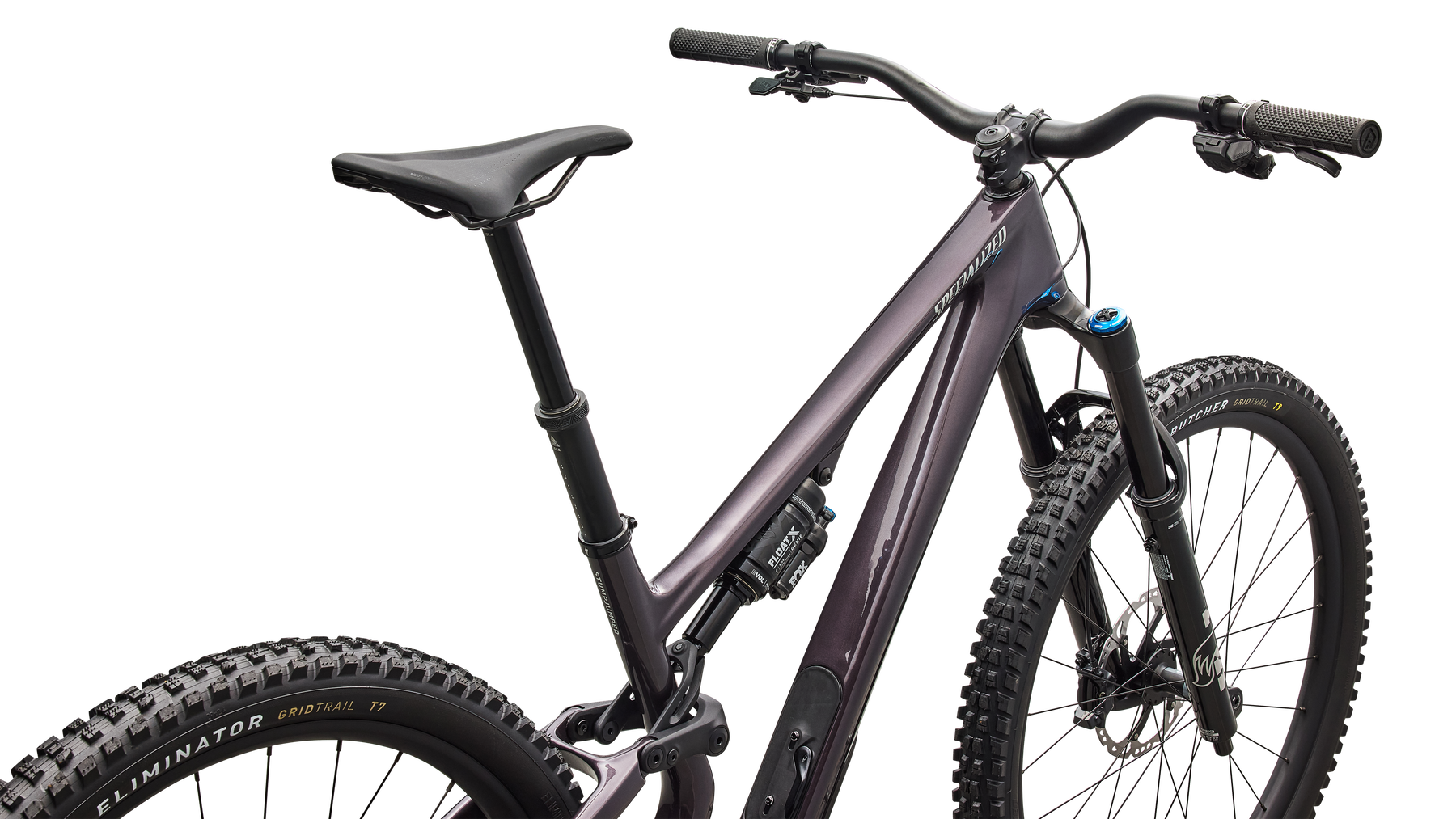

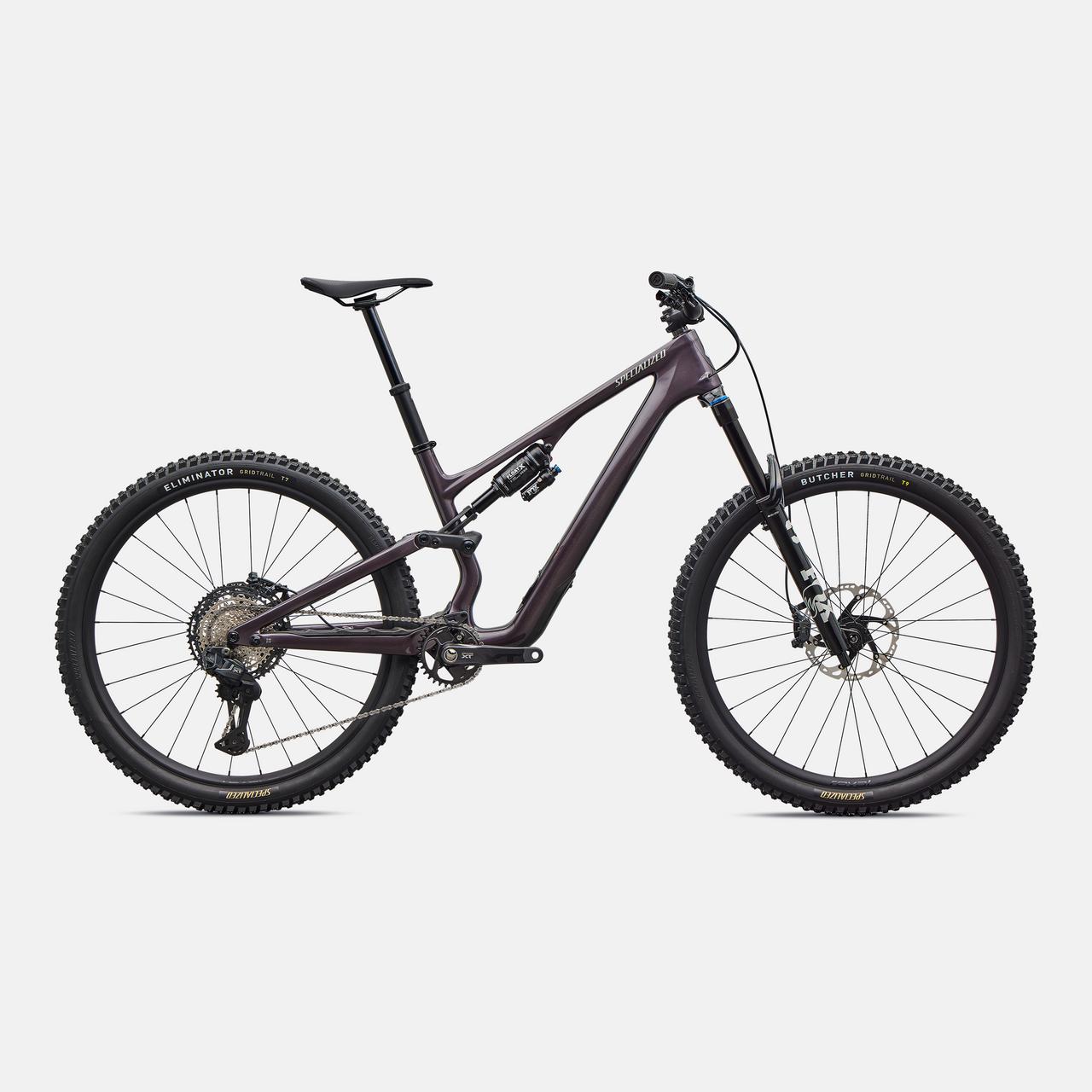

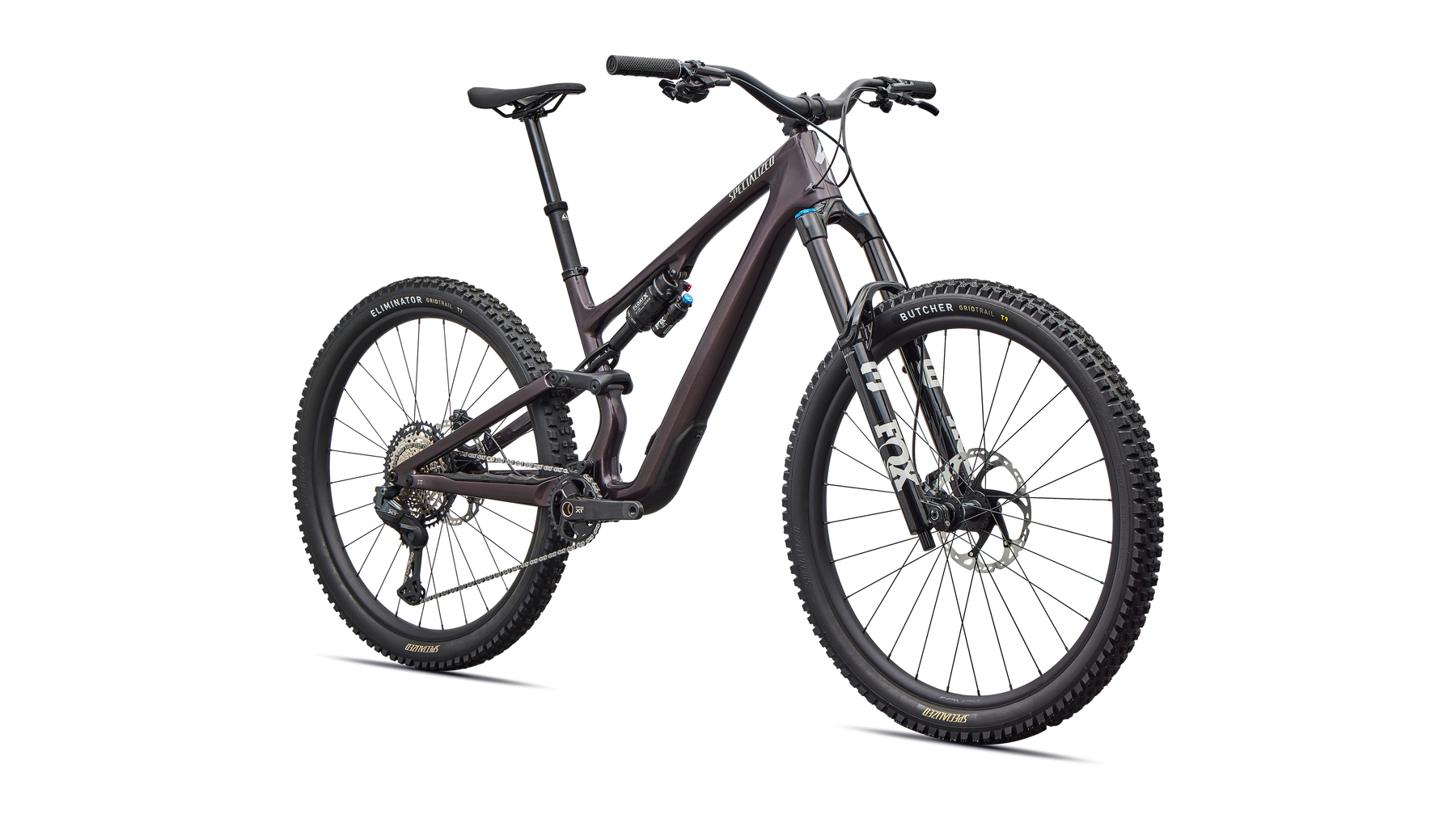

The all-new Stumpjumper 15 EVO obliterates every trade-off in the trail game. It’s the ‘Bike of the Year’ winning Stumpy 15 you know, turned up to 11—with a longer-travel 160mm FOX fork, external reservoir FOX FLOAT X shock, and a slacker headtube for next-level capability. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. A heaping helping of personalization to make it perfect for the only rider who matters—you? Check, check, check.
Frameset
- Seat Binder
- Alloy, 38.6mm
- Frame
- FACT 11m carbon chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
- SWAT
- SWAT 4.0 internal downtube storage
Suspension
- Fork
- FOX FLOAT 36 Performance Elite, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm Kabolt axle, 44mm offset, S1:150mm of travel, S2-S6:160mm of travel
- Rear Shock
- FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSC adjustment, LSR adjustment, 210x55mm
Brakes
- Front Brake
- Shimano Deore XT brake, 4 piston, Metal pad w/fin, 203mm rotor
- Rear Brake
- Shimano Deore XT brake, 4 piston, Metal pad w/fin, S1-S2: 180mm, S3-S6: 203mm rotor
Drivetrain
- Shift Levers
- Shimano XT Di2
- Rear Derailleur
- Shimano XT Di2, 12-speed
- Chain
- Shimano XT M8100, 12-speed w/ quick link
- Cassette
- Shimano XT M8200, 12-speed, 10-51
- Crankset
- Shimano XT, 55mm chainline, 32T, S1-S3: 165mm, S4-S6: 170mm
- Bottom Bracket
- Shimano, BB-MT801, Threaded
Wheels & tires
- Front Tire
- Butcher, GRID TRAIL casing, GRIPTON® T9 compound, TLR, 29X2.4
- Rear Tire
- Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, TLR, S1-S2: 27.5x2.4, S3- S6: 29x2.4"
- Front Wheel
- Roval Traverse 29" Rim, hookless alloy, 30mm inner width, tubeless ready, DT Swiss 370, 15x110mm, 28h, Sapim Force Spokes, 6 bolt
- Rear Wheel
- Roval Traverse Rim, hookless alloy, 30mm inner width, tubeless ready, DT Swiss 370, 15x110mm, 28h, Sapim Force Spokes, 6 bolt
- Inner Tubes
- Standard, Presta Valve
Cockpit
- Stem
- Alloy Trail Stem, 35mm bar bore
- Saddle
- Bridge Comp, Hollow Cr-mo rails S1-S2:155mm, S3-S6:143mm
- Grips
- Deity Lockjaw Grips
- SeatPost
- PNW Loam Dropper, tool-less travel adjust, Range lever, 34.9, S1: 125mm, S2: 150mm, S3: 175mm, S4-S5: 200mm, S6: 225mm

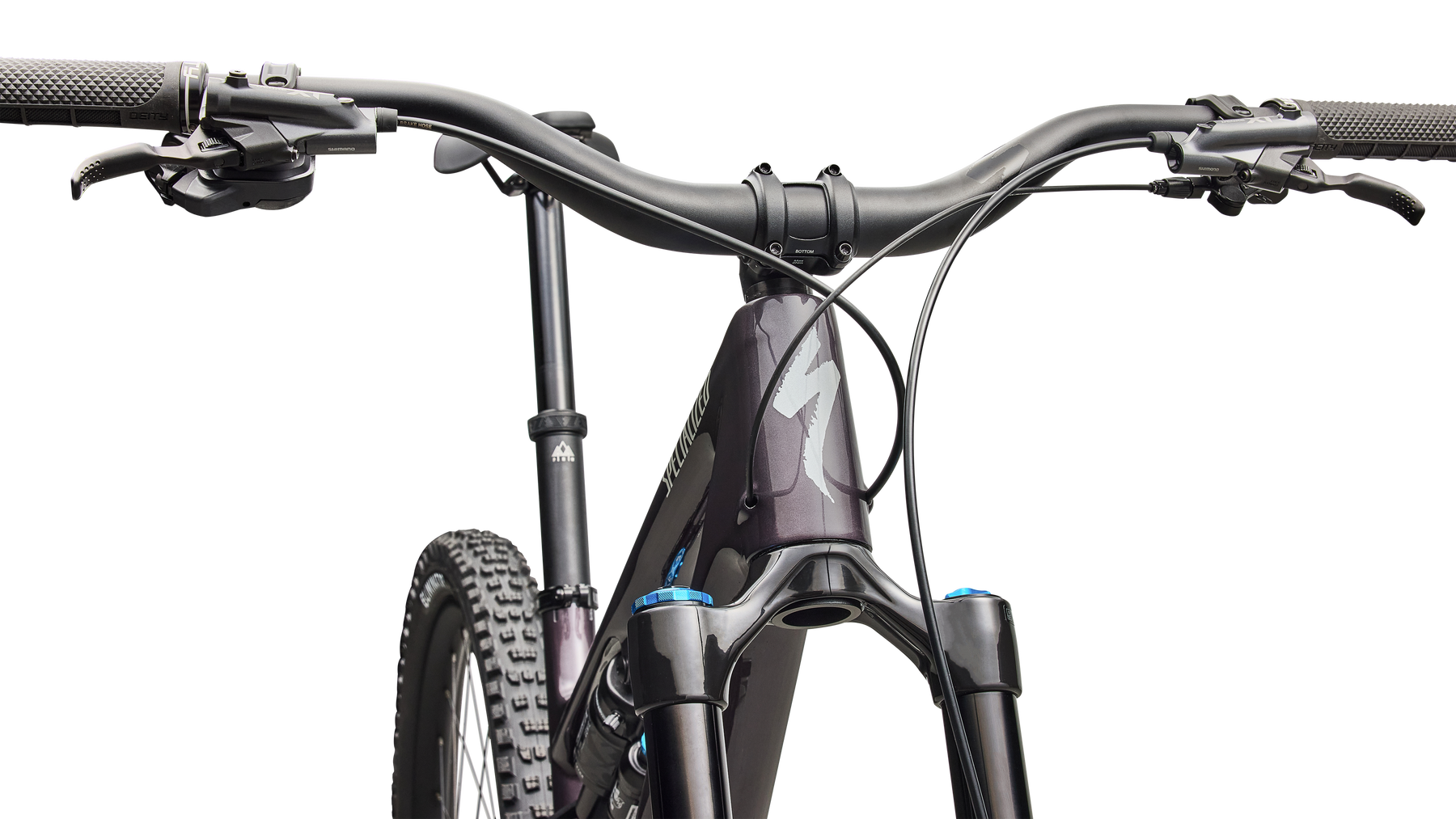

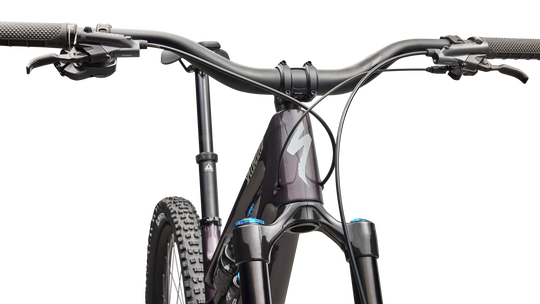

- Handlebars
- Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S6: 800 width, 50mm rise
Product details
- Product ID
- 291645
| S1 | S2 | S3 | S4 | S5 | S6 | |
| Crank Length | 165 | 165 | 165 | 170 | 170 | 170 |
| Handlebar Width | 780 | 780 | 800 | 800 | 800 | 800 |
| Stem Length | 40 | 40 | 40 | 40 | 40 | 40 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 125 | 150 | 175 | 200 | 200 | 225 |
| Stack | 611 | 621 | 630 | 644 | 658 | 671 |
| Reach | 400 | 420 | 445 | 470 | 495 | 525 |
| Headtube Length | 95 | 100 | 110 | 125 | 140 | 155 |
| Headtube Angle | 64 | 64 | 64 | 64 | 64 | 64 |
| BB Height | 337 | 340 | 340 | 340 | 340 | 340 |
| BB Drop | 38 | 35 | 35 | 35 | 35 | 35 |
| Trail | 133 | 134 | 134 | 134 | 134 | 134 |
| Fork Length (full) | 561 | 573 | 573 | 573 | 573 | 573 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 | 44 |
| Front Center | 724 | 755 | 785 | 816 | 848 | 884 |
| Chainstay Length | 430 | 432 | 435 | 435 | 445 | 445 |
| Wheelbase | 1153 | 1186 | 1217 | 1249 | 1290 | 1327 |
| Top-tube Length (horizontal) | 542 | 574 | 596 | 625 | 649 | 678 |
| Bike Standover Height | 738 | 751 | 745 | 745 | 745 | 751 |
| Seat Tube Length | 385 | 385 | 405 | 425 | 445 | 465 |
| Seat Tube Angle | 77.7 | 76.5 | 76.5 | 76 | 76 | 76 |
| Saddle Height for Effective ST Angle | 825 | 870 | 645 | 690 | 735 | 780 |
| Max Seatpost Insertion | 245 | 245 | 255 | 255 | 285 | 285 |
| Min Seatpost Insertion | 80 | 80 | 80 | 80 | 80 | 80 |
