Specialized  |  SKU: 93726-7503
Sold out

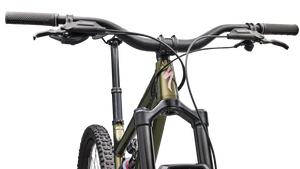

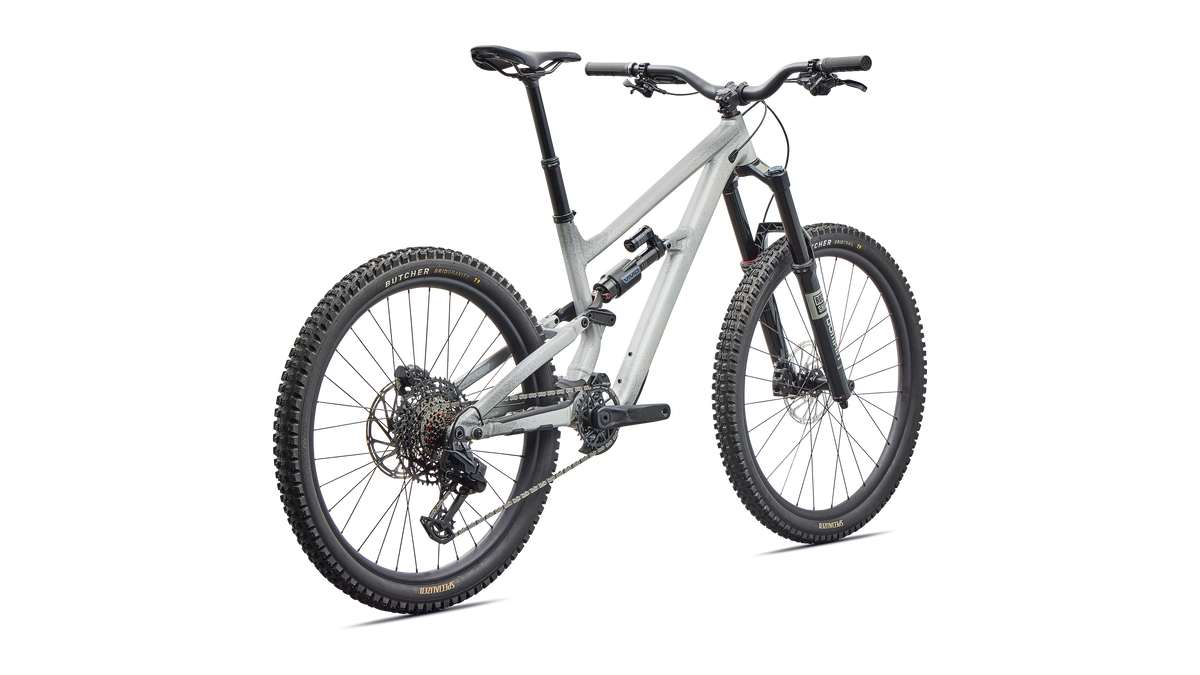

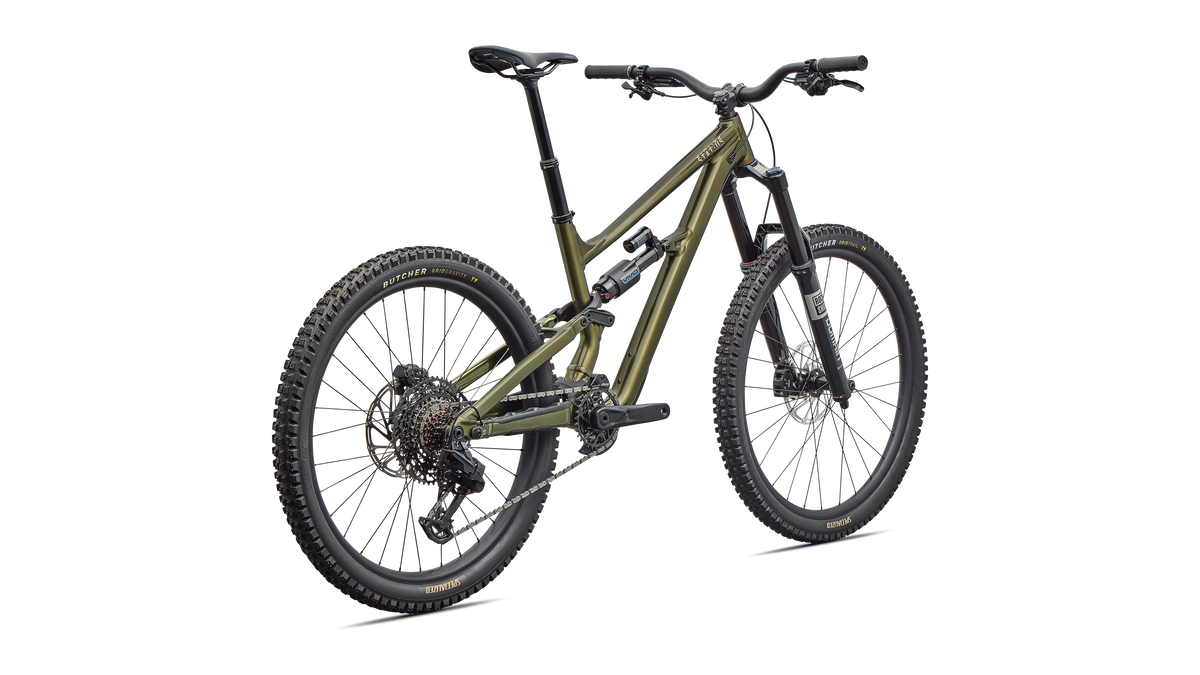

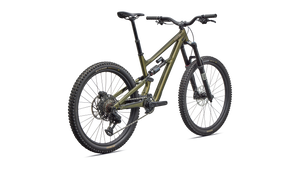

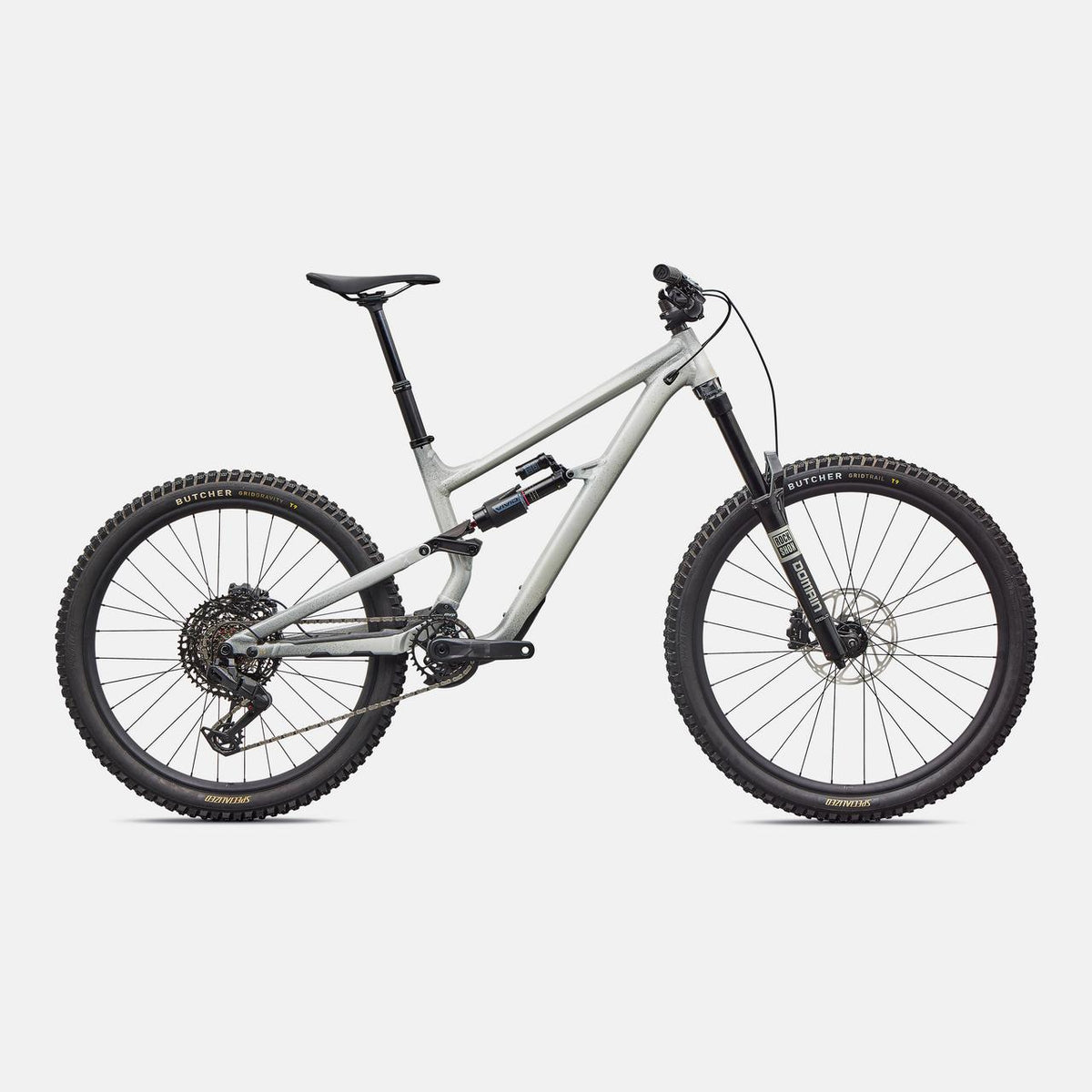

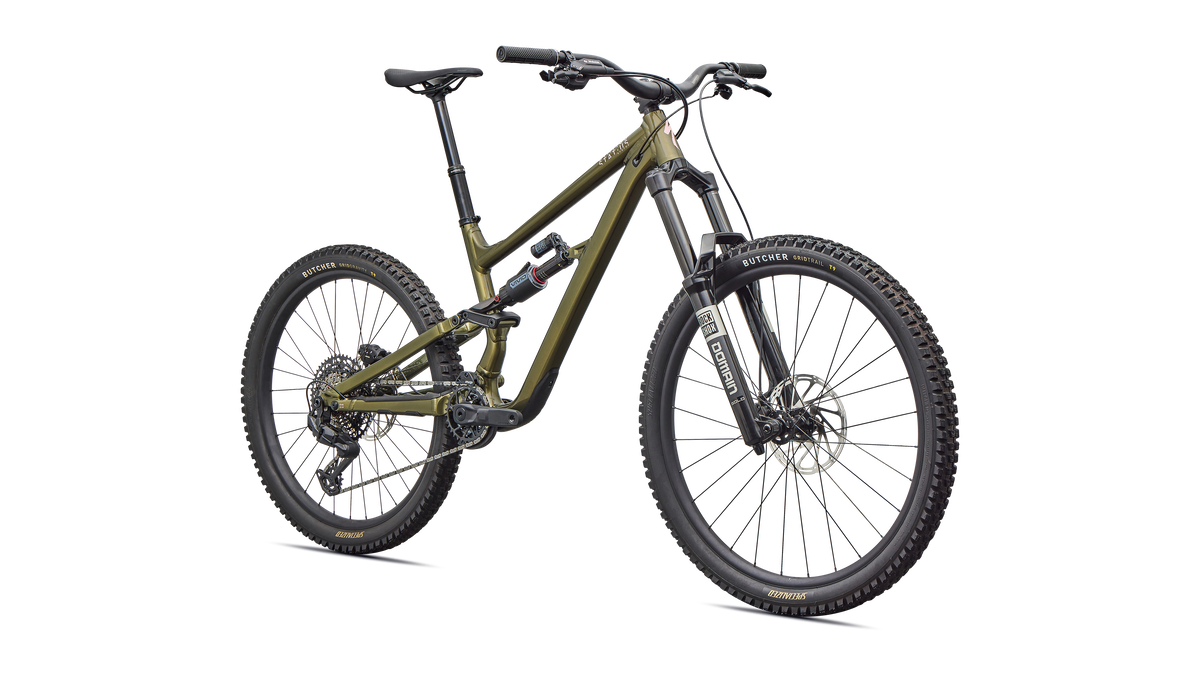

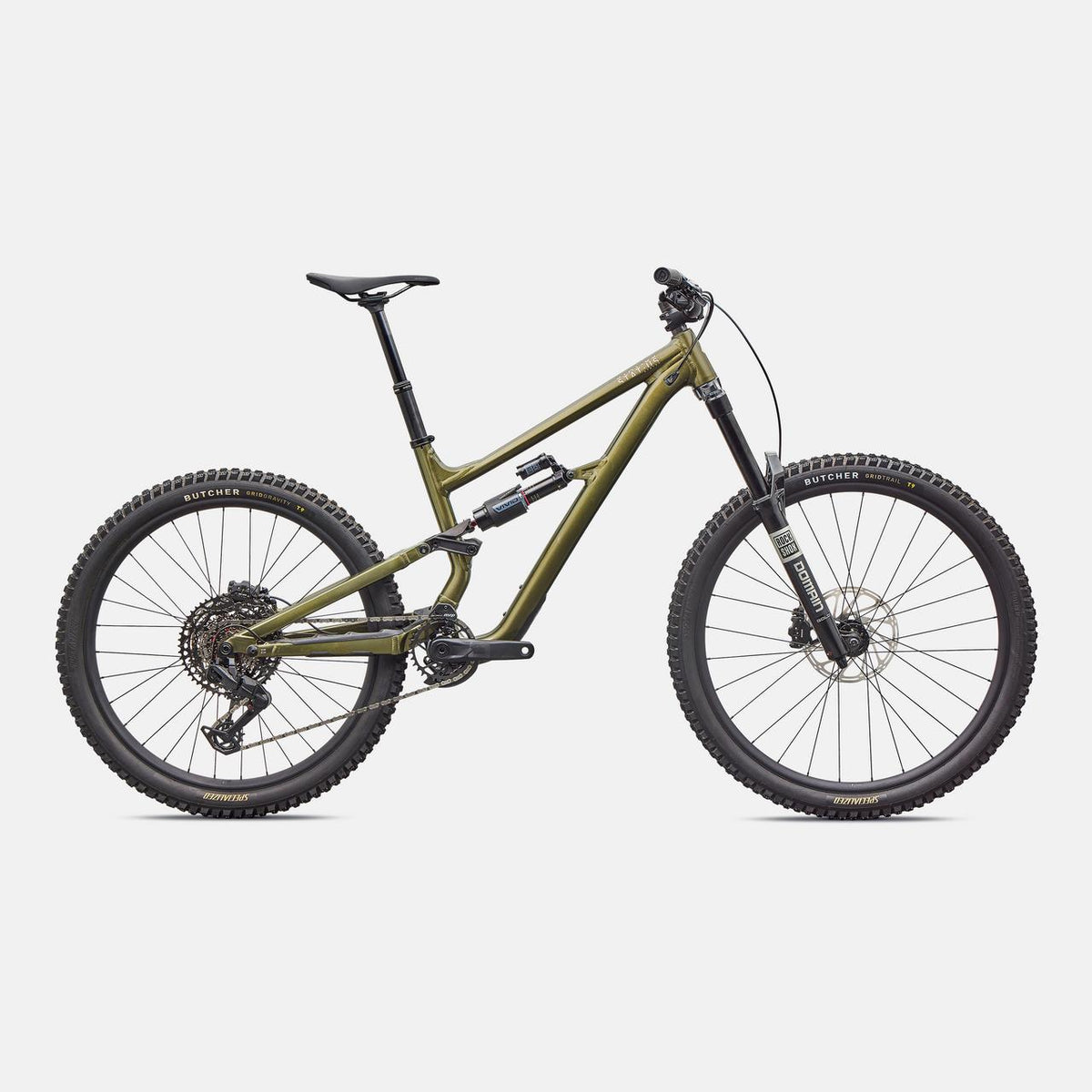

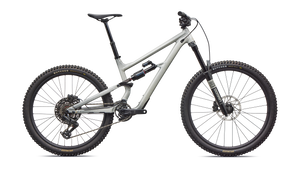

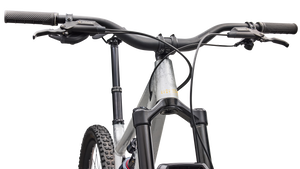

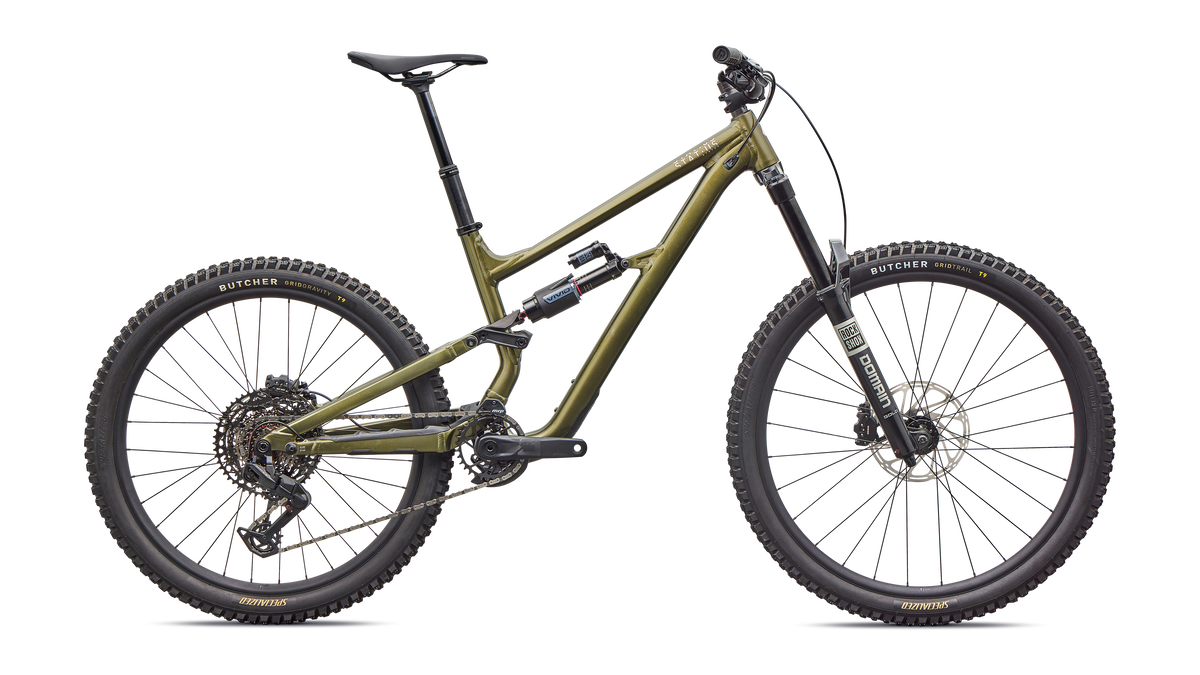

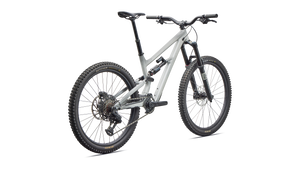

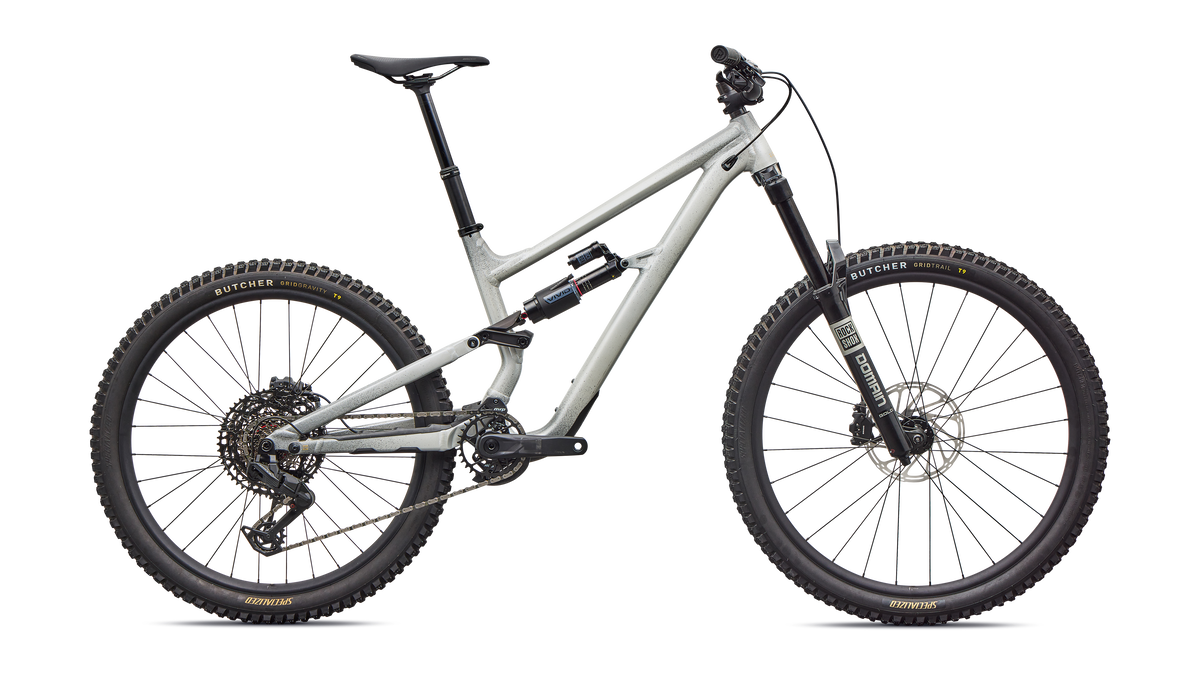

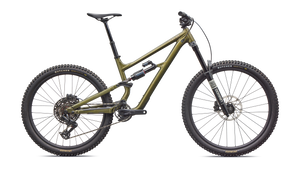

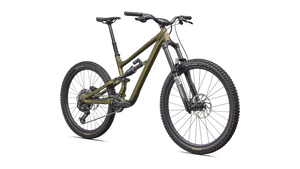

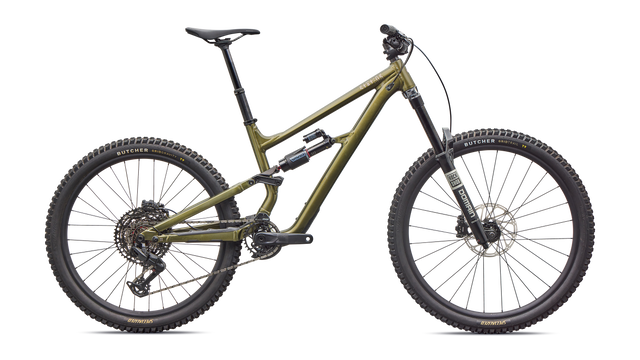

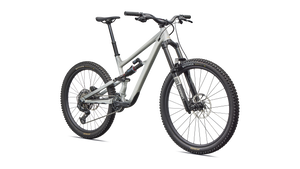

Status 2 170 2026

$5,900.00
Tax included
Colour
Size

Description
190mm
Product details
Product ID
221492
Weight
Weight
17.35 kg (38 lb, 4.0 oz)
Weight Size
S3



Specification
Frameset
Seat Binder
Alloy, 38.6mm
Frame
M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel
Suspension
Fork
RockShox Domain Gold RC, Isolater RC damper, three position compression adjustment, 15x110mm axle, 44mm offset, 170mm of travel
Rear Shock
RockShox Vivid, Ride Dynamics Trail Tune, S1:230x60mm, S2-S5:230x62.5mm
Brakes
Front Brake
SRAM Maven, 4-piston caliper, hydraulic disc
Rear Brake
SRAM Maven, 4-piston caliper, hydraulic disc
Drivetrain
Cassette
SRAM 1270 Transmission Cassette, 12 Spd,10-52t
Chain
SRAM 70 Transmission Chain
Bottom Bracket
SRAM DUB Threaded Wide
Shift Levers
SRAM EAGLE 70
Rear Derailleur
SRAM Eagle 70 T-Type
Crankset
SRAM Eagle 70, 55mm chainline, 32T
Wheels & tires
Rear Tire
Butcher, GRID GRAVITY Casing, Gripton T9 compound, TLR, 27.5x2.4
Front Tire
Butcher, GRID TRAIL casing, Gripton T9 compound, 29X2.4
Spokes
DT Swiss Elemental
Front Hub
Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h
Rear Hub
Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 28h, HD Steel Fhb
Rims
Specialized, hookless alloy, 30mm inner width, tubeless ready
Inner Tubes
Standard, Presta Valve
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Saddle
Body Geometry Bridge Comp, hollow Cr-Mo rails, 143mm
Grips
Deity Lockjaw Grips
Handlebars
Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S5: 800 width, 50mm rise
SeatPost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3-S4: 170mm, S5: 190mm
Product details
Product ID
221492
Weight
Weight
17.35 kg (38 lb, 4.0 oz)
Weight Size
S3

Geometry

S1 S2 S3 S4 S5
Crank Length 165 165 165 165 170
Handlebar Width 780 780 800 800 800
Stem Length 40 40 40 40 40
Saddle Width 143 143 143 143 143
Seatpost Length 125 150 170 170 190
Reach (low) 420 445 470 495 520
Reach (high) 426 451 476 501 526
Headtube Length 95 100 110 120 130
Headtube Angle (low) 63.5 63.5 63.5 63.5 63.5
Headtube Angle (high) 64 64 64 64 64
BB Height (low) 342 342 342 342 342
BB Height (high) 350 350 350 350 350
BB Drop (low) 34 34 34 34 34
BB Drop (high) 26 26 26 26 26
Trail (low) 138 138 138 138 138
Trail (high) 133 133 133 133 133
Fork Length (full) 581 581 581 581 581
Fork Rake/Offset 44 44 44 44 44
Front Center 762 789 819 848 878
Chainstay Length (low) 432 432 432 437 437
Chainstay Length (high) 428 428 428 433 433
Wheelbase 1193 1221 1250 1285 1314
Top-tube Length (horizontal) 554 595 635 676 716
Bike Standover Height 735 735 742 748 752
Seat Tube Length 390 400 420 440 465
Seat Tube Angle (low) 77 77 77 77 77
Seat Tube Angle (high) 77.6 77.6 77.6 77.6 77.6
Stack (low) 620 625 634 643 652
Stack (high) 616 620 629 638 647
