Specialized  |  SKU: 93726-7402
Sold out

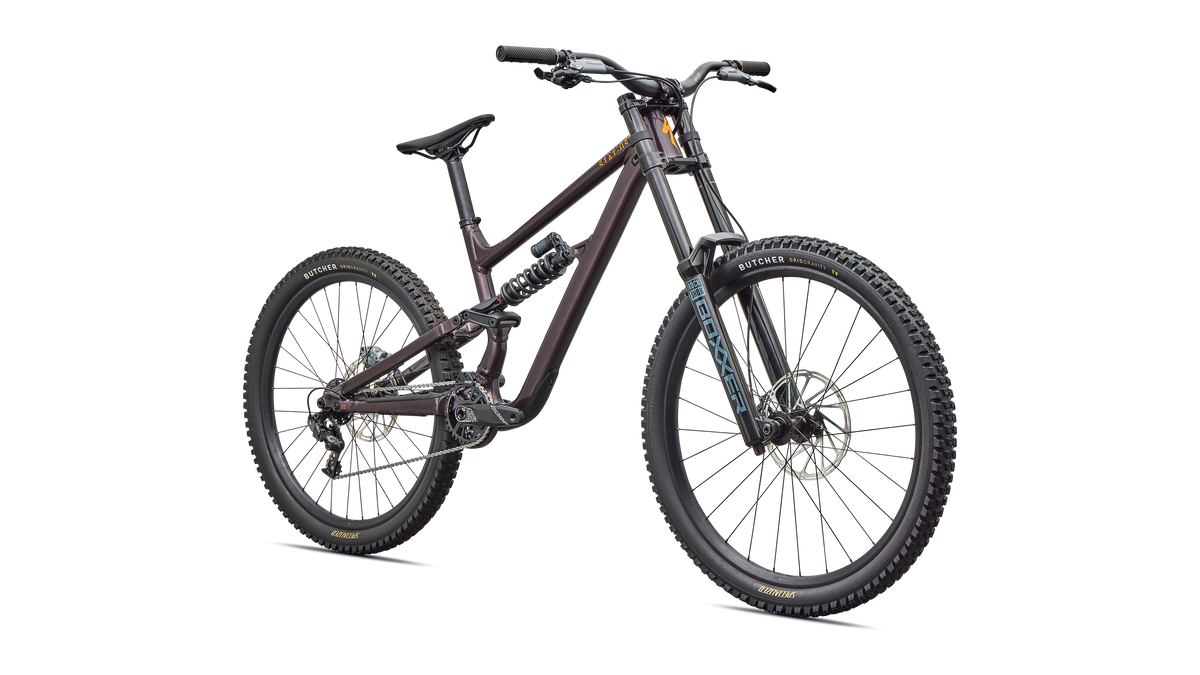

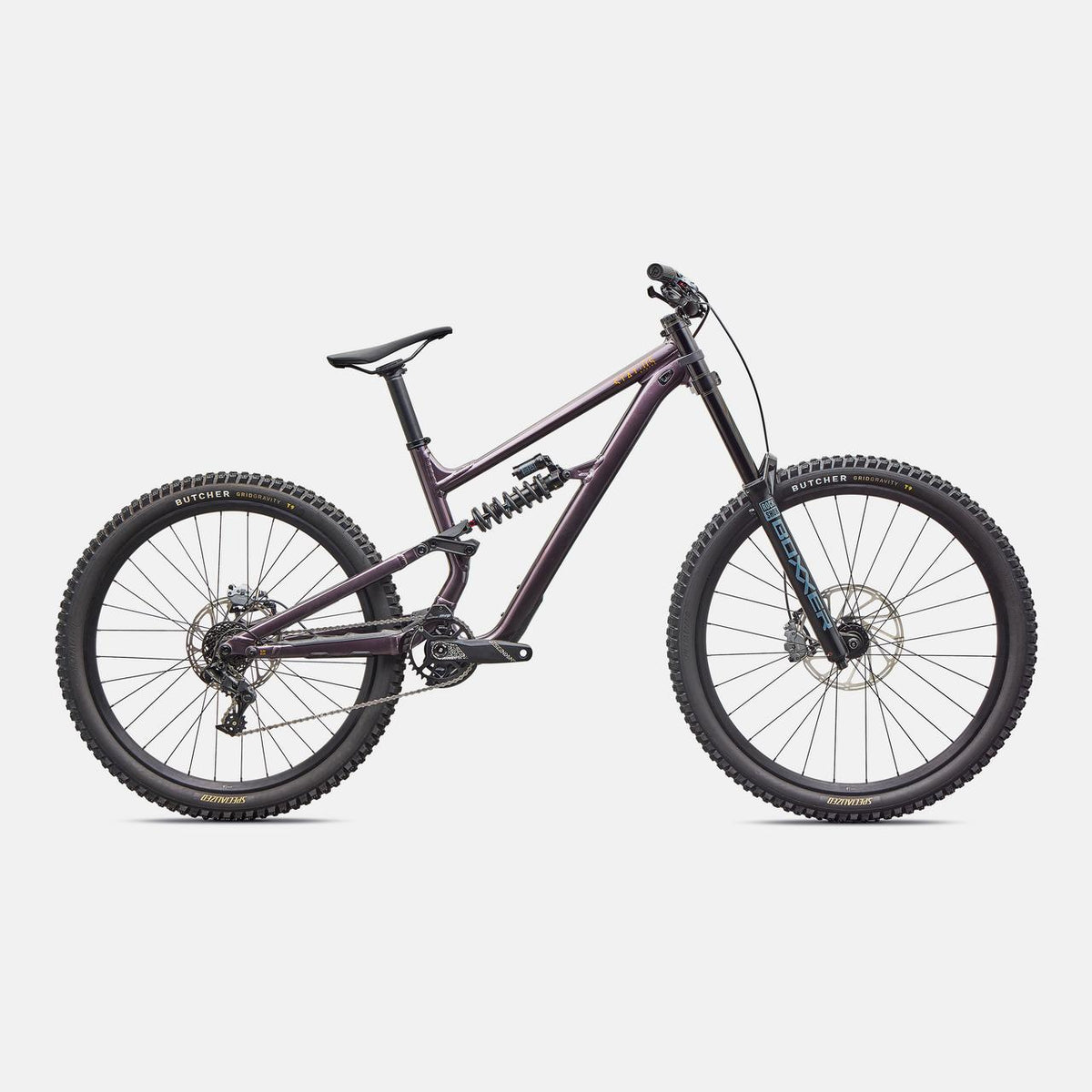

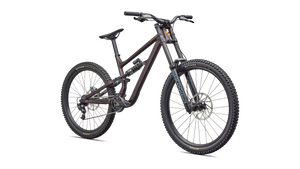

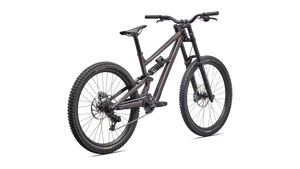

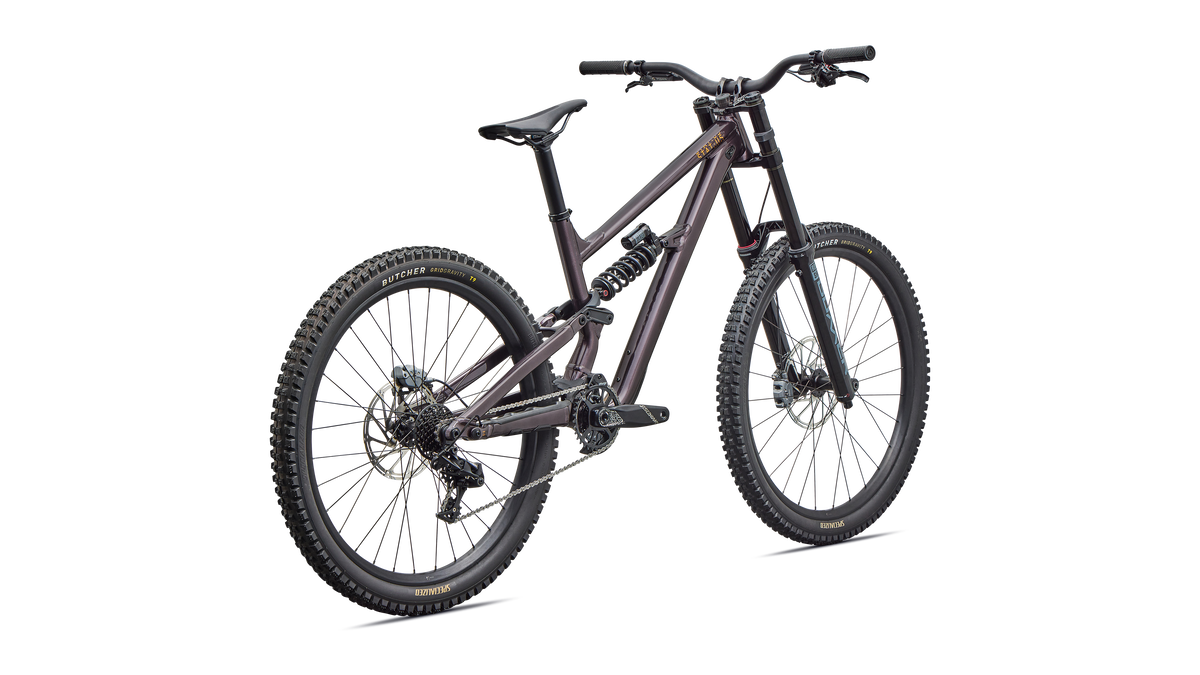

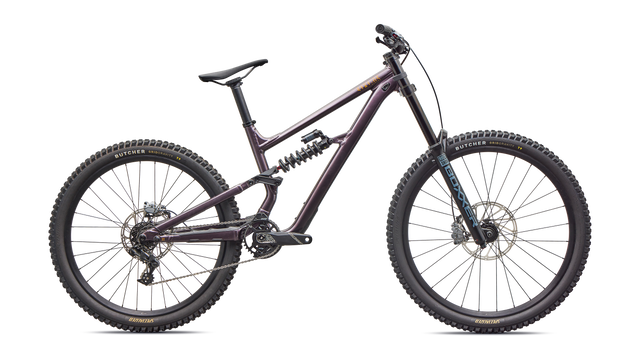

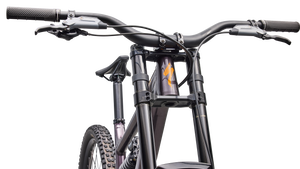

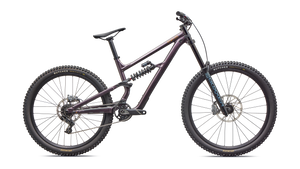

Status 2 170 DH 2026

$6,900.00
Tax included
Colour
Size

Description
800 width, 50mm rise
Product details
Product ID
291349
Weight
Weight
17.19 kg (37 lb, 14.4 oz)
Weight Size
S3

Specification
Frameset
Seat Binder
Alloy, 38.6mm
Frame
M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel
Suspension
Fork
RockShox BoXXer 29, Charger 3 RC damper, adjustable low-speed compression, adjustable rebound, 20x110mm thru-axle, 44mm offset, 180mm of travel
Rear Shock
RockShox Vivid Coil, external rebound adjust, hydraulic bottom out, 230x62.5mm
Brakes
Front Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc
Rear Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc
Drivetrain
Crankset
SRAM DESCENDANT DH, DUB, alloy, Direct, 34T ring, 55mm chainline, 165mm
Bottom Bracket
SRAM DUB Threaded Wide
Cassette
SRAM GX DH, 7-speed, 11-25t
Rear Derailleur
SRAM GX DH, 7-speed, trigger
Shift Levers
SRAM GX DH, trigger, 7-speed
Chain
SRAM PC1110 w/ Powerlink™
Wheels & tires
Front Hub
Alloy, sealed cartridge bearings, 20x110mm, 28h
Rear Tire
Butcher, GRID GRAVITY Casing, Gripton T9 compound, TLR, 27.5X2.4
Front Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
Spokes
DT Swiss Elemental
Rims
Roval 29"/27.5" Alloy DH, 28mm internal width, 28h, tubeless ready
Rear Hub
Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 32H
Inner Tubes
Standard, Presta Valve
Cockpit
Saddle
Body Geometry Henge DH, hollow Cro-Mo rails, 130mm
Grips
Deity Lockjaw Grips
Stem
Descendant 35mm Direct Mount Stem, 50mm length
SeatPost
Specialized 2-bolt head, forged alloy, 5mm offset, micro-adjust, 34.9mm

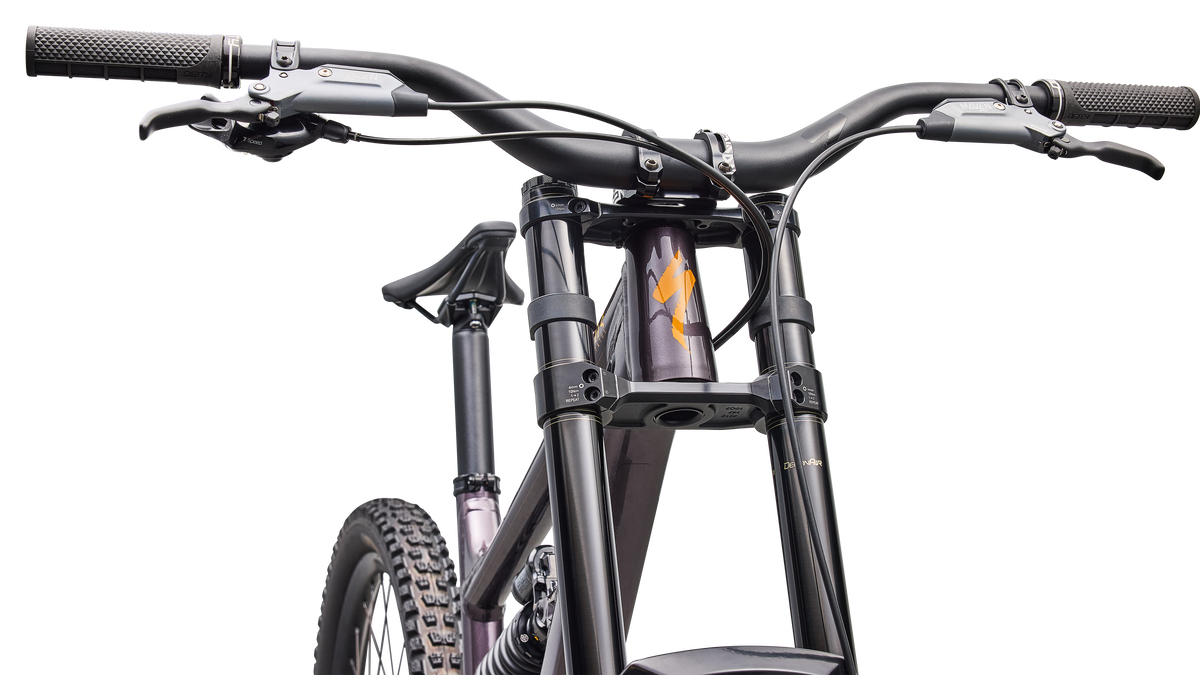

Handlebars
Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S2: 780 width, 20mm rise: S3-S5: 800 width, 50mm rise
Product details
Product ID
291349
Weight
Weight
17.19 kg (37 lb, 14.4 oz)
Weight Size
S3

Geometry

S2 S3 S4 S5
Crank Length 165 165 165 165
Handlebar Width 780 800 800 800
Stem Length 50 50 50 50
Saddle Width 130 130 130 130
Seatpost Length 250 250 250 250
Stack (low) 625 634 643 652
Stack (high) 620 629 638 647
Reach (low) 445 470 495 520
Reach (high) 451 476 501 526
Headtube Length 100 110 120 130
Headtube Angle (low) 63.5 63.5 63.5 63.5
Headtube Angle (high) 64 64 64 64
BB Height (low) 342 342 342 342
BB Height (high) 350 350 350 350
BB Drop (low) 34 34 34 34
BB Drop (high) 26 26 26 26
Trail (low) 138 138 138 138
Trail (high) 133 133 133 133
Fork Length (full) 581 581 581 581
Fork Rake/Offset 44 44 44 44
Front Center 789 819 848 878
Chainstay Length (low) 432 432 437 437
Chainstay Length (high) 428 428 433 433
Wheelbase 1221 1250 1285 1314
Top-tube Length (horizontal) 595 635 676 716
Bike Standover Height 735 742 748 752
Seat Tube Length 400 420 440 465
Seat Tube Angle (low) 77 77 77 77
Seat Tube Angle (high) 77.6 77.6 77.6 77.6
