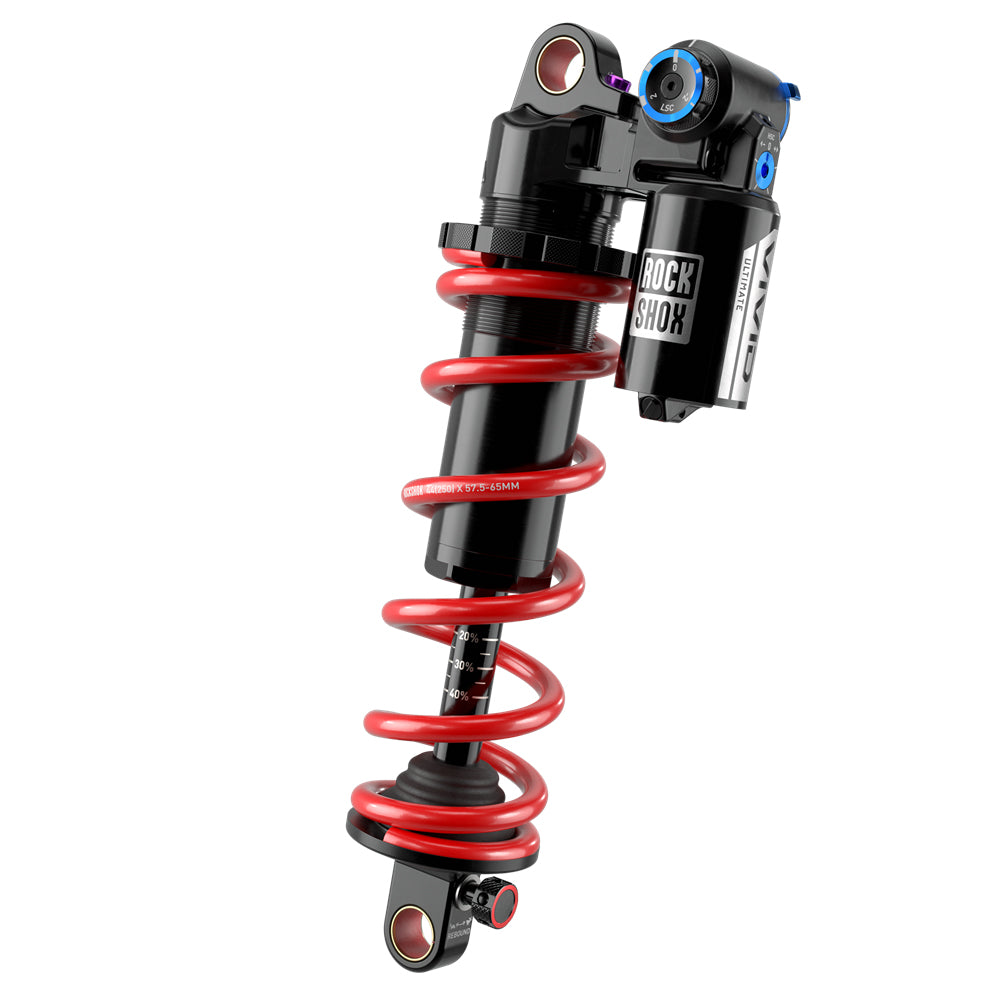

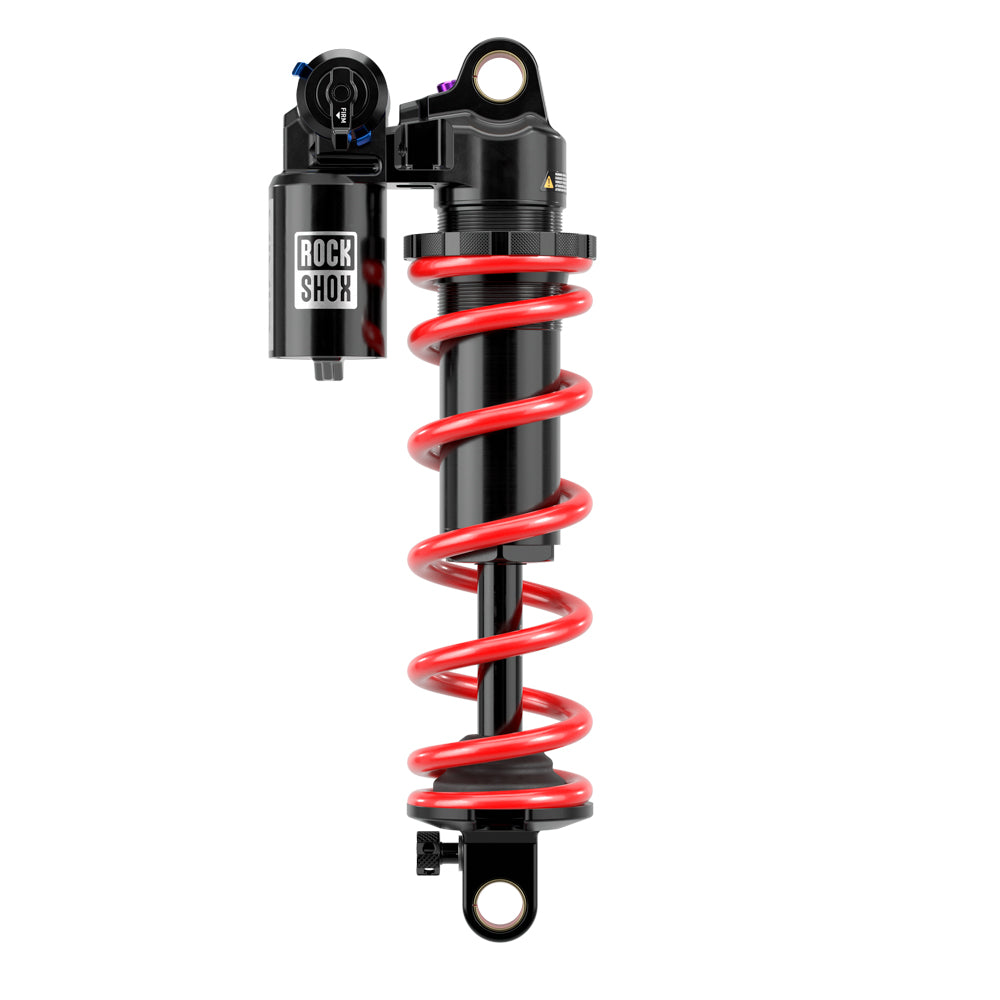

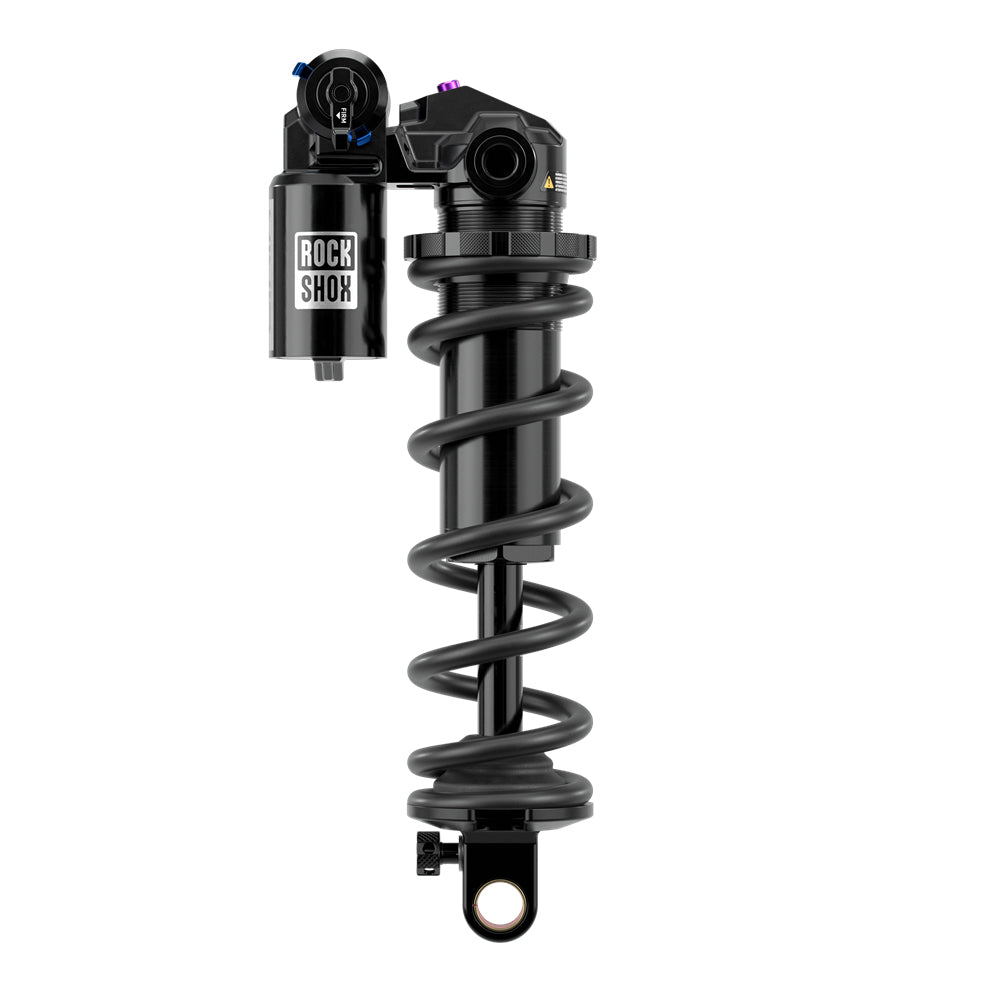

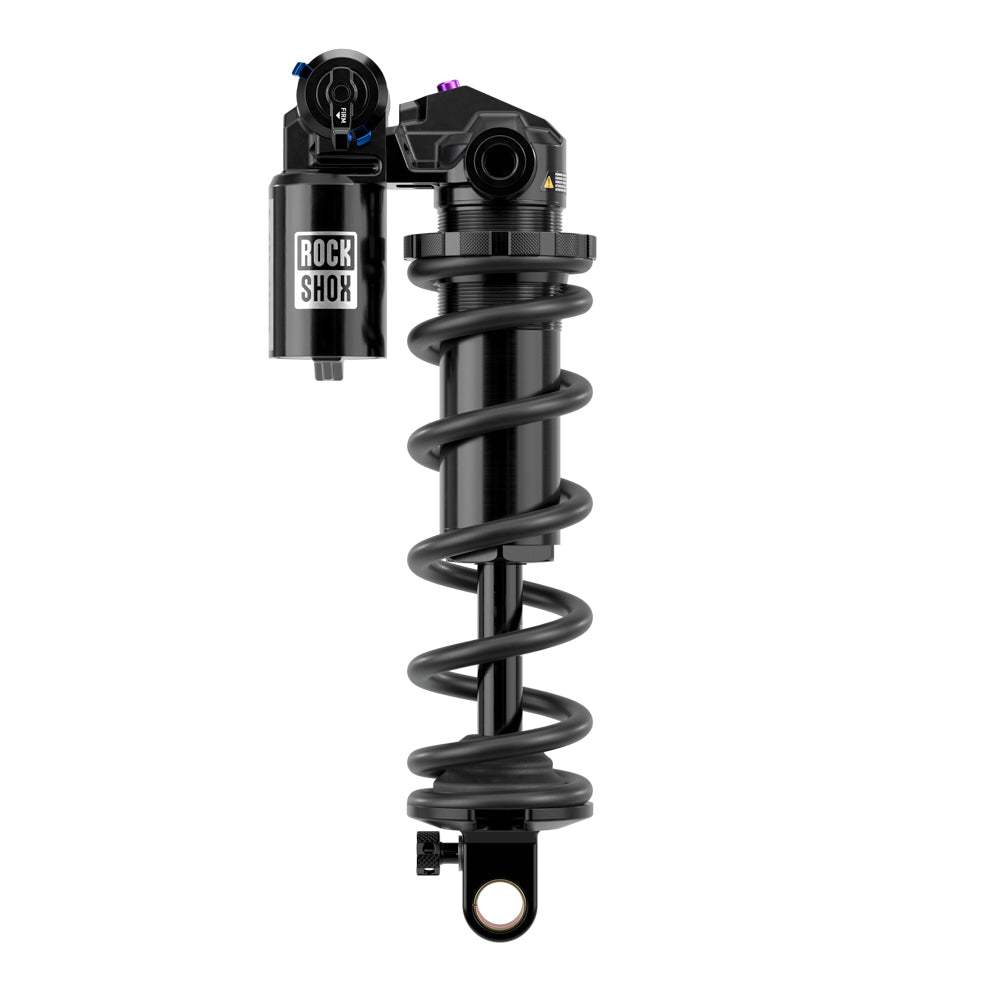

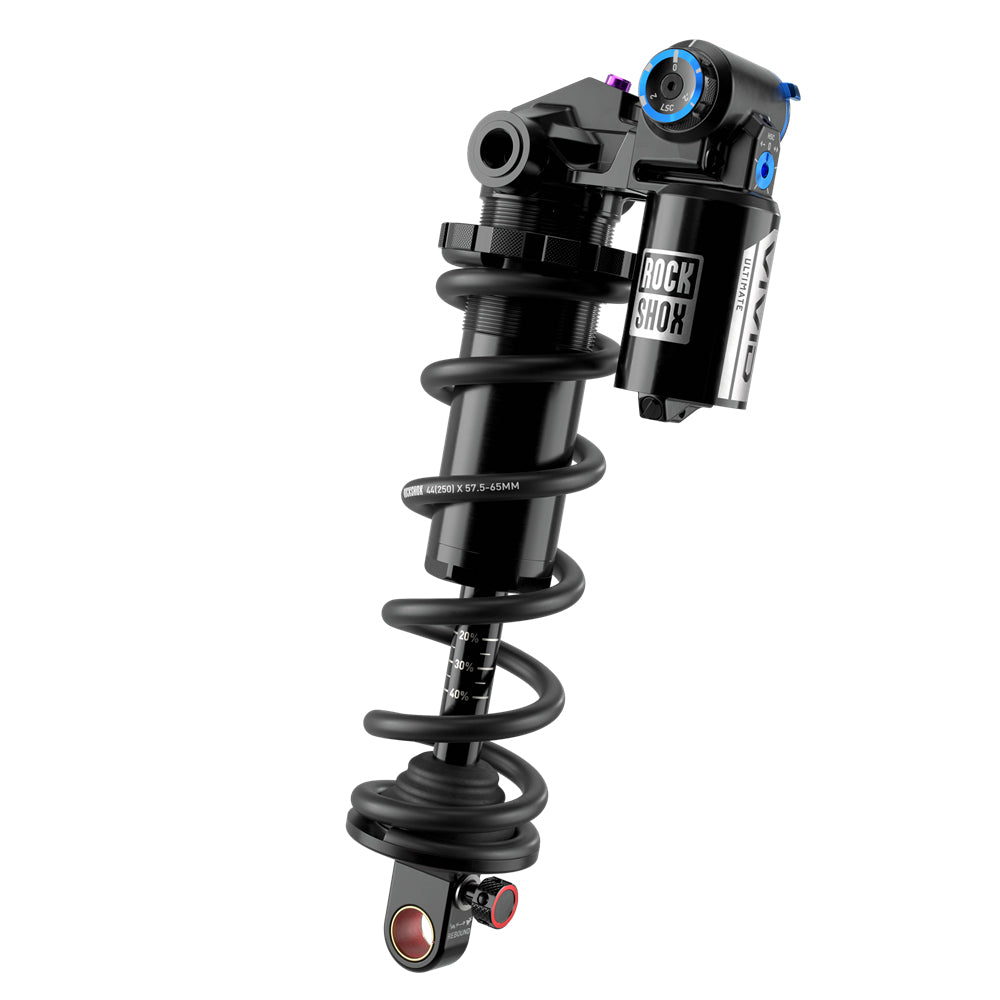

RockShox MY27 Vivid Coil Ultimate

Description

ROCKSHOX VIVID COIL ULTIMATE

There’s a reason everyone loves coil—the feel is unmistakable—supple off the top, supportive through the mid-stroke, and backed by Adjustable Bottom Out (ABO) for confident end-stroke control—giving you unwavering consistency and predictability. Engineered to work as a system with your fork and Charger 3.2 damper, the RC2T damper’s new main piston compression tunes deliver confident mid-stroke support, while intuitive HSC/LSC adjusters make setup fast, clear, and easy to communicate. Distilling decades of coil dominance into a shock built for today’s enduro, E-MTB, and downhill bikes, Vivid Coil Ultimate carries the unmistakable heritage of coil into a new era of performance.

SPECIFICATIONS

Eye to eye / Stroke	185x50(TR), 185x52.5(TR), 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Damper Type	RC2 Adj. Hydraulic Bottom Out
Rebound tune	R25, R55
Compression tune	C26, C34, C37
Lockout force	X25, X45
Shaft Eyelet	No Bushing, Standard, Standard - 180 Deg Rotation
Body Eyelet	Standard, Trunnion
E-Bike Approved	E-bike Approved
Bottom Out	Externally Adjustable Bottom Out
High Speed Tune	n/a

Note: Spring not included

FEATURES

NEW RC2T damper providing a wide, usable range of Low Speed Compression (LSC) and High Speed Compression (HSC) adjustments without any cross-talk
NEW Numbered Compression adjuster for intuitive adjustments—start at "0" and easily add or decrease damping
NEW Base valve with 40% reduction in IFP forces, making it the most supple shock on the market while maintaining perfect traction
NEW Main piston compression tunes matched in performance to the Charger 3.2 damper, focused on providing mid-stroke support

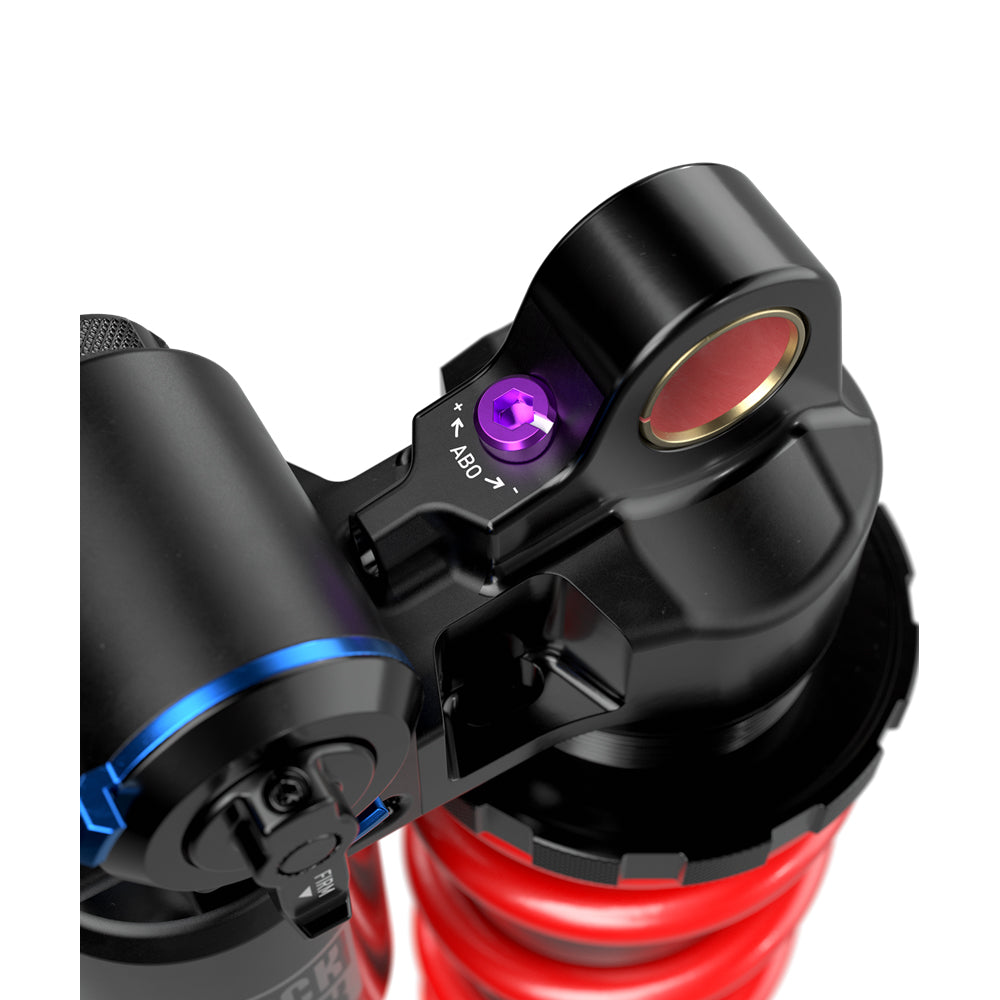

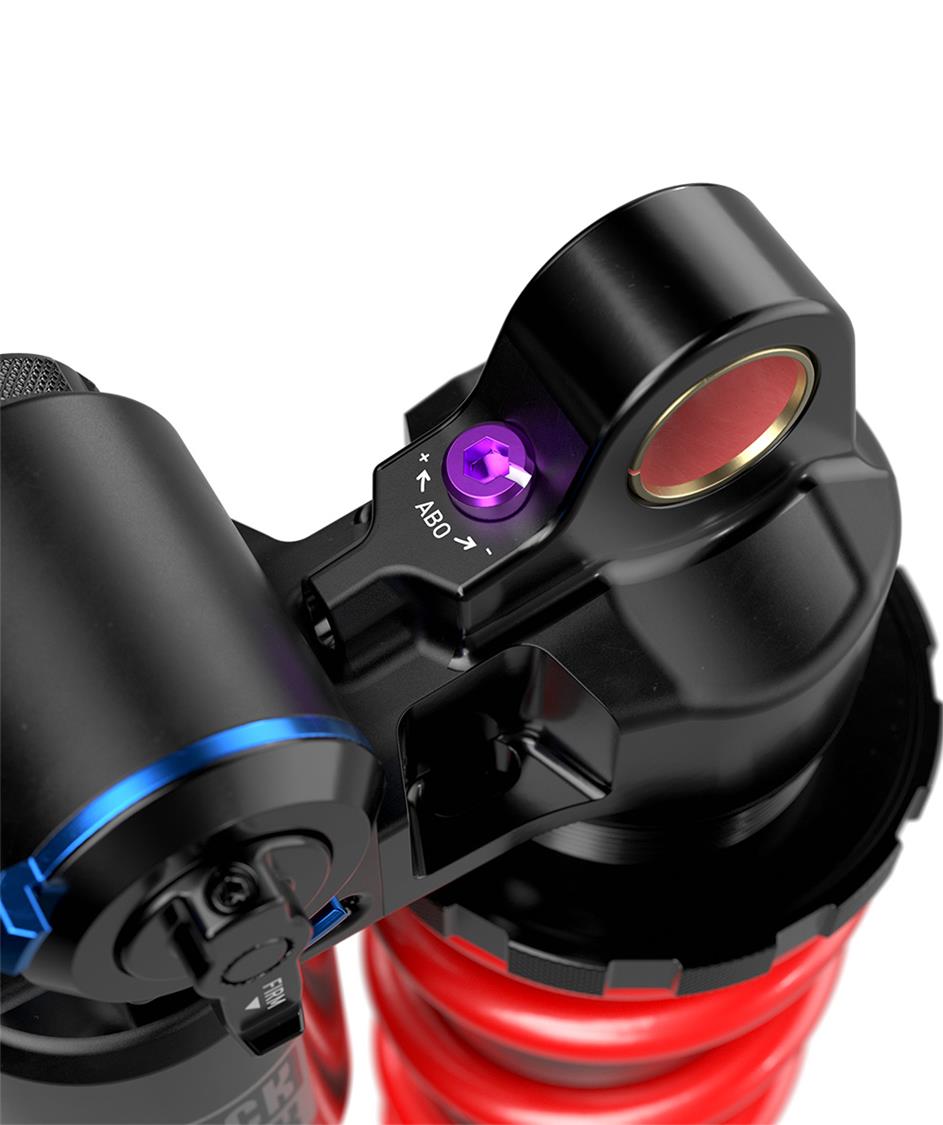

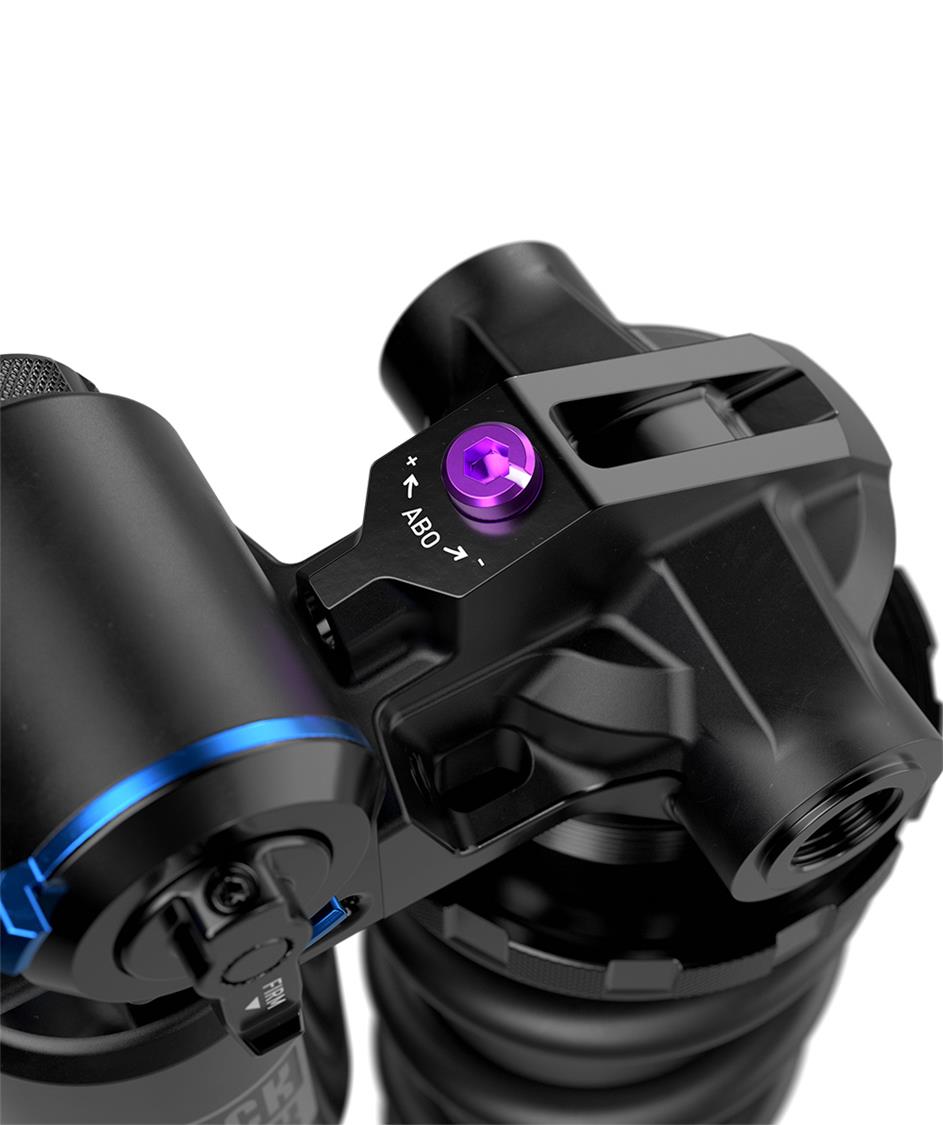

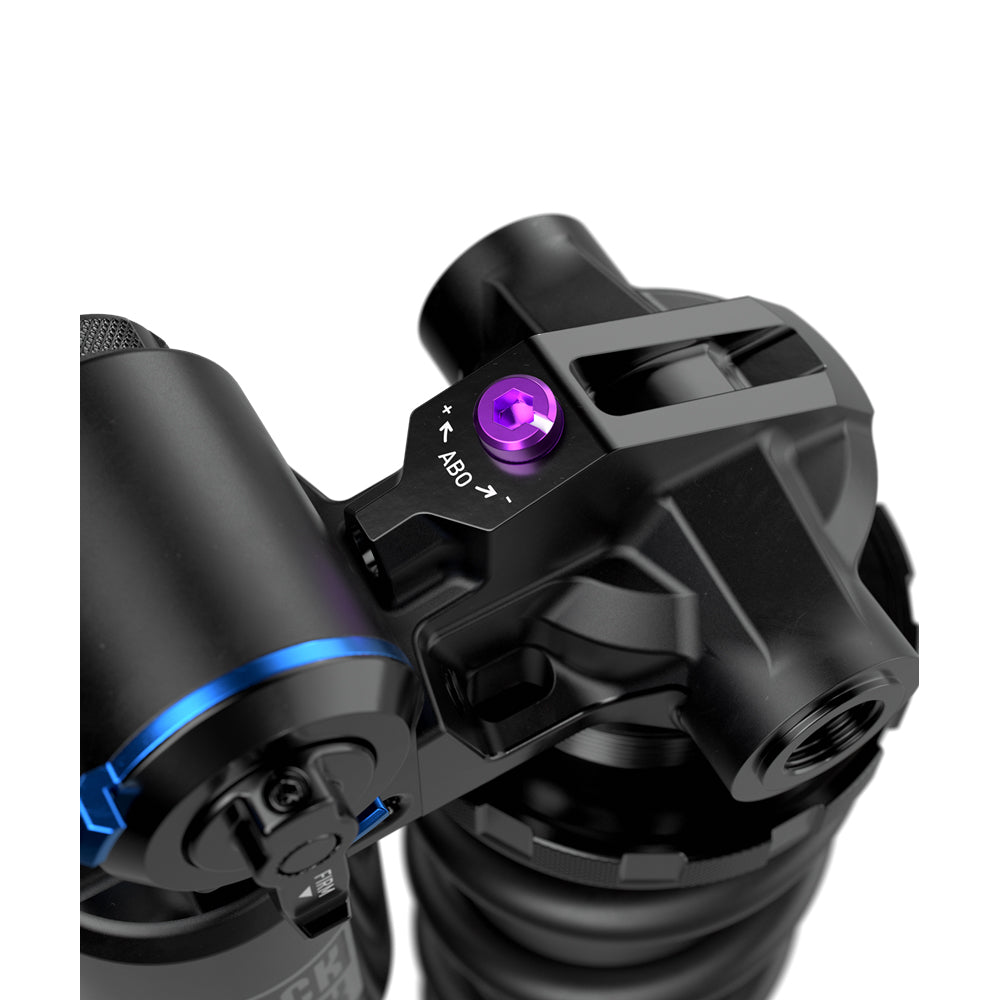

Adjustable Bottom Out (ABO) offers a convenient dial with five different compression settings to customize the cushioning you experience in the last 20% of travel
Removable Rebound knob doubles as HSC and ABO adjuster
20 clicks of Rebound adjustment providing uniform rebound curves paired with a broad adjustment range provide a consistent ride feel for a wide spectrum of rider weights
8x30 Bearing Adapter available for all standard eyelets, sold as an upgrade kit.
