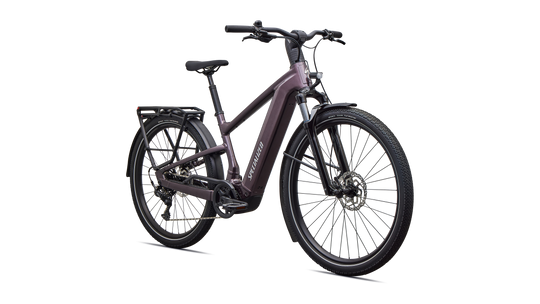

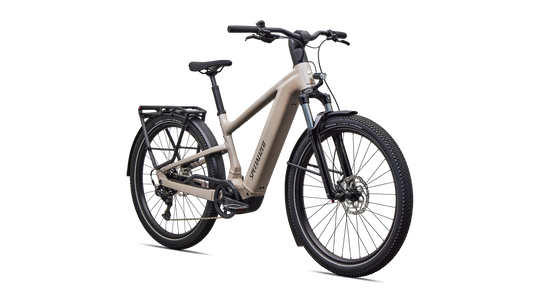

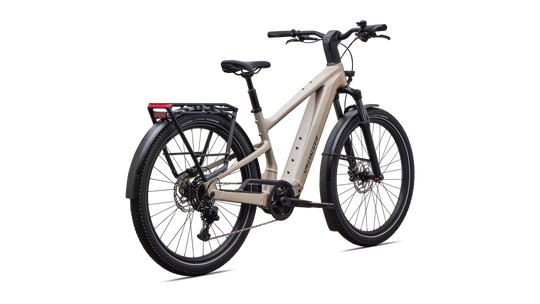

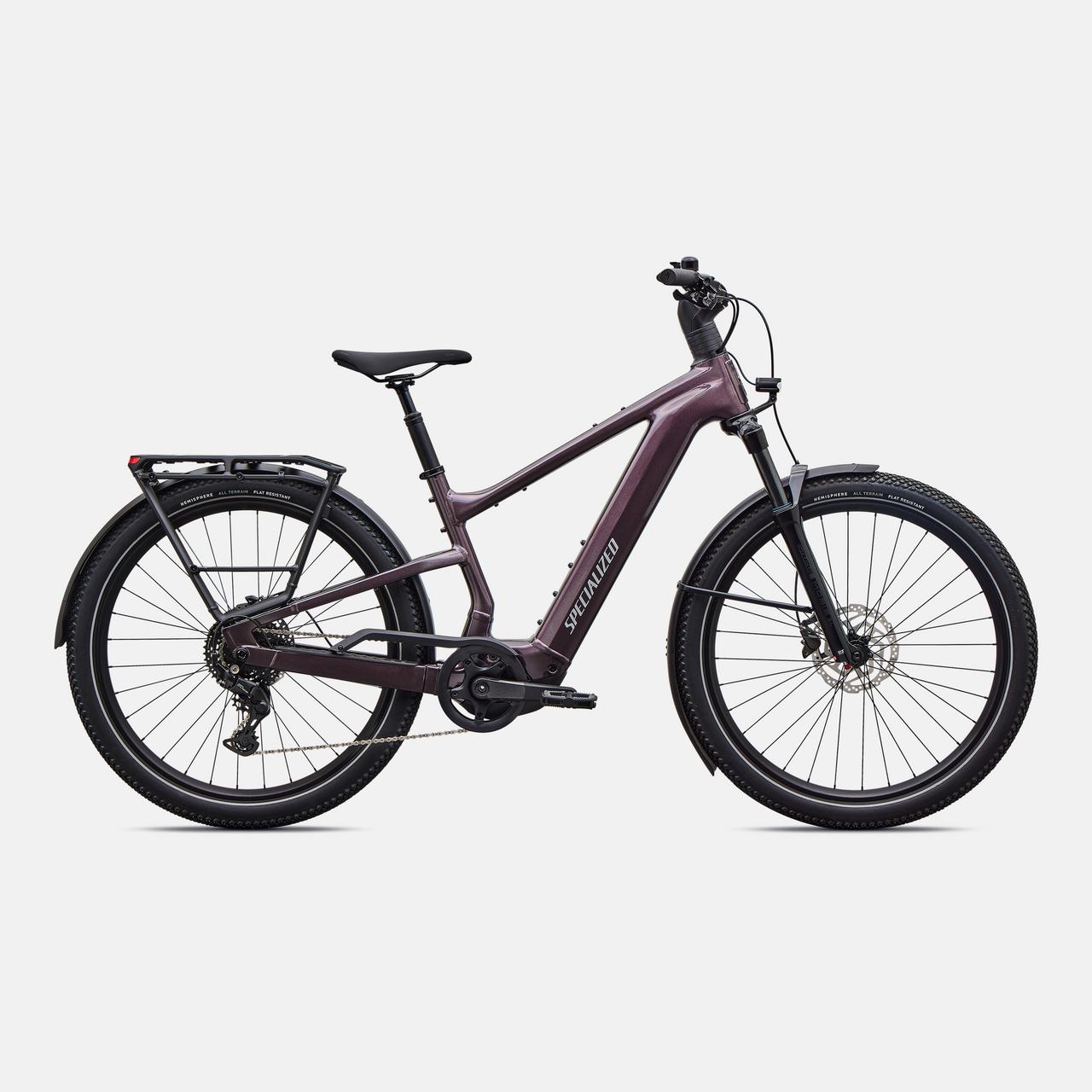

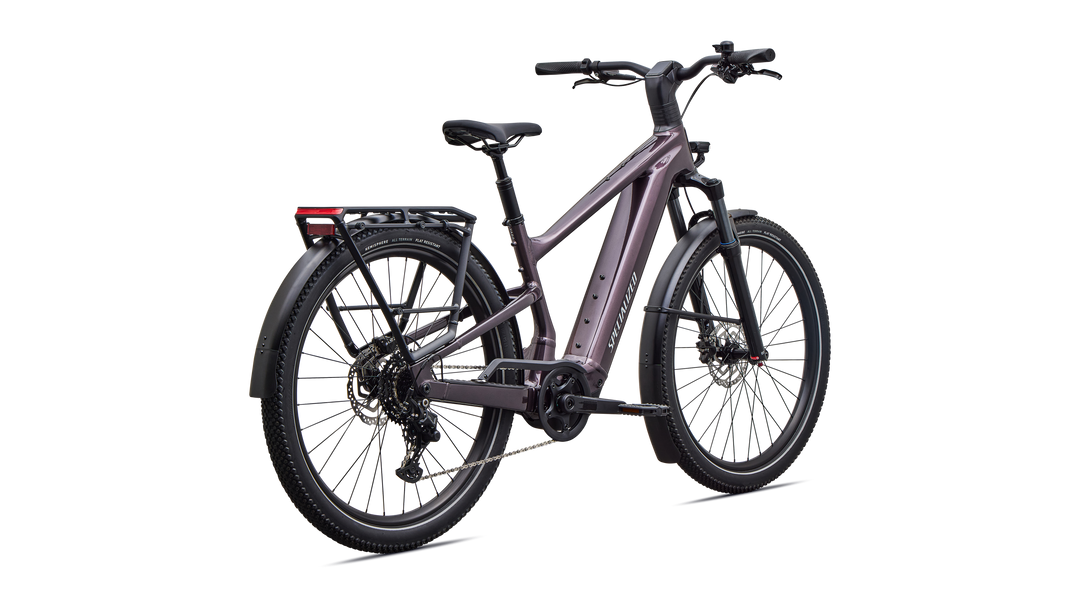

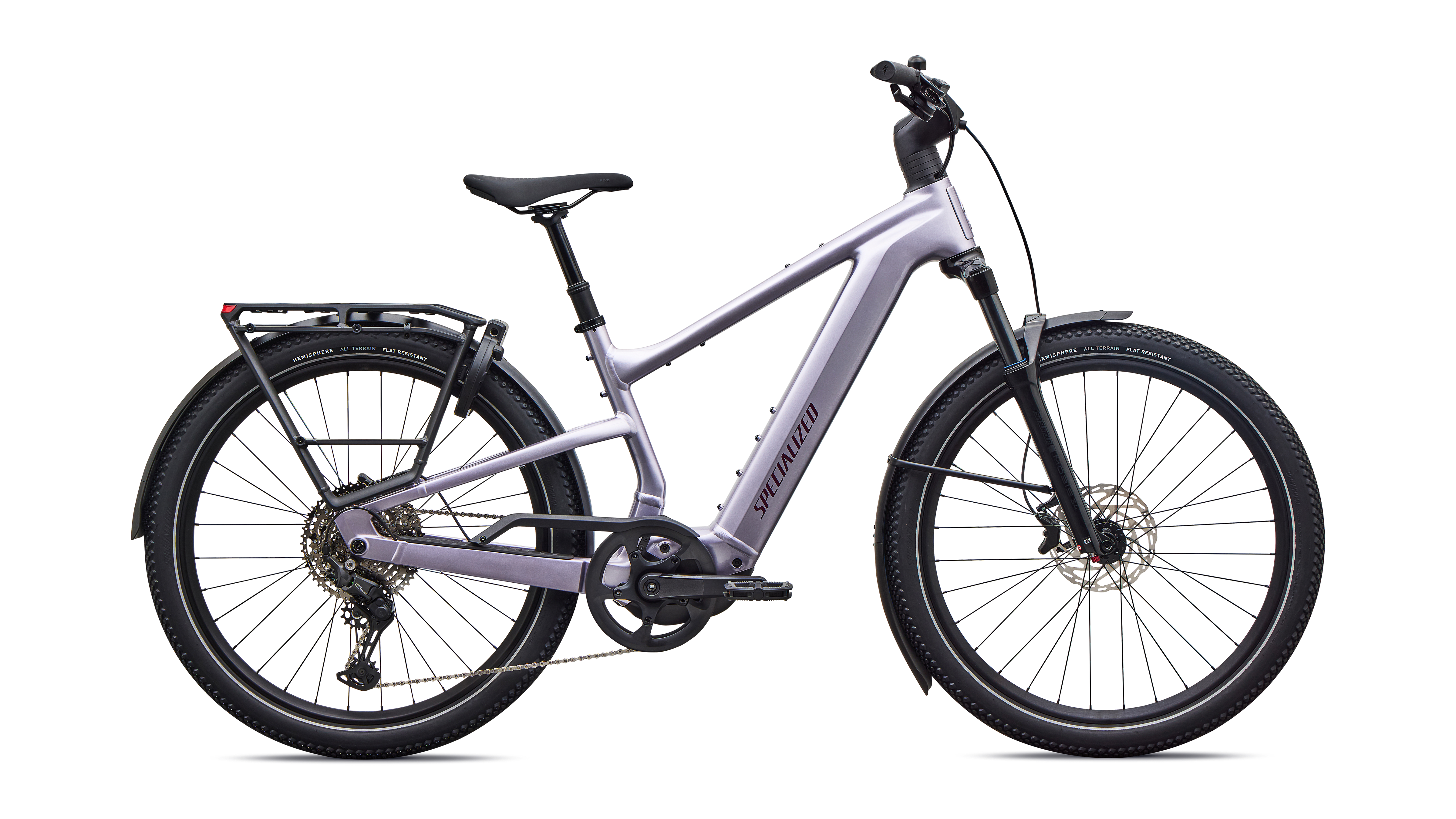

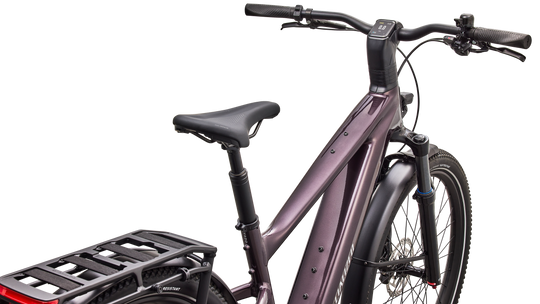

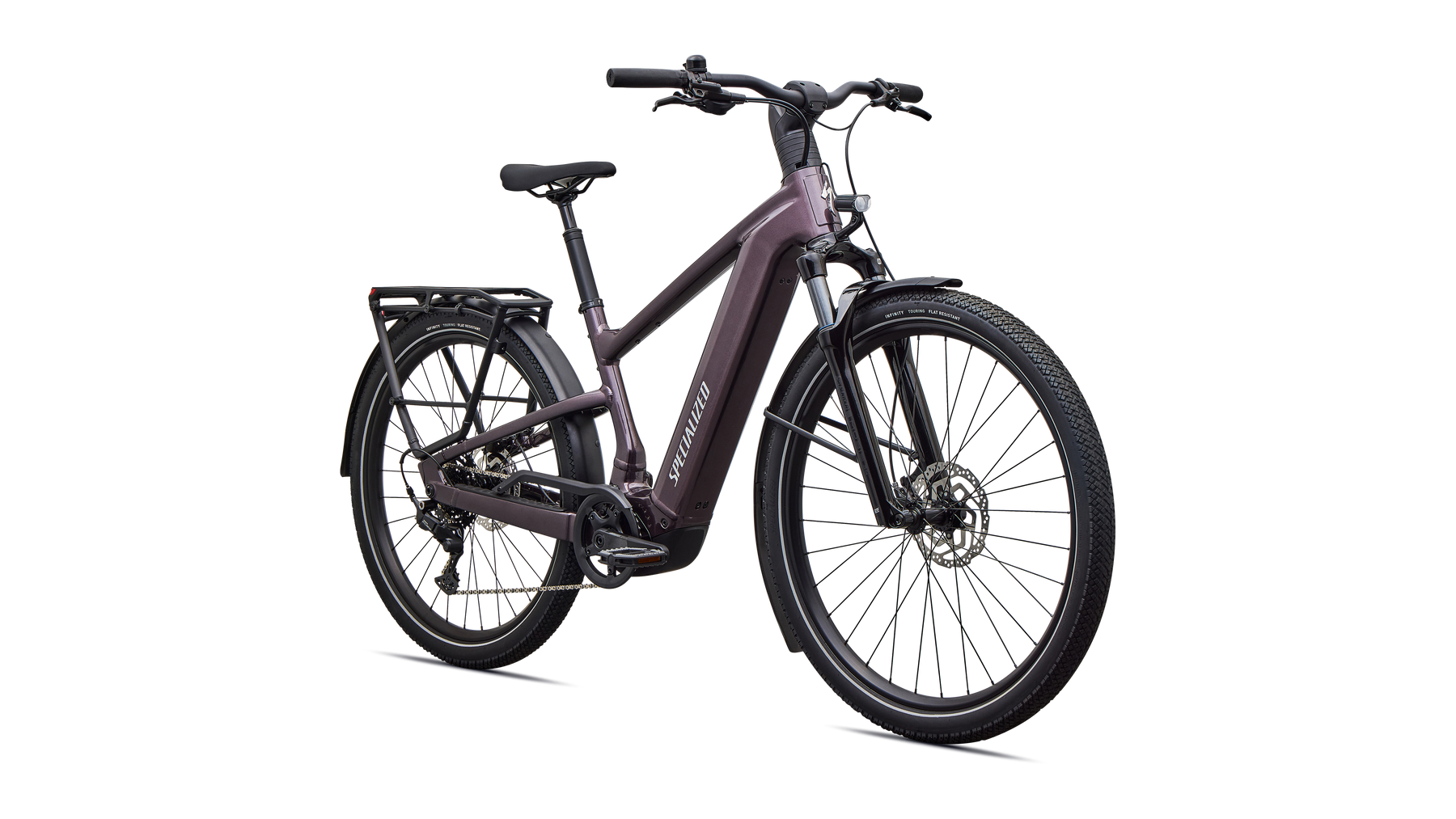

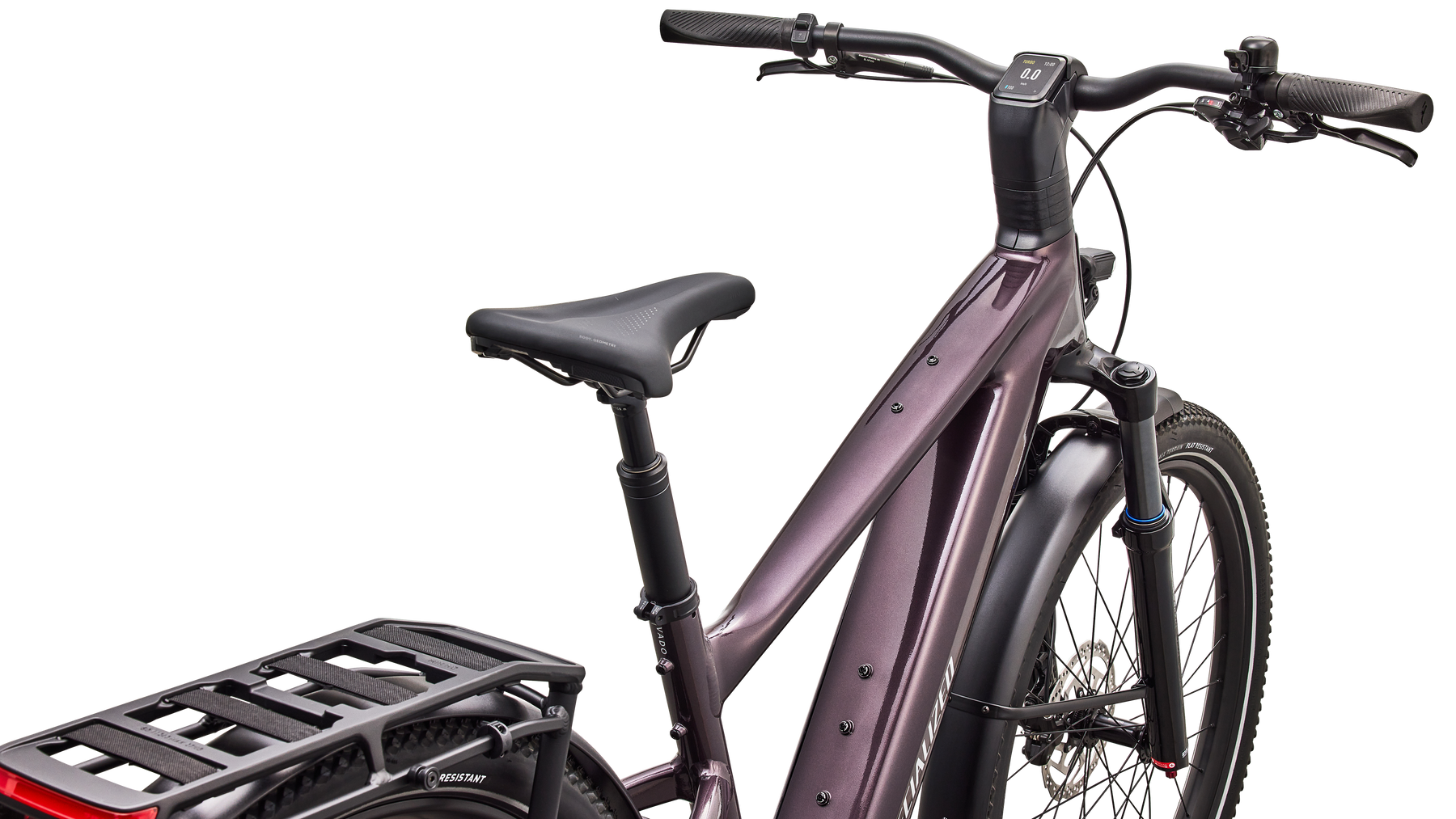

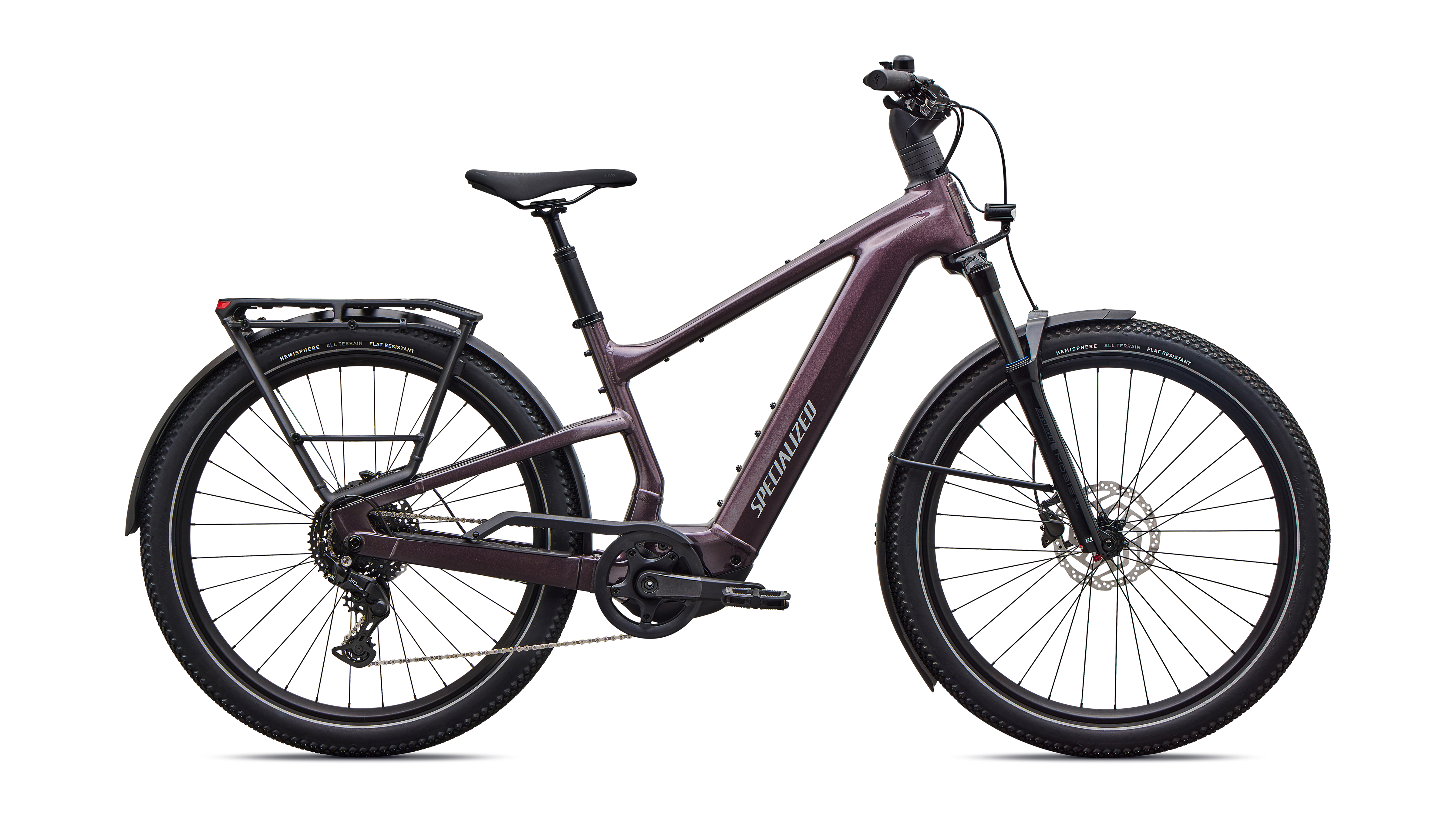

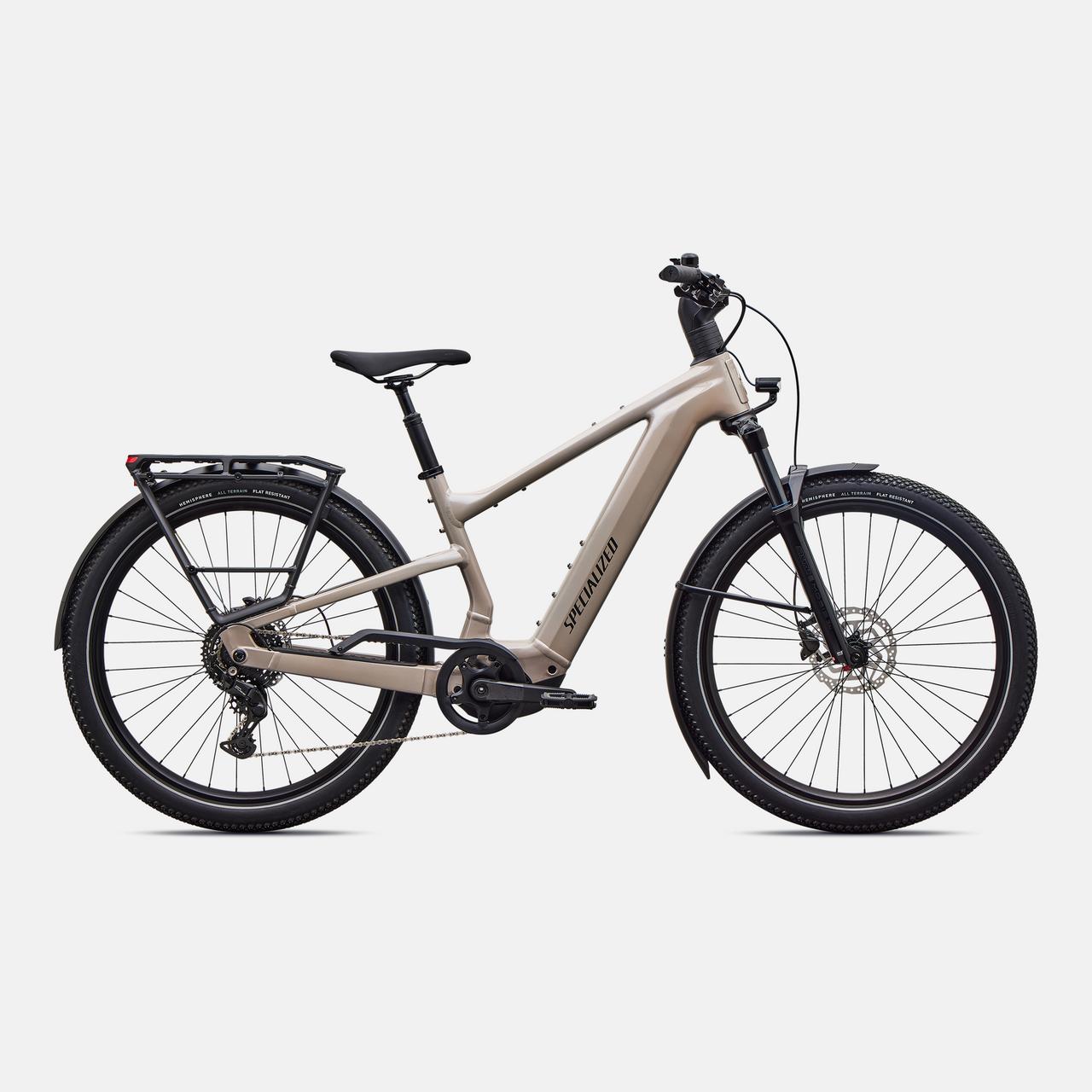

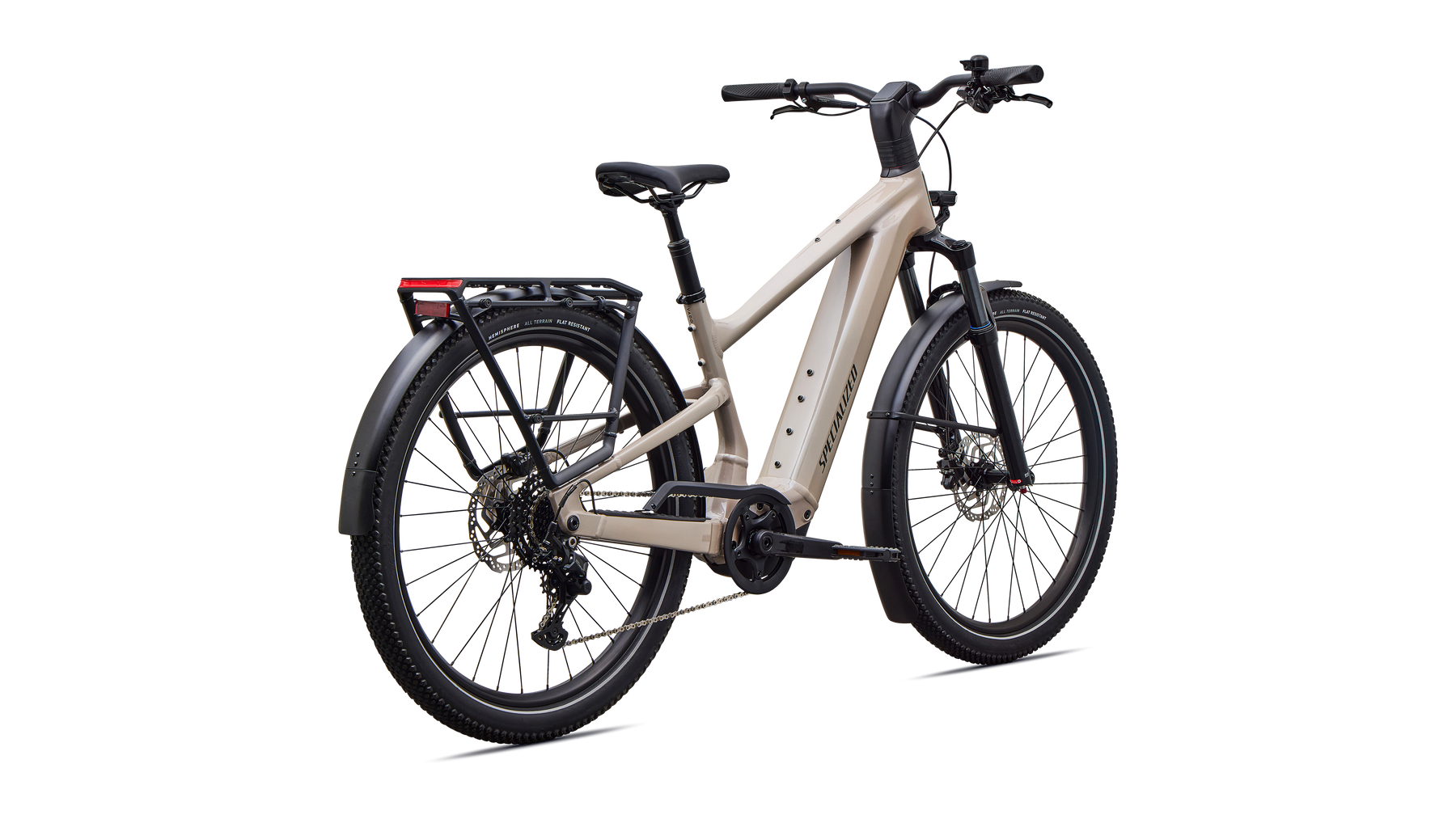

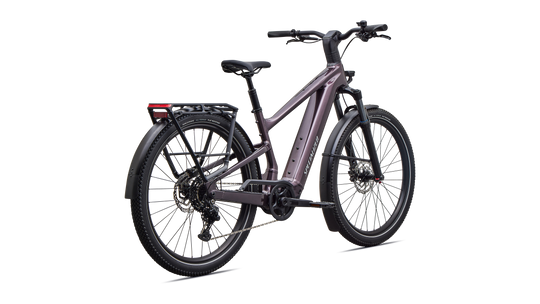

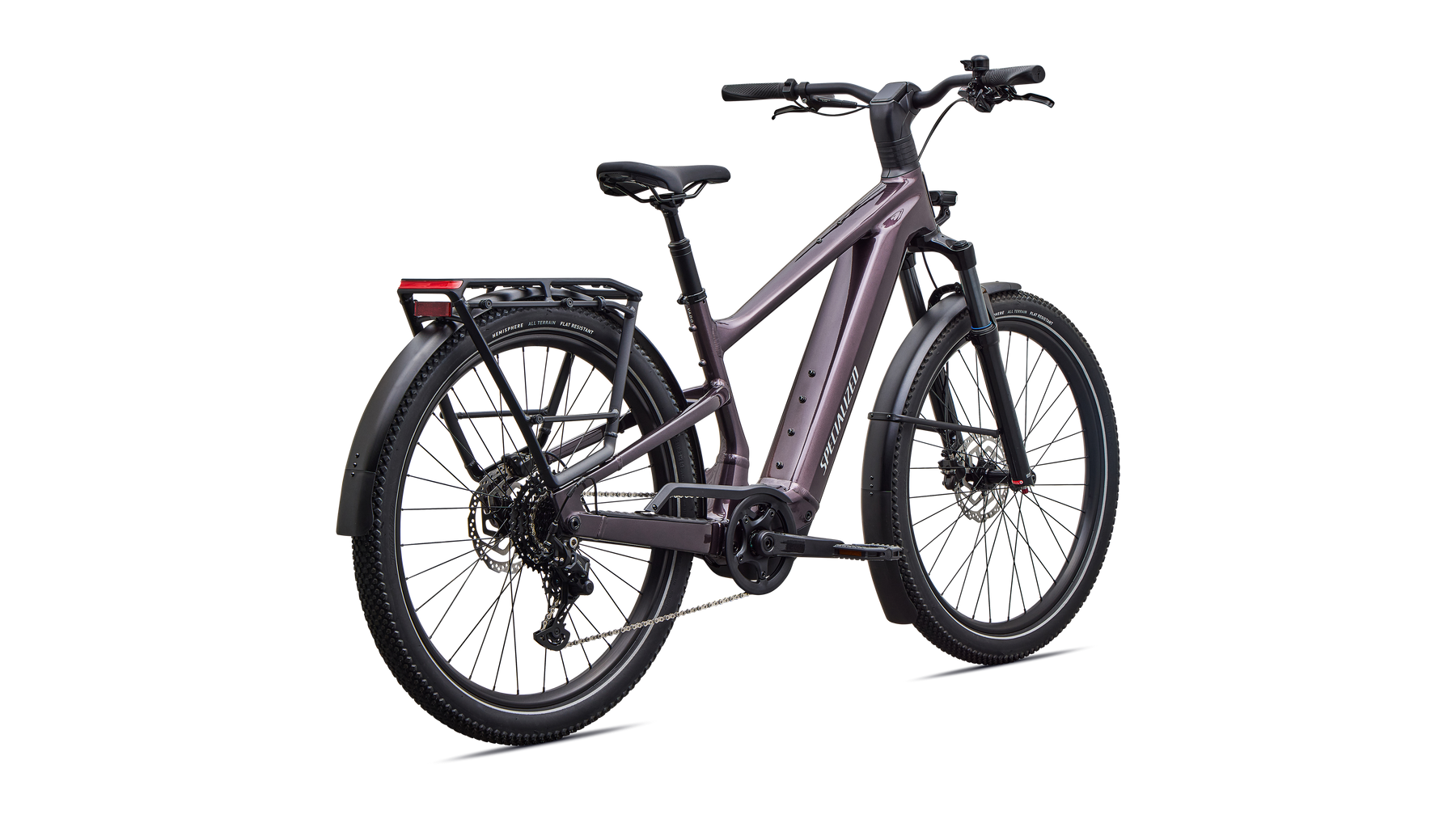

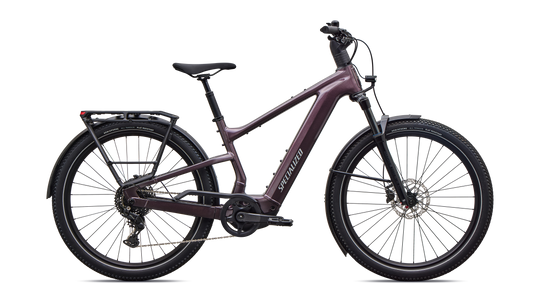

Turbo Vado 3 EVO 4.0
You’re Going to Need a Bigger Map
For riders who go farther and roam wider, the Vado 3 EVO elevates everyday riding with more capability, more confidence, and more comfort. From fast city routes to rougher roads and spontaneous detours, it delivers effortless power that moves as naturally as you do—thanks to Levo 4's SuperNatural DNA with instinctive response and incredible ride-anywhere range. With its class-leading features like our Turbo System Lock and built-in Apple Find My, Vado 3 EVO keeps every ride calm, composed, and in control, whatever your day brings. The art of arrival - perfected.
E-bike
- Battery
- 840Wh battery

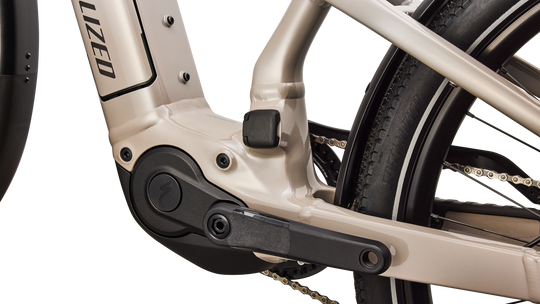

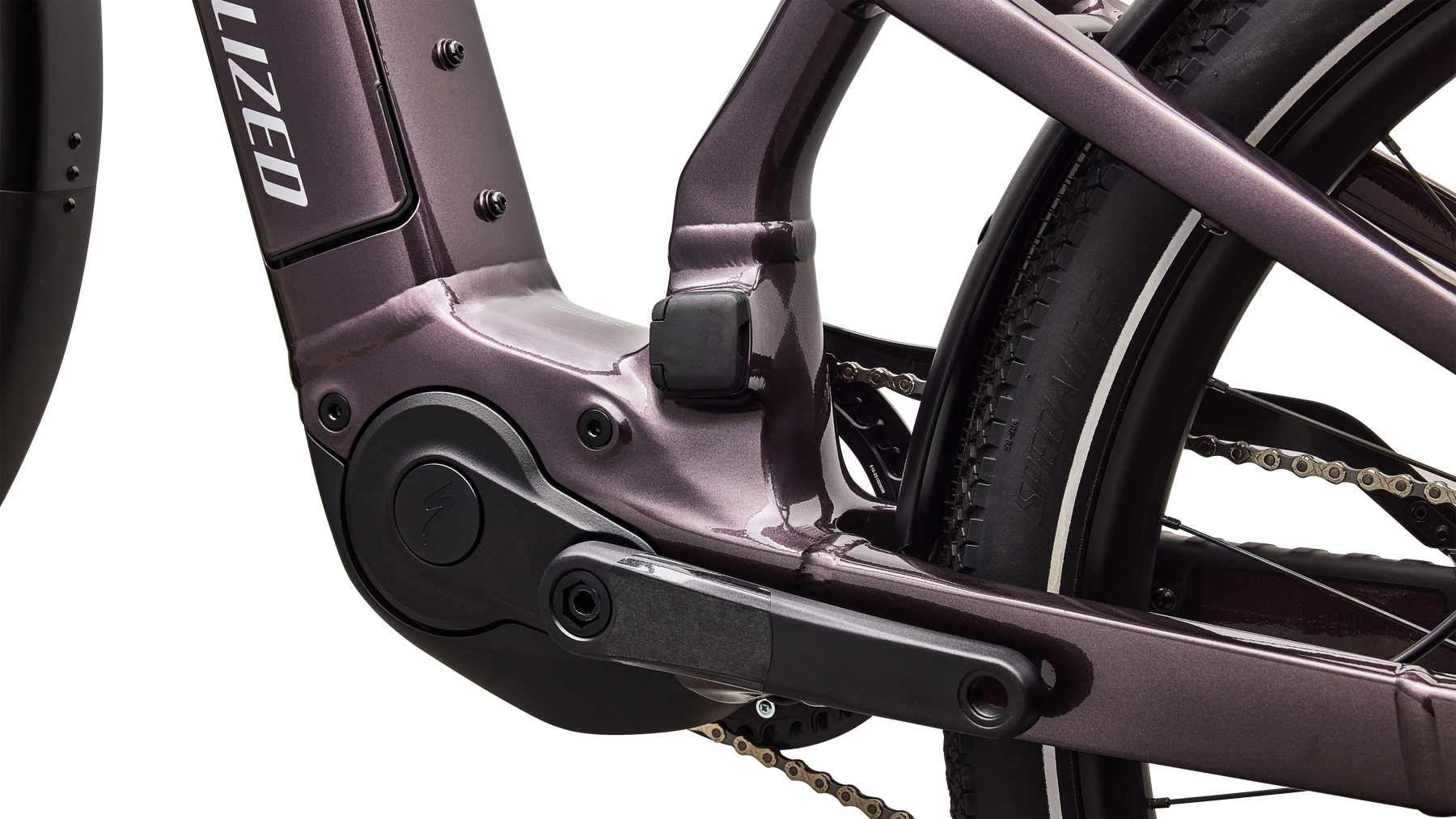

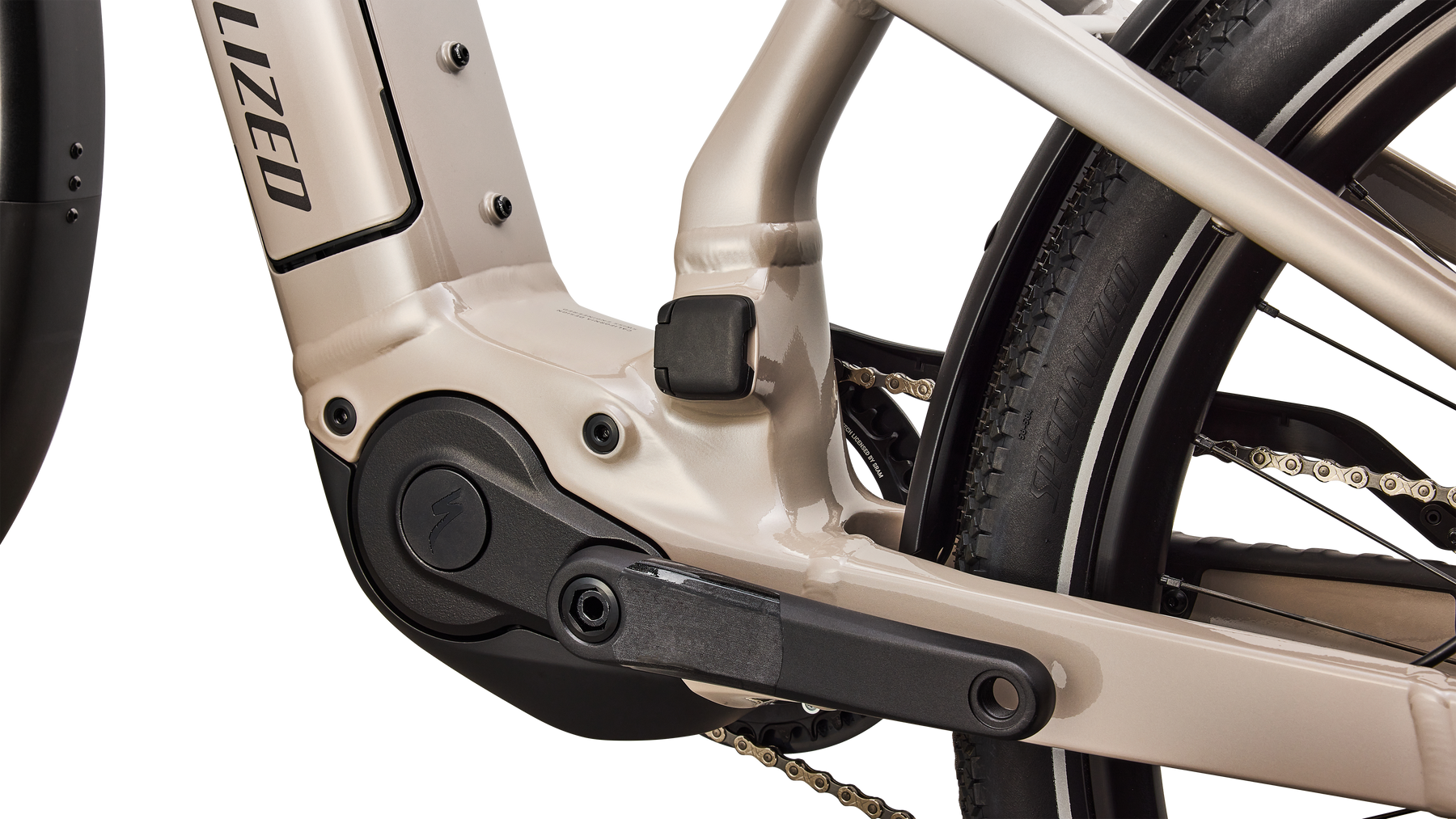

- Motor

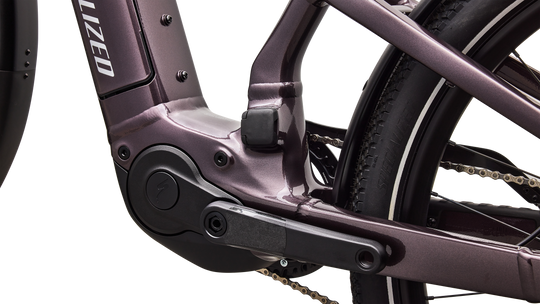

- Specialized 3.1 Motor, 105Nm torque, 810W power
- Charger
- Specialized 4amp charger
- UI/Remote
- Turbo Ergonomic remote
Frameset
- Seat Binder
- Alloy, 38.6mm
- Frame
- Vado 3 frame, comfort optimized geometry, side entry battery
Suspension
- Fork
- SR Suntour suspension fork, 120MM of travel (100MM size S), Stanchion 34MM, 15MM Thru axle, 27.5" wheel
Brakes
- Front Brake
- Shimano BR-MT200, hydraulic disc, 180mm
- Rear Brake
- Shimano BR-MT200, hydraulic disc, 180mm
Drivetrain
- Crankset
- 170mm, 55mm Chainline, w/BCD 110mm, NW 40T, w/ Chain Guard
- Chainrings
- 40 Teeth with Chain Retention Technology
- Chaincase
- Vado 3 Custom Chaincase
- Chain
- KMC eGlide for 11-Speed CUES
- Rear Derailleur
- Shimano CUES 9-Speed
- Shift Levers
- Shimano CUES 9-Speed with Optical Gear Display
- Cassette
- Shimano CUES 9-speed, 11-41t
Wheels & tires
- Rims
- 29 front, 27.5 rear, 30mm inner width, 32h
- Spokes
- DT Swiss Elemental
- Inner Tubes
- Reinforced anti flat 27.5X2.5/2.7, Schrader valve 60MM
- Rear Hub
- Shimano Freehub, Center Lock Disc
- Front Hub
- Shimano, center lock disc
- Front Tire
- Specialized Hemishpere Flat Resistant ALLTERRAIN Reflect 27.5X2.6
- Rear Tire
- Specialized Hemishpere Flat Resistant ALLTERRAIN Reflect 27.5X2.6
Cockpit

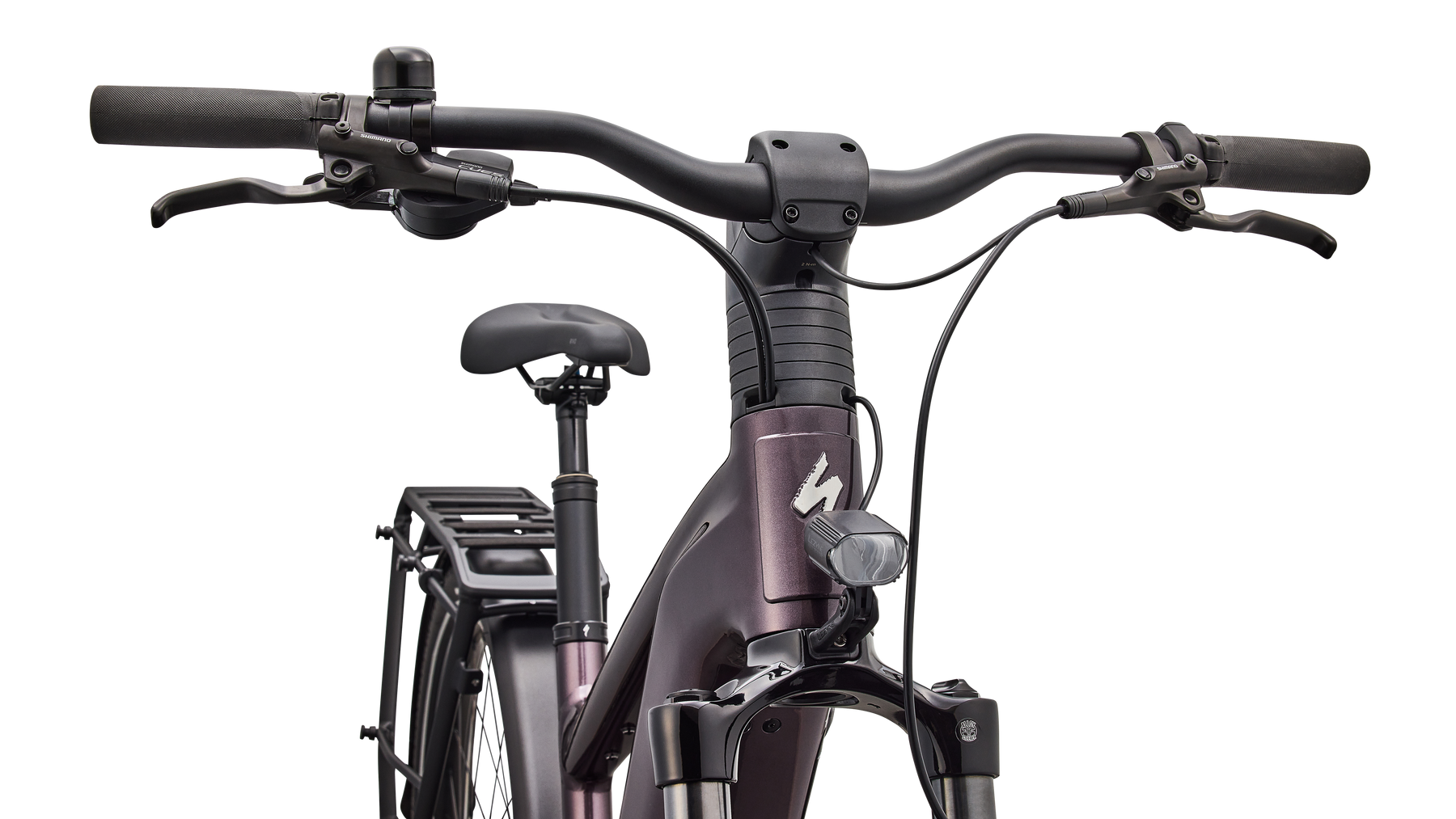

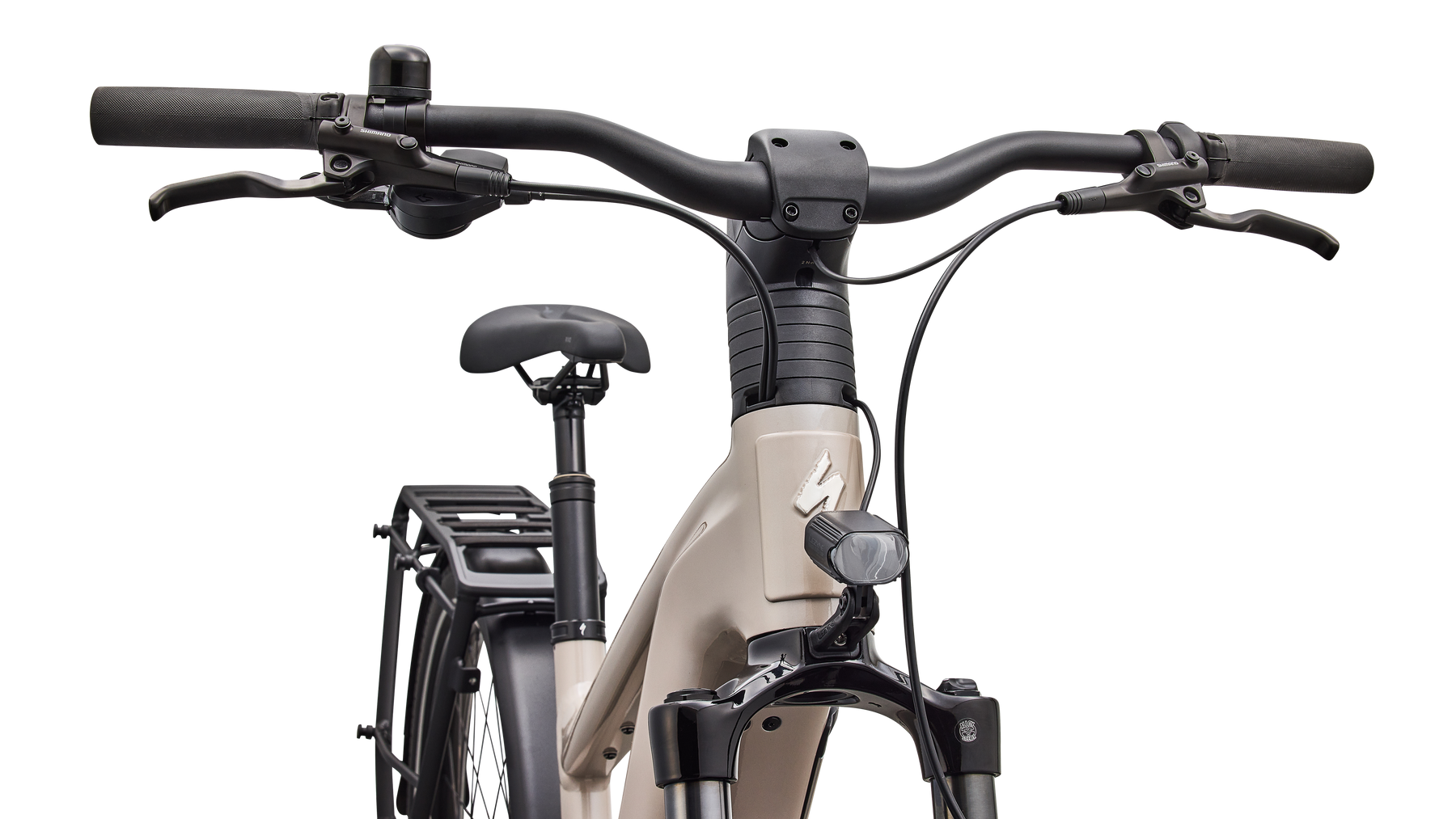

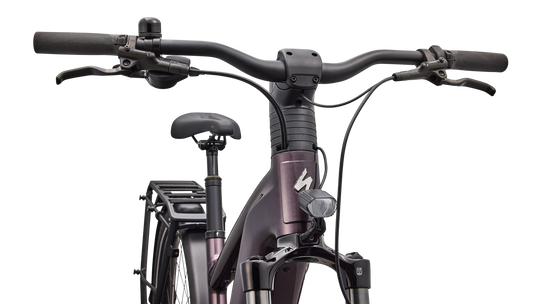

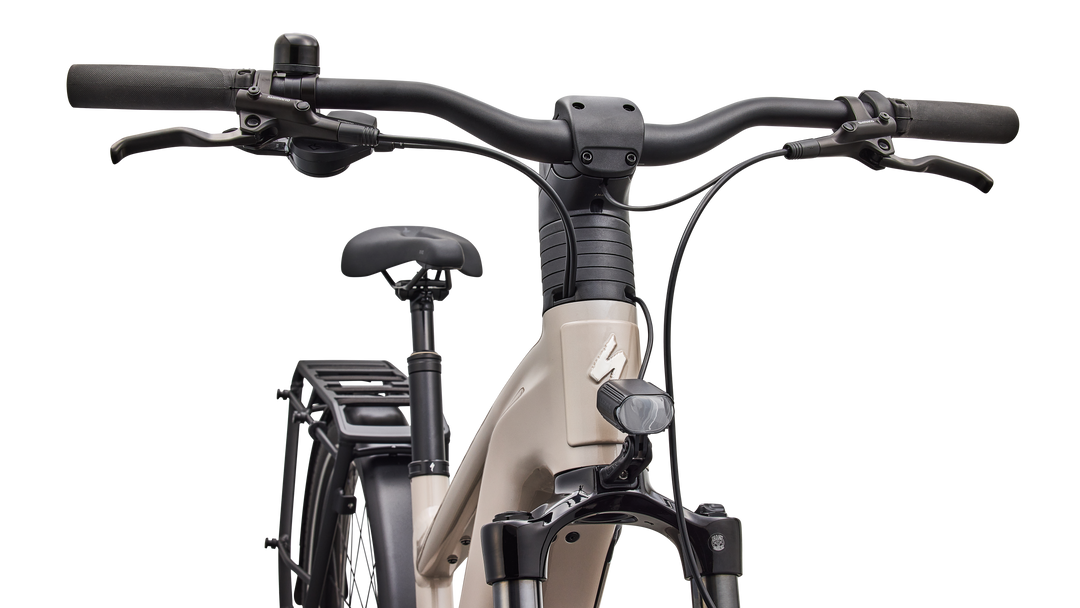

- Handlebars
- Alloy, Rise 34.4MM,31.8MM, Back Sweep 13°, Up Sweep 7.8°, Bar End 22.2MM, 690-730MM
- Saddle
- Body Geometry, Rivo 2 Gel,168MM
- Stem

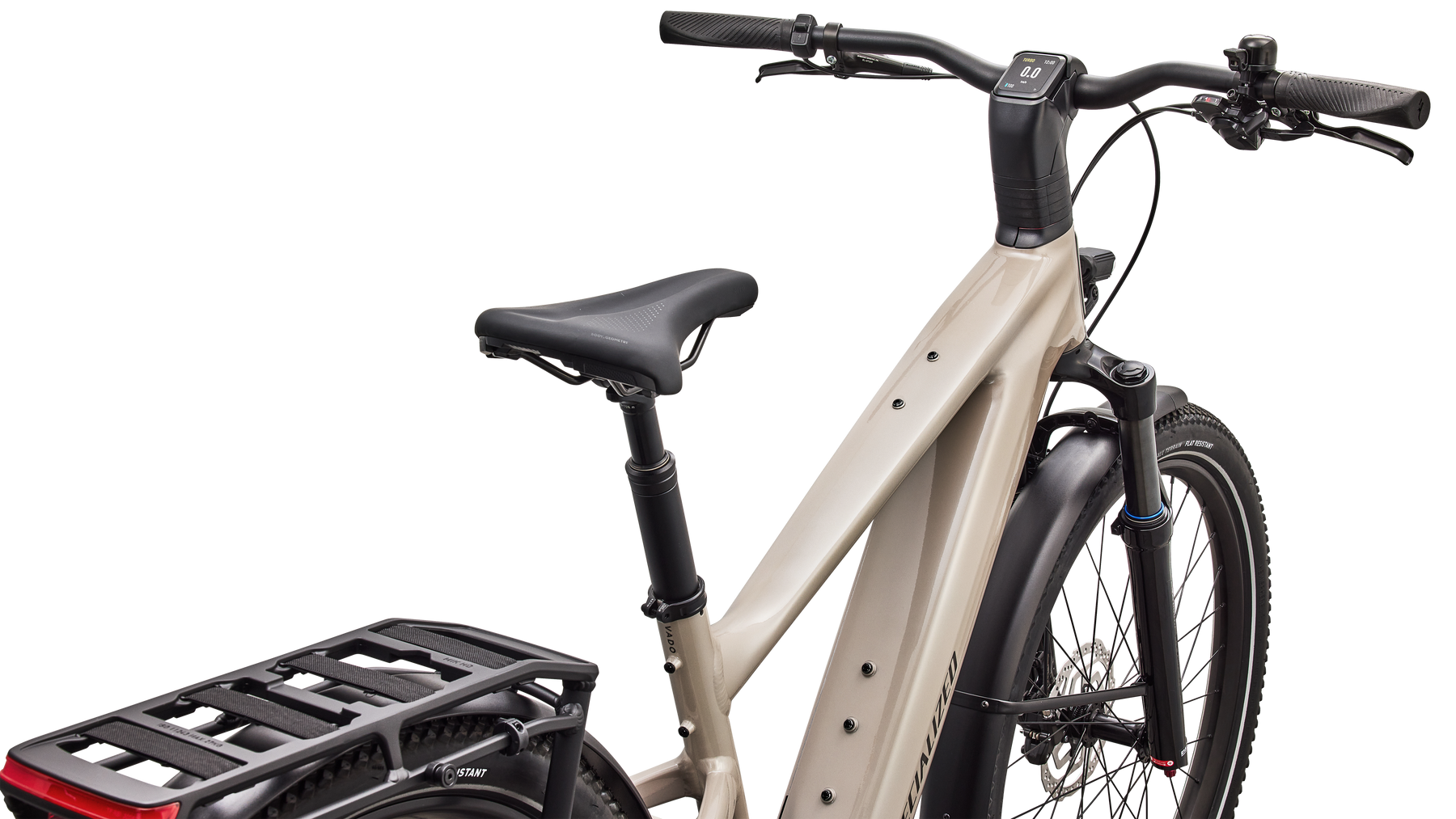

- Stem w/ integrated Colored Display & USB-C Phone charger, 31.8MM
- Grips
- Specialized Body Geometry
- SeatPost
- Suspension, 40mm travel, 34.9mm
Accessories
- Bell
- Bell
- Fenders
- Vado 3 Custom Alloy Profile Fenders
- Headlight
- Lezyne Stvzo E500+ 500lm, Fork Mounted
- Kickstand
- Vado 3 Custom Kickstand, With Adjustable Shoe

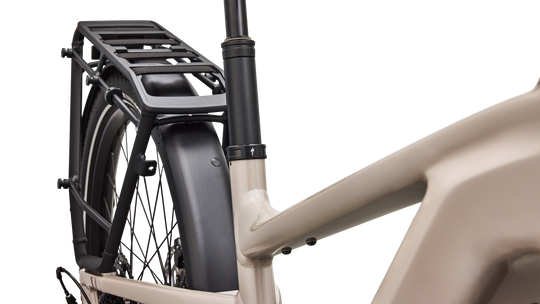

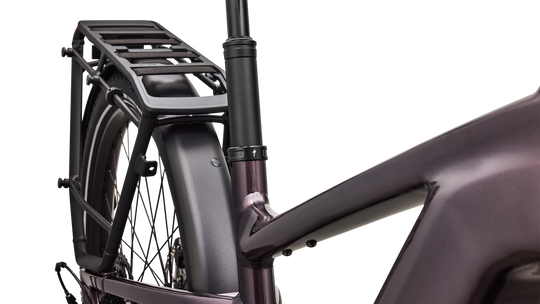

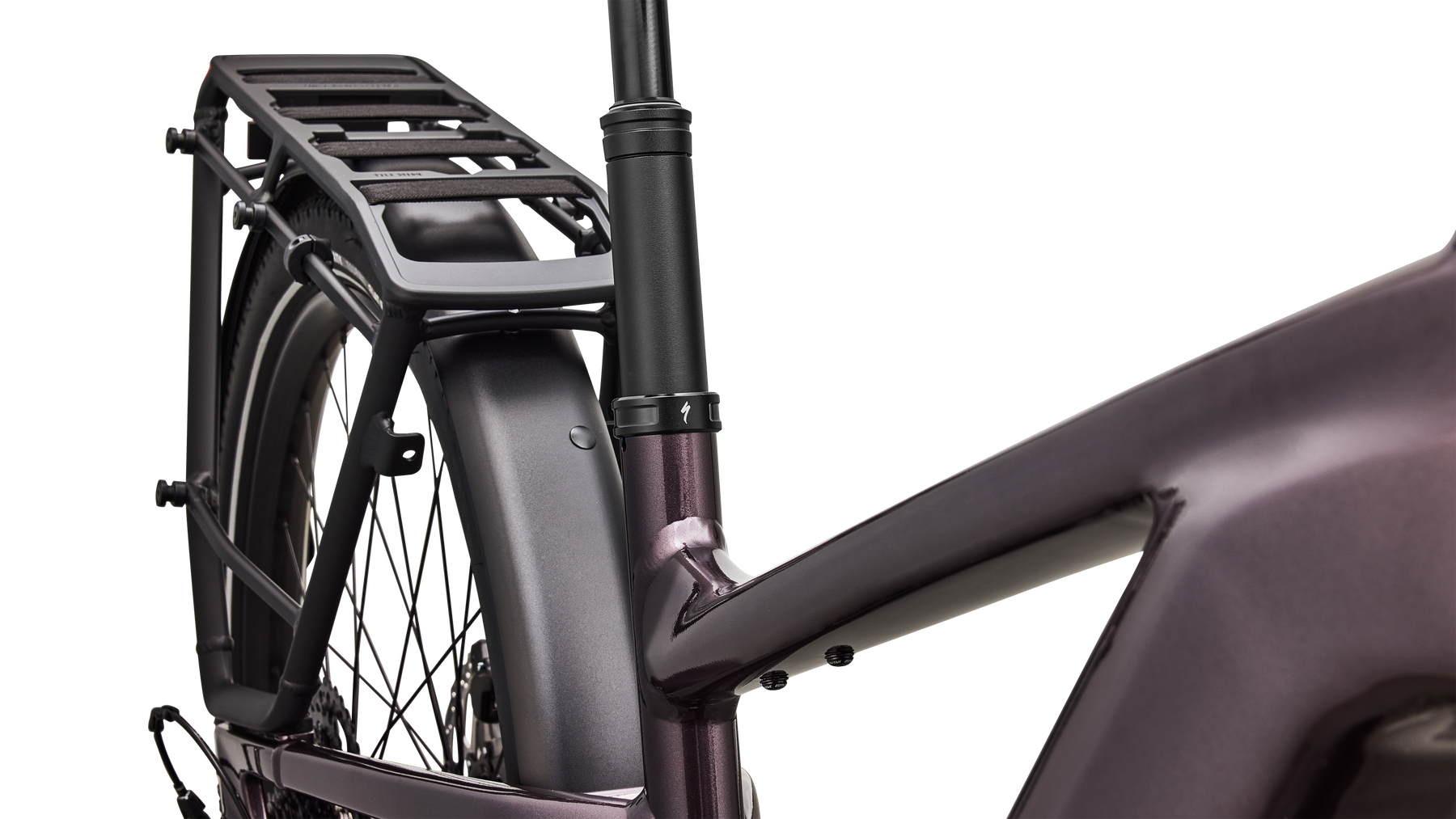

- Rack

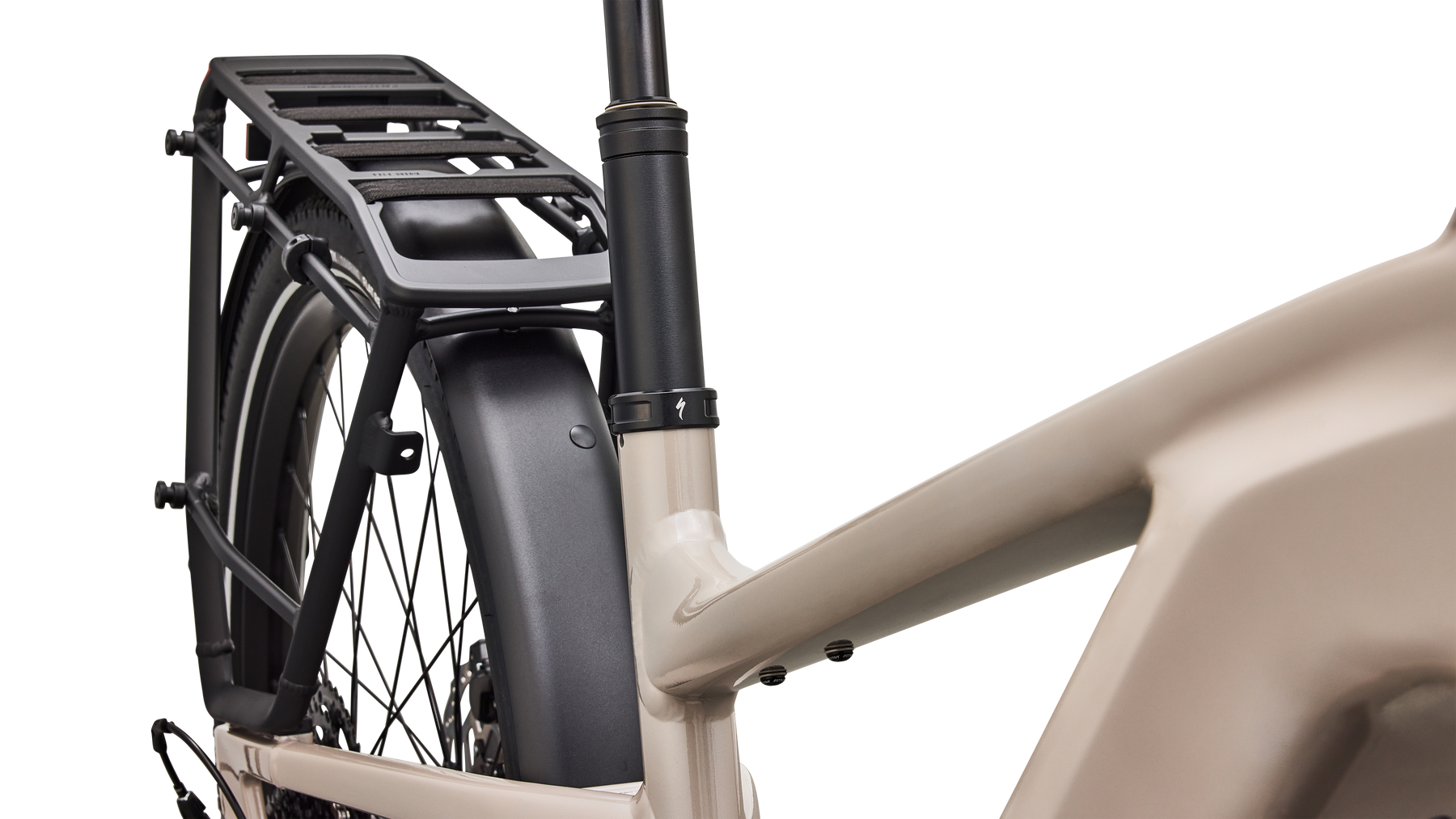

- Vado 3 Custom Seatstay Mounted MIK HD Rack, 27Kg Max Load
- Taillight
- Spanninga Rack Integrated Rear Light With Brake Light
- Bike Lock
- Mechanical Battery Lock With Key
- SWAT
- MIK HD 27.5 Kg rear rack with integrated elastics, MIK front rack 10kg compatible (not included)
- Pedals
- Turbo Pedals, anti-slip
Weight
- Weight
- 28.7 kg (63 lb, 4.4 oz)
- Weight Size
- MD
| SM | MD | LG | XL | |
| Crank Length | 170 | 170 | 170 | 170 |
| Handlebar Width | 730 | 730 | 730 | 730 |
| Stem Length | 60 | 60 | 60 | 60 |
| Saddle Width | 168 | 168 | 168 | 168 |
| Seatpost Length | 300 | 350 | 400 | 400 |
| Stack | 636 | 645 | 659 | 682 |
| Reach | 430 | 450 | 470 | 485 |
| Head-Tube Length | 135 | 120 | 135 | 160 |
| Head-Tube Angle | 67 | 68 | 68 | 68 |
| B-B Height | 293.5 | 293.5 | 293.5 | 293.5 |
| B-B Drop | 66.5 | 66.5 | 66.5 | 66.5 |
| Trail | 105 | 98 | 98 | 98 |
| Fork Length (full) | 501 | 521 | 521 | 521 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 |
| Front-Center | 772 | 734 | 460 | 784 |
| Chain-Stay Length | 470 | 470 | 470 | 470 |
| Wheelbase | 1185 | 1197 | 1222 | 1247 |
| Top-Tube Length (horizontal) | 612 | 635 | 659 | 681 |
| Bike Stand-Over Height | 768 | 806 | 821 | 854 |
| Seat-Tube Length | 385 | 440 | 460 | 500 |
| Seat-Tube Angle | 74 | 74 | 74 | 74 |
