E-bike
- Battery
- 840Wh battery

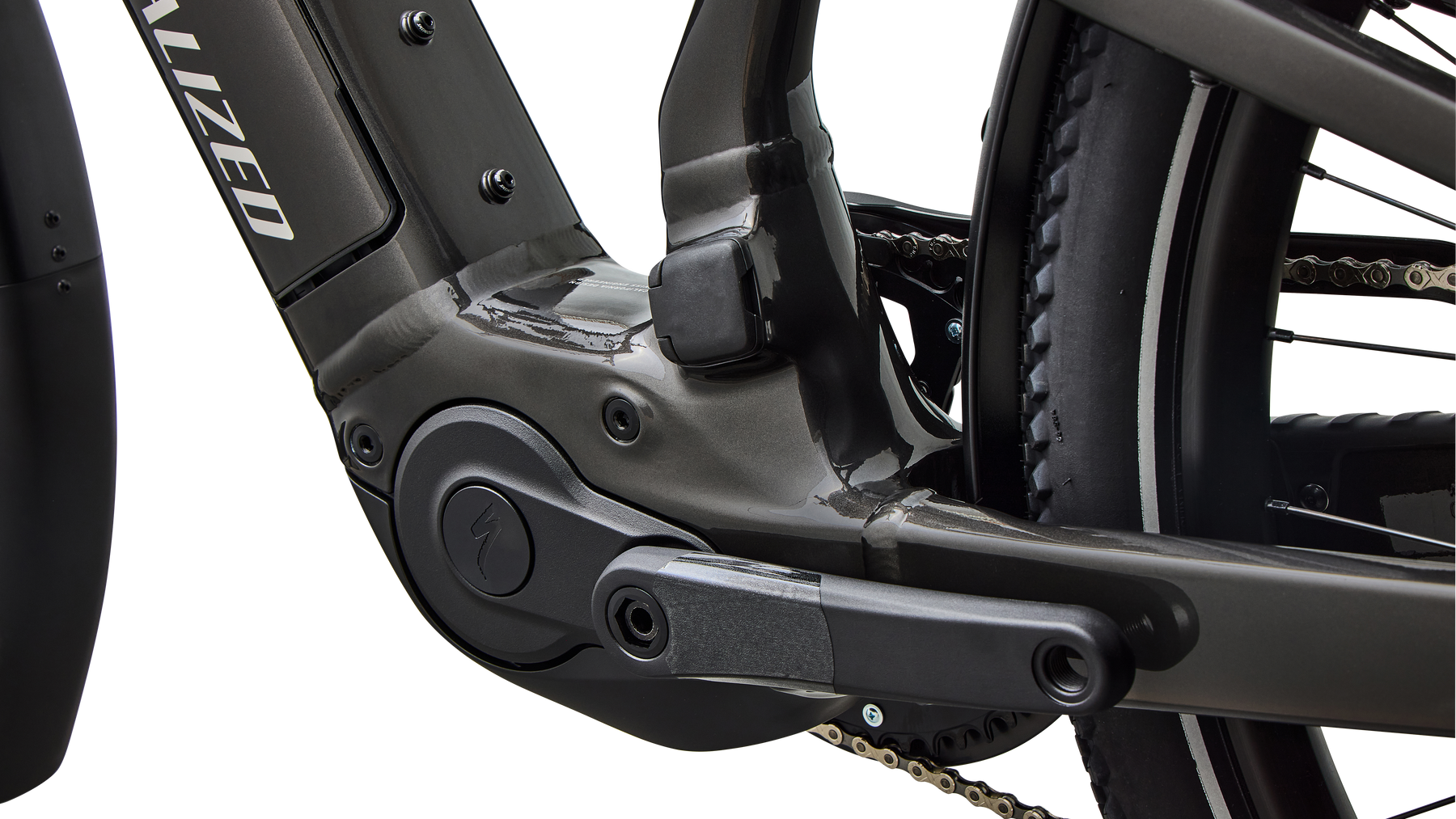

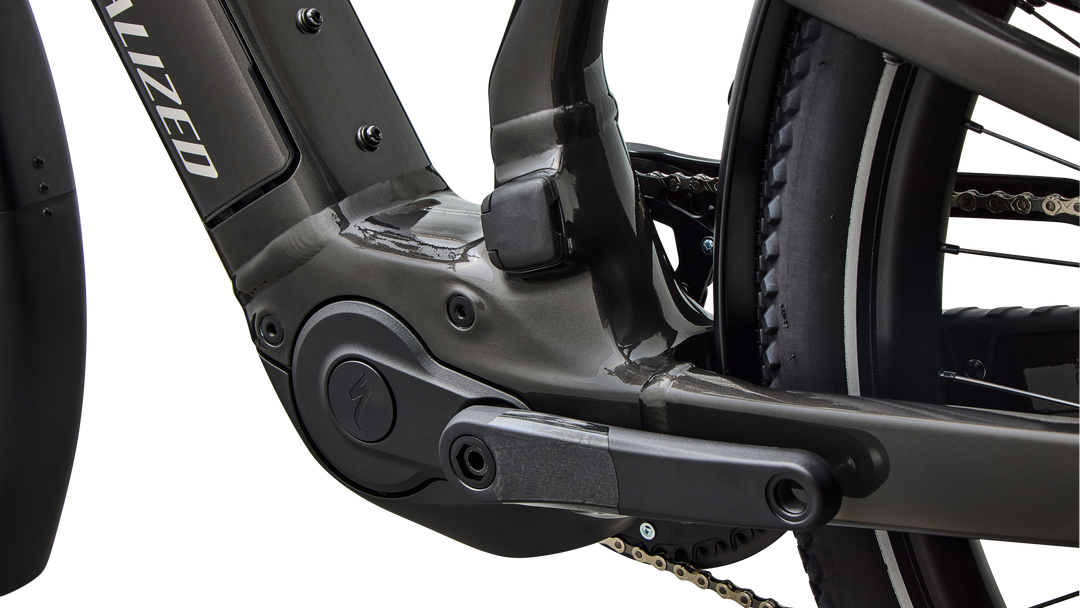

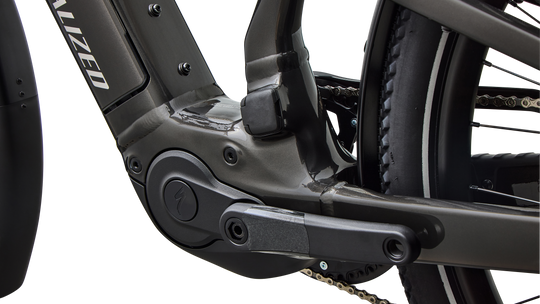

- Motor

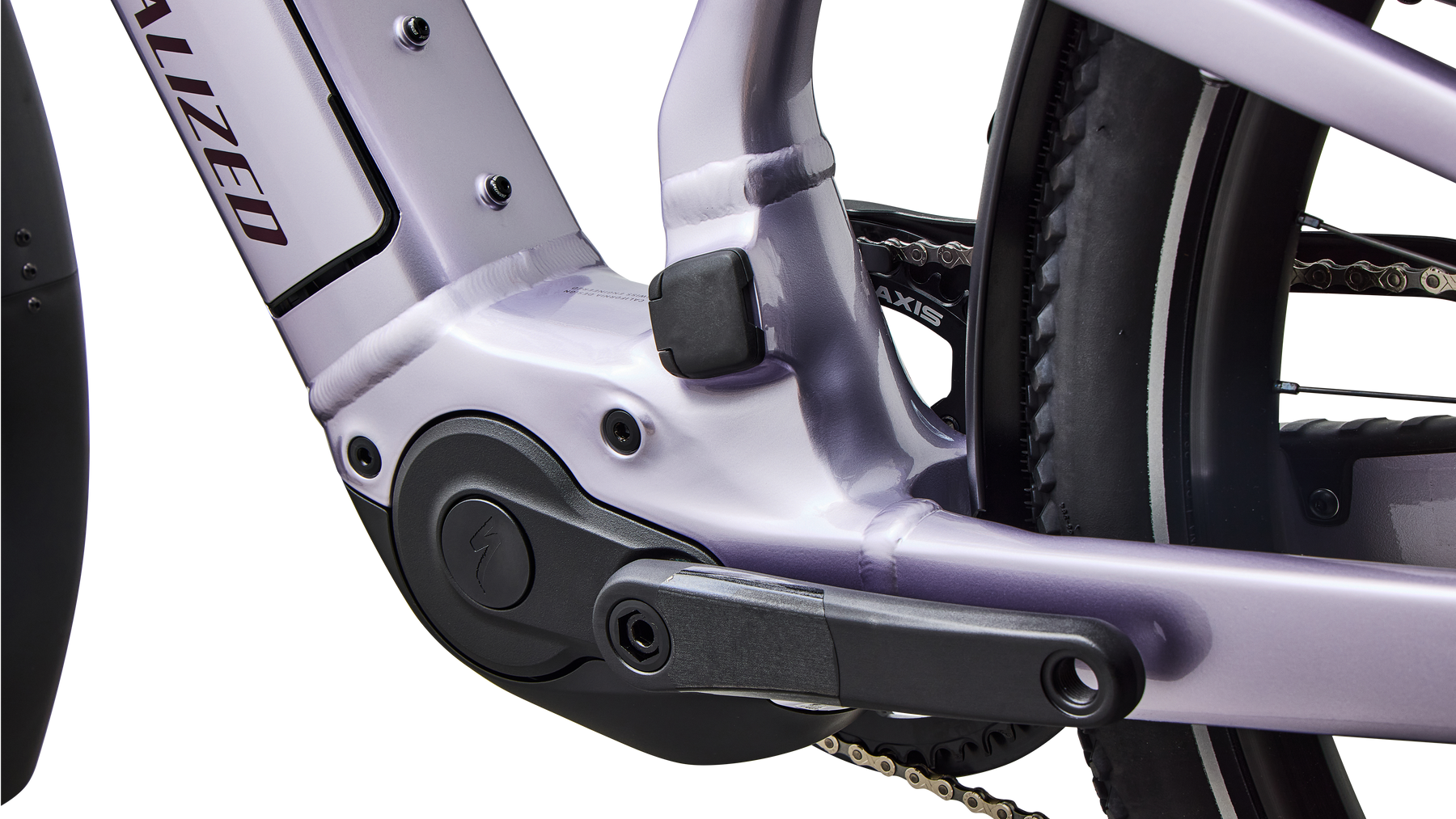

- Specialized 3.1 Motor, 105Nm torque, 810W power
- Charger
- Specialized 4amp charger
- UI/Remote
- Turbo Ergonomic Remote
Frameset
- Seat Binder
- Alloy, 38.6mm
- Frame
- Vado 3 frame, comfort optimized geometry, side entry battery
Suspension
- Fork
- SR Suntour suspension fork, 120MM of travel (100MM size S), Stanchion 34MM, 15MM Thru axle, 27.5" wheel
Brakes
- Front Brake
- TEKTRO, HD-T5040, 4- Piston Caliper, Extra Thick 2.3MM Rotor and 5MM Brake Pads
- Rear Brake
- TEKTRO, HD-T5040, 4- Piston Caliper, Extra Thick 2.3MM Rotor and 5MM Brake Pads
Drivetrain
- Crankset
- 170mm, CL 55mm, w/BCD 110mm, 48T, Chain Guard
- Chainrings
- 40 Teeth with Chain Retention Technology
- Chaincase
- Vado 3 Custom Chaincase
- Chain
- KMC eGlide for 11-Speed CUES
- Shift Levers
- Shimano 11-Speed RAPIDFIRE PLUS, Short Reach Spec
- Rear Derailleur
- Shimano CUES 11-speed w/ Shadow Plus
- Cassette
- Shimano CUES CS-LG400-11, 11-speed, 11-50t
Wheels & tires
- Rims
- 29 front, 27.5 rear, 30mm inner width, 32h
- Spokes
- DT Swiss Elemental
- Inner Tubes
- Reinforced anti flat 27.5X2.5/2.7, Schrader valve 60MM
- Front Hub
- Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28H
- Front Tire
- Specialized Hemishpere Flat Resistant ALLTERRAIN Reflect 27.5X2.6
- Rear Tire
- Specialized Hemishpere Flat Resistant ALLTERRAIN Reflect 27.5X2.6
- Rear Hub
- Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 28h, HG Steel Fhb

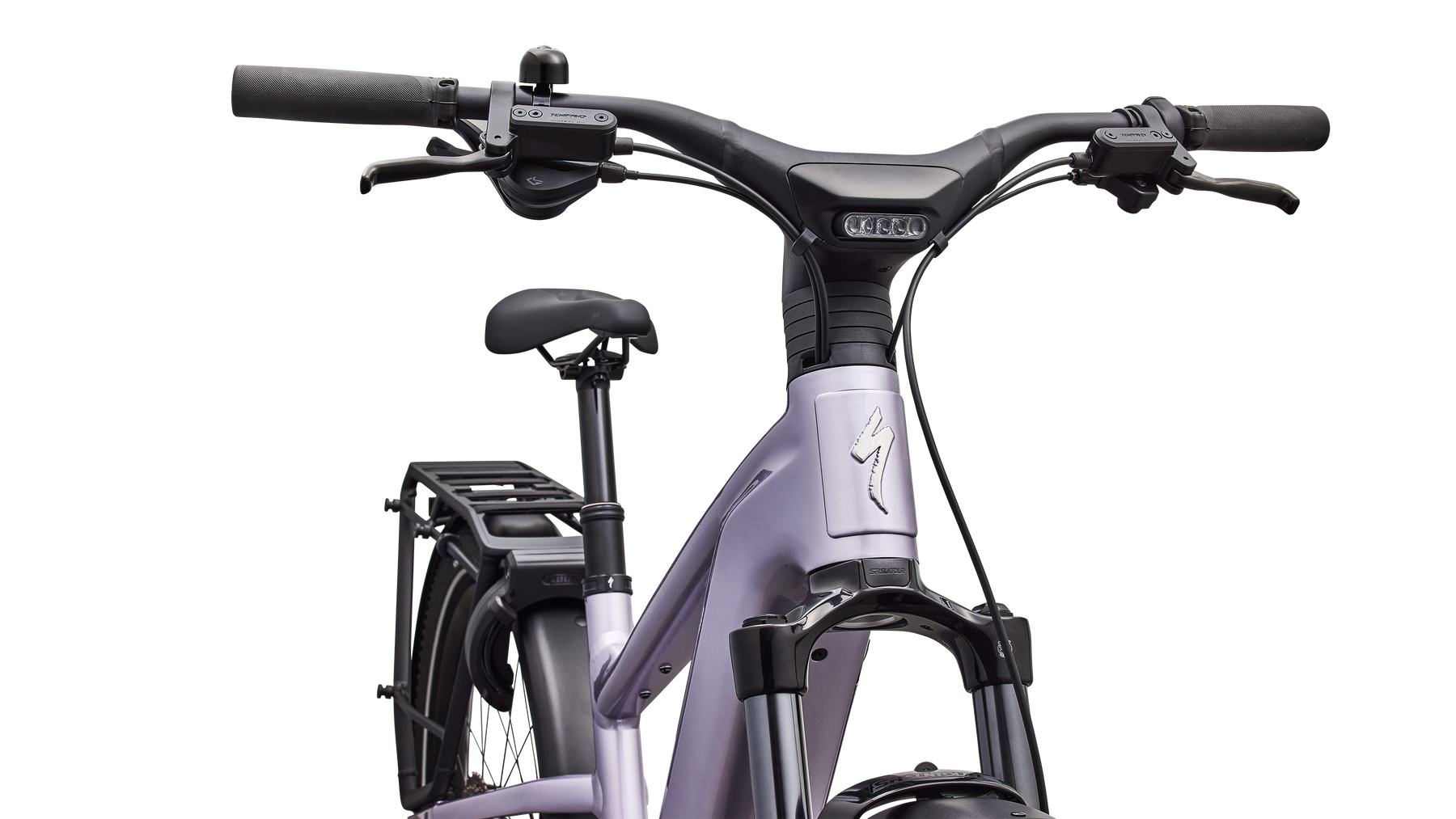

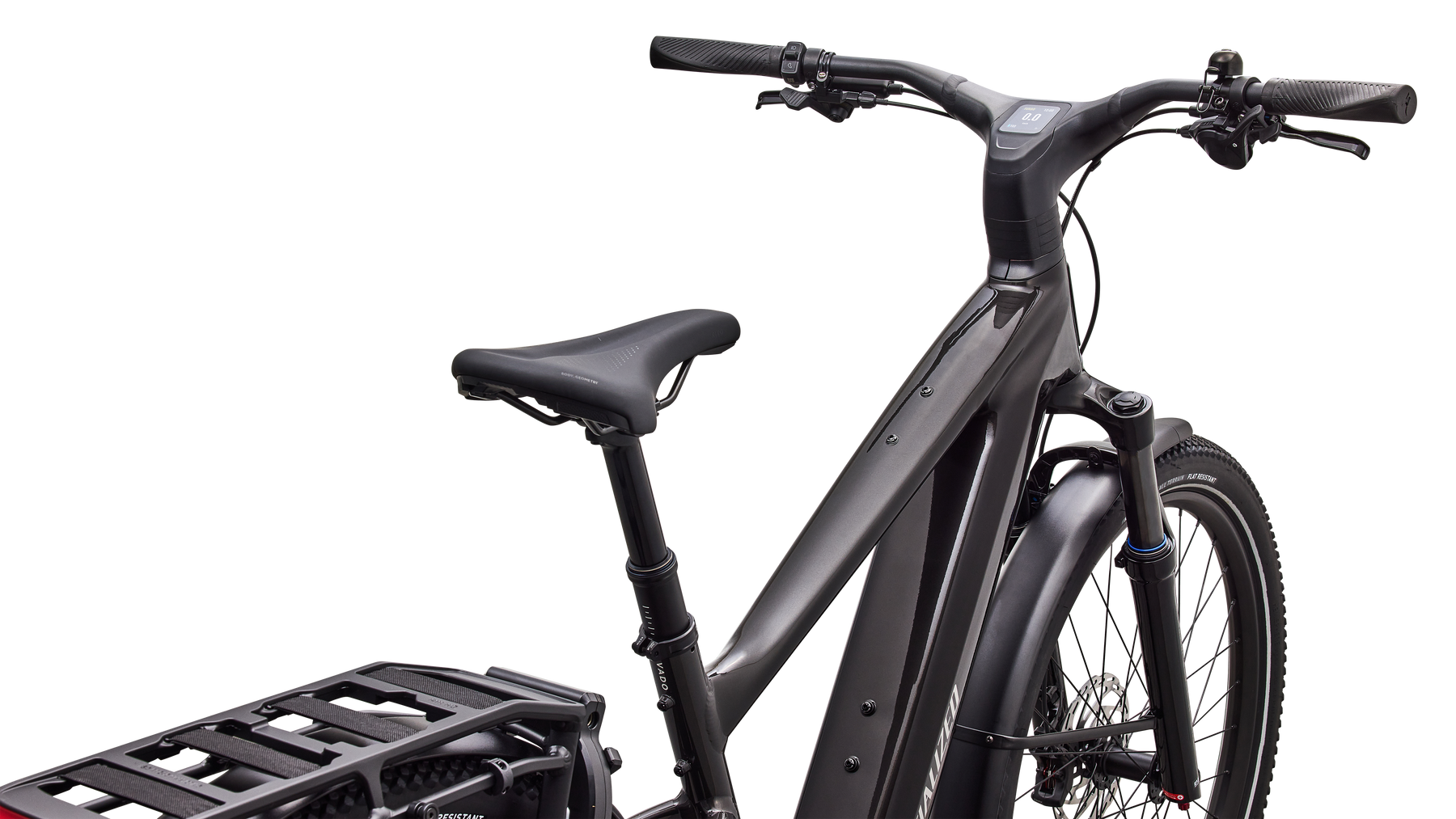

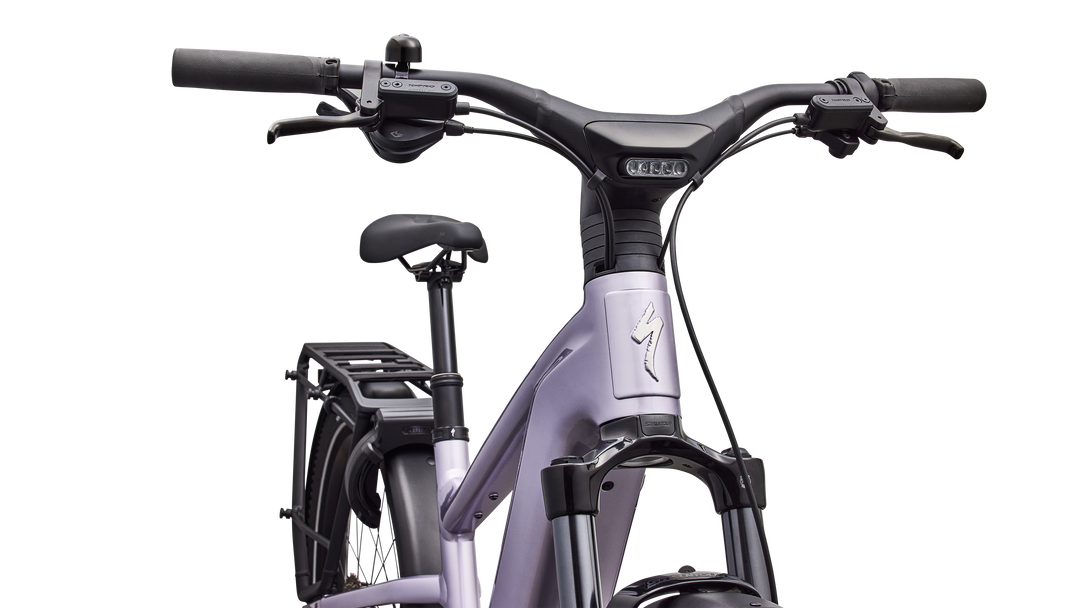

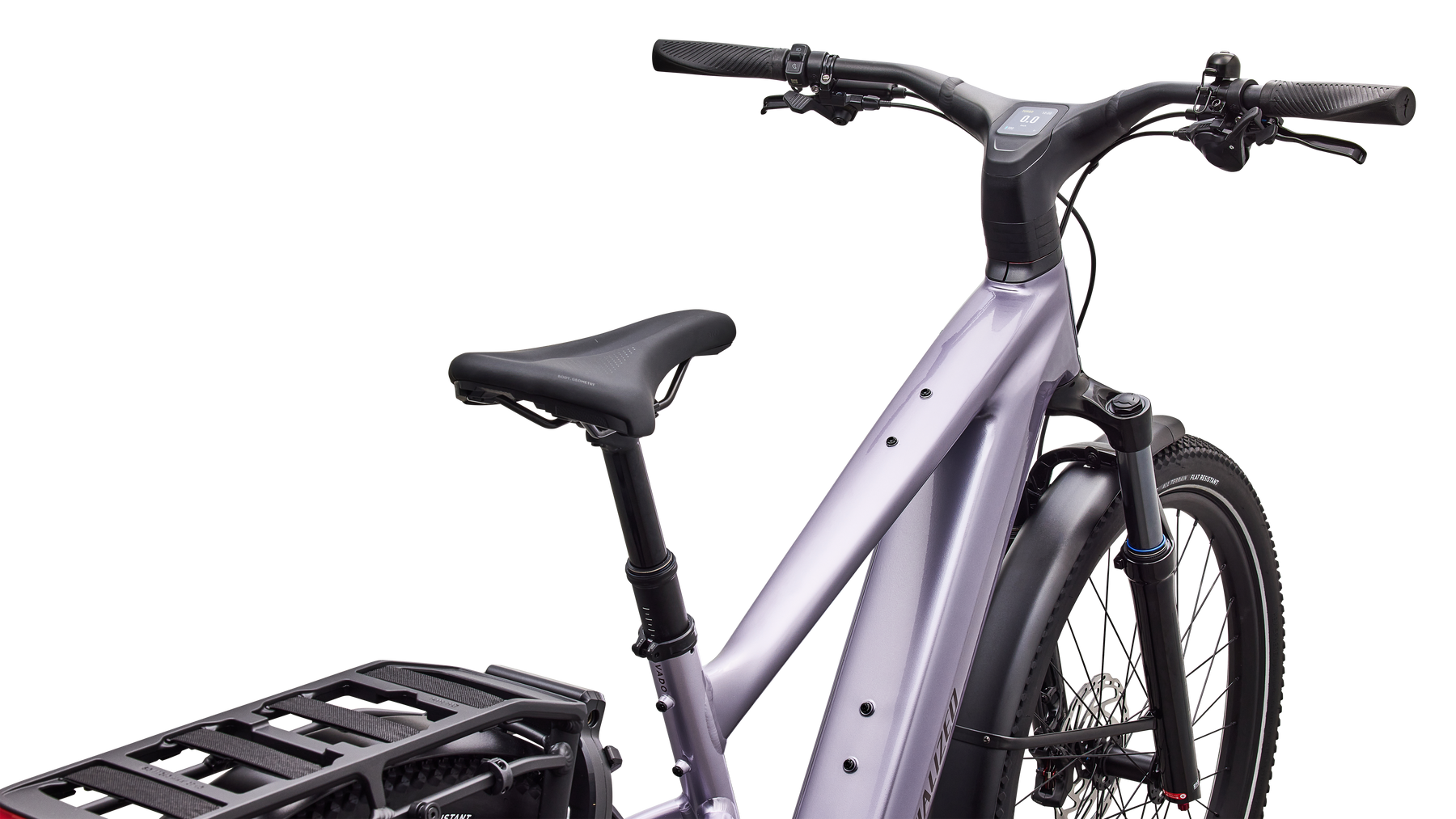

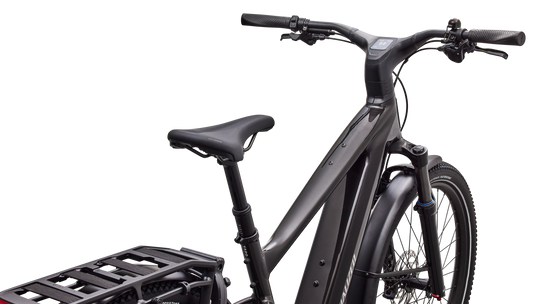

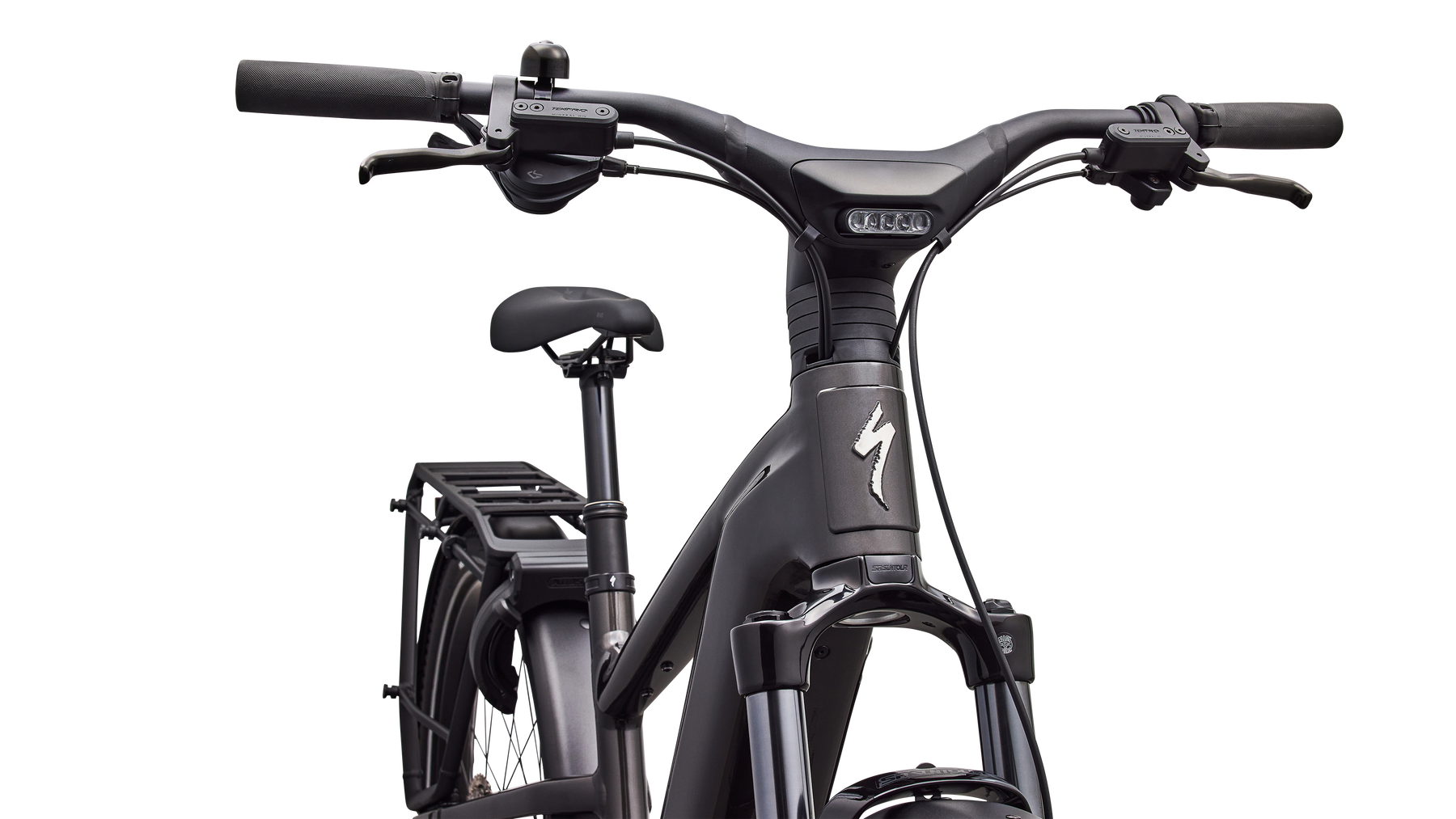

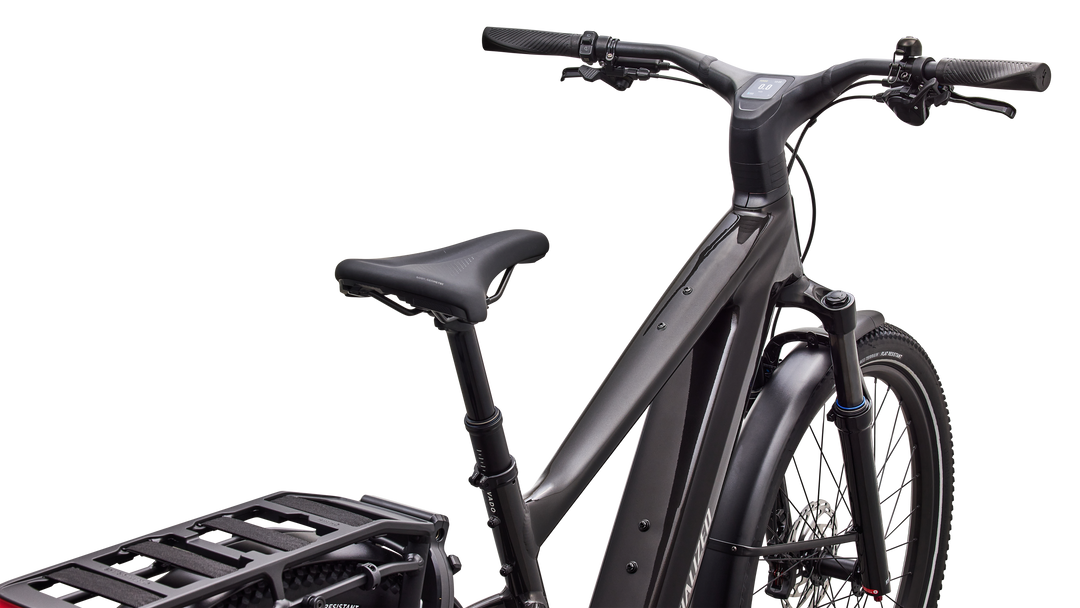

Cockpit
- Saddle
- Body Geometry, Rivo 2 Gel,168MM
- Stem
- Cockpit with Integrated Colored Touch Screen Display
- Handlebars
- Integrated Cockpit
- SeatPost
- Lower Suspension Post, 100-125MM Travel, 40MM Suspension, 34.9 MM, Offset 0MM
- Grips
- Specialized Body Geometry
Accessories
- Bell
- Bell
- Fenders
- Vado 3 Custom Alloy Profile Fenders
- Kickstand
- Vado 3 Custom Kickstand, With Adjustable Shoe

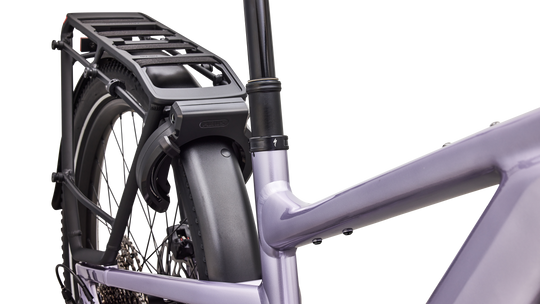

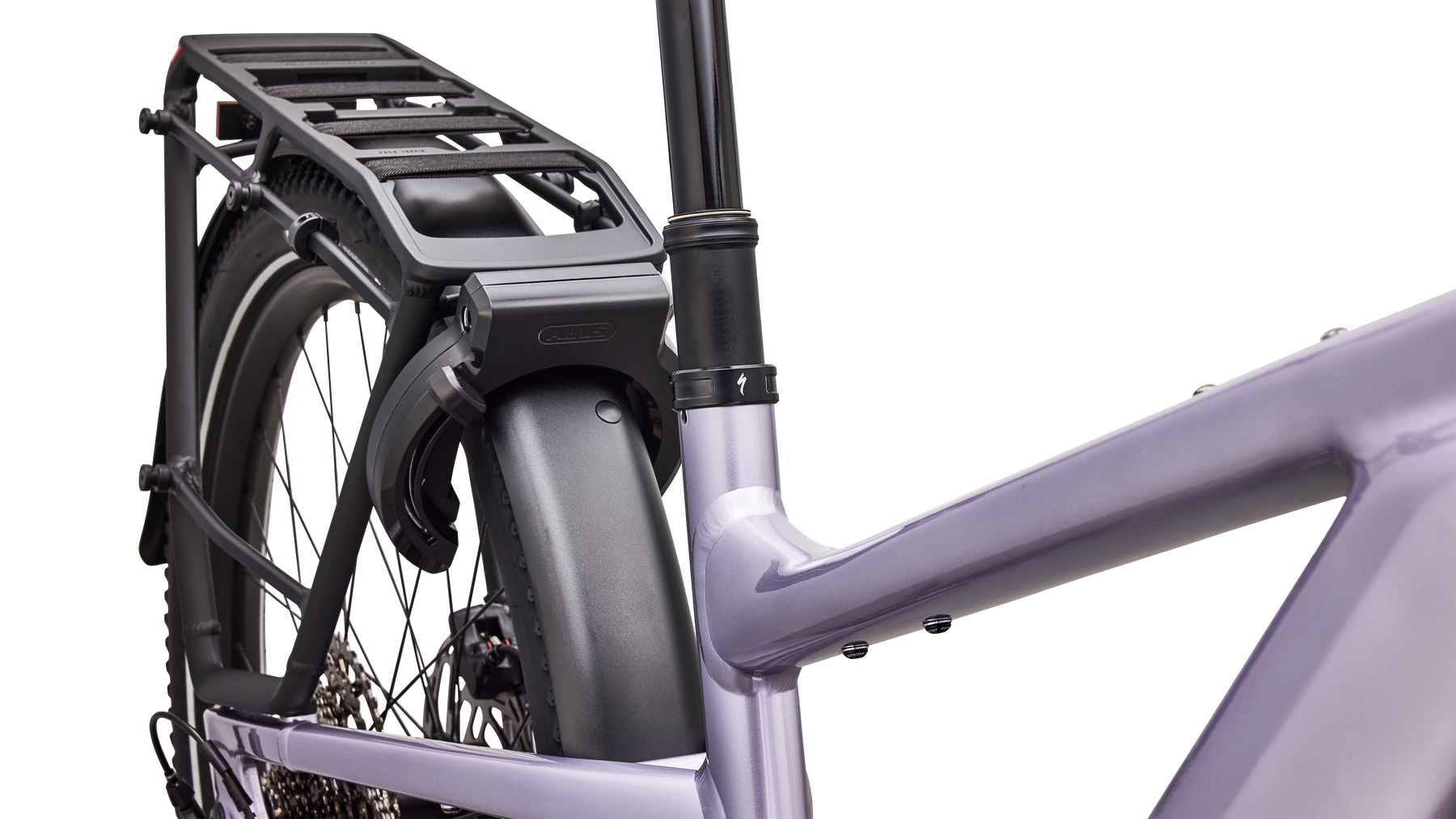

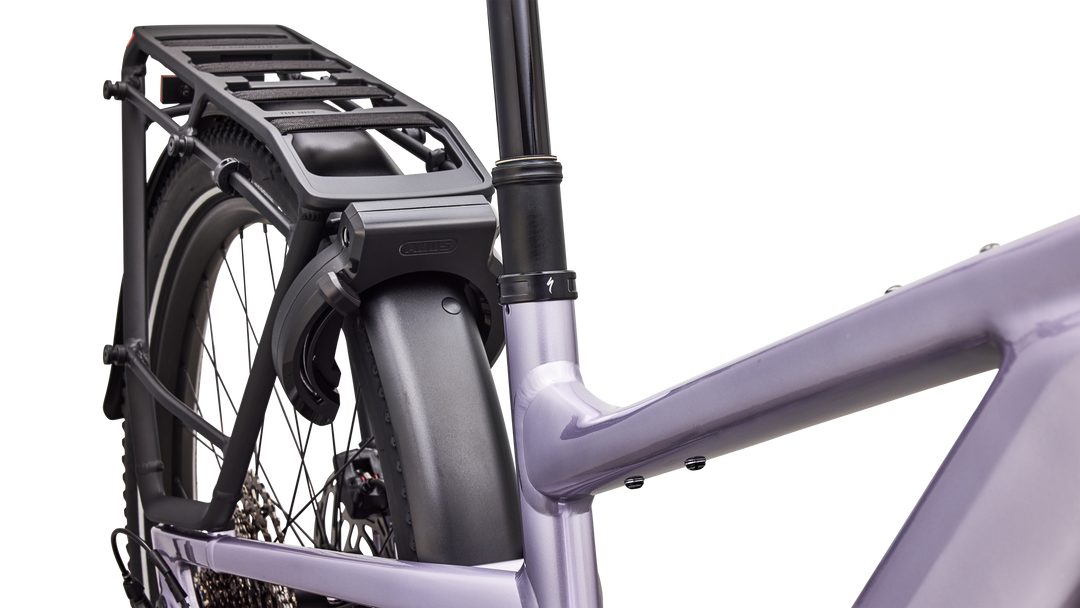

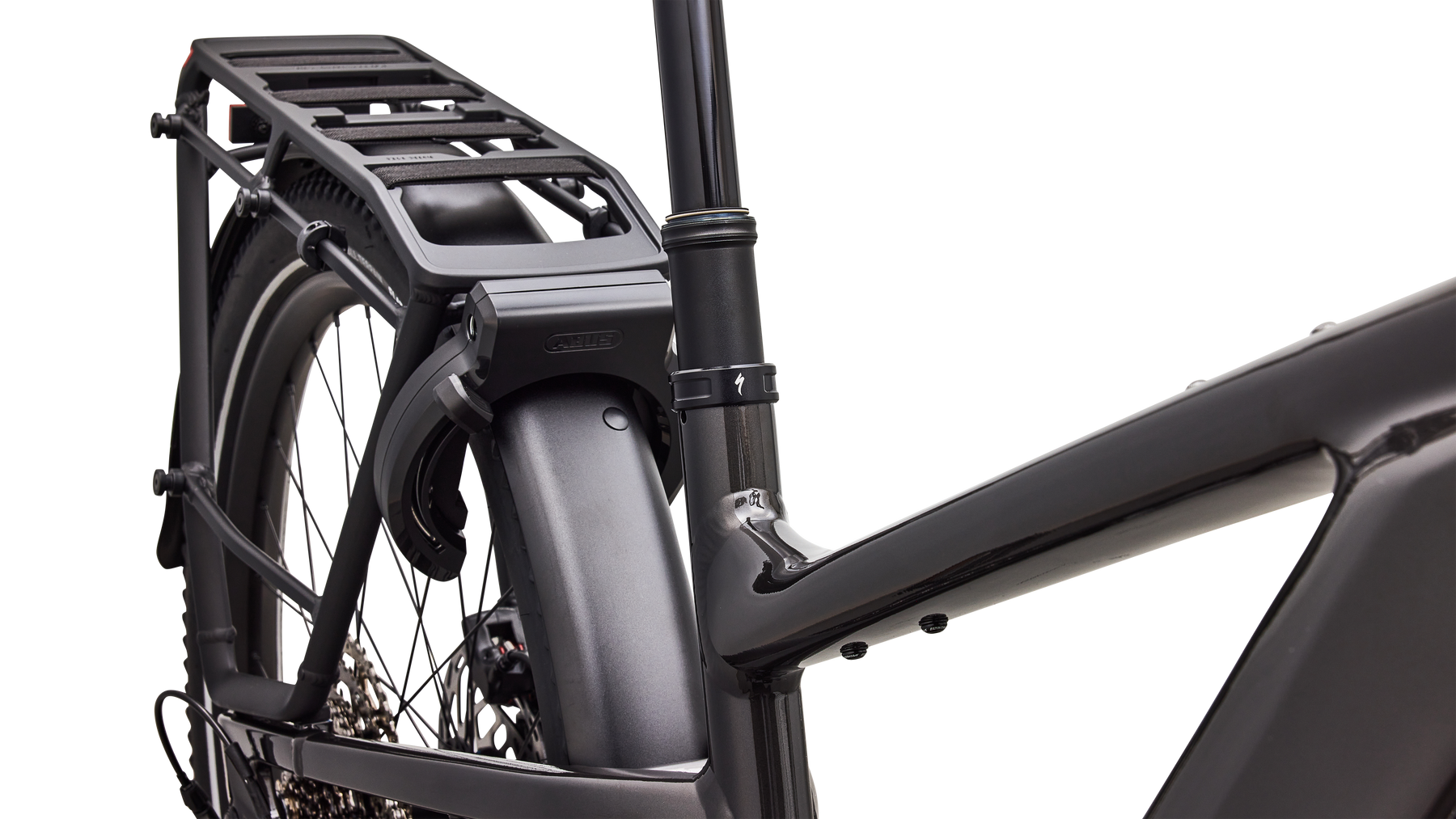

- Rack

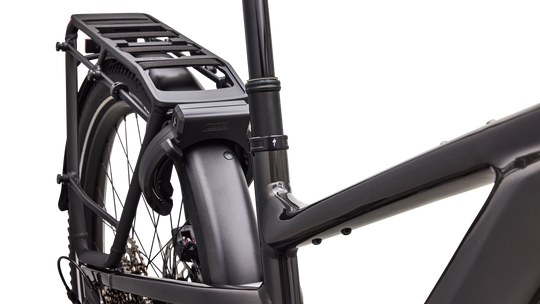

- Vado 3 Custom Seatstay Mounted MIK HD Rack, 27Kg Max Load
- Taillight
- Spanninga Rack Integrated Rear Light With Brake Light
- Bike Lock
- Mechanical Battery Lock w/ Matching Wheel Lock Key
- SWAT
- MIK HD 27.5 Kg rear rack with integrated elastics, MIK front rack 10kg compatible (not included)
- Headlight
- Supernova Custom Cockpit Integrated Hi/Low-Beam 805lm/450lm
- Pedals
- Turbo Pedals, anti-slip
| SM | MD | LG | XL | |
| Crank Length | 170 | 170 | 170 | 170 |
| Handlebar Width | 730 | 730 | 730 | 730 |
| Saddle Width | 168 | 168 | 168 | 168 |
| Seatpost Length | 400 | 400 | 450 | 450 |
| Stack | 636 | 645 | 659 | 682 |
| Reach | 430 | 450 | 470 | 485 |
| Head-Tube Length | 135 | 120 | 135 | 160 |
| Head-Tube Angle | 67 | 68 | 68 | 68 |
| B-B Height | 293.5 | 293.5 | 293.5 | 293.5 |
| B-B Drop | 66.5 | 66.5 | 66.5 | 66.5 |
| Trail | 105 | 98 | 98 | 98 |
| Fork Length (full) | 501 | 521 | 521 | 521 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 |
| Front-Center | 772 | 734 | 460 | 784 |
| Chain-Stay Length | 470 | 470 | 470 | 470 |
| Wheelbase | 1185 | 1197 | 1222 | 1247 |
| Top-Tube Length (horizontal) | 612 | 635 | 659 | 681 |
| Bike Stand-Over Height | 768 | 806 | 821 | 854 |
| Seat-Tube Length | 385 | 440 | 460 | 500 |
| Seat-Tube Angle | 74 | 74 | 74 | 74 |
