Specialized | SKU:
96822-5206

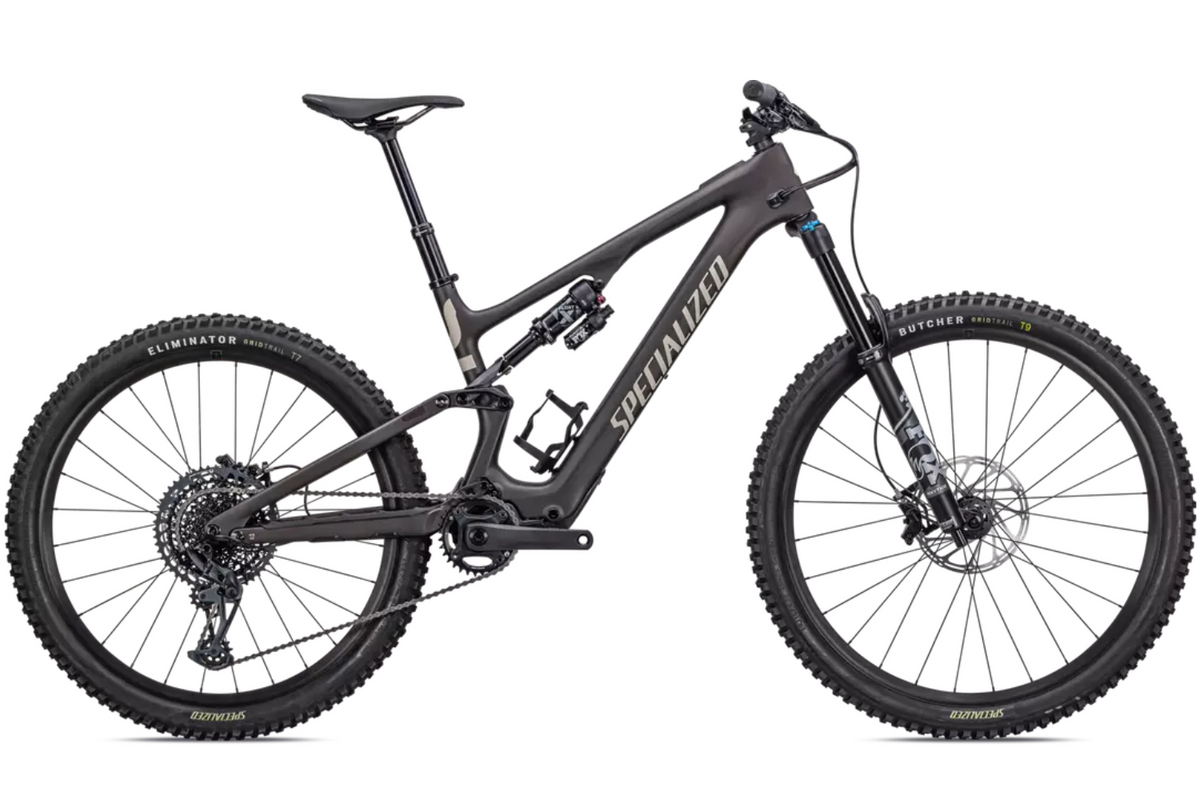

Turbo Levo SL Comp Carbon 2023
Regular price
$9,900.00
Unit price
Tax included
Turbo Levo SL Comp Carbon 2023 - S6 / Gloss Blaze is backordered and will ship as soon as it is back in stock.
Turbo Levo SL Comp Carbon 2023
Regular price
$9,900.00
Unit price
Description
Description
175mm, S6: 190mm
BRAKES
- Rear Brake
- SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
- Front Brake
- SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
DRIVETRAIN
- Chainrings
- New SL 1.2 spider, 104BCD w/SRAM 32t alloy ring
- Crankset
- SRAM FC S699 MHL GEN2 WIDE AL 165/170/175 NORNG/NOSPD
- Rear Derailleur
- SRAM GX Eagle, 12-speed
- Shift Levers
- SRAM GX, trigger, 12-speed
- Chain
- SRAM NX Eagle, 12-speed
- Cassette
- Sram XG-1275, 12-speed, 10-52t
WHEELS
- Rear Hub
- Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
- Front Hub
- Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
- Front Tire
- Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
- Spokes
- DT Swiss Industry
- Rear Tire
- Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
- Rims
- Specialized 29, hookless alloy, 30mm inner width, tubeless ready
- Inner Tubes
- Standard, Presta Valve
E-BIKE
- Wiring Harness
- Custom Specialized wiring harness
- Charger
- Custom charger, 48V System w/ SL system charger plug
- Motor
- New Specialized 1.2 SL Custom Rx Trail Tuned Motor
- UI/Remote
- Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
- Battery
- Specialized SL1-320, fully integrated, 320Wh
Specification
Specification
190mm
BRAKES
- Rear Brake
- SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
- Front Brake
- SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
DRIVETRAIN
- Chainrings
- New SL 1.2 spider, 104BCD w/SRAM 32t alloy ring
- Crankset
- SRAM FC S699 MHL GEN2 WIDE AL 165/170/175 NORNG/NOSPD
- Rear Derailleur
- SRAM GX Eagle, 12-speed
- Shift Levers
- SRAM GX, trigger, 12-speed
- Chain
- SRAM NX Eagle, 12-speed
- Cassette
- Sram XG-1275, 12-speed, 10-52t
WHEELS
- Rear Hub
- Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
- Front Hub
- Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
- Front Tire
- Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
- Spokes
- DT Swiss Industry
- Rear Tire
- Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
- Rims
- Specialized 29, hookless alloy, 30mm inner width, tubeless ready
- Inner Tubes
- Standard, Presta Valve
E-BIKE
- Wiring Harness
- Custom Specialized wiring harness
- Charger
- Custom charger, 48V System w/ SL system charger plug
- Motor
- New Specialized 1.2 SL Custom Rx Trail Tuned Motor
- UI/Remote
- Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
- Battery
- Specialized SL1-320, fully integrated, 320Wh
Geometry
Geometry
| S1 | S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|---|
| Crank Length | 165 | 165 | 170 | 170 | 170 | 175 |
| Handlebar Width | 780 | 780 | 780 | 780 | 780 | 780 |
| Stem Length | 40 | 40 | 40 | 40 | 50 | 50 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 100 | 125 | 150 | 170 | 170 | 190 |
| Stack | 609 | 617 | 626 | 635 | 645 | 654 |
| Reach | 405 | 425 | 445 | 470 | 495 | 525 |
| Head-Tube Length | 95 | 100 | 110 | 120 | 130 | 140 |
| Head-Tube Angle | 64.6 | 64.6 | 64.6 | 64.6 | 64.6 | 64.6 |
| B-B Height | 343 | 348 | 348 | 348 | 348 | 348 |
| B-B Drop | -34 | -29 | -29 | -29 | -29 | -29 |
| Trail | 132 | 132 | 132 | 132 | 132 | 132 |
| Fork Length, Full | 560 | 570 | 570 | 570 | 570 | 570 |
| Fork Rake/Offset | 42 | 42 | 42 | 42 | 42 | 42 |
| Front-Center | 726 | 752 | 776 | 806 | 835 | 869 |
| Chain-Stay Length | 433 | 432 | 432 | 432 | 432 | 432 |
| Wheelbase | 1158 | 1184 | 1208 | 1238 | 1267 | 1301 |
| Top Tube Length, Horizontal | 560 | 582 | 604 | 631 | 659 | 691 |
| Bike Stand-Over Height | 727 | 763 | 766 | 767 | 773 | 778 |
| Seat-Tube Length | 385 | 385 | 405 | 425 | 445 | 465 |
| Seat-Tube Angle | 75.8 | 75.8 | 75.8 | 75.8 | 75.8 | 75.8 |
Size
Size
175mm, S6: 190mm
BRAKES
- Rear Brake
- SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
- Front Brake
- SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
DRIVETRAIN
- Chainrings
- New SL 1.2 spider, 104BCD w/SRAM 32t alloy ring
- Crankset
- SRAM FC S699 MHL GEN2 WIDE AL 165/170/175 NORNG/NOSPD
- Rear Derailleur
- SRAM GX Eagle, 12-speed
- Shift Levers
- SRAM GX, trigger, 12-speed
- Chain
- SRAM NX Eagle, 12-speed
- Cassette
- Sram XG-1275, 12-speed, 10-52t
WHEELS
- Rear Hub
- Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
- Front Hub
- Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
- Front Tire
- Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
- Spokes
- DT Swiss Industry
- Rear Tire
- Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
- Rims
- Specialized 29, hookless alloy, 30mm inner width, tubeless ready
- Inner Tubes
- Standard, Presta Valve
E-BIKE
- Wiring Harness
- Custom Specialized wiring harness
- Charger
- Custom charger, 48V System w/ SL system charger plug
- Motor
- New Specialized 1.2 SL Custom Rx Trail Tuned Motor
- UI/Remote
- Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
- Battery
- Specialized SL1-320, fully integrated, 320Wh
190mm
BRAKES
- Rear Brake
- SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
- Front Brake
- SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
DRIVETRAIN
- Chainrings
- New SL 1.2 spider, 104BCD w/SRAM 32t alloy ring
- Crankset
- SRAM FC S699 MHL GEN2 WIDE AL 165/170/175 NORNG/NOSPD
- Rear Derailleur
- SRAM GX Eagle, 12-speed
- Shift Levers
- SRAM GX, trigger, 12-speed
- Chain
- SRAM NX Eagle, 12-speed
- Cassette
- Sram XG-1275, 12-speed, 10-52t
WHEELS
- Rear Hub
- Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
- Front Hub
- Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
- Front Tire
- Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
- Spokes
- DT Swiss Industry
- Rear Tire
- Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
- Rims
- Specialized 29, hookless alloy, 30mm inner width, tubeless ready
- Inner Tubes
- Standard, Presta Valve
E-BIKE
- Wiring Harness
- Custom Specialized wiring harness
- Charger
- Custom charger, 48V System w/ SL system charger plug
- Motor
- New Specialized 1.2 SL Custom Rx Trail Tuned Motor
- UI/Remote
- Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
- Battery
- Specialized SL1-320, fully integrated, 320Wh
| S1 | S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|---|
| Crank Length | 165 | 165 | 170 | 170 | 170 | 175 |
| Handlebar Width | 780 | 780 | 780 | 780 | 780 | 780 |
| Stem Length | 40 | 40 | 40 | 40 | 50 | 50 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 100 | 125 | 150 | 170 | 170 | 190 |
| Stack | 609 | 617 | 626 | 635 | 645 | 654 |
| Reach | 405 | 425 | 445 | 470 | 495 | 525 |
| Head-Tube Length | 95 | 100 | 110 | 120 | 130 | 140 |
| Head-Tube Angle | 64.6 | 64.6 | 64.6 | 64.6 | 64.6 | 64.6 |
| B-B Height | 343 | 348 | 348 | 348 | 348 | 348 |
| B-B Drop | -34 | -29 | -29 | -29 | -29 | -29 |
| Trail | 132 | 132 | 132 | 132 | 132 | 132 |
| Fork Length, Full | 560 | 570 | 570 | 570 | 570 | 570 |
| Fork Rake/Offset | 42 | 42 | 42 | 42 | 42 | 42 |
| Front-Center | 726 | 752 | 776 | 806 | 835 | 869 |
| Chain-Stay Length | 433 | 432 | 432 | 432 | 432 | 432 |
| Wheelbase | 1158 | 1184 | 1208 | 1238 | 1267 | 1301 |
| Top Tube Length, Horizontal | 560 | 582 | 604 | 631 | 659 | 691 |
| Bike Stand-Over Height | 727 | 763 | 766 | 767 | 773 | 778 |
| Seat-Tube Length | 385 | 385 | 405 | 425 | 445 | 465 |
| Seat-Tube Angle | 75.8 | 75.8 | 75.8 | 75.8 | 75.8 | 75.8 |
