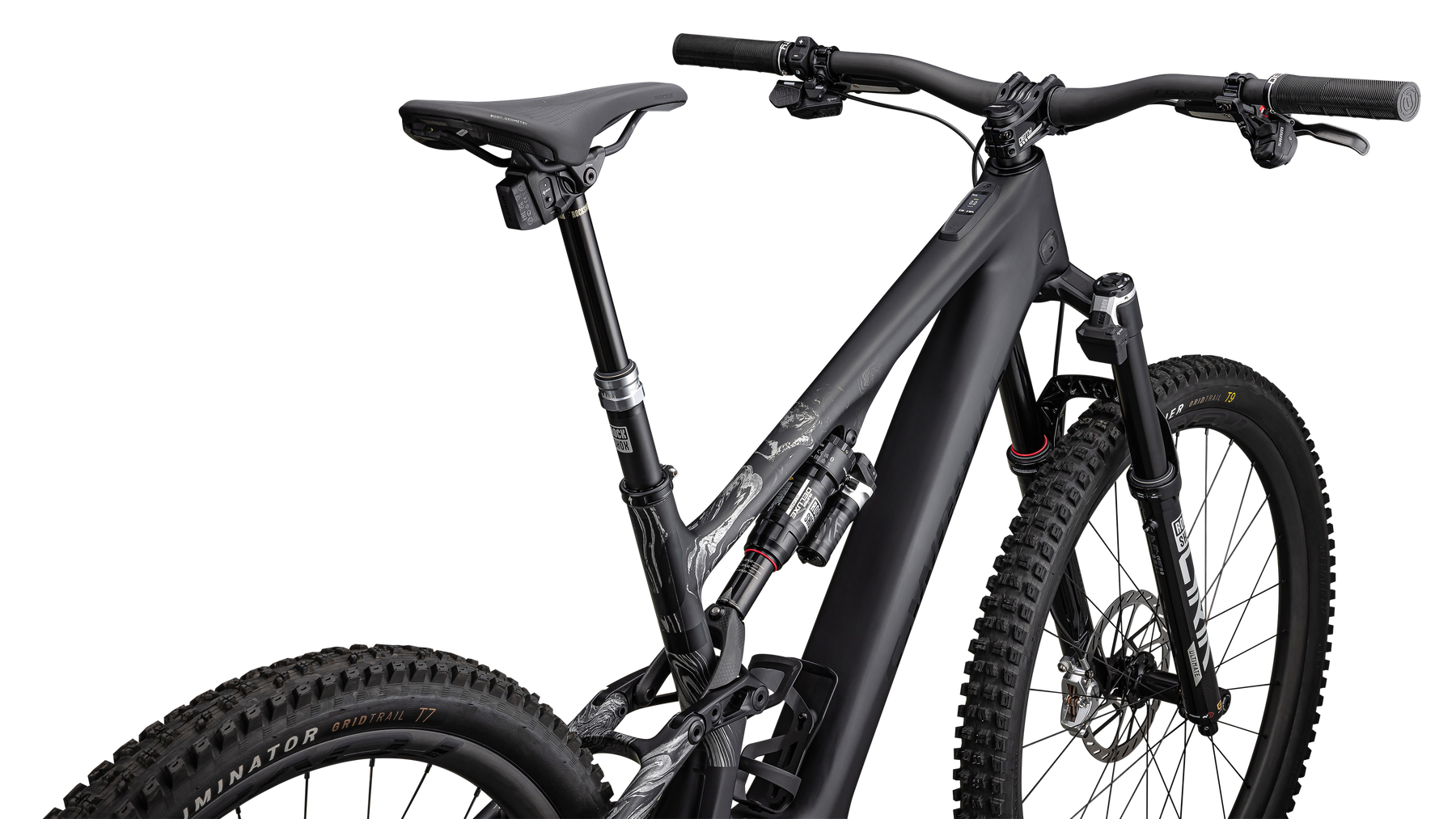

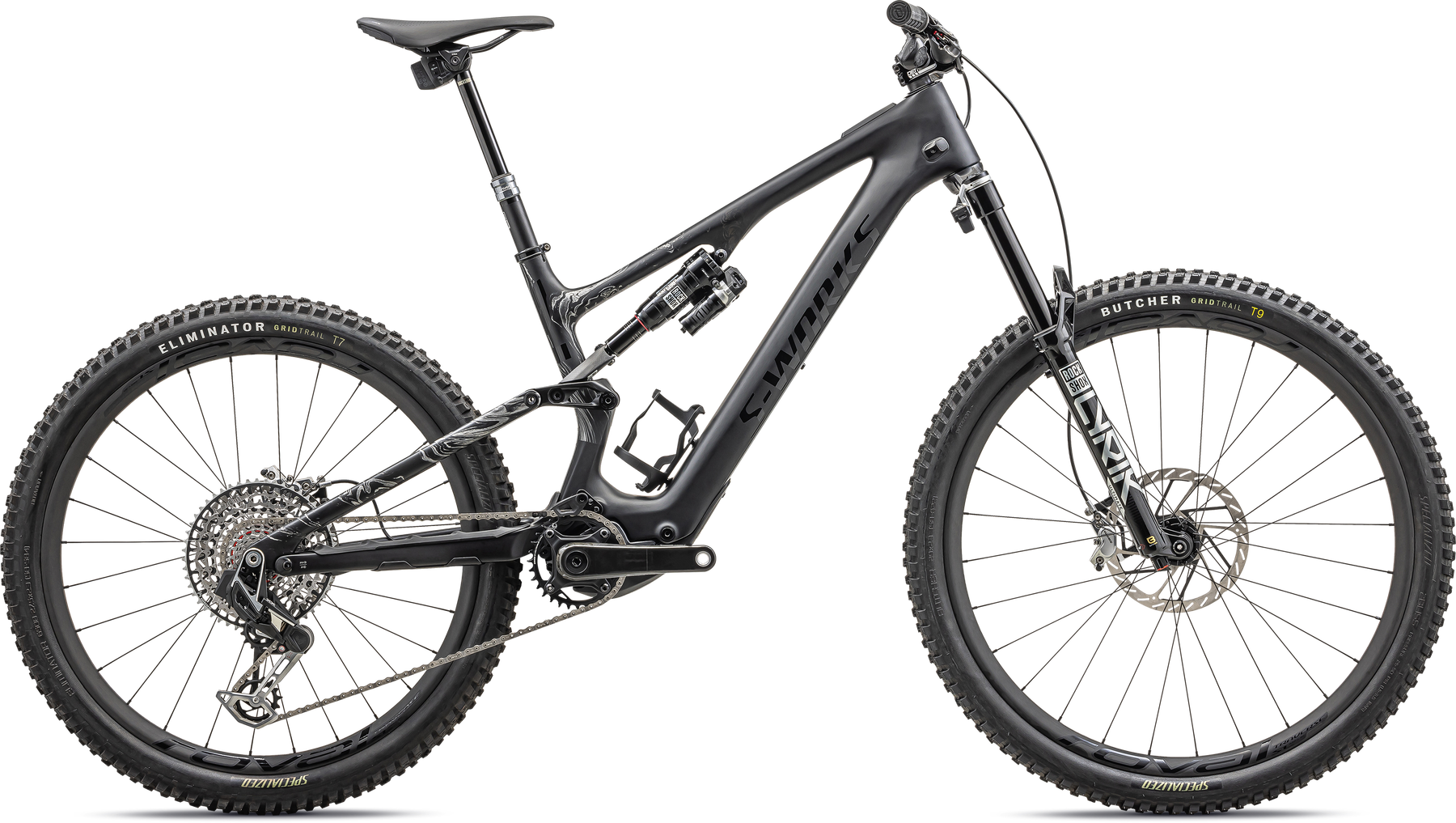

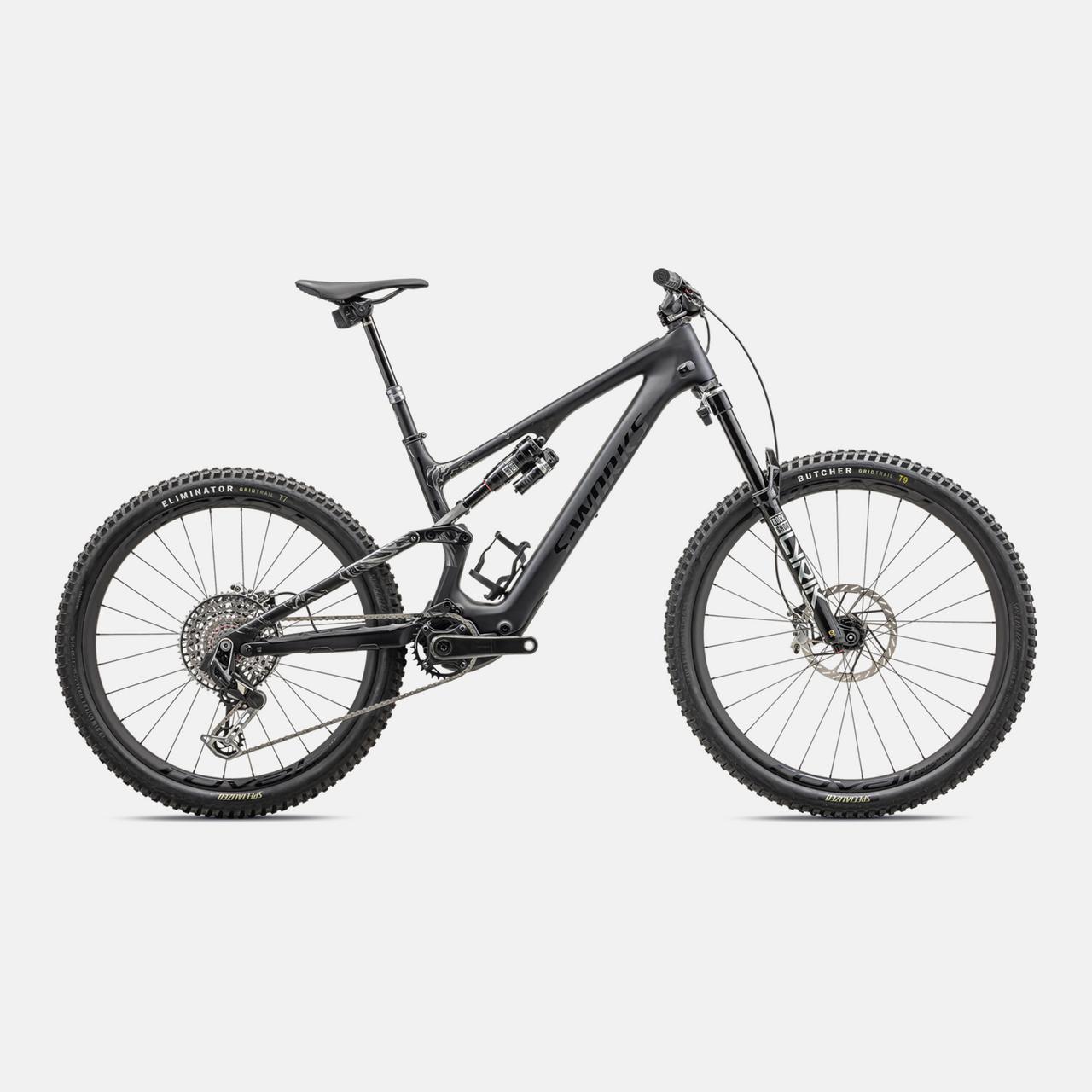

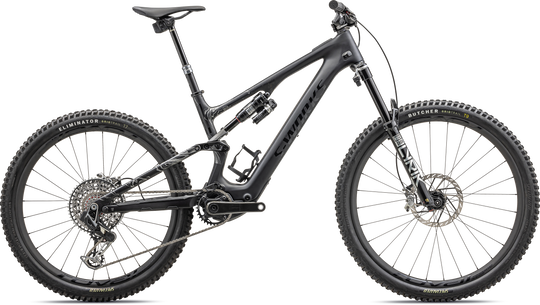

S-Works Turbo Levo SL LTD 2022
S-Works Turbo Levo SL LTD 2022
S-Works Turbo Levo SL LTD 2022
S-Works Turbo Levo SL LTD 2022

S-Works Turbo Levo SL LTD 2022

Regular price$25,900.00
/
Tax included.

The Levo SL delivers unmatched ride quality and capability, amplified. For the trail rider who craves serpentine singletrack, sending it skyward, and lives for advancing your skills and fitness. Meet your new bike, the Levo SL. You’ll be blown away by it’s unmatched combination of flawless handling, capability, and “2 X You” amplification that gives you the Power to Ride More Trails. Compare it to anything out there, with a motor or without, and we know you’ll agree — Levo SL is THE ULTIMATE TRAIL BIKE.

IT’S ALL ABOUT THE RIDE — When everything works just right a bike disappears when you ride it. We stripped away the mass to keep the Levo SL lean and responsive. It’s tough enough to withstand heavy abuse, but light enough to nail big moves. Its dialed geometry, kinematics, and shock tuning leave nothing desired.

THE FRAME OF REFERENCE — Everything starts here. Lively, precise ride feel. Strategic carbon fiber layup provides super-responsive chassis stiffness. We tuned the entire chassis—front end, rear end, and the link that unifies them—as a single unit to minimize lateral flex under pedaling to harness every bit of pedal force.

GEOMETRY OF CONTROL — The cockpit centers you in the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle, and reduced fork offset keep things stable in the rough while giving you the freedom to destroy the turns. The head angle can be personalized to, 63, 64.25, and 65.5 degrees.

LESS IS MORE – The Levo SL is greyhound lean and telepathically responsive. Its curated component selection is light, yet capable—for true trail riding. Put it all together and you get the benefits of amplification along with benchmark handling.

MIXED WHEEL — A 29” front wheel ensures stability and surefooted performance in the most hectic terrain, while a 27.5” rear wheel allows for a compact chainstay and super responsive behavior. If you prefer the rolling and traction benefits of a 29” rear wheel, just flip the pivot link chip and mount the big wheel.

TURBO OPERATING SYSTEM — Our seamlessly-integrated operating system delivers unmatched performance across torque, range, ride feel, ride quality, power, reliability, and rider experience. It’s the invisible hand that enables you to do more, know more, go farther, feel stronger, and have more fun.

SPECIALIZED SL 1.2 MOTOR — The all new Specialized SL 1.2 motor is whisper quiet, boasts unmatched smoothness, delivers 43% more torque (50Nm), and 33% more power (320 Watts) than its predecessor. Resulting in “2x You” performance; it’s you pedaling, but a side of you only a Levo can bring out.

GO DEEP RANGE — Levo SL features a premium, high quality, and seamlessly integrated 320Wh battery pack. Combined with the efficient motor, you’re set up for long, epic rides of up to 5 hours (in Eco Mode). For longer rides, just slide our 160 Wh Range Extender (sold separately) into your bottle cage—for 50% more range.

MASTERMIND TCU — Our most advanced and intuitive e-bike control unit. Connecting the bike, the Turbo OS, the Mission Control App as well as the rider, all in a protected and easily visible display. MasterMind TCU enables over-the-air updates so your bike will get even better over time. With MicroTune fine-tuning power output levels in real time is at your fingertips, optimizing range management and performance.

MISSION CONTROL APP — The Levo SL integrates fully with our Mission Control App and lets you personalize your motor characteristics with MicroTune, Support, and Peak Power. You can say goodbye to range anxiety with Smart Control, and even thwart would-be thieves with Turbo System Lock.

  • All new carbon frame, comes in mixed wheel configuration (compatible to 29 rear with no extra parts needed.) New kinematic with flatter leverage curve which provides more support and playfulness off the top, but plenty of control in rougher conditions. The headtube angle and bottom bracket height are both adjustable.
  • Worried about running out of power? No problem. Turbo Levo SL eats up big miles and long days. And if you’re looking for even more miles, our included range extender boosts your range by another 50 percent. On top of all that, our Mission Control App can handle battery management automatically, ensuring your battery will last as long as you need it to.
  • SRAM XX Eagle Transmission
  • New SRAM Code Ultimate Stealth brakes
  • Rockshox Flight Attendant wirelessly controlled electronic suspension

SUSPENSION

Fork

All New Lyrik Ultimate Flight Attendant, 29", 160mm of travel, wirelessly controlled damping, 44mm offset

Rear Shock

Rockshox Flight Attendant SuperDeluxe Ultimate, 210x55

FRAMESET

Frame

All new Levo SL SW Frame, Fact 11m carbon, carbon shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.

Seat Binder

Alloy, 38.6mm

COCKPIT

Saddle

Bridge, 155/143mm, Hollow Ti-rails

Stem

Deity, 35.0mm

Grips

Deity, Knuckleduster, Black

SeatPost

RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)

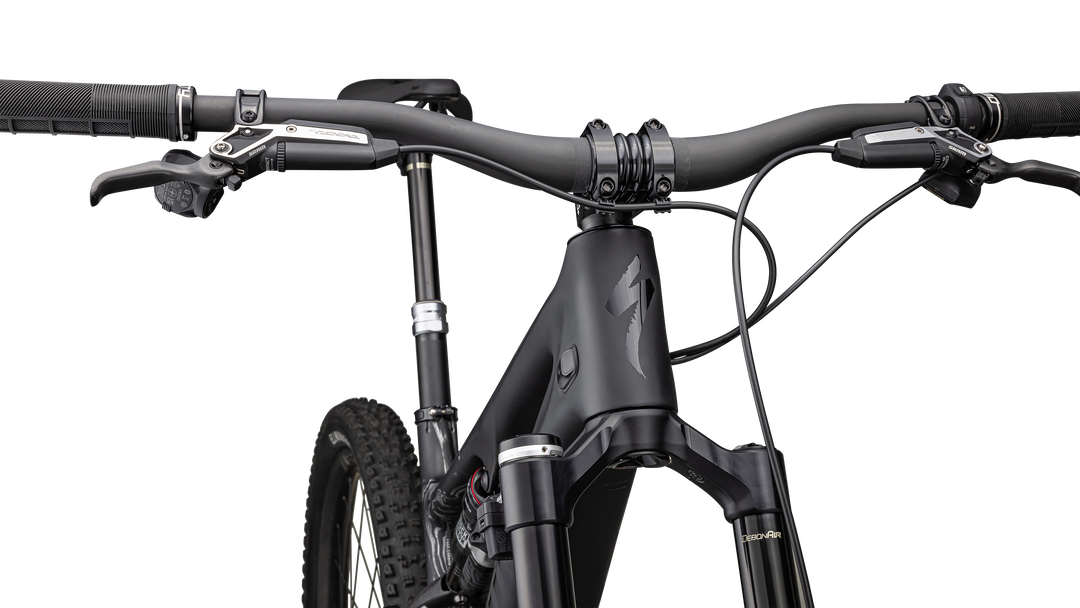

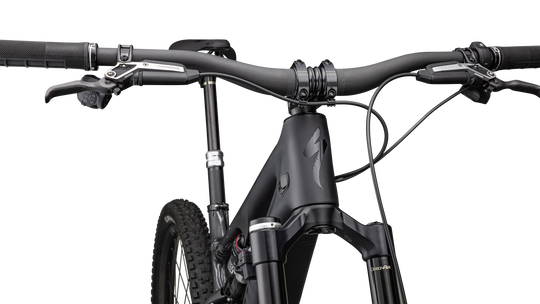

Handlebars

Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm

WHEELS

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Rear Tire

Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"

Inner Tubes

Standard, Presta Valve

Front Wheel

Roval Traverse SL 29

Rear Wheel

Roval Traverse SL 27.5, 148mm spacing, XD freehub body

Rear Hub

Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing

Front Hub

Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 28h

E-BIKE

Wiring Harness

Custom Specialized wiring harness

Charger

Custom charger, 48V System w/ SL system charger plug

Motor

New Specialized 1.2 SL Custom Rx Trail Tuned Motor

UI/Remote

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote

Battery

Specialized SL1-320, fully integrated, 320Wh

DRIVETRAIN

Chainrings

New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring

Shift Levers

SRAM AXS POD Controller

Crankset

SRAM Carbon Crankset, Dub interface

Chain

SRAM XX Eagle Transmission Flattop Chain

Rear Derailleur

SRAM XX Eagle Transmission Derailleur

Cassette

SRAM XX Eagle Transmission Cassette, 12spd, 10-52t

ACCESSORIES

SWAT

SWAT CC steerer tube integrated tool with chain tool and link

BRAKES

Rear Brake

SRAM Code Stealth Ultimate, 4-piston caliper, hydraulic disc, 200mm

Front Brake

SRAM Code Stealth Ultimate, 4-piston caliper, hydraulic disc, 200mm

S2 S3 S4 S5 S6
Crank Length 165 170 170 170 175
Handlebar Width 780 780 780 780 780
Stem Length 35 50 50 50 50
Saddle Width 155 143 143 143 143
Seatpost Length 125 150 170 170 170
Stack 609 617 626 635 645 654
Reach 405 425 445 470 495 525
Head-Tube Length 95 100 110 120 130 140
Head-Tube Angle 64.6 64.6 64.6 64.6 64.6 64.6
B-B Height 343 348 348 348 348 348
B-B Drop -34 -29 -29 -29 -29 -29
Trail 132 132 132 132 132 132
Fork Length, Full 560 570 570 570 570 570
Fork Rake/Offset 42 42 42 42 42 42
Front-Center 726 752 776 806 835 869
Chain-Stay Length 433 432 432 432 432 432
Wheelbase 1158 1184 1208 1238 1267 1301
Top Tube Length, Horizontal 560 582 604 631 659 691
Bike Stand-Over Height 727 763 766 767 773 778
Seat-Tube Length 385 385 405 425 445 465
Seat-Tube Angle 75.8 75.8 75.8 75.8 75.8 75.8
Size
