Velduro

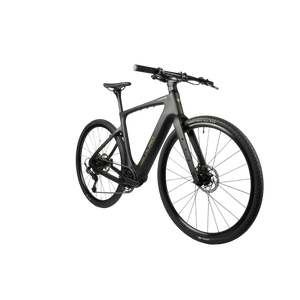

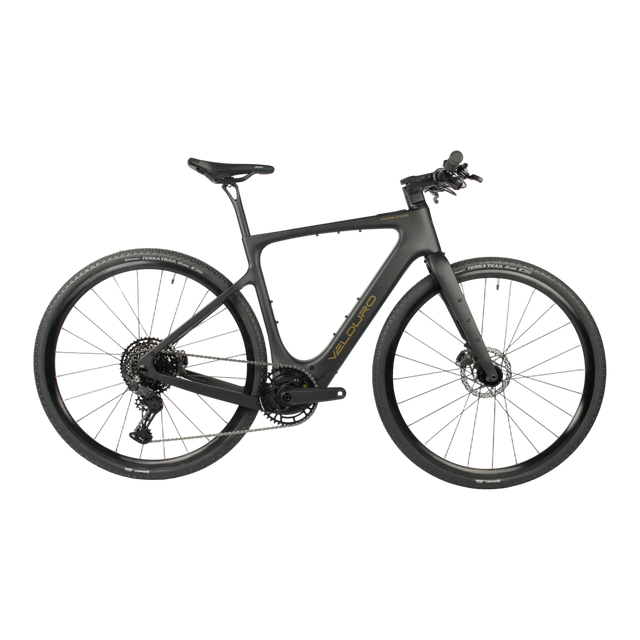

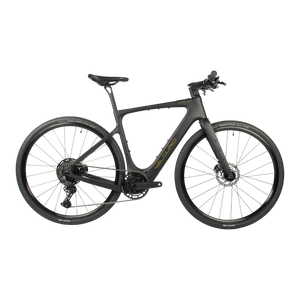

Phantom S M2

$7,990.00
Tax included
Size

Phantom S M2 - XL is backordered and will ship as soon as it is back in stock.

Description
The Phantom S is the ultimate flat bar e-commuting and or adventure machine. Save on fuel and commute with the Phantom S With the same award-winning ultra-lightweight carbon frame as the Phantom X, this economically priced model is set to revolutionise your commute and weekend riding. Contact your local dealer to test ride today.

Specification

Frame I Saddle l Dropper l Cockpit

  • Frame: Carbon fiber, gravel catagery, battery integrated, inner cable routing, 12X142mm, 8
    mounting points, rack compatible
  • Fork: Carbon gravel fork, 6 mounting point 12X100mm , offset 50mm
  • Headset: Token TK155SP Dia28.6, Alloy dia top& bottom 52mm
  • Saddle: Fizik terra aidon X5
  • Seatpost: Velduro carbon Dia27.2 380mm, BLK
  • Handlebar: Velduro alloy MTB straight, Dia31.8, width:680mm, BLK
  • Stem: Velduro Alloy road stem, BLK, S&M: 75mm, L&XL: 95mm Length
  • Grips: Velduro MTB comfort BLK

Drive Train l Brakes l Cranks

  • Brakes: Sram S300 hydraulic, two piston
    Discs: Sram centerline, front 160mm, rear 160mm
  • Rear derailleur: Shimano Cues RD-U6000, 11-speed
  • Cassette: Shimano Cues LG400-11S 11-45T
  • Cranks: Avinox SL 165mm
  • Spider: Avinox 104BCD spider
  • Chainwheel: Velduro customised alloy 44T, 3mm inward
  • Chain: Shimano LG500 linkglide BLK

Wheels l Tires

  • Front hub: Velduro 2-bearings, BLK, 6-bolts, 13G*24H, 12x100mm
  • Rear hub: Velduro 4-bearings, BLK, 6-bolts, 13G*24H, 12x142mm, HG freehub
  • Rims: 700C, Velduro alloy, BLK, 13G*24H, 25mm inner width, 25mm depth, with hook
  • Tires: Continental Terra Trail 700*45C BLK, with tube

    *Your Phantom is tubeless-ready, but comes with a tube.

Avinox Drive System

  • Motor: AVINOX M2 250W 120Nm, Boost to 125Nm, 1100W peak power
  • Battery: AVINOX 36V 600Wh
  • Charger: AVINOX 4A 168W
  • Display: AVINOX DP100

Geometry


SM MD LG XL
A Eff. Seattube Length (mm) 390 410 430 465
B Headtube Angle (°) 63.5 63.5 63.5 63.5
C Eff. Toptube Length (mm) 582 604 623 647.5
D Reach (mm) 440 466 485 515
E Act. Seattube Angle (°) 75.5 75.5 75.5 75.5
F Seattube Offset (mm) 30 30 30 30
G Eff. Seattube Angle (°) 78 78 78 78
H Chainstay Length (mm) 440 440 440 440
I BB Drop at Rear Wheel (mm) 10.5 10.5 10 10
J BB Drop at Front Wheel (mm) 34 34 34 34
K Headtube Length (mm) 110 110 120 125
L Axle to Crown (mm) 584 584 584 584
M Fork Offset (mm) 44 44 44 44
N Trail (mm) 140 140 140 140
O Stack (mm) 634 634 643.5 648
P Wheelbase (mm) 1229 1255 1276 1311
Q BB Height (mm) 343.5 343.5 344 344
Recommended Height (CM) 160-172 172-182 180-188 185-195
The Phantom S is the ultimate flat bar e-commuting and or adventure machine. Save on fuel and commute with the Phantom S With the same award-winning ultra-lightweight carbon frame as the Phantom X, this economically priced model is set to revolutionise your commute and weekend riding. Contact your local dealer to test ride today.
