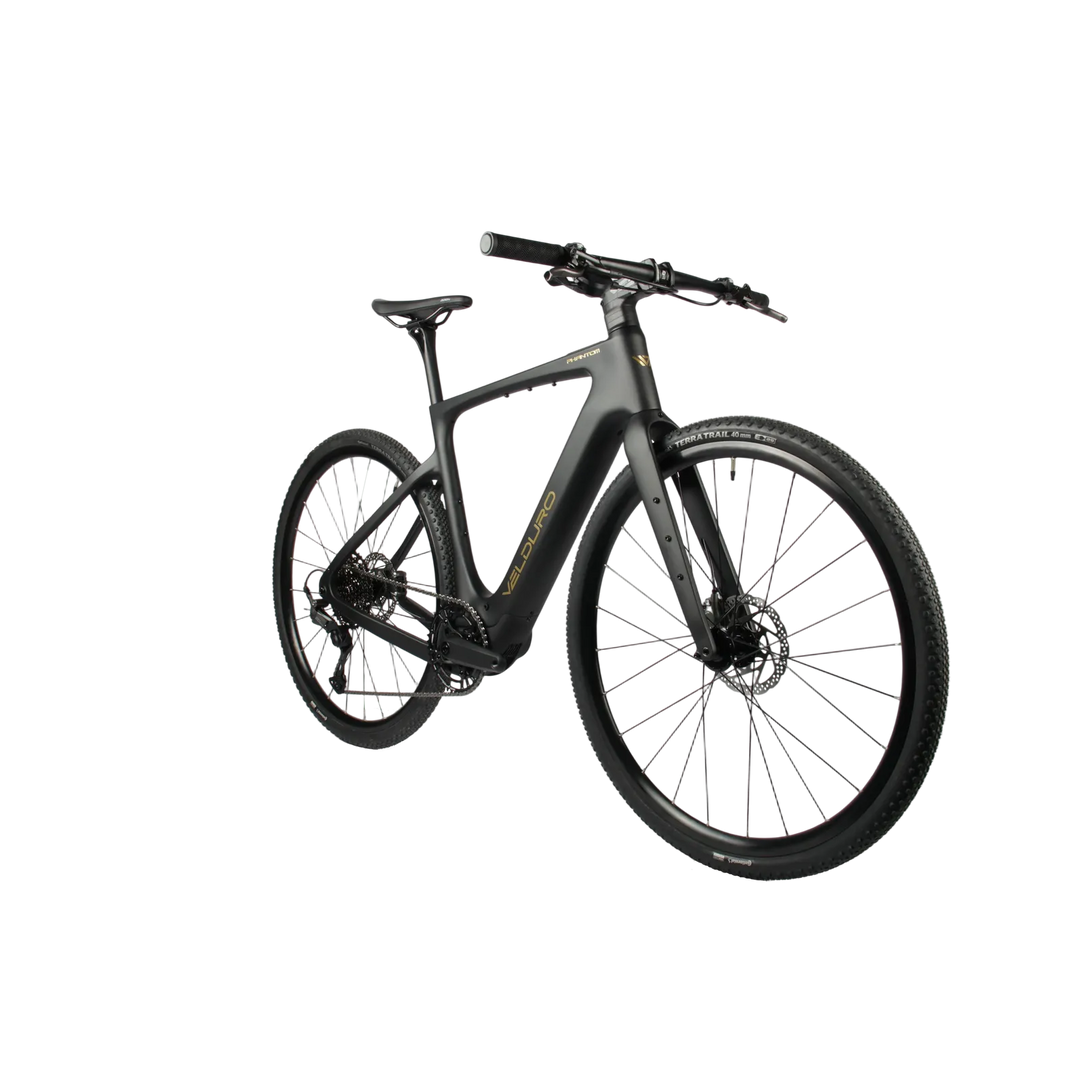

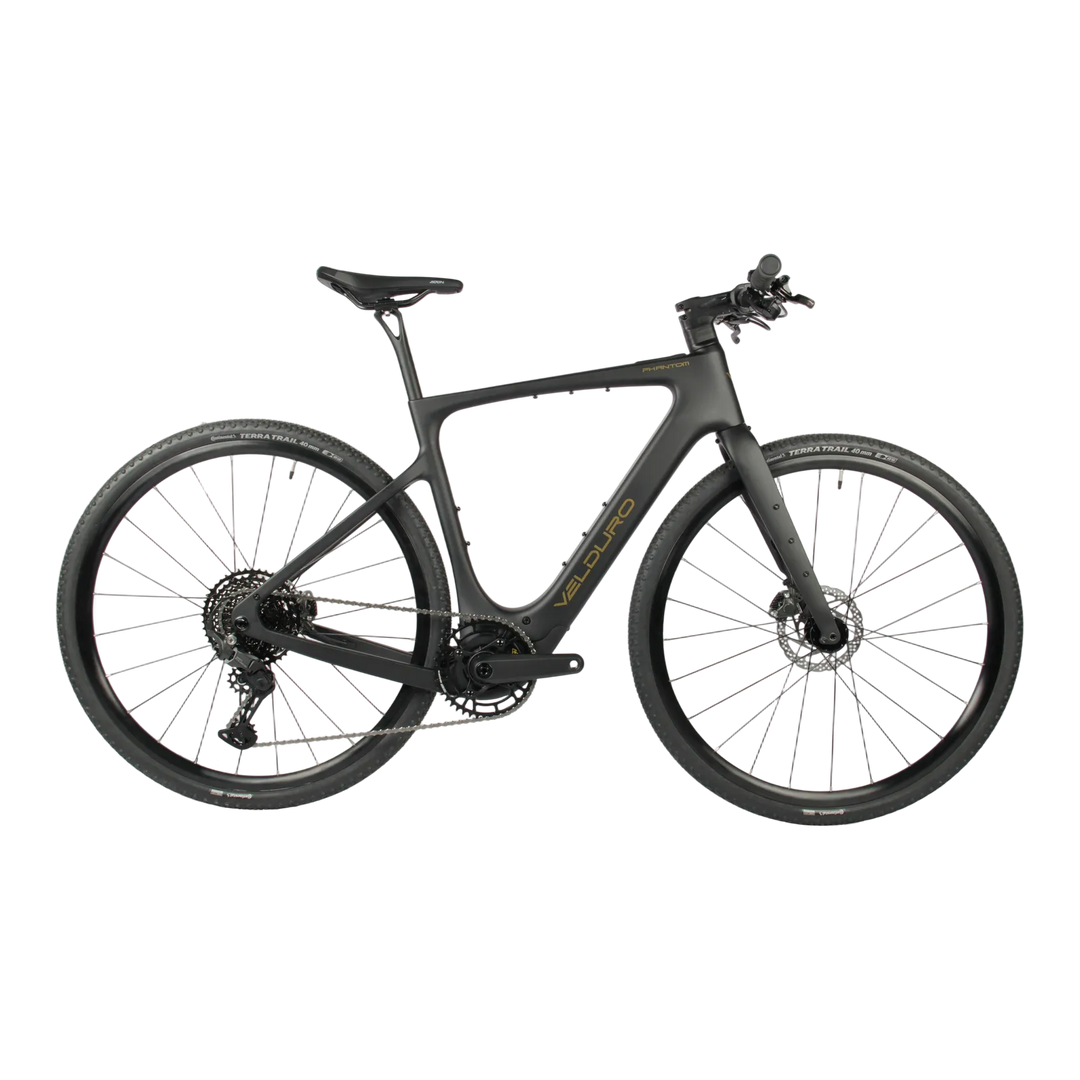

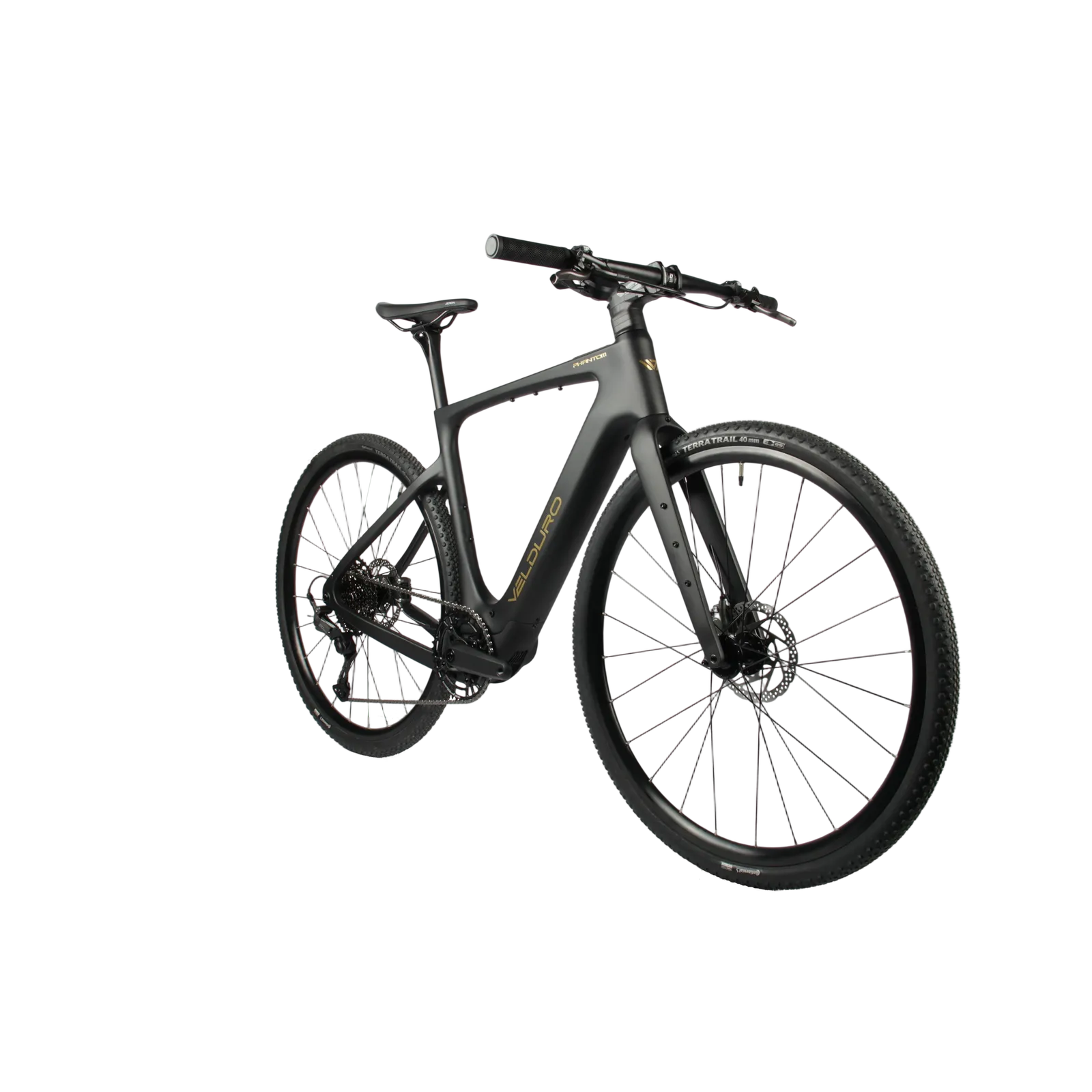

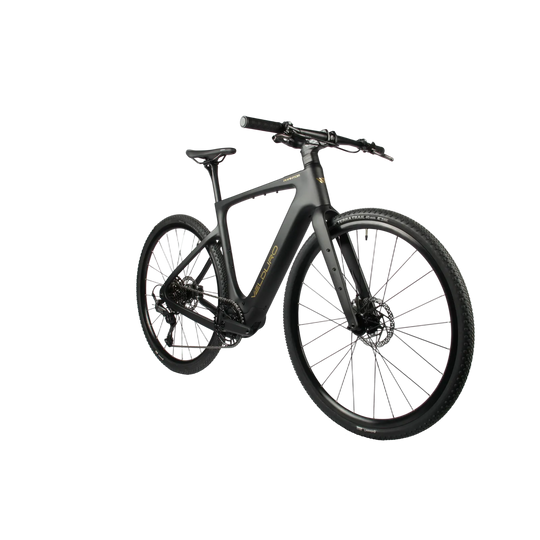

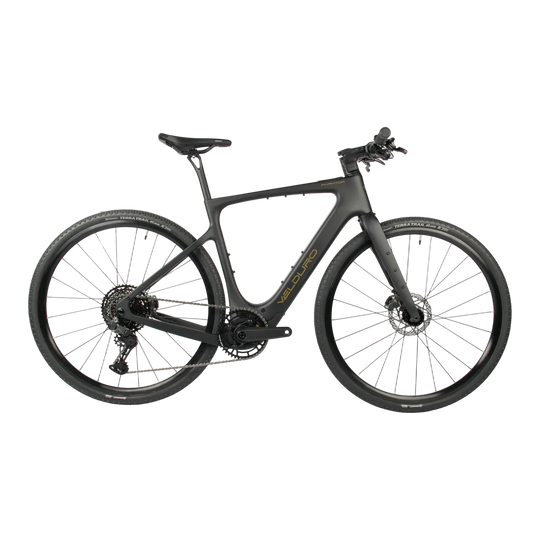

The Phantom S is the ultimate flat bar e-commuting and or adventure machine. Save on fuel and commute with the Phantom S With the same award-winning ultra-lightweight carbon frame as the Phantom X, this economically priced model is set to revolutionise your commute and weekend riding. Contact your local dealer to test ride today.
Frame I Saddle l Dropper l Cockpit
- Frame: Carbon fiber, gravel catagery, battery integrated, inner cable routing, 12X142mm, 8
mounting points, rack compatible - Fork: Carbon gravel fork, 6 mounting point 12X100mm , offset 50mm
- Headset: Token TK155SP Dia28.6, Alloy dia top& bottom 52mm
- Saddle: Fizik terra aidon X5
- Seatpost: Velduro carbon Dia27.2 380mm, BLK
- Handlebar: Velduro alloy MTB straight, Dia31.8, width:680mm, BLK
- Stem: Velduro Alloy road stem, BLK, S&M: 75mm, L&XL: 95mm Length
- Grips: Velduro MTB comfort BLK
Drive Train l Brakes l Cranks
- Brakes: Sram S300 hydraulic, two piston
Discs: Sram centerline, front 160mm, rear 160mm - Rear derailleur: Shimano Cues RD-U6000, 11-speed
- Cassette: Shimano Cues LG400-11S 11-45T
- Cranks: Avinox SL 165mm
- Spider: Avinox 104BCD spider
- Chainwheel: Velduro customised alloy 44T, 3mm inward
- Chain: Shimano LG500 linkglide BLK
Wheels l Tires
- Front hub: Velduro 2-bearings, BLK, 6-bolts, 13G*24H, 12x100mm
- Rear hub: Velduro 4-bearings, BLK, 6-bolts, 13G*24H, 12x142mm, HG freehub
- Rims: 700C, Velduro alloy, BLK, 13G*24H, 25mm inner width, 25mm depth, with hook
- Tires: Continental Terra Trail 700*45C BLK, with tube
*Your Phantom is tubeless-ready, but comes with a tube.
Avinox Drive System
- Motor: AVINOX M2 250W 120Nm, Boost to 125Nm, 1100W peak power
- Battery: AVINOX 36V 600Wh
- Charger: AVINOX 4A 168W
- Display: AVINOX DP100
| SM | MD | LG | XL | ||
| A | Eff. Seattube Length (mm) | 390 | 410 | 430 | 465 |
| B | Headtube Angle (°) | 63.5 | 63.5 | 63.5 | 63.5 |
| C | Eff. Toptube Length (mm) | 582 | 604 | 623 | 647.5 |
| D | Reach (mm) | 440 | 466 | 485 | 515 |
| E | Act. Seattube Angle (°) | 75.5 | 75.5 | 75.5 | 75.5 |
| F | Seattube Offset (mm) | 30 | 30 | 30 | 30 |
| G | Eff. Seattube Angle (°) | 78 | 78 | 78 | 78 |
| H | Chainstay Length (mm) | 440 | 440 | 440 | 440 |
| I | BB Drop at Rear Wheel (mm) | 10.5 | 10.5 | 10 | 10 |
| J | BB Drop at Front Wheel (mm) | 34 | 34 | 34 | 34 |
| K | Headtube Length (mm) | 110 | 110 | 120 | 125 |
| L | Axle to Crown (mm) | 584 | 584 | 584 | 584 |
| M | Fork Offset (mm) | 44 | 44 | 44 | 44 |
| N | Trail (mm) | 140 | 140 | 140 | 140 |
| O | Stack (mm) | 634 | 634 | 643.5 | 648 |
| P | Wheelbase (mm) | 1229 | 1255 | 1276 | 1311 |
| Q | BB Height (mm) | 343.5 | 343.5 | 344 | 344 |
| Recommended Height (CM) | 160-172 | 172-182 | 180-188 | 185-195 | |
