LONG DISTANCE MIXED SURFACE COMMUTING
GRAVEL RIDING
ADVENTURE ON AND OFF-ROAD RIDING

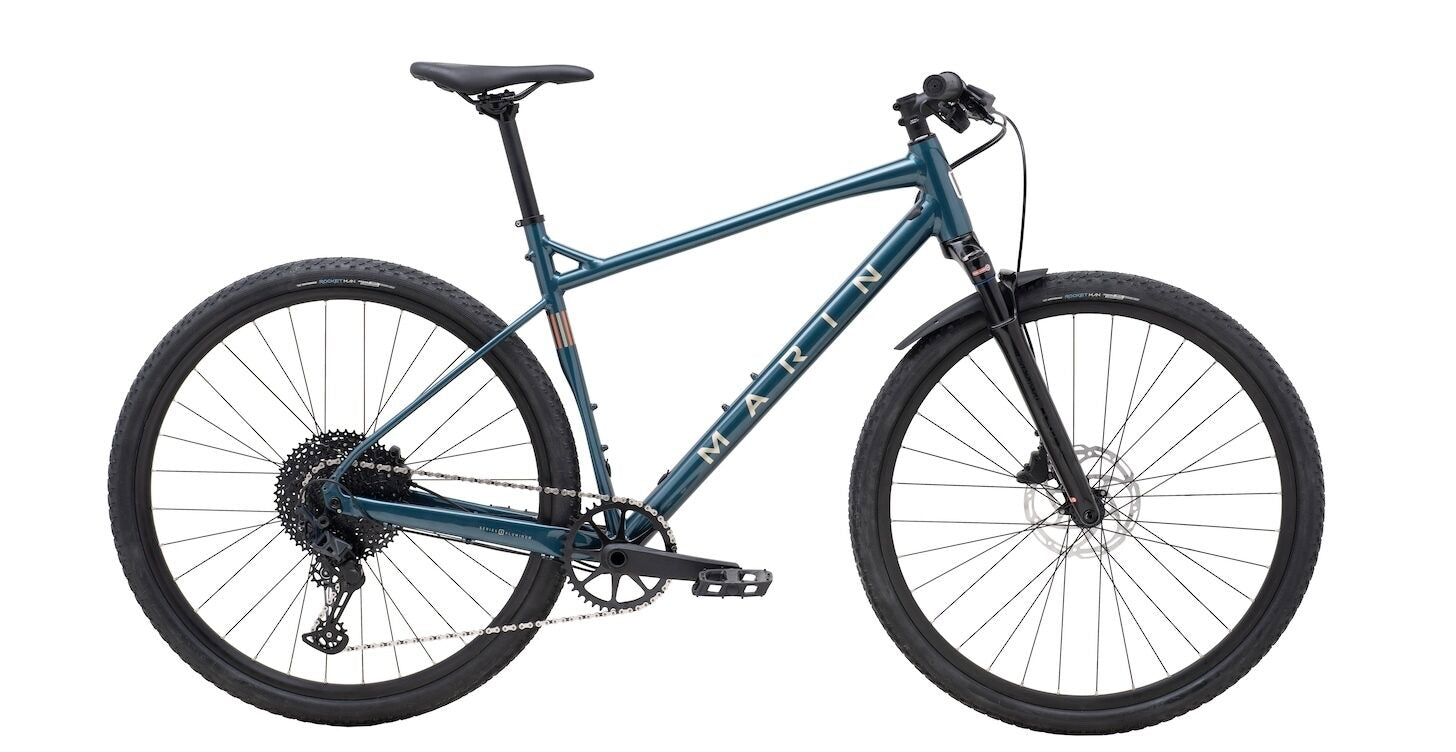

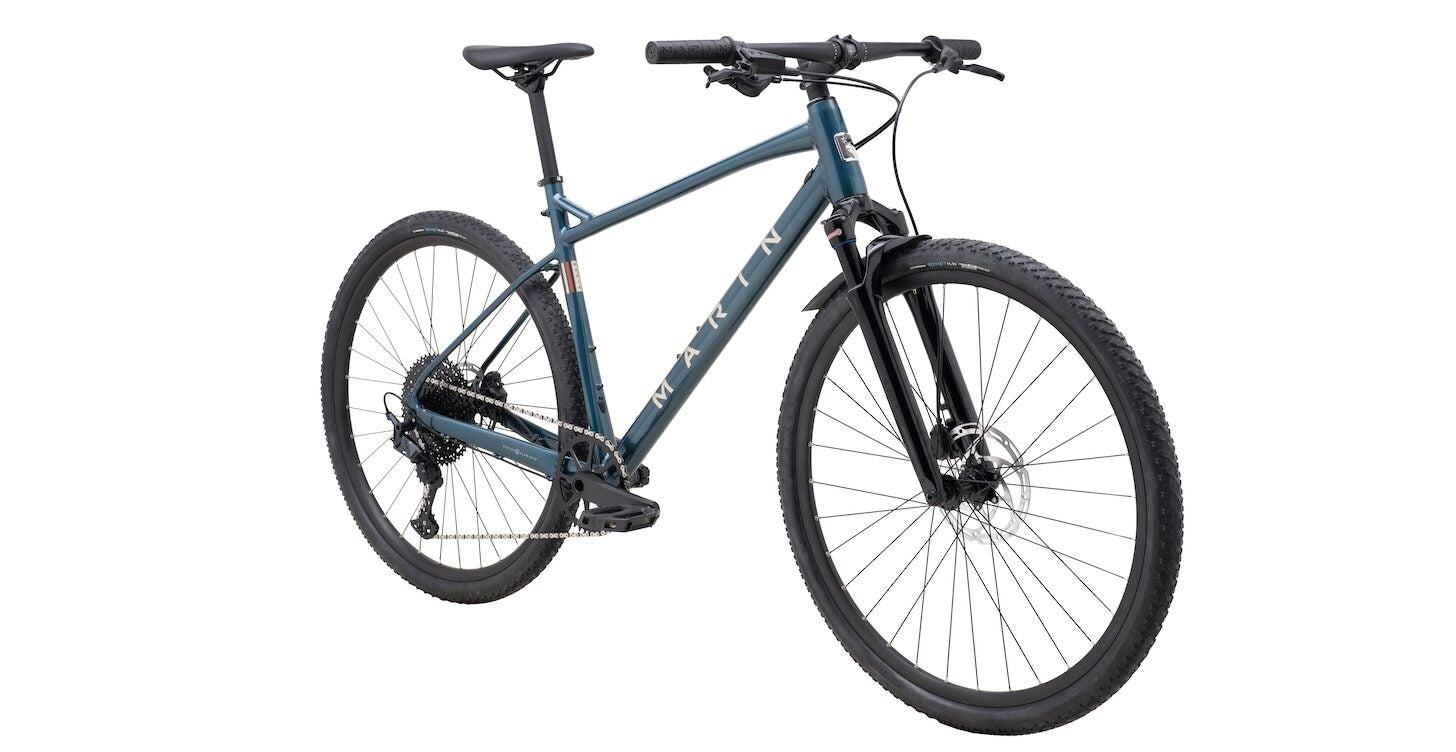

Is it a gravel bike? Is it a mountain bike? We’ve got no idea - we just know that it’s a whole mountain of fun. The Marin DSX FS breaks the gravel bike mold even further by adding a 60mm SR/Suntour front suspension fork for hard-charging, off-road adventures. There’s also a 12-speed 1X Shimano SLX drivetrain, Vee Tire Co tires, Shimano hydraulic brakes and plenty of reliable Marin components.
| FRAME | Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
| FORK | SR/Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts |
| RIMS | Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible |
| HUB, REAR | Forged Aluminum, 142x12mm, Disc Specific, 32H |
| HUB, FRONT | Forged Aluminum, 100x12mm, Disc, 32H |
| SPOKE, NIPPLES | 14g Black Stainless Steel |
| TIRES | Vee Tire Co. Rocket Man, 700Cx44mm |
| DERAILLEUR, REAR | Shimano SLX, RD7100, 12-Speed |
| DERAILLEUR, FRONT | - |
| SHIFT LEVER | Shimano Deore, SLM6100, 12-Speed |
| CRANKSET | Forged Aluminum, 42T Steel Narrow Wide Chainring |
| BOTTOM BRACKET | Sealed Outboard Bearing |
| CHAIN | KMC X12 |
| CASSETTE | SunRace, 12-Speed, 11-51T |
| BRAKE, FRONT | Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor |
| BRAKE, REAR | Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor |
| BRAKE LEVERS | Tektro Hydraulic |
| HANDLEBAR | Marin Mini Riser |
| STEM | Marin 3D Forged Alloy |
| GRIPS | Marin MTB |
| HEADSET | FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| SEATPOST | Marin Alloy |
| SADDLE | Marin DSX |
| PEDALS | Nylon Platform |
| EXTRAS | Bolt-On Thru-Axles F and R |
| SM | MD | LG | XL | |
| Stack | 583.2 | 601.8 | 629.7 | 657.6 |
| Reach | 400 | 425 | 440 | 455 |
| Headtube Angle | 68.5° | 68.5° | 68.5° | 68.5° |
| Headtube Length | 100 | 120 | 150 | 180 |
| Seattube Angle | 74° | 74° | 74° | 74° |
| Seattube Length | 430 | 480 | 520 | 558 |
| Toptube Effective | 567.23 | 597.6 | 620.6 | 643.6 |
| BB Height | 277.5 | 277.5 | 277.5 | 277.5 |
| BB Drop | 82 | 82 | 82 | 82 |
| Chainstay | 425 | 425 | 425 | 425 |
| Wheelbase | 1065 | 1097.3 | 1123.3 | 1149.3 |
| Standover Height | 667 | 708 | 738 | 761 |
| Fork Offset | 47 | 47 | 47 | 47 |
| Seatpost Diameter | 27.2 | 27.2 | 27.2 | 27.2 |
| Handlebar Width | 680 | 680 | 680 | 700 |
| Stem Length | 70 | 70 | 70 | 70 |
| Crank Length | 170 | 175 | 175 | 175 |
