Feel the Rifty Love! Our take on the ultimate do-it-all trail bike, the Marin Rift Zone is made to party, whatever your jam might be. Your ideal partner for everything from all-day epics, to local shred laps to big mountain adventures, the Rifty is Made For Fun.
The Rift Zone 29 brings together trail-taming 29" wheels, 130mm of rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails.

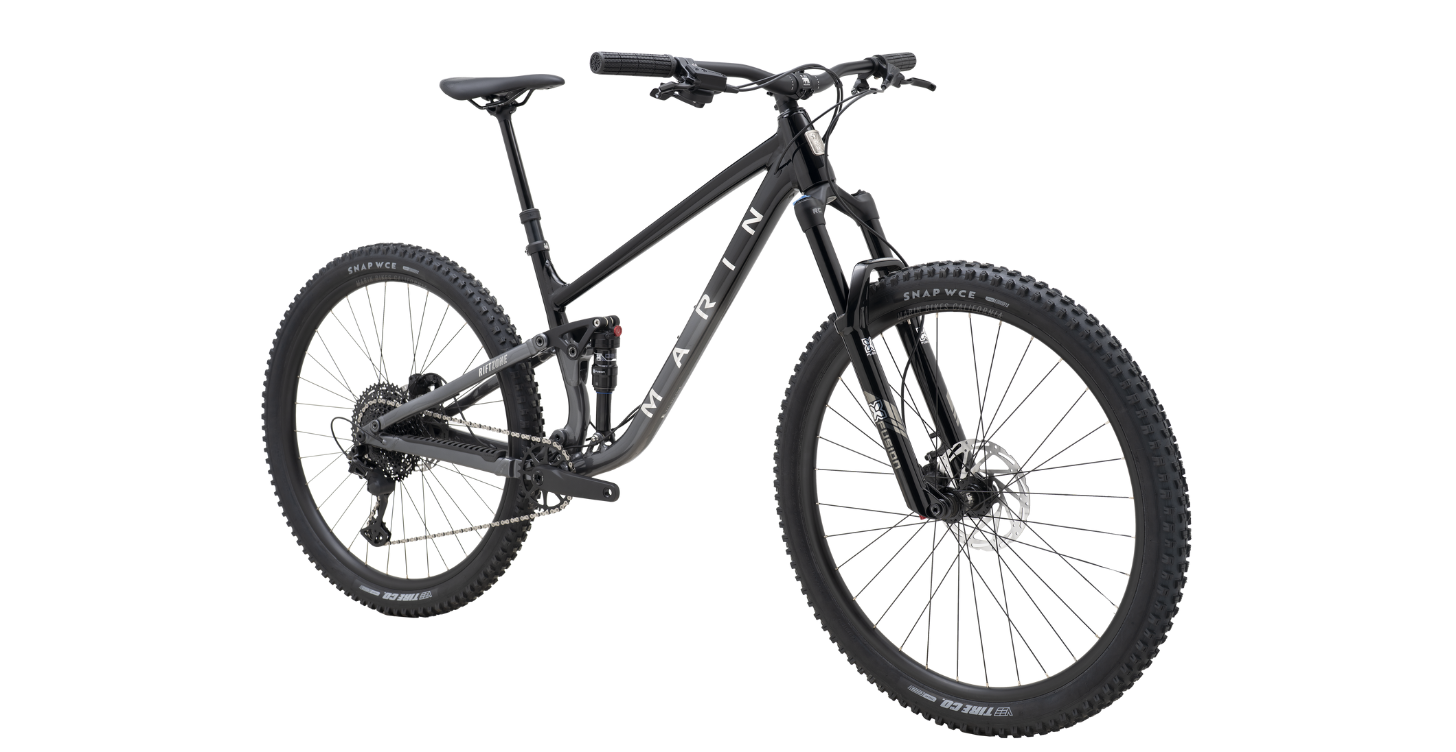

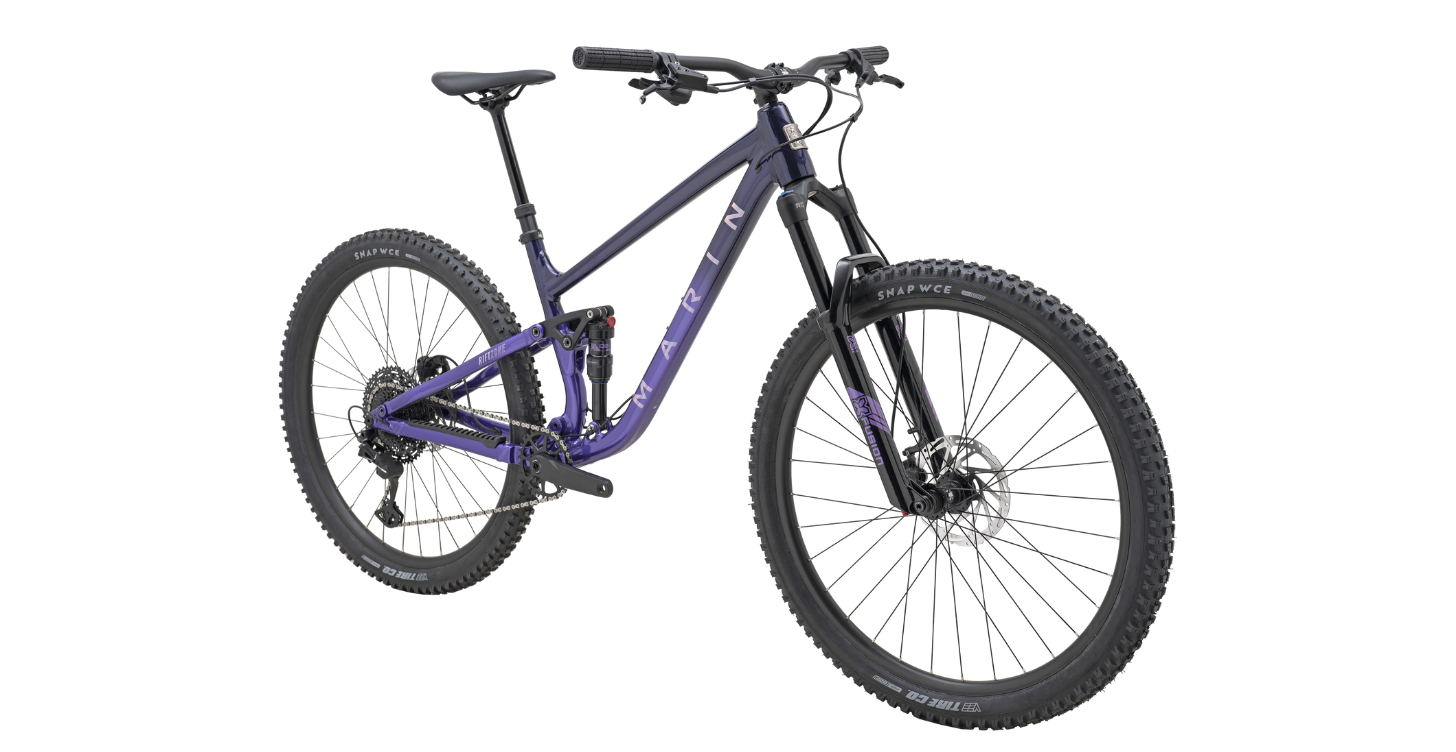

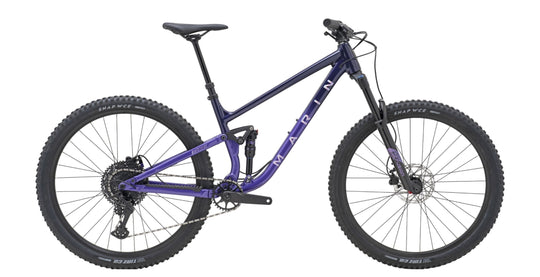

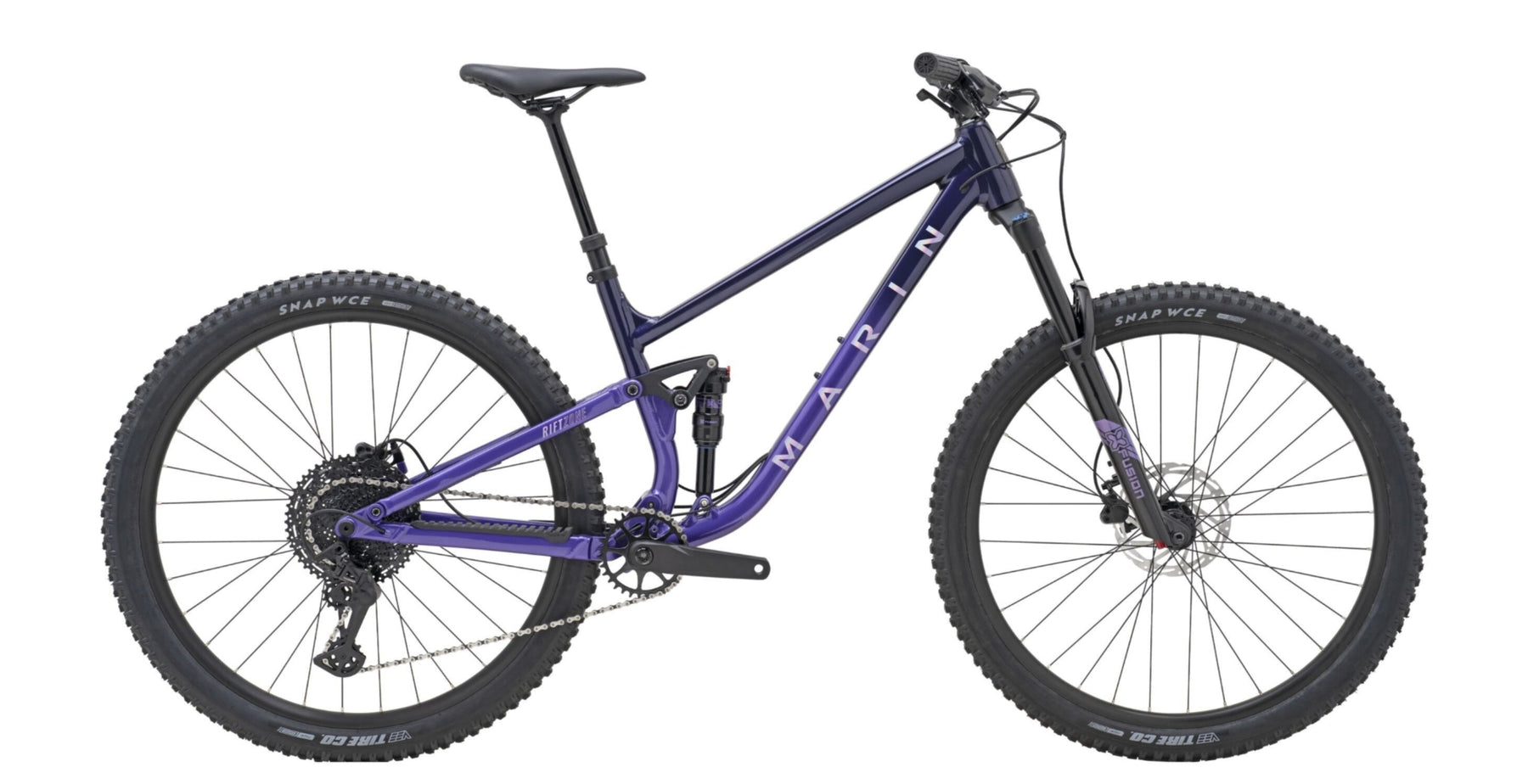

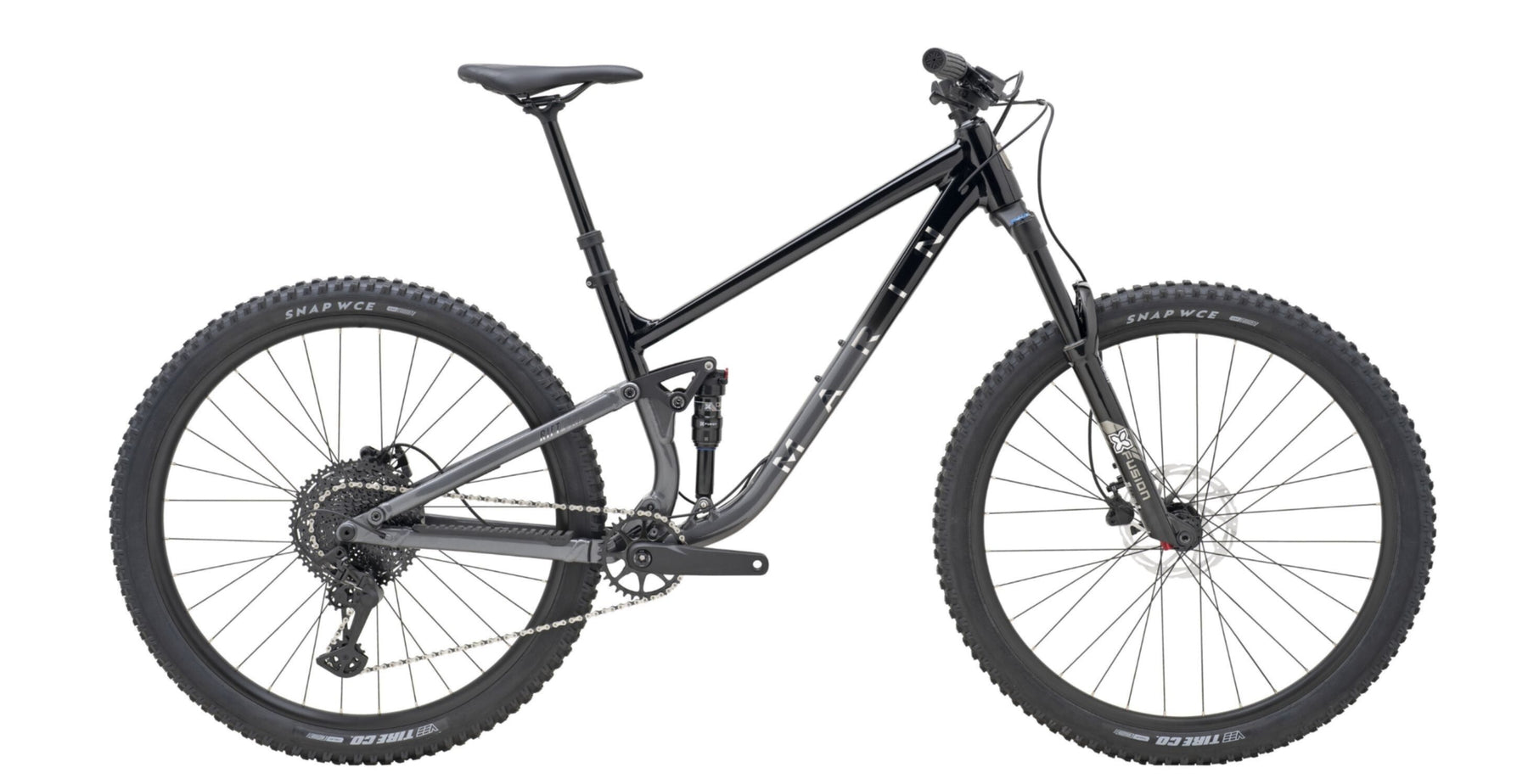

The Marin Rift Zone 29 1 is your gateway to the Rifty family, made to push the limits of your riding but not your bank balance. It's built with super reliable X-Fusion suspension, grippy Vee Crown Gem tires, plenty of Shimano and a hand-picked selection of our favorite Marin components.
| FRAME | Series 3 6061 Aluminum, 27.5 or 29" Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs |
| FRONT SUSPENSION | X-Fusion Slide (29) or Sweep(27.5) Boost RC, 140mm Travel, Compression and Rebound Adjustment, 44mm Offset |
| REAR SUSPENSION | X-Fusion O2 Pro R, Custom Tune, 210x55mm, M8x25mm Hardware Top and Bottom |
| RIM | Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible |
| HUB REAR | Joytech D142TSE-B5, 141QR, 6-Bolt |
| HUB FRONT | Joytech D041-B15, 110x15mm, 6-Bolt |
| SPOKES | 14g Black Stainless Steel |
| TIRES | Vee Tire Snap WCE 2.35", Top 40 Compound, GXE Core, 90 TPI, Tubeless compatible |
| DERAILLEUR REAR | Shimano CUES 11-Speed |
| DERAILLEUR FRONT | - |
| SHIFT LEVER | Shimano CUES 11-Speed |
| CRANKSET | Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, 170mm Crank Length, Boost Spacing |
| BOTTOM BRACKET | External Sealed Cartridge Bearing |
| CHAIN | KMC LG |
| CASSETTE | Shimano CUES, 11-Speed, CS-LG400-11, 11-50T |
| BRAKES FRONT | Tektro HD-M280 Hydraulic Disc, 180mm Rotor |
| BRAKES REAR | Tektro HD-M280 Hydraulic Disc, 180mm Rotor |
| BRAKE LEVERS | Tektro HD-M280 |
| HANDLEBAR | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5ş Up, 9ş Back |
| STEM | Marin 3D Forged Alloy, 35mm |
| GRIPS | Marin MTN, Closed End |
| HEADSET | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| SEATPOST | X-Fusion Manic, 1x Composite Remote, Size XS-S 150mm Travel, Size M-XL 170mm Travel, 30.9mm |
| SADDLE | Marin Speed Concept |
| PEDALS | - |
| EXTRAS | Closed 9-12 Thru-Axle Bolt On System |
| XS | SM | MD (27.5) | MD (29 | LG | XL | |
| Stack | 569.1 | 600.7 | 605.2 | 637.3 | 637.3 | 641.8 |
| Reach | 415 | 430 | 450 | 460 | 485 | 515 |
| Headtube Angle | 65.5° | 65.5° | 65.5° | 65.5° | 65.5° | 65.5° |
| Headtube Length | 115 | 120 | 125 | 115 | 125 | 130 |
| Seattube Angle | 77° | 77° | 77° | 77° | 77° | 77° |
| Seattube Length | 330 | 390 | 400 | 400 | 425 | 430 |
| Toptube Effective | 552.6 | 568.7 | 589.7 | 605 | 632.1 | 663.2 |
| BB Height | 339 | 339 | 339 | 343 | 343 | 343 |
| BB Drop | 35 | 35 | 35 | 35 | 35 | 35 |
| Chainstay | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbase | 1147.8 | 1164.8 | 1186.9 | 1205.1 | 1234.4 | 1266.3 |
| Standover Height | 661.7 | 677.8 | 687.8 | 691.2 | 701.7 | 700.5 |
| Fork Offset | 44 | 44 | 44 | 44 | 44 | 44 |
| Seatpost Diameter | 30.9 | 30.9 | 30.9 | 30.9 | 30.9 | 30.9 |
| Handlebar Width | 780 | 780 | 780 | 780 | 780 | 780 |
| Stem Length | 35 | 35 | 35 | 35 | 35 | 35 |
| Crank Length | 170 | 170 | 170 | 170 | 170 | 170 |
