FAST PACED, EPIC RIDES
PUSHING THE ENVELOPE UP AND DOWN THE TRAIL
CHASING PERSONAL RECORDS

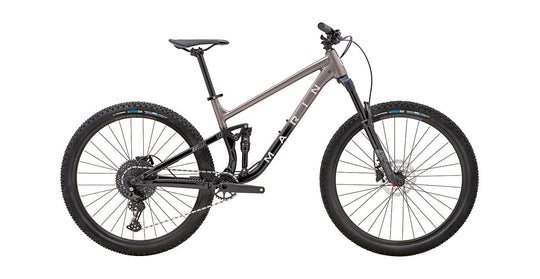

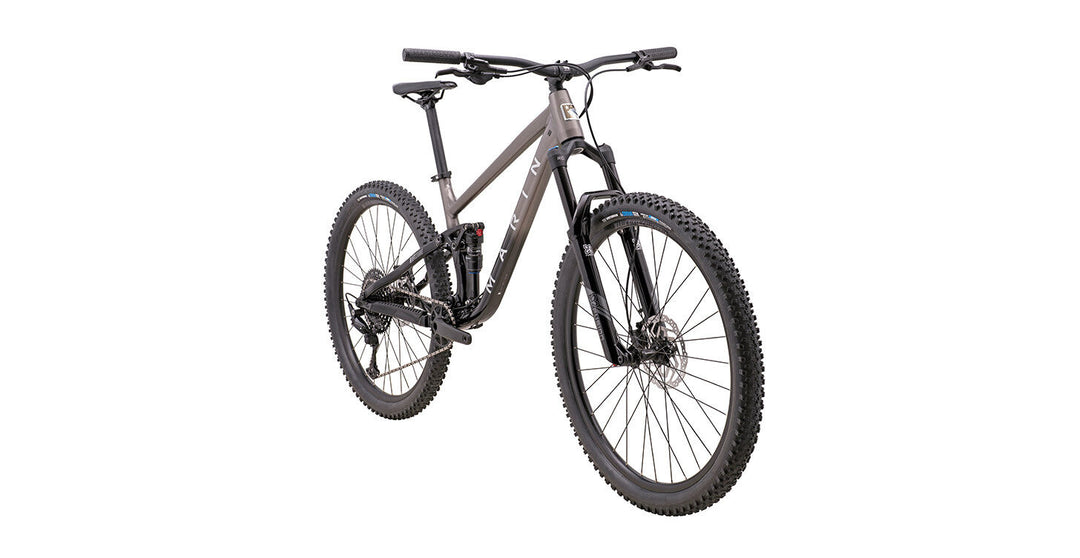

The Rift Zone is Marin's most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29” wheels in a trail capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.
-
FRAME
All New Series 3 6061 Aluminum Frame, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs
-
FORK
X-Fusion Slide Boost RC, 29", 140mm Travel, Compression and Rebound Adjustment, 44mm Offset
-
SHOCK
X-Fusion O2 Pro R, Custom Tune, 210x55mm, M8x25mm Hardware Top and Bottom
-
RIMS
Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
-
HUB REAR
Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body
-
HUB FRONT
Shimano HF-MT400B, 110x15mm, Centerlock
-
SPOKES
14g Black Stainless Steel
-
TIRES
Vee Tire Crown Gem 29x2.35", Dual Control Compound, Tubeless Ready
-
DERAILLEUR REAR
Shimano Deore, 11-Speed, SGS
-
DERAILLEUR FRONT
-
-
SHIFT LEVER
Shimano Deore, 11-Speed, SL-5100R
-
CRANKSET
Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
-
BOTTOM BRACKET
External Sealed Cartridge Bearing
-
CHAIN
KMC X-11 Silver and Black
-
CASSETTE
Sunrace, 11-Speed, 11-51T, ED Black
-
BRAKES FRONT
Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
-
BRAKES REAR
Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
-
BRAKE LEVERS
Shimano BL-MT201
-
HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
-
STEM
Marin 3D Forged Alloy, 35mm
-
GRIPS
Marin MTN, Closed End
-
HEADSET
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
-
SEATPOST
Marin Alloy, 30.9mm
-
SADDLE
Marin Speed Concept
-
PEDALS
-
-
EXTRAS
Closed 9-12 Thru-Axle QR System
| Size | S | M | L | XL |
|---|---|---|---|---|
| STACK | 623.6 | 628.2 | 637.3 | 641.8 |
| REACH | 435 | 460 | 485 | 515 |
| HEADTUBE ANGLE | 65.5° | 65.5° | 65.5° | 65.5° |
| HEADTUBE LENGTH | 110 | 115 | 125 | 130 |
| SEATTUBE ANGLE | 77° | 77° | 77° | 77° |
| SEATTUBE LENGTH | 390 | 400 | 425 | 430 |
| TOPTUBE EFFECTIVE | 579 | 605 | 632.1 | 663.2 |
| BB HEIGHT | 343 | 343 | 343 | 343 |
| BB DROP | 35 | 35 | 35 | 35 |
| CHAINSTAY | 430 | 430 | 430 | 430 |
| WHEELBASE | 1170 | 1205.1 | 1234.4 | 1266.3 |
| STANDOVER HEIGHT | 690.2 | 691.2 | 701.7 | 700.5 |
| FORK OFFSET | 44 | 44 | 44 | 44 |
| SEATPOST DIAMETER | 30.9 | 30.9 | 30.9 | 30.9 |
| HANDLEBAR WIDTH | 780 | 780 | 780 | 780 |
| STEM LENGTH | 35 | 35 | 35 | 35 |
| CRANK LENGTH | 170 | 170 | 170 | 170 |
