Regular price$5,999.00
/
Tax included.

Big all-mountain days where travel and geometry matter most

Built for abuse and rowdy riding

Enduro-style  riding and racing

Big bike, big wheels, big fun

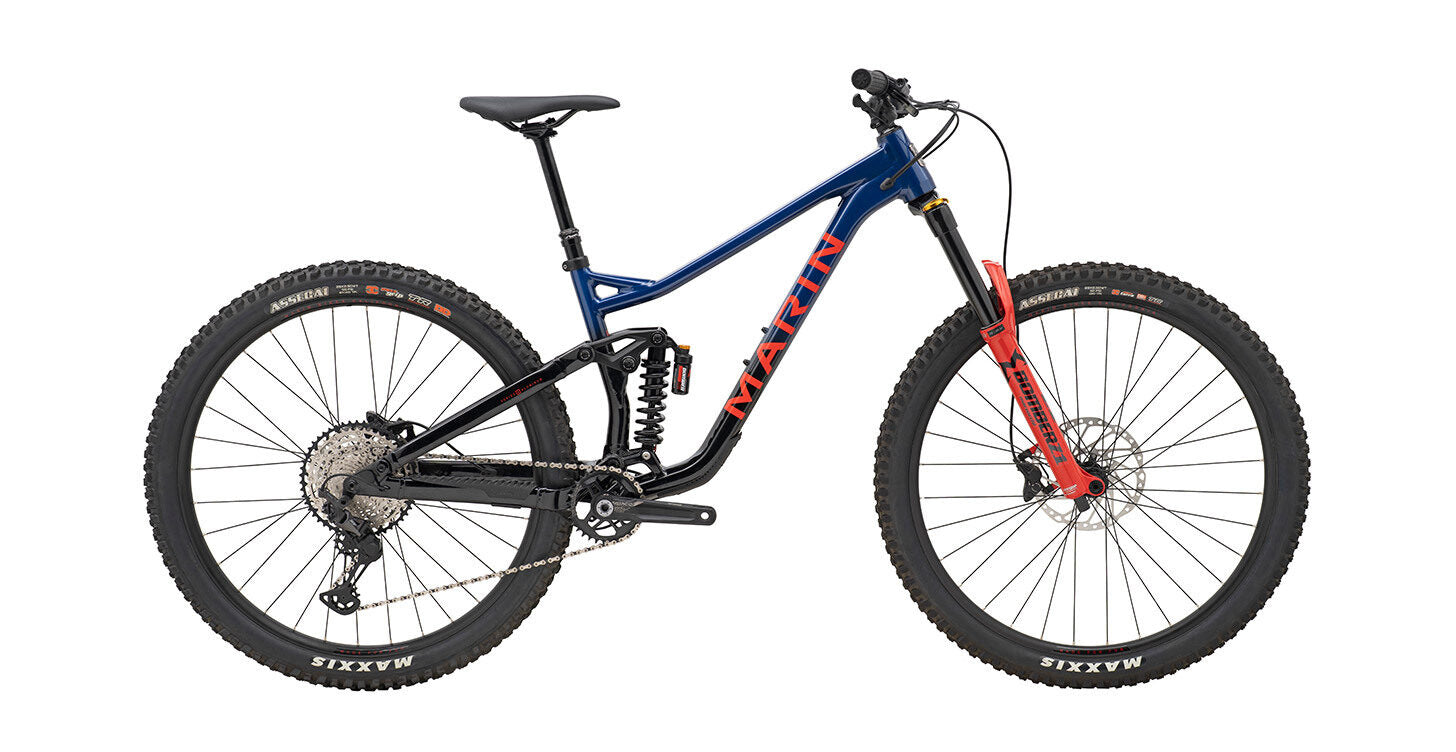

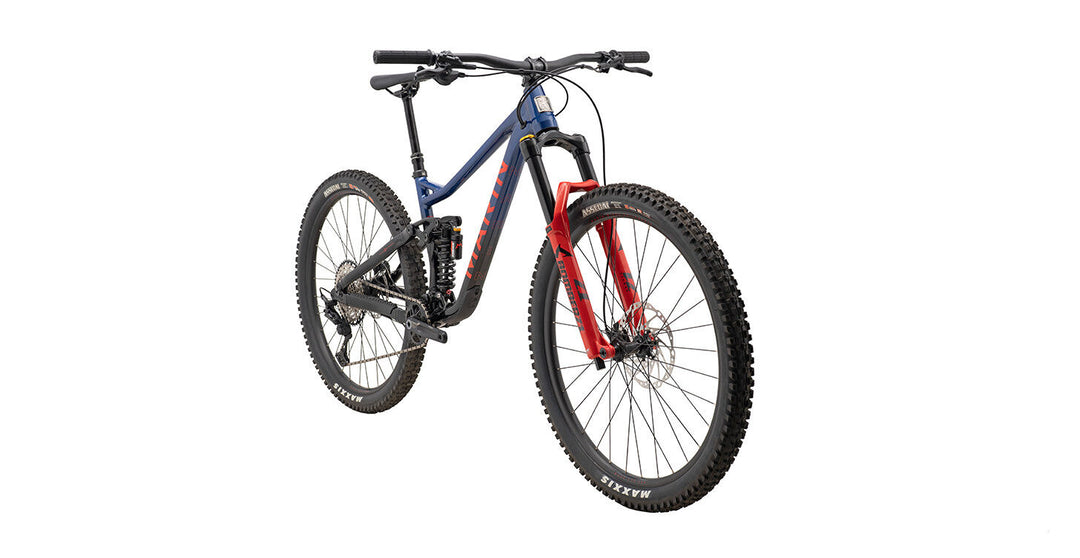

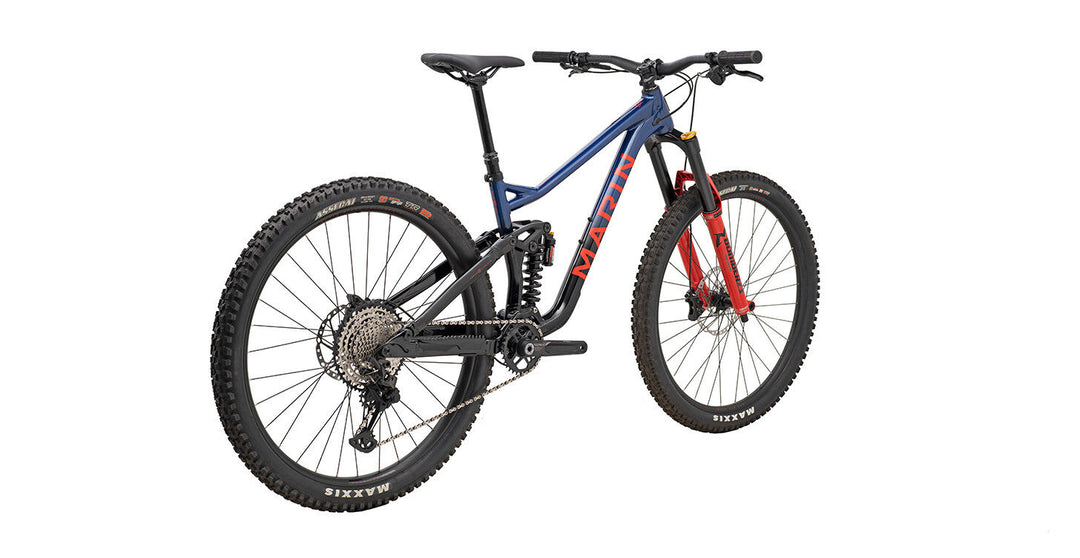

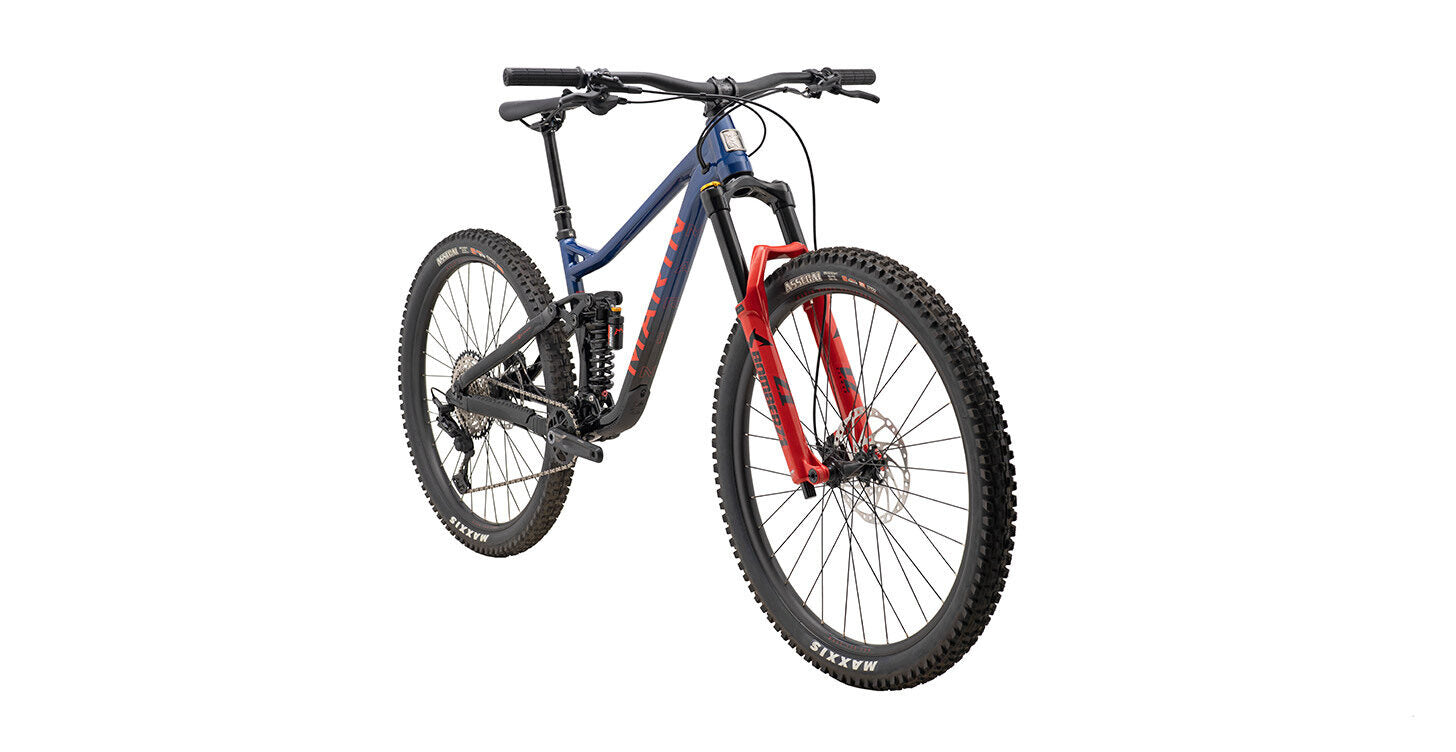

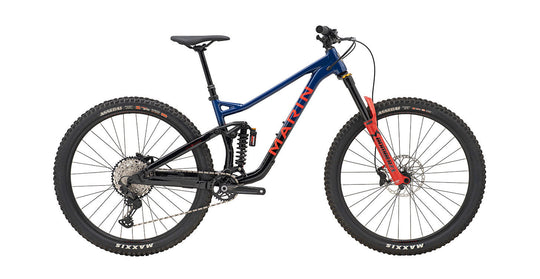

The Alpine Trail is a 29” wheeled full suspension bike built for the all day enduro rider that earns their downhill fun.

Key upgrades from Alpine Trail 7:

  • Marzocchi Z1 Coil/Marzocchi CR Coil suspension
  • Shimano SLX/XT drivetrain
  • TRP Slate EVO 4-piston hydraulic disc brakes
  • FSA Gradient crankset

FRAME

Series 4 6061 Aluminum, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs

FRONT SUSPENSION

Marzocchi Z1 Coil, 160mm Travel, Sweep Adjust Damper, Rebound Adjustment, Black Stanchions, 110x15 Kabolt, 44mm Offset, Medium spring rate

REAR SUSPENSION

Marzocchi CR Coil, Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, M8x25mm Lower Mount, S/M 350lb Spring, L/XL 450lb Spring

RIMS

Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible

HUB, REAR

Forged Aluminum, 148x12mm, Disc, Microspline Freehub Body

HUB, FRONT

Forged Aluminum, 110x15mm, Disc

SPOKE, NIPPLES

14g Black Stainless Steel

TIRES

Maxxis Assegai 29x2.5", MAXX TERRA, EXO+, Tubeless Compatible

DERAILLEUR, REAR

Shimano XT 12-Speed, SGS

DERAILLEUR, FRONT

SHIFT LEVER

Shimano SLX 12-Speed, SL-7100

CRANKSET

FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mega Eco Spindle, Boost Spacing

BOTTOM BRACKET

MegaEvo BB, 73mm BSA Threaded

CHAIN

KMC X-12 Silver and Black

CASSETTE

Shimano SLX M7100 Cassette, 12-Speed, 10-51T

BRAKE, FRONT

Shimano BR-MT420, 4-Piston Hydraulic Disc, 203mm Rotor

BRAKE, REAR

Shimano BR-MT420, 4-Piston Hydraulic Disc, 180mm Rotor

BRAKE LEVERS

Shimano BL-M4100, I-Spec EV Compatible

HANDLEBAR

Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

STEM

Marin CNC, 35mm Length, 35mm Bar Bore

GRIPS

Marin Grizzy Lock On

HEADSET

FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

SEATPOST

X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm

SADDLE

Marin Speed Concept

PEDALS

EXTRAS

Bolt-On Thru-Axle

EXTRAS

SM MD LG XL
STACK 619 628 632 643
REACH 430 455 480 515
HEADTUBE ANGLE 63.5° 63.5° 63.5° 63.5°
HEADTUBE LENGTH 100 110 115 130
SEATTUBE ANGLE 78° 78° 78° 78°
SEATTUBE LENGTH 390 400 425 430
TOPTUBE EFFECTIVE 561.7 589 615 652
BB HEIGHT 342 342 342 342
BB DROP 35 35 35 35
CHAINSTAY 430 430 430 430
WHEELBASE 1199 1229 1256 1297
STANDOVER HEIGHT 714 716 732 734
FORK OFFSET 44 44 44 44
SEATPOST DIAMETER 30.9 30.9 30.9 30.9
HANDLEBAR WIDTH 780 780 780 780
STEM LENGTH 50 50 50 50
CRANK LENGTH 170 170 170 170

Alpine Trail XR Geometry
