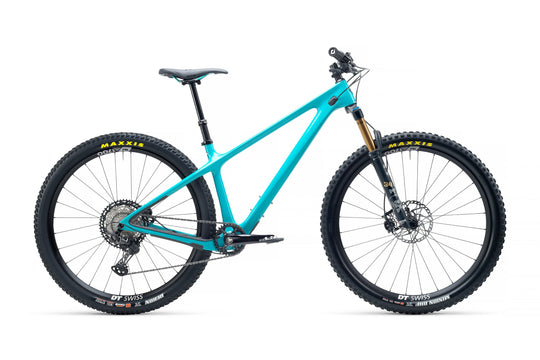

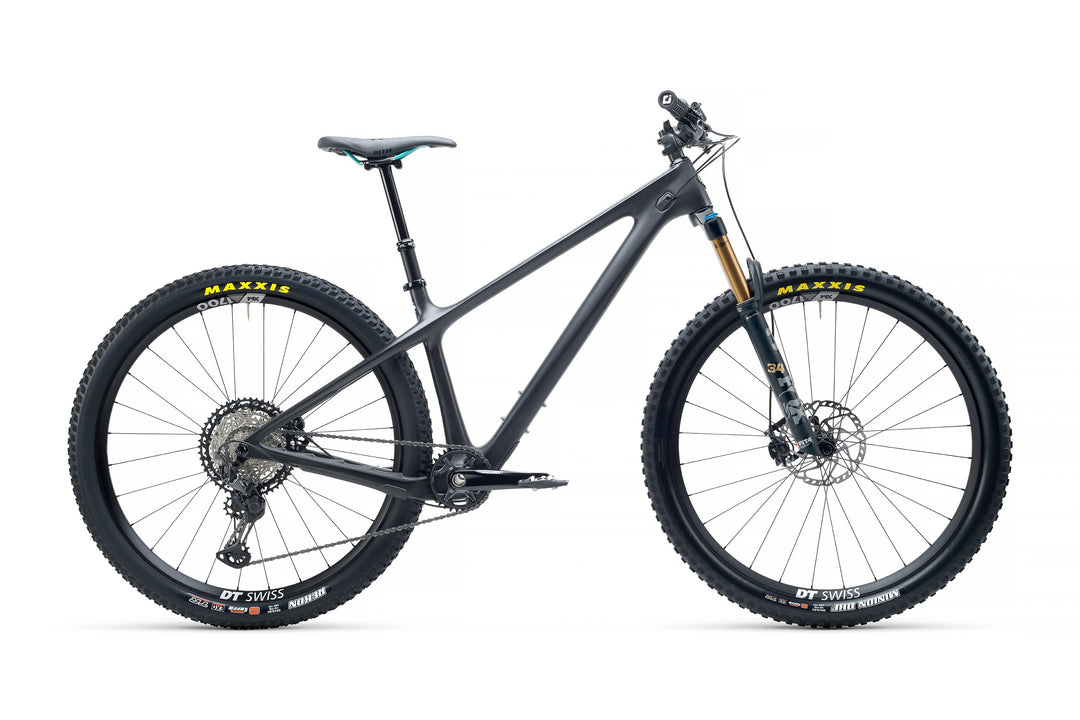

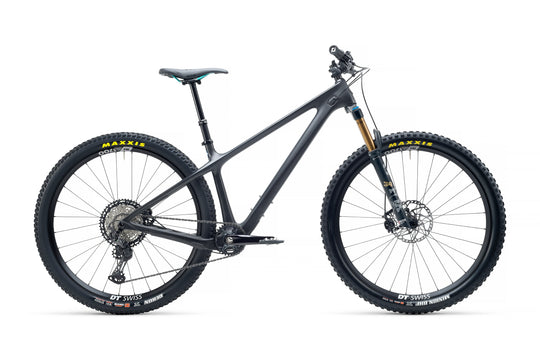

ARC T1 2022
ARC T1 2022
ARC T1 2022

ARC T1 2022

Regular price $10,280.00 //
/

The ARC is back. Conjuring up all the nostalgia, hoots and hollars from yesteryear. It’s your instant-feedback steed for any trail. Show it your singletrack, pump track and your bikepack route too. It’s got history to live up to and new history to make. And it’s already impatient.

Fork - Fox Factory 34 Fit4/130mm

Shock - N/A

Wheelset - Wheelworks Dial Hub 6 Bolt, Dt Swiss Xm481 Rims, Db Spokes

Rear Der - Shimano Xt

Shift - Shimano Xt

Crank - Shimano Xt 30t 170mm

BB - Shimano Xt Bb92

Cassette - Shimano Xt 10-51

Chain - Shimano Xt

Brakes - Shimano Xt 4 Piston

Rotor - Shimano 180/180

Post - Fox Transfer 31.6

Tire (F) - Maxxis Minion Dhf 2.5 Exo

Tire (R) - Maxxis Aggressor 2.3 Exo

Headset - Cane Creek 40 Integrated

Bar - Yeti Carbon 35x780mm

Stem - Burgtec Enduro Mk3 35x50mm

Grips -  Odi Elite Pro

Saddle - Silverado Custom







Yeti ARC Geometry NZ

SM MD LG XL
A WHEEL SIZE 29.0 29.0 29.0 29.0
B REACH 16.5 17.5 18.3 19.3
C EFFECTIVE TOP TUBE LENGTH 22.7 23.8 24.6 25.7
D STACK 24.9 25.2 25.4 25.8
E HEADTUBE LENGTH 3.7 4.1 4.3 4.7
F SEAT TUBE LENGTH 15.0 16.1 17.7 19.5
G EFF. SEAT TUBE ANGLE 76.0 76.0 76.0 76.0
H HEADTUBE ANGLE 67.0 67.0 67.0 67.0
I ESTIMATED BB HEIGHT 12.2 12.2 12.2 12.2
J CHAINSTAY LENGTH 17.0 17.0 17.0 17.0
K FRONT CENTER 28.0 29.1 30.0 31.1
L WHEELBASE 45.0 46.1 47.0 48.2
M STANDOVER 28.5 28.4 28.3 28.3
N AXLE TO CROWN 21.4 21.4 21.4 21.4
O OFFSET 1.7 1.7 1.7 1.7
P VERTICAL FORK TRAVEL 4.7 4.7 4.7 4.7

 Yeti ARC Size Chart NZ
